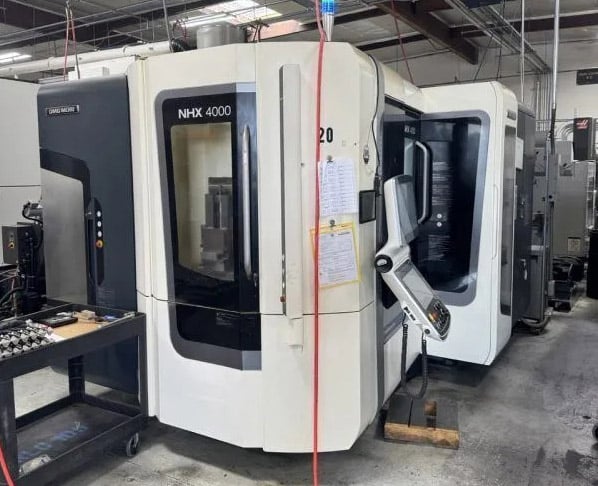

DMG Mori Seiki #NHX4000, CNC Horizontal Machining Center, 22" X, 22" Y, 26" Z, 50 HP, 15000 RPM, 60 automatic tool changer, 2 pallets, Fanuc 31iB CNC, 2019

2019 DMG MORI NHX4000

SPECIFICATIONS:
PALLET SIZE – L 15.7″
PALLET SIZE – W 15.7″
NUMBER OF PALLETS 2
PALLET WEIGHT CAPACITY 882 lb
PALLET SURFACE TO SPINDLE CENTER 3.1″ ~ 25.2″
PALLET CENTER TO SPINDLE GAGE LINE 2.8″ ~ 28.7″
WORKPIECE DIMENSIONS 24.8″ x 35.4″
X – AXISTRAVEL 22″
Y – AXIS TRAVEL 22″
Z – AXIS TRAVEL 26″
B – AXIS TRAVEL .001
RAPID TRAVERSE RATE – X 2,362 in/min.
RAPID TRAVERSE RATE – Y 2362 ipm
RAPID TRAVERSE RATE – Z 2362 ipm
CUTTING FEED RATE 2,362 in/sec.
SPINDLE SPEED 15,000 RPM
SPINDLE TAPER 4
MAIN MOTOR 50 hp
AUTOMATIC TOOL CHANGER 60
TOOL DIAMETER 2.7″, 5.5″
TOOL LENGTH 17.7″
TOOL WEIGHT 26.4 lb
TOOL CHANGE TIME 2.5 sec.
MACHINE WEIGHT 18,720 lb

EQUIPPED WITH:
FANUC 31 IB CNC COLOR CONTROL
CELOS ERGOLINE TOUCH SCREEN WITH MAPPS V CNC CONTROL
ETHERNET & USB PORT
FULL 4TH AXIS
CHIP CONVEYOR
AVAILABLE MANUALS
DIRECT SCALE FEEDBACK X, Y, Z AXIS
SPINDLE CHILLER
TOOL PRESETTER
COORDINATE ROTAION AND SCALING
HIGH SPEED SKIP
4 COLOR SIGNAL LAMP
