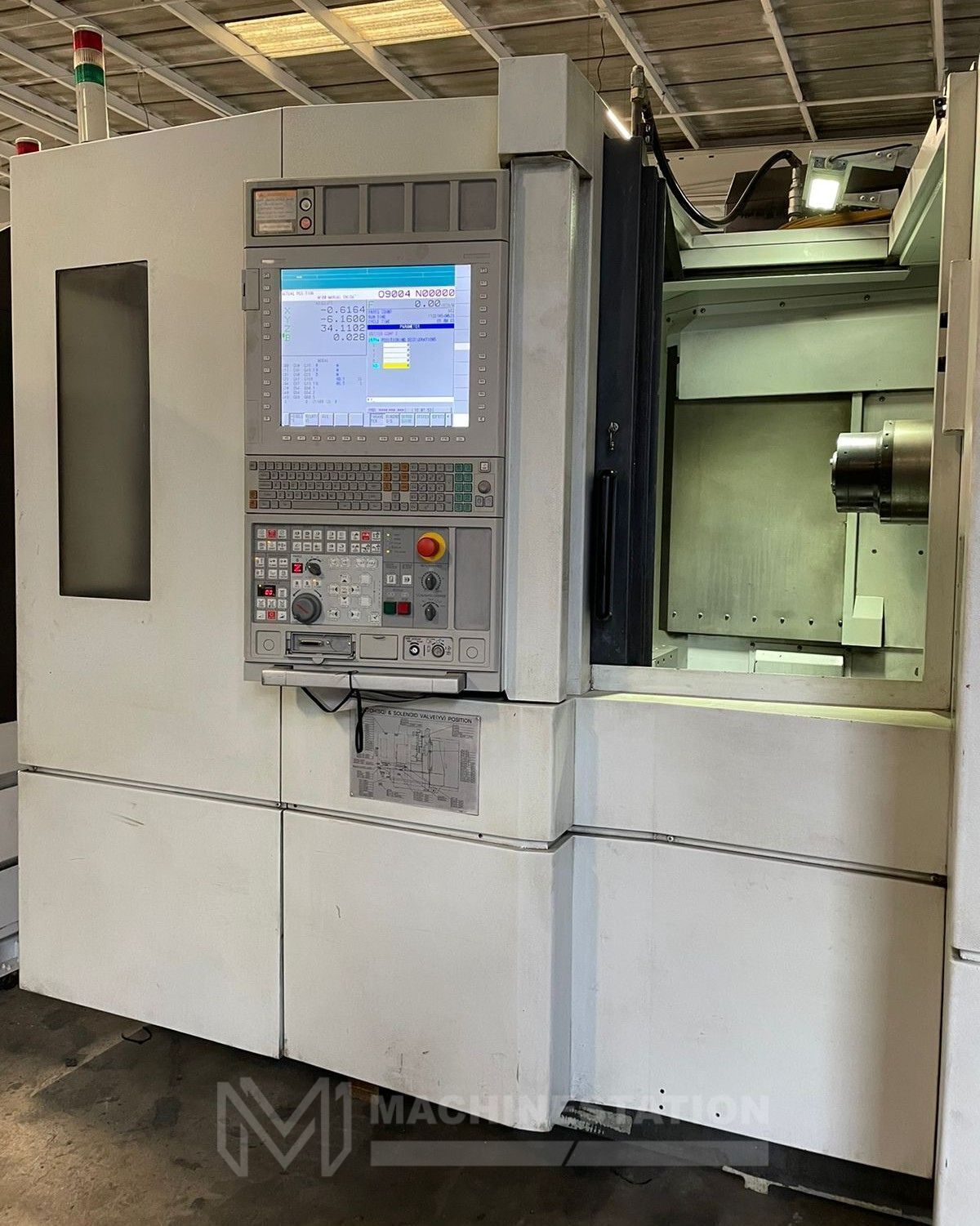

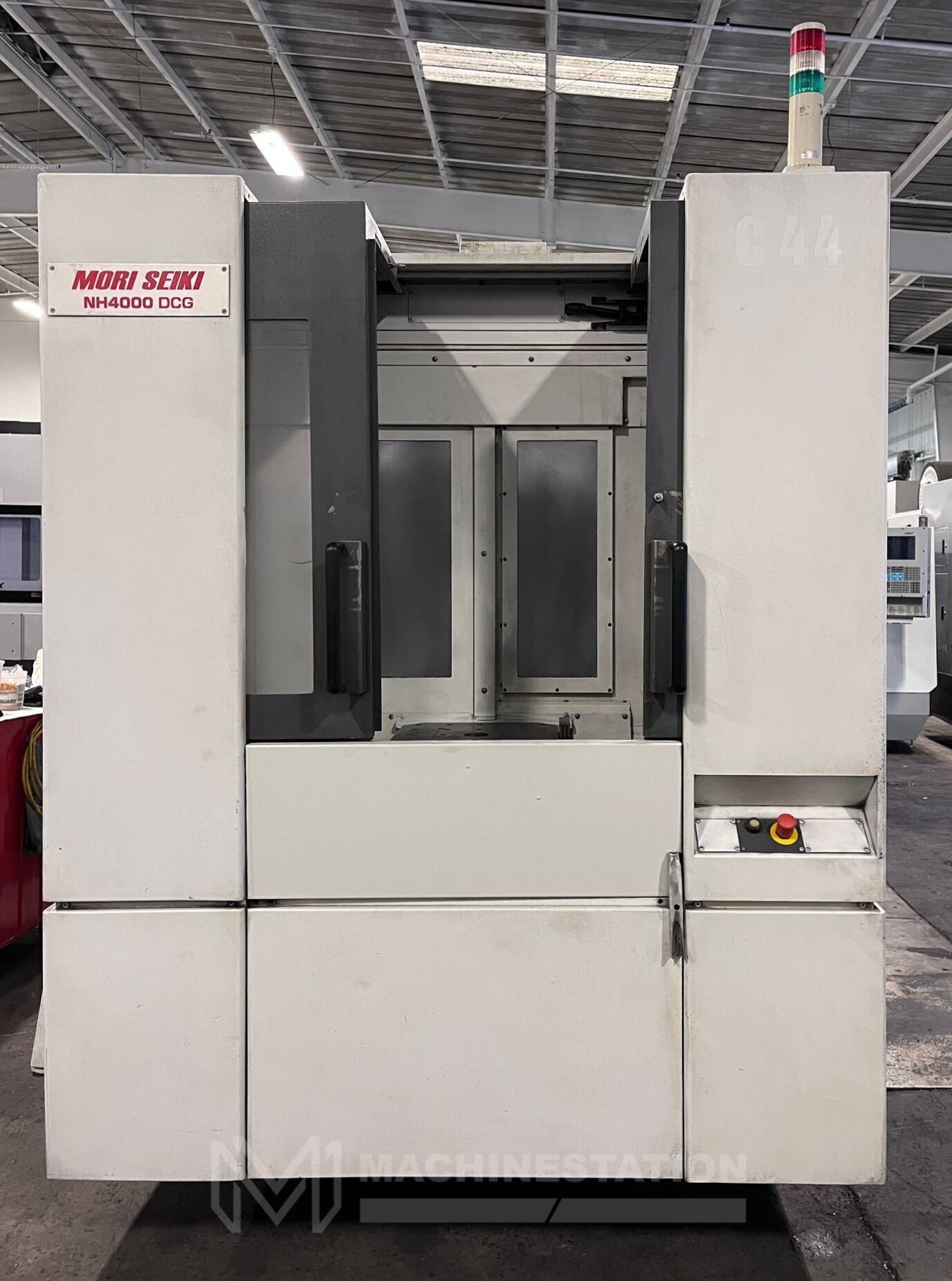

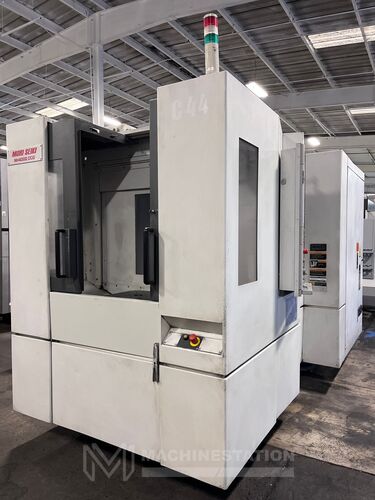

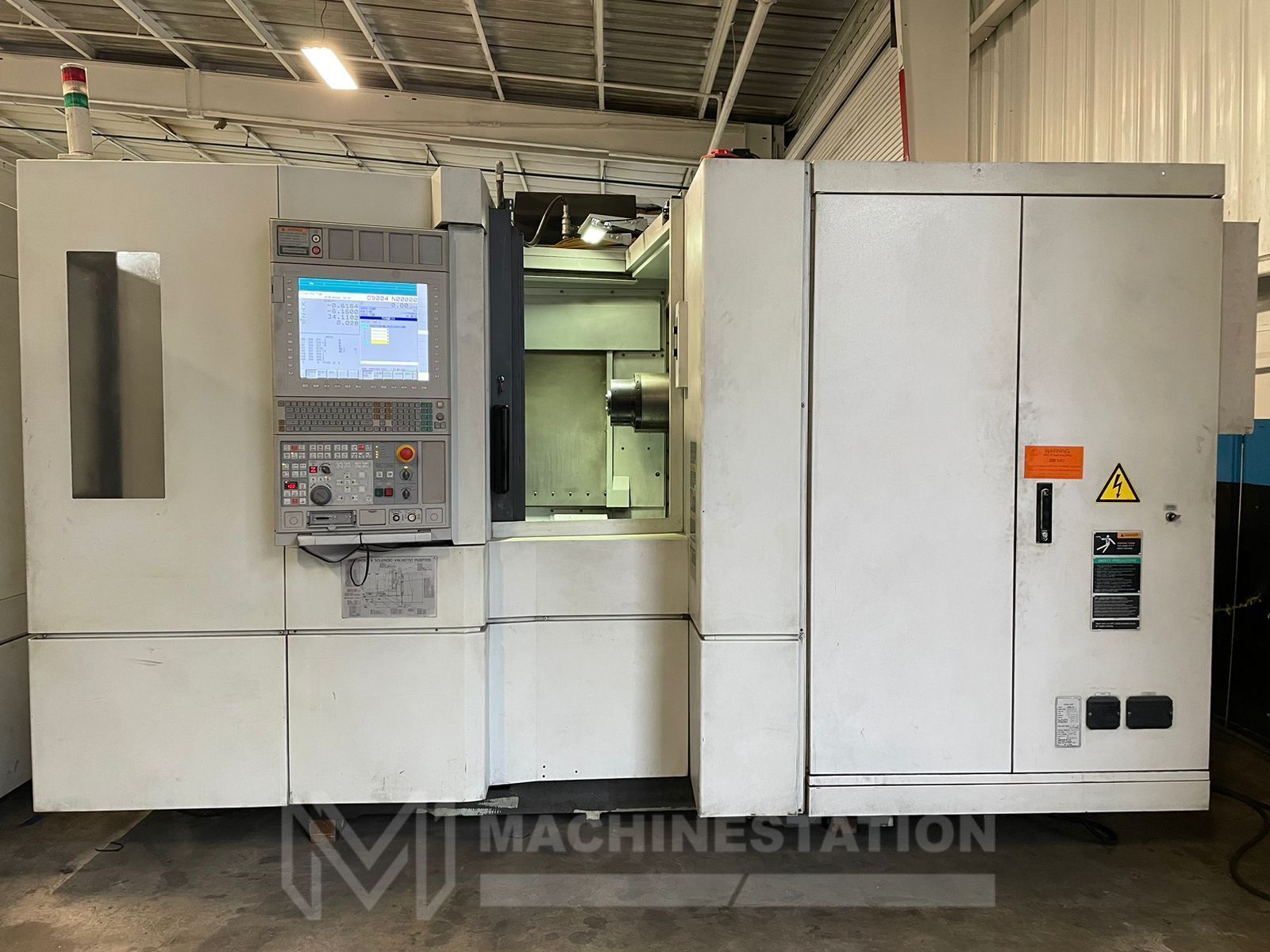

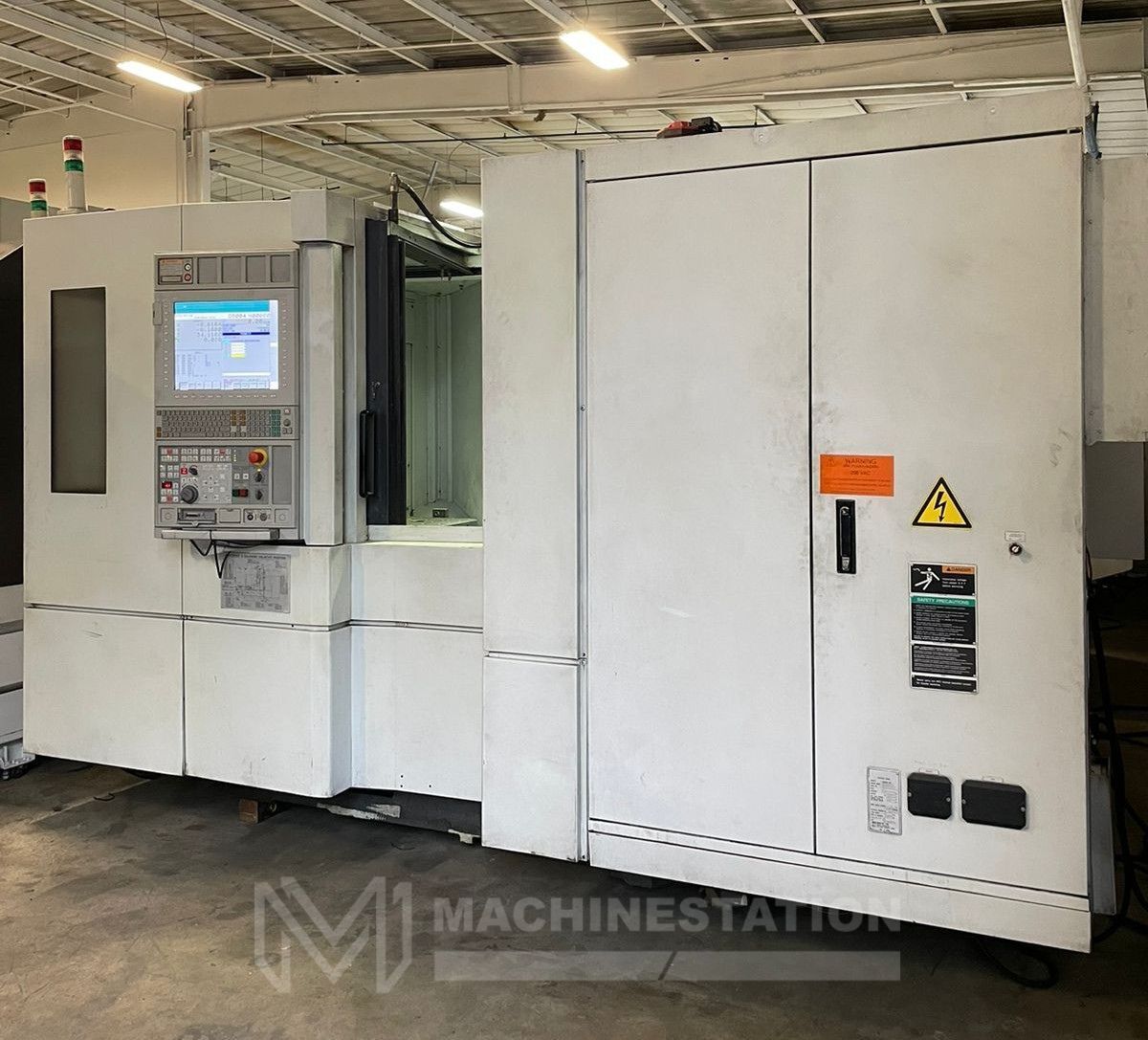

Manufacturer: Dmg
Model: NH4000-DCG
Year: 2011
Automatic Tool Changer: 60
Longitudinal" X: 22.0
Cross" Y: 22.0
Vertical" Z: 24.8
RPM: 14
Stock # 112705
1 / 10
Click to zoom in
1 / 10
For Sale by MachineStation
Surplus Record Dealer Since 2022
Location: Lake Elsinore, CA
Contact Sales Dept.
Phone Number: 909...> Show Phone Number 909-919-9600
Let the seller know you found their listing on Surplus Record!
Description
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

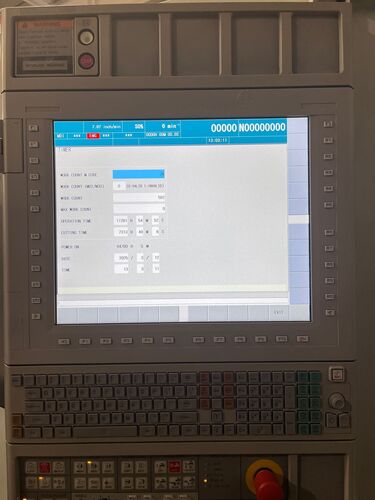

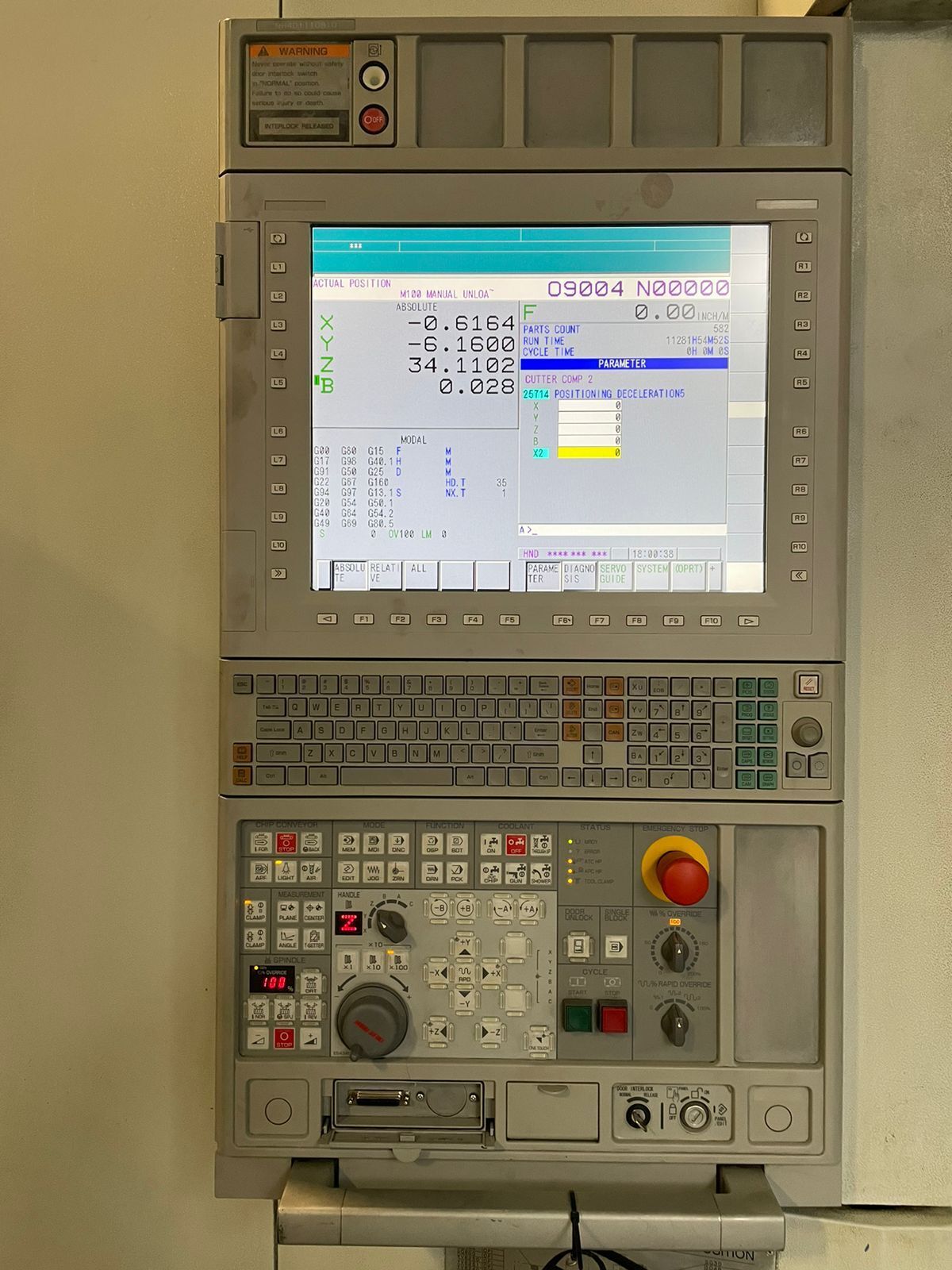

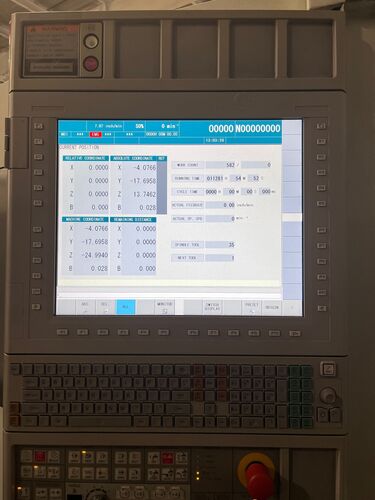

Fanuc 31i-A CNC Control

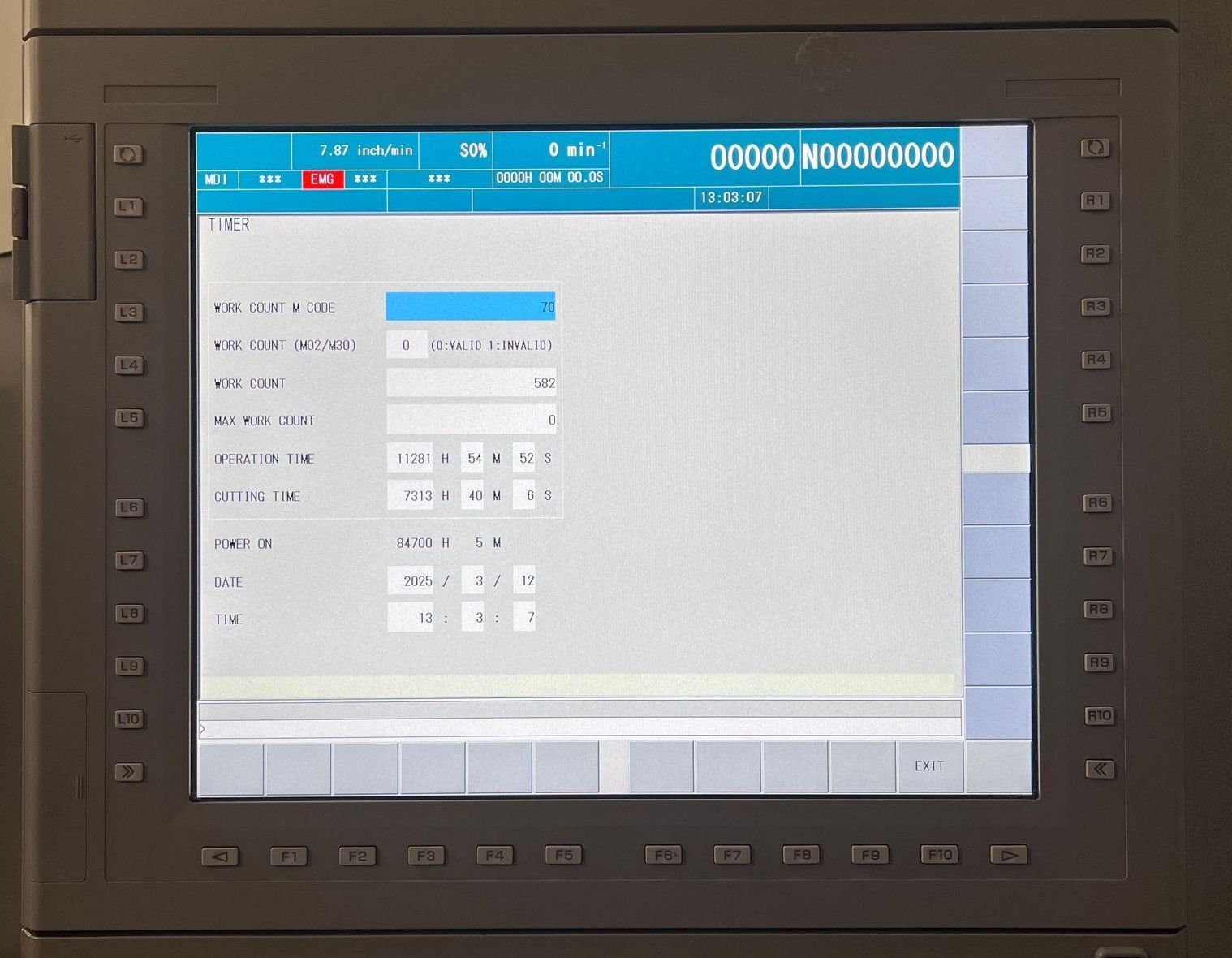

7,313 Hours Cutting Time
Twin Pallet Changer
25 HP Build in Spindle Motor
(2) USB Ports & RS-232 Port
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Coolant System
Travels:
X Axis: 22.0"
Y Axis: 22.0"
Z Axis: 24.8"
B Axis: 1° Indexing
Distance From Pallet Surface to Spindle Center: 3.1" 25.2"

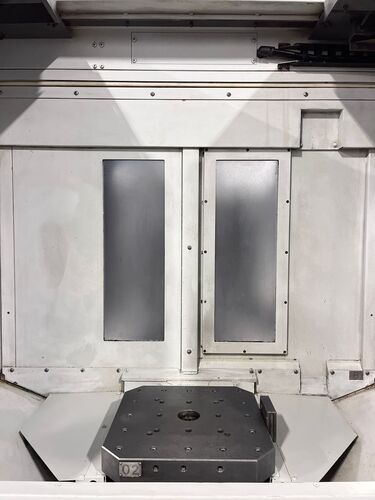

Table:
Length: 15.7"
Width: 15.7"
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8"
Max Workpiece Height: 35.4"
Index Time: 8 seconds 90°
Spindle:
Taper Size: CAT-40
Max. Speed: 14,000 RPM
Spindle Motor Power: 25 HP
Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute
Tool changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter (without adjacent tools): 5.11"
Max Tool Diameter (with adjacent tools): 2.70"
Max Tool Length: 15.7"
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 43 kva / 220v / 3-Phase
Overall Dimensions: 157.6" X 94.4" x 106.7" High
Weight: 21,605 lbs. Approx.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc 31i-A CNC Control
7,313 Hours Cutting Time
Twin Pallet Changer
25 HP Build in Spindle Motor
(2) USB Ports & RS-232 Port
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Coolant System
Travels:
X Axis: 22.0"
Y Axis: 22.0"
Z Axis: 24.8"
B Axis: 1° Indexing
Distance From Pallet Surface to Spindle Center: 3.1" 25.2"
Table:
Length: 15.7"
Width: 15.7"
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8"
Max Workpiece Height: 35.4"
Index Time: 8 seconds 90°
Spindle:
Taper Size: CAT-40
Max. Speed: 14,000 RPM
Spindle Motor Power: 25 HP
Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute
Tool changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter (without adjacent tools): 5.11"
Max Tool Diameter (with adjacent tools): 2.70"
Max Tool Length: 15.7"
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 43 kva / 220v / 3-Phase
Overall Dimensions: 157.6" X 94.4" x 106.7" High
Weight: 21,605 lbs. Approx.
