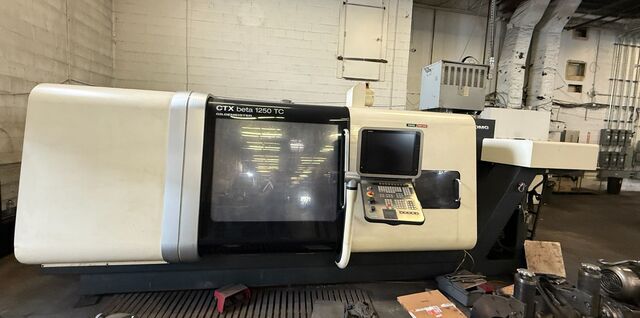

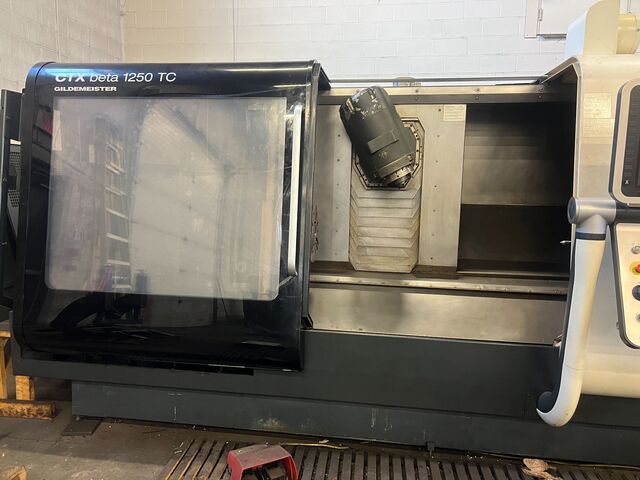

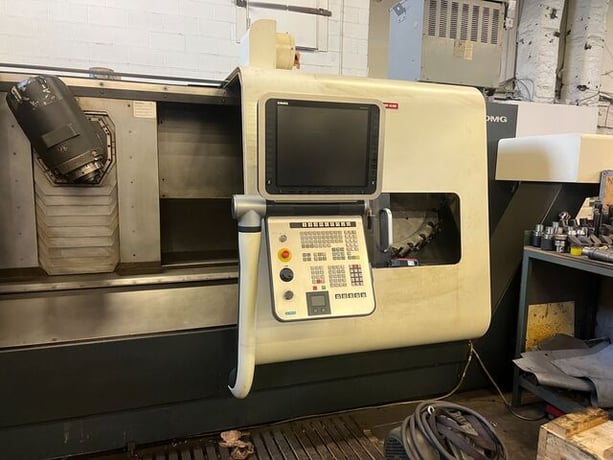

DMG Mori Seiki #CTX-Beta-1250-TC, CNC Lathe, 17" X, 4" Y, 51" Z, 19.6" swing, 49.2" between centers, 10" chuck, 45 HP, 5000 RPM, ERGOline CNC, 2010

TECHNICAL SPECIFICATIONS:
Working area
Swing diameter 500 mm 19.68 in
Turning diameter max 390 mm 15.35 in
Turning length max 1250 mm 49.21 in
Distance between centers 1250 mm 49.21 in

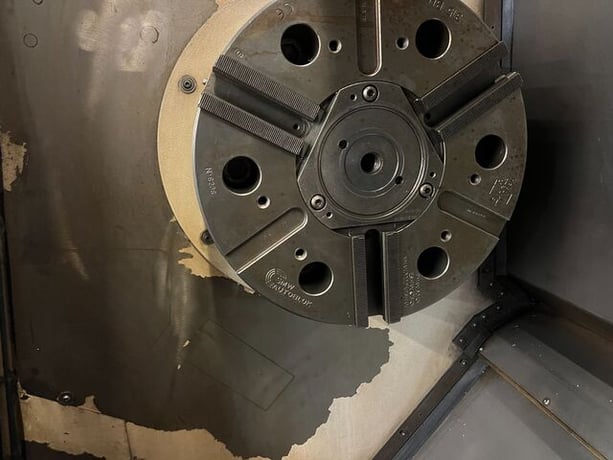

Chuck diameter 250 mm 9.84 in
Bar diameter max 65 mm 2.55 in
Spindle bore diameter 87 mm 3.42 in
Draw bar diameter (internal) 68 mm 2.67 in
Spindle dia. in front bearing 130 mm 5.11 in
Spindle Power (100/40%) 25/34 kW 33/45 HP
Speed range 5000 RPM
Torque, max. (100/40%) 280/380 Nm 206/280 lb*ft
Speed of C-axis 200 RPM
C-axis Torque 280 Nm 206 lb*ft
Angular value, min. 0.001
Upper slide traverse X1 450 (-10) mm 17.71 (-0.39) in
Upper slide traverse Y1 100 mm 3.93in
Upper slide traverse Z1 1300 mm 51.18 in
Rapid traverse X/Y/Z 30 m/min 1181 IPM

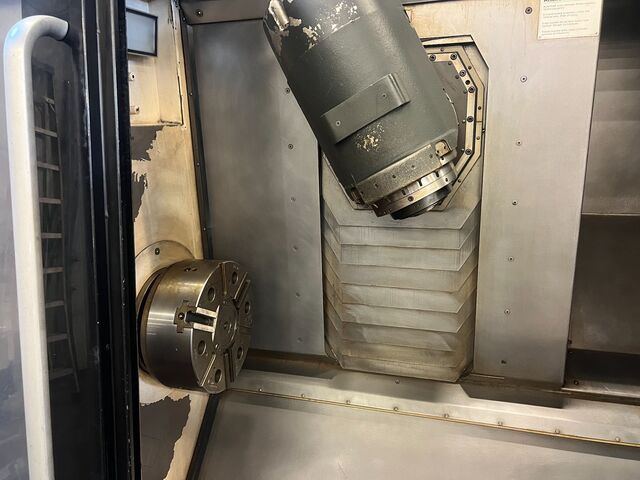

Turning-milling spindle tool CAPTO C6
Speed range, max. 12000 RPM
Milling Spindle Power (100/40%) 13/22 kW 17.7/29.5 HP
Spindle torque, max. 60/100 Nm 44/74 lb*ft
Angular value, min. 0.001
Locking moment 1000 Nm 737.6 lb*ft
B-axis Positioning angle 110
Speed range B1 36,000/min
Torque B-axis, 1 344/614 Nm 254/453 lb*ft
Angular value, min 0.001
Locking moment (pneumatic) 2800 Nm 2065 lb*ft

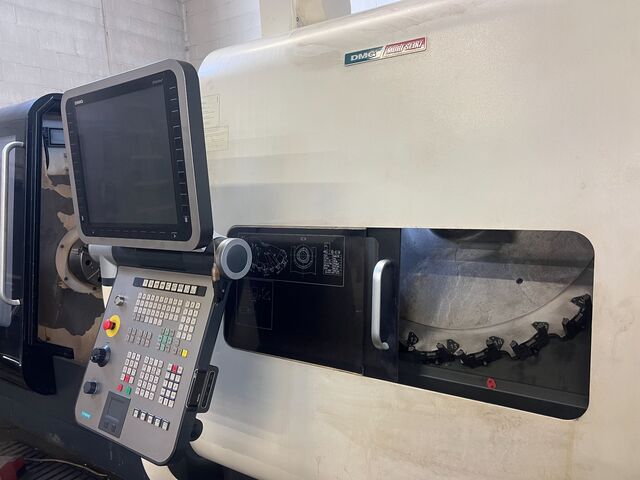

Tool disc magazine positions 24
Tool dia./tool length max. 80/300 mm 3.14/11.8 in
Tool weight max. 7 kg 15.4 lbs
Tailstock traverse 1200 mm 47.2 in
Tailstock Center MT 5

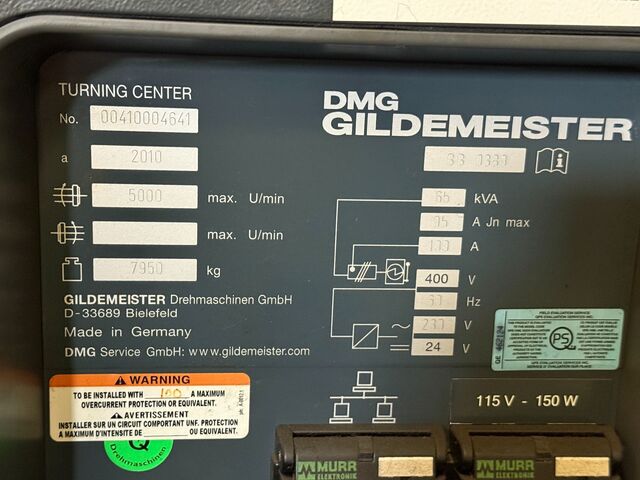

Power Requirements 400 VAC, 60 Hz, 3 Ph - 72 kVA
Dimensions 5.7x2.7x2.1 m 223 x 107 x 81 in
Weight 7950 kg 17526 lbs
