DMG, Mori #NT-3100/500C, CNC lathe, 2005

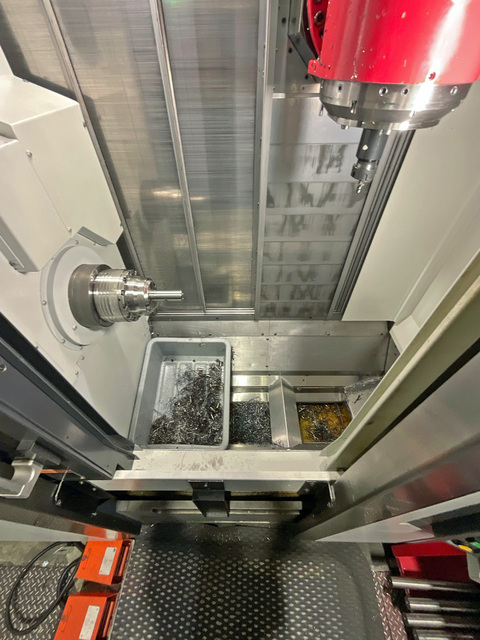

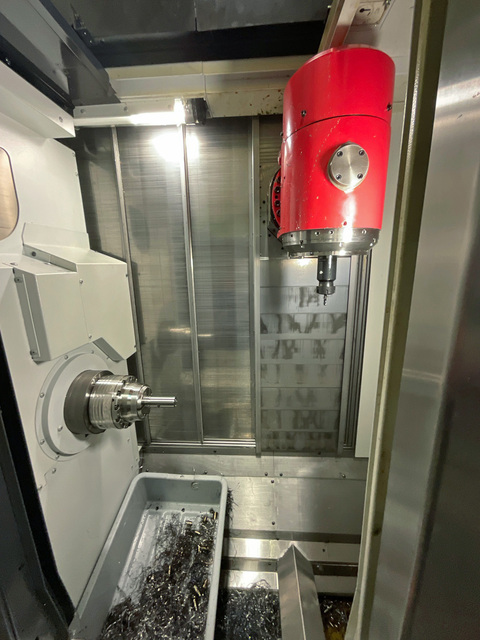

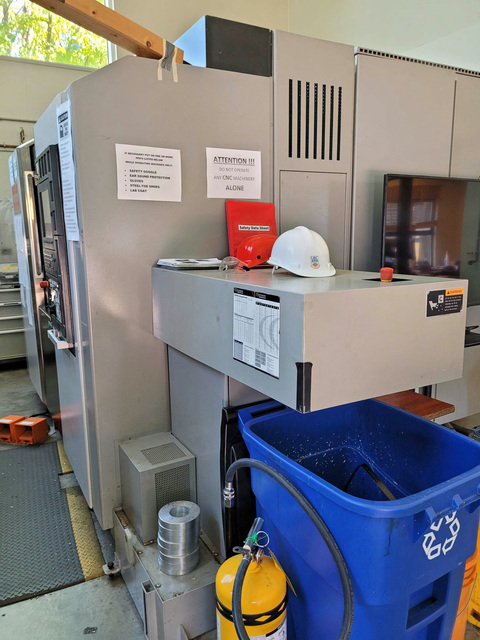

Used MORI SEIKI NT3150 DCG/500CZ 5-Axis Turn-Mill Center
May be inspected under power in our Schaumburg, IL showroom by appointment. Fly into ORD.
HISTORY
Build date: 7/2005 in Nagoya City Aichi, Japan
Delivery date: 10/10/2008
Installation date: 10/10/2008
Machine hours: 700 (as of February 7, 2024)
Spindle hours: 50 (as of February 7, 2024)
Machine was in a university Research & Development laboratory
CONTROL

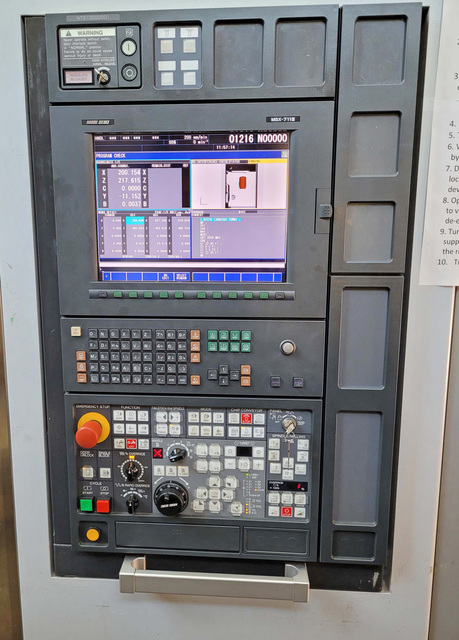

MSX-711 III with G121/45.0 NC Software
PLC Software: I81195E02
Mapps
SPECIFICATIONS
Main Spindle Chuck: Collet
Maximum Swing: 23.6
Maximum Cutting Diameter: 23.6
Maximum Machining Length: 22.2
Maximum Bar Size: 2
Main Spindle HP: 10 HP
Main Spindle RPM: 6,000 RPM
Main Spindle Nose: A2-5
Main Spindle Bore: 2.4
Milling Spindle HP: 5 HP
Milling Spindle RPM: 14,000 RPM

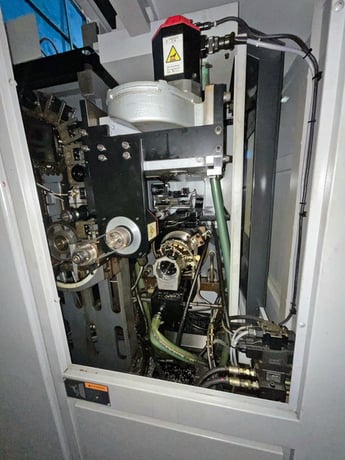

Number of Tool Stations: 20 ATC
Maximum Tool Diameter: 2.7
Max Tool Adjacent Pockets Empty: 4.9
Maximum Tool Length: 7.8
Maximum Tool Weight: 8.8 lb
X-Axis Travel: 27
Y-Axis Travel: +/- 4.9
Z-Axis Travel: 22.4
B-Axis Travel: +/- 120 degrees
Rapid Traverse Rate X: 1,968 IPM
Rapid Traverse Rate Y: 1,181 IPM
Rapid Traverse Rate Z: 1,968 IPM
EQUIPPED WITH:
Chip Conveyor
Coolant Thru Spindle
