Description

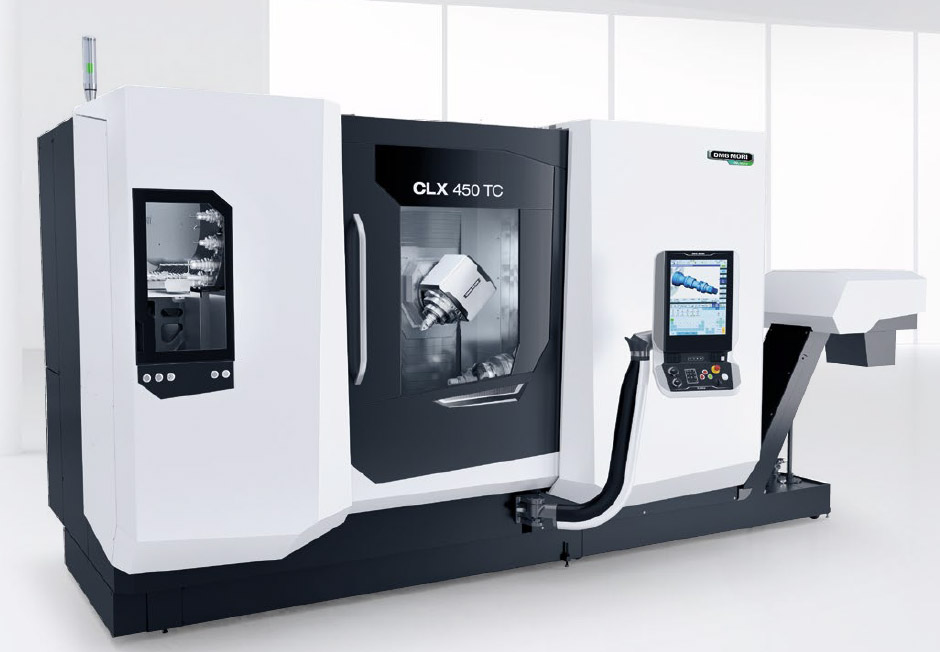

DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used)
Specifications (subject to buyer verification):
Working area
Swing diameter 500 mm 19.6 in
Max. turning diameter 400 mm 15.7 in
Max. turning length 1100 mm 43.3 in
Center distance for tailstock machine 1472,5 mm 57.9 in
Spindle distance for counter spindle machine 1435 mm 56.4 in
Spindle 1 Main spindle, left
Spindle head (short taper) A2-8
Chuck diameter 210-325 mm 8.2-12.7 in
Max. bar diameter 65 mm 2.5 in
Spindle bore diameter 87 mm 3.4 in
Draw tube inner diameter 67 mm 2.6 in
Diameter in front bearing 130 mm 5.1 in
Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp
Max. Speed 5000 rpm
Power knee 485 rpm
Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft
Drive type, number of ranges AC/1
Design ISM 65
C-axis resolution 0.001 degrees
Slide 1, top
Slide traverse X1 (below center) 750 mm 29.5 in
Slide traverse Y1 ±100 mm ±3.9 in
Slide traverse Z1 1100 mm 43.3 in
Turning-/milling spindle
Tool holder HSK-T 63
Max. Speed 12000 rpm
Tool magazine
Magazine type chain
Max. tool places 60
Equipped With (subject to buyer verification):
Celos X with Siemens Sinumerik One
Counter Spindle ISM 65, A2-8”
Chain Magazine for 60 Tools
Get Your Price from Premier Equipment Inc!
