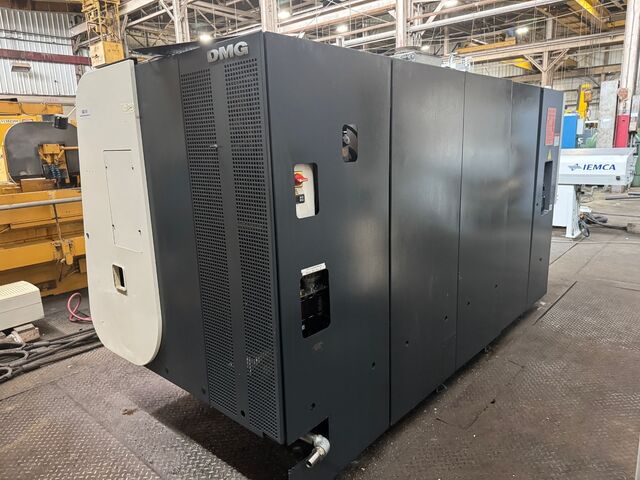

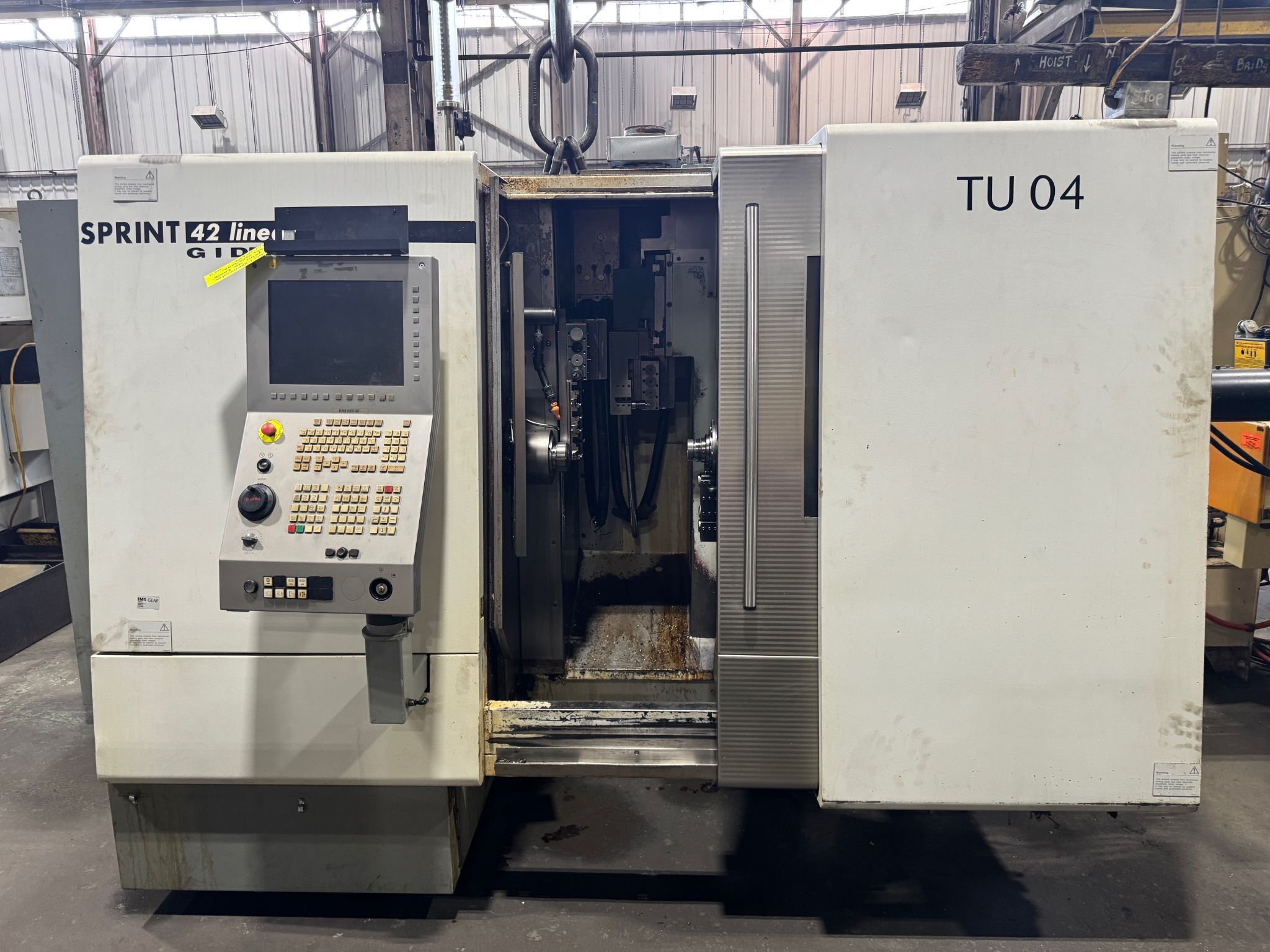

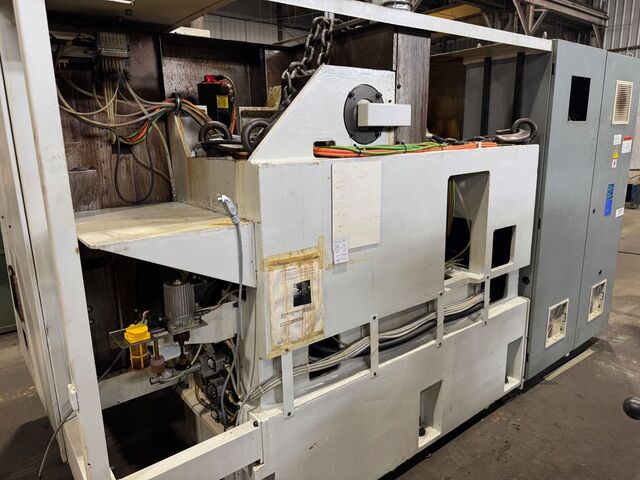

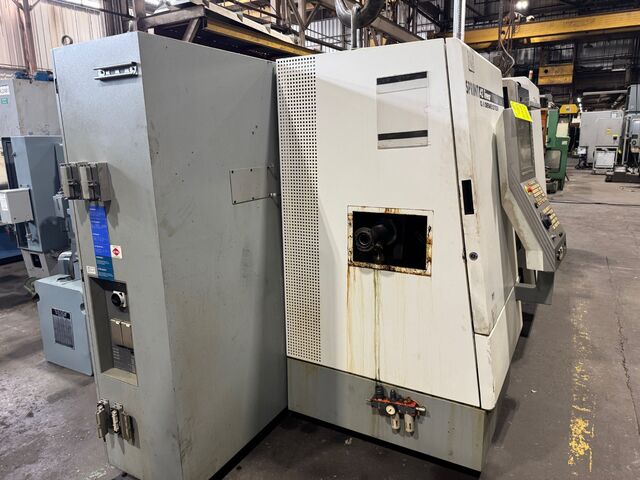

DMG, Gildemeister #Sprint-42-Linear, CNC automatic screw machine, 4-Axis, 6000 RPM, 2011

The DMG Mori Gildemeister Sprint Linear 42 is a high-performance CNC lathe designed for precision machining of small to medium-sized parts. This machine is a part of the Sprint series by DMG Mori, which is renowned for offering fast, efficient, and accurate machining capabilities. The Sprint Linear 42 is particularly well-suited for industries like automotive, aerospace, medical, and general manufacturing, where high productivity and precision are key.
Specifications:
Number of Axes: 4 axes (X, Y, Z, and C-axis)
Machine Dimensions: Approx. 2,000 mm x 1,500 mm x 2,000 mm (varies depending on configuration)
Machine Weight: 4,500 kg (approx.)
Spindle Speed: Up to 6,000 RPM (depending on the configuration)
Spindle Power: 22 kW (continuous)
Spindle Torque: 80 Nm
Spindle Bore: 42 mm (Standard for parts up to 42 mm diameter)
X-Axis Travel: 210 mm
Y-Axis Travel: 120 mm
Z-Axis Travel: 350 mm
Rapid Traverse (X, Y, Z): 48 m/min (maximum)
Feed Rate: 30 m/min (maximum feed rate for all axes)
Maximum Tool Diameter: 40 mm (depending on tool station configuration)
Maximum Tool Length: 100 mm
Tool Change Time: < 1.5 seconds (tool-to-tool change)
Positioning Accuracy: 0.003 mm
Repeatability: 0.001 mm
Spindle Runout: < 0.003 mm
