Description

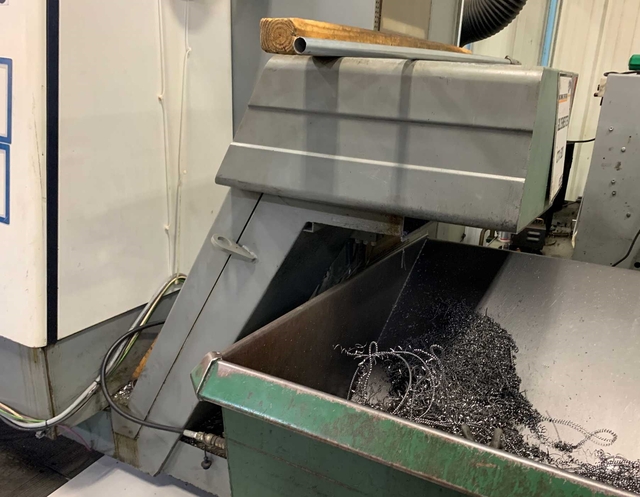

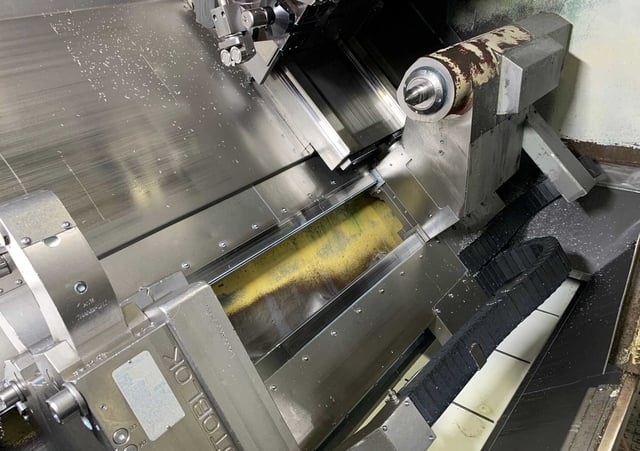

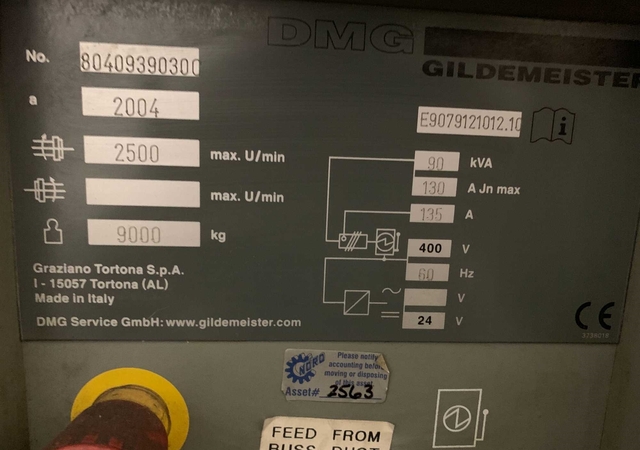

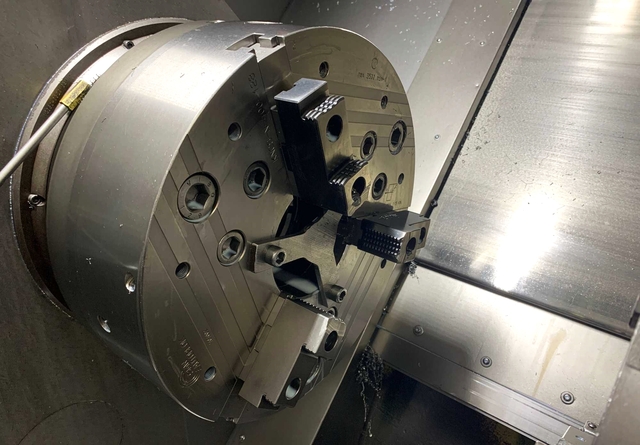

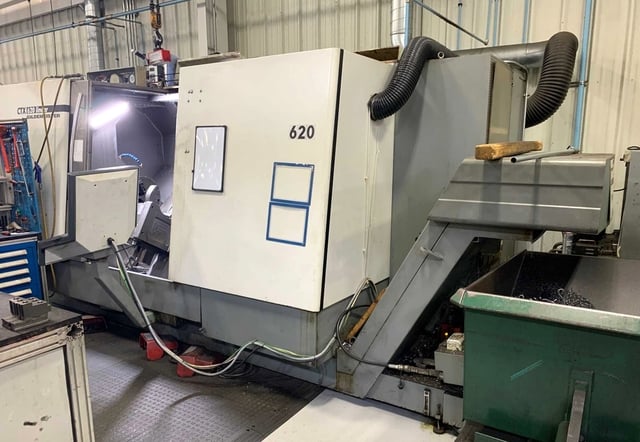

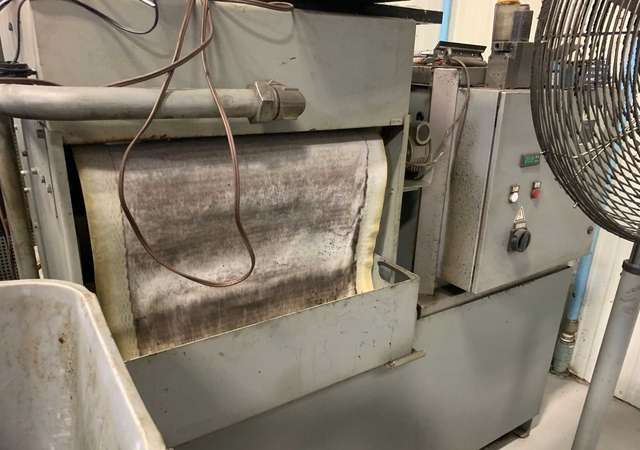

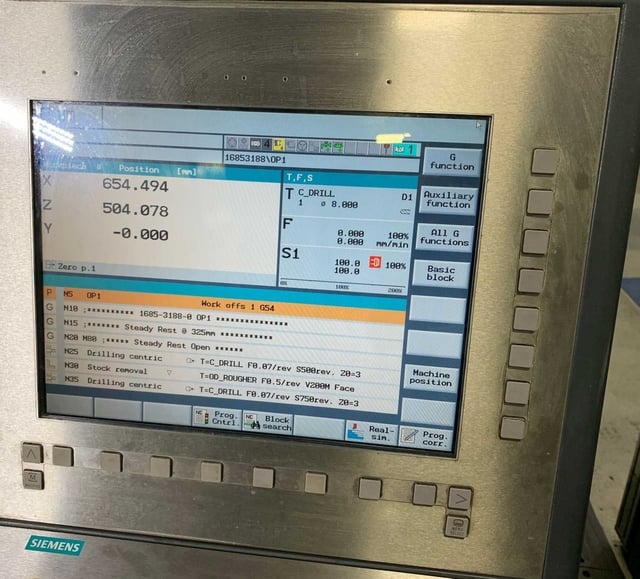

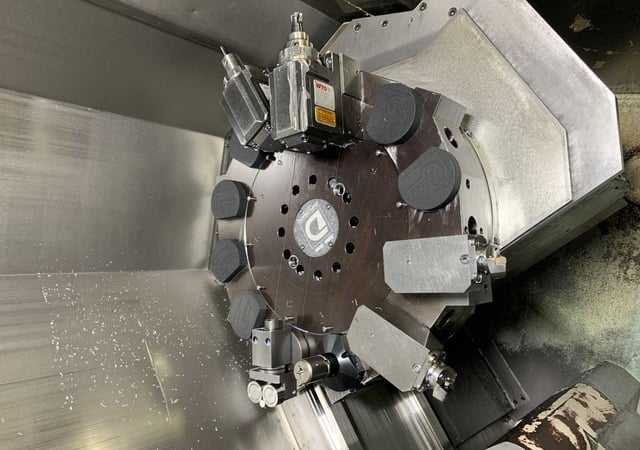

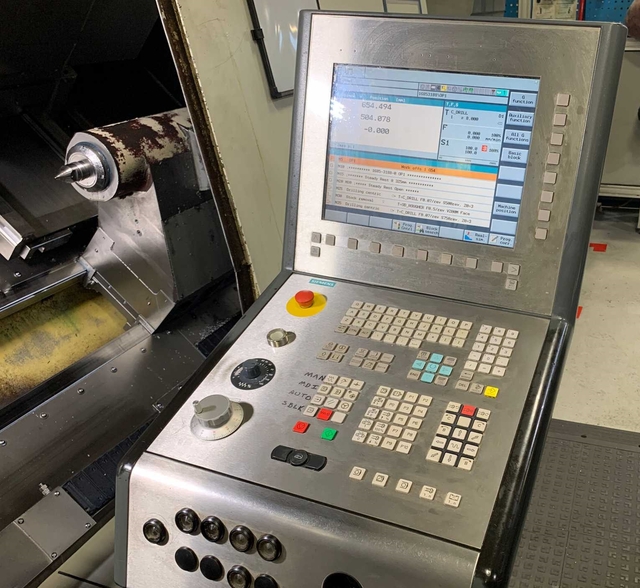

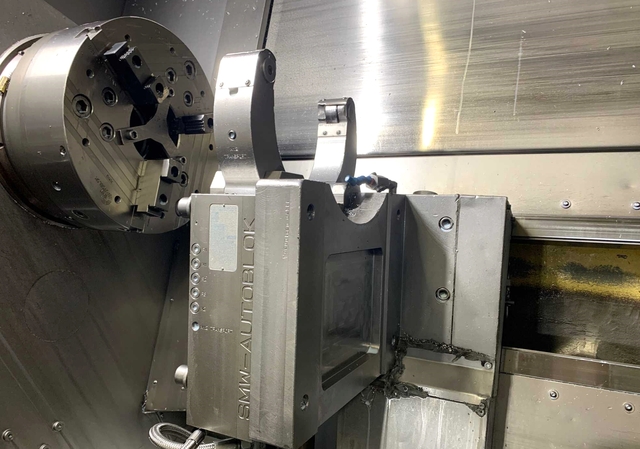

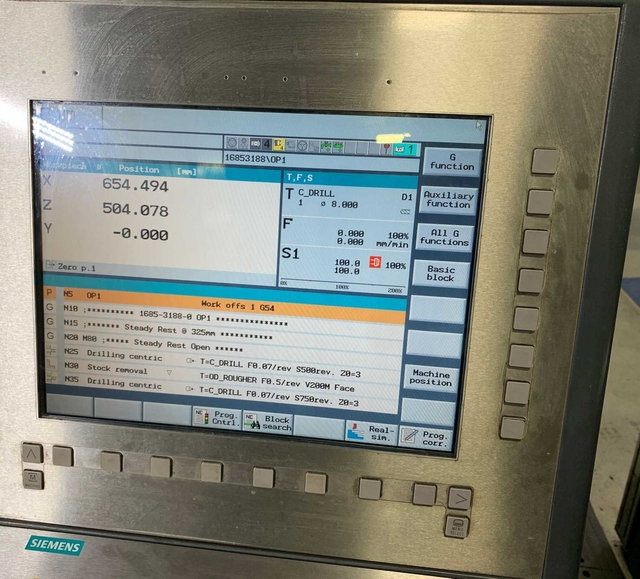

Description: DMG GILDEMEISTER CTX620X1000 CNC Turning Center with Y-Axis & Live Milling from 2005. Features Siemens 840D control, 12(+4) turret, tailstock, 15" chuck, steady rest, and coolant systems. Ideal for precision machining. Used condition. Spec Sheet: CTX620X1000 DMG GILDEMEISTER CNC TURNING CENTER W/Y-AXIS & LIVE MILLING New 2005, Serial No 80409390300, Model CTX620X1000 EQUIPPED WITH: Siemens 840D CNC Control 12(+4) Position VDI 50 Turret w/Live Milling Y-Axis - Hydraulic Tailstock - 15" 3-Jaw Chuck w/Jaws SMW-Autoblok BHD Hydraulic Self-Centering Steady Rest Automatic Electric Sliding Door Pedia "TRK 30-FF-3" Coolant Filtration System w/Rolling Paper Filtering ChipBlaster High Pressure Coolant Filtration System w/MistBlaster Mist Collector BMF "SPE 63/30-376 Z60" Heavy-Duty Chip Conveyor Fargo "DA93XN1/K4/FE" Electrical Transformer Some Assorted Tool Holders CATALOG SPECIFICATIONS: Spindle Hole Diameter 5.3" Bar Capacity, Maximum 4.75" Swing Diameter, Maximum 31.5" Swing Over Saddle, Maximum 19.68" Turning Diameter, Maximum 23.6/19.6" Turning Length, Maximum 42.52" Transverse Stroke 15.06" Longitudinal Stroke 43.21" Y-Axis Stroke 2.55" Spindle Speed, Range 20 to 2500 RPM Motorized Tool Speed, Range 1 to 3500 RPM C-Axis Speed, Range 0 to 100 MIN-1 X, Z-Axis Rapid Travers 1771 IPM YAxis Rapid Traverse 32.8 IPM Tailstock Stroke, Automatic 43.31" Tailstock Quill Diameter 4.72" Tailstock Quill Shaft 5 MT Tailstock Quill Travel 5.9" Main Drive Motor Horsepower 44.2 HP Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90" Weight Approximately 22,000 LBS
The CTX620X1000 DMG Gildemeister CNC turning center s a Siemens 840D CNC control and a 12(+4) position VDI 50 turret with live milling capability and Y-axis functionality. Key include a maximum turning length of 42.52" and a maximum swing diameter of 31.5". The machine is a 15" 3-jaw chuck, a hydraulic ...more
