Description

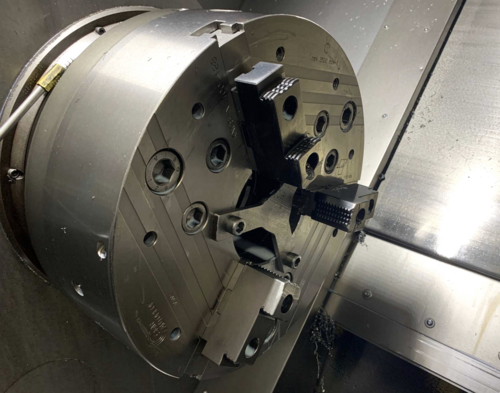

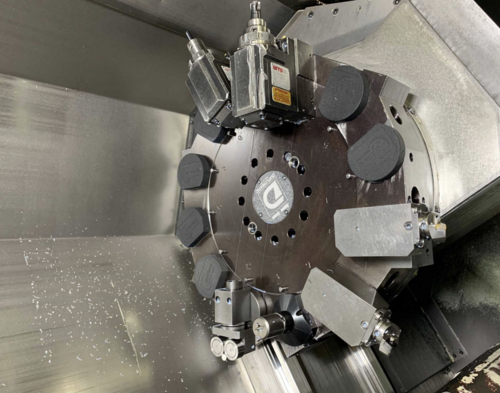

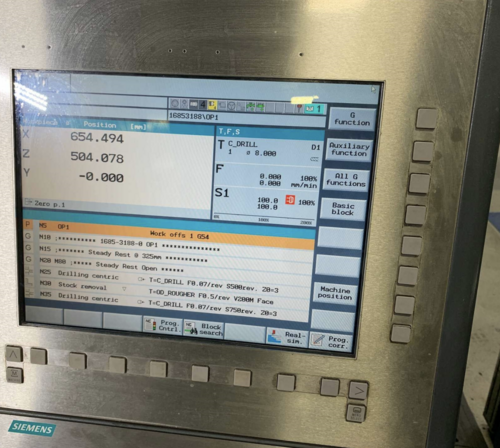

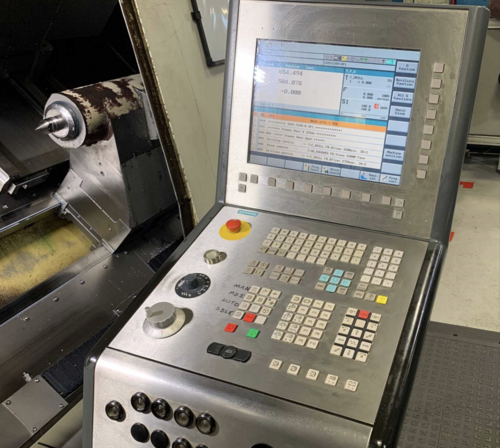

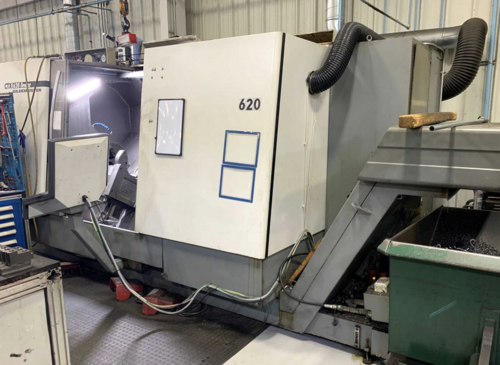

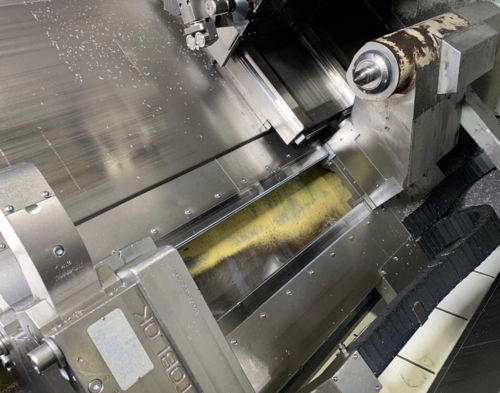

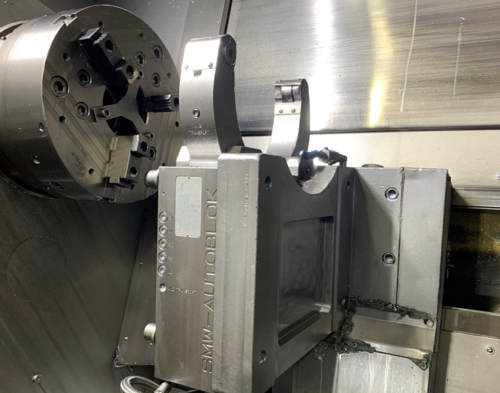

2005 DMG GILDEMEISTER CTX 620 X 1000 used CNC lathe. Features 19.68" swing, 42.5" machining length, and 4 axes. Included Siemens 840D CNC, hydraulic tailstock, live tooling, and 15" chuck. Dimensions: 205" x 83" x 90"; weighs ~22,000 lbs.
Spindle Hole Diameter 5.3"
Bar Capacity, Maximum 4.75"
Swing Diameter, Maximum 31.5"
Swing Over Saddle, Maximum 19.68"
Turning Diameter, Maximum 23.6/19.6"
Turning Length, Maximum 42.52"
Transverse Stroke 15.06"
Longitudinal Stroke 43.21"
Y-Axis Stroke 2.55"
Spindle Speed, Range 20 to 2500 RPM
Motorized Tool Speed, Range 1 to 3500 RPM
C-Axis Speed, Range 0 to 100 MIN-1
X, Z-Axis Rapid Travers 1771 IPM
YAxis Rapid Traverse 32.8 IPM
Tailstock Stroke, Automatic 43.31"
Tailstock Quill Diameter 4.72"
Tailstock Quill Shaft 5 MT
Tailstock Quill Travel 5.9"
Main Drive Motor Horsepower 44.2 HP

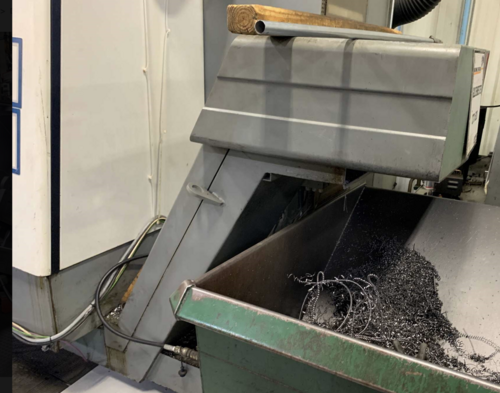

Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90"
Weight Approximately 22,000 LBS
Spindle Hole Diameter 5.3"
Bar Capacity, Maximum 4.75"
Swing Diameter, Maximum 31.5"
Swing Over Saddle, Maximum 19.68"
Turning Diameter, Maximum 23.6/19.6"
Turning Length, Maximum 42.52"
Transverse Stroke 15.06"
Longitudinal Stroke 43.21"
Y-Axis Stroke 2.55"
Spindle Speed, Range 20 to 2500 RPM
Motorized Tool Speed, Range 1 to 3500 RPM
C-Axis Speed, Range 0 to 100 MIN-1
X, Z-Axis Rapid Travers 1771 IPM
YAxis Rapid Traverse 32.8 IPM
Tailstock Stroke, Automatic 43.31"
Tailstock Quill Diameter 4.72"
Tailstock Quill Shaft 5 MT
Tailstock Quill Travel 5.9"
Main Drive Motor Horsepower 44.2 HP
Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90"
Weight Approximately 22,000 LBS
