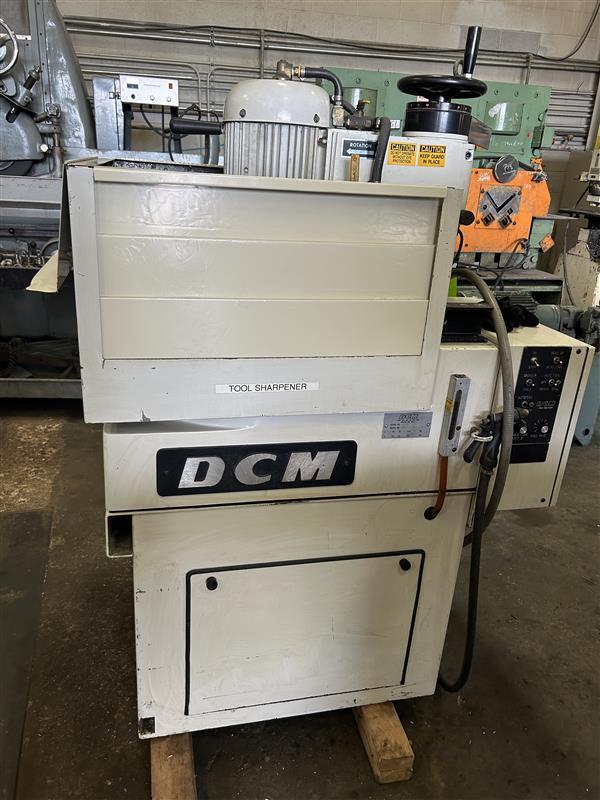

Manufacturer: Dmc
Model: PDG-5-3-PLC
1 / 4
Click to zoom in
1 / 4
For Sale by Bud's Machine Tools
Surplus Record Dealer Since 2002
Location: Murray, UT
Contact Megan Poulsen
Phone Number: 385...> Show Phone Number 385-271-6718
Let the seller know you found their listing on Surplus Record!
Description
Overview
Description
SPECIFICATIONS:
T-Slot Rotary Table:
Diameter…………18"
T-Slots…………6
Speed…………20 RPM
Motor…………1/2 HP
Distance from Top to Grind Wheel Maximum…………10"
Spindle:
Speed…………3,600 RPM
Motor…………5 HP
Autofeed Rate Infinitely Variable…………0.0005 0.020 IPM
Manual Handwheel Graduations…………0.001"
Grinding Wheels:
Cup Wheel Type…………6 or 11
Size…………6" OD
Spindle Hole…………1-1/4"
Workholding:
Tilt Angle…………0 10 Deg.
3-Jaw Chuck…………6-1/2"
Permanent Magnet Chuck…………7" x 4"
Dimensions Actual………….42" x 36" x 64"(H)
Weight Catalog…………1,500 Lbs.
Type:
Punch & Die Grinders
Manufacturer:
DMCModel:
PDG 5-3 PLC
Status:
For Sale

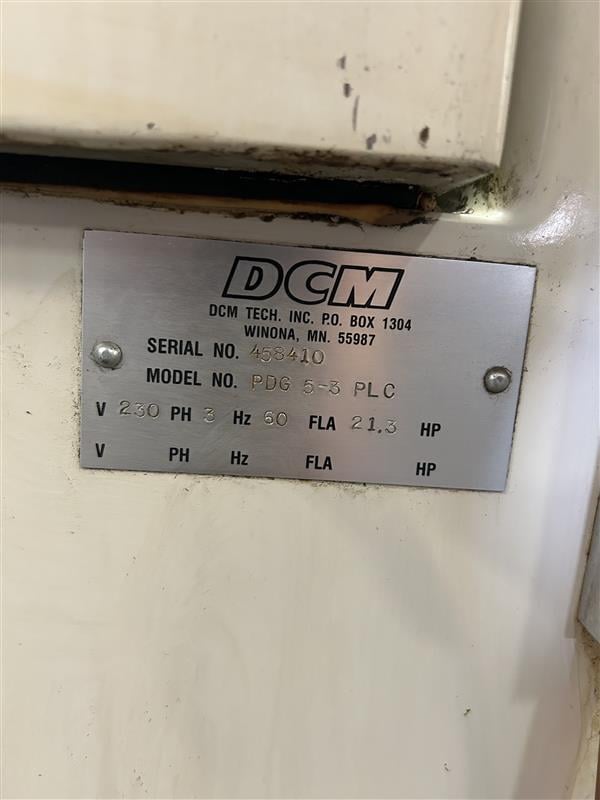

Serial #:
458410
Country:
United States
Description
SPECIFICATIONS:
T-Slot Rotary Table:
Diameter…………18"
T-Slots…………6
Speed…………20 RPM
Motor…………1/2 HP
Distance from Top to Grind Wheel Maximum…………10"
Spindle:
Speed…………3,600 RPM
Motor…………5 HP
Autofeed Rate Infinitely Variable…………0.0005 0.020 IPM
Manual Handwheel Graduations…………0.001"
Grinding Wheels:
Cup Wheel Type…………6 or 11
Size…………6" OD
Spindle Hole…………1-1/4"
Workholding:
Tilt Angle…………0 10 Deg.
3-Jaw Chuck…………6-1/2"
Permanent Magnet Chuck…………7" x 4"
Dimensions Actual………….42" x 36" x 64"(H)
Weight Catalog…………1,500 Lbs.
