Description

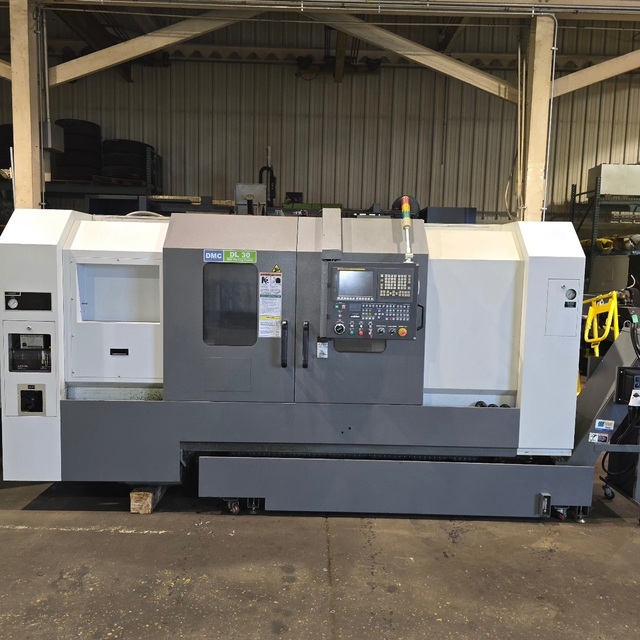

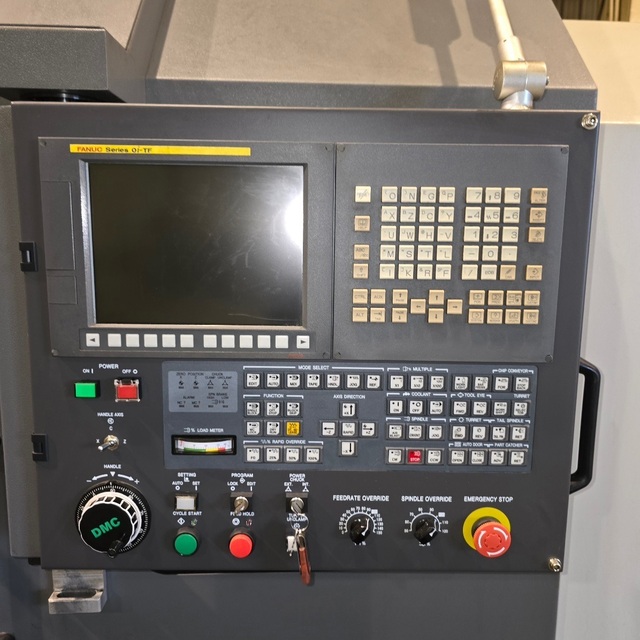

Used CNC Lathe, featuring a 24.02" swing and max RPM of 3,000. Equipped with a 10" chuck, 30 hp motor, and Fanuc Oi-TD Control.
Capacity:
Maximum Swing:24.02"
Maximum cutting diameter:15.75"
Maximum cutting length:42.52"

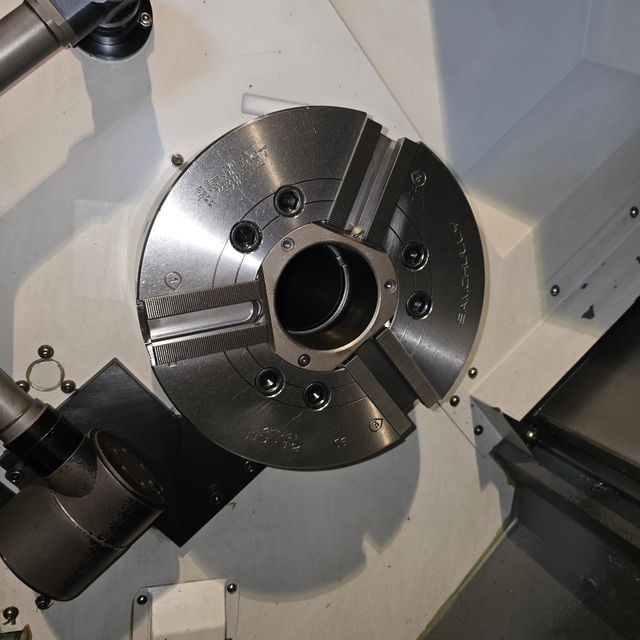

Chuck Size:10"
Spindle:
Spindle nose:A2-8
Bore Diameter:4.13"
Main Spindle motor:30/25 HP
Spindle Speed:3000 RPM with 12" chuck
Maximum Spindle Torque: 462.91 ft-lbs
Slide and Carriage:
X axis travel:9.06"
Z axis travel:44.49"
Rapid Traverse X:787 ipm
Rapid Traverse Z:945 ipm
Guide Ways:Box Ways
Bed Structure:45 degree slant

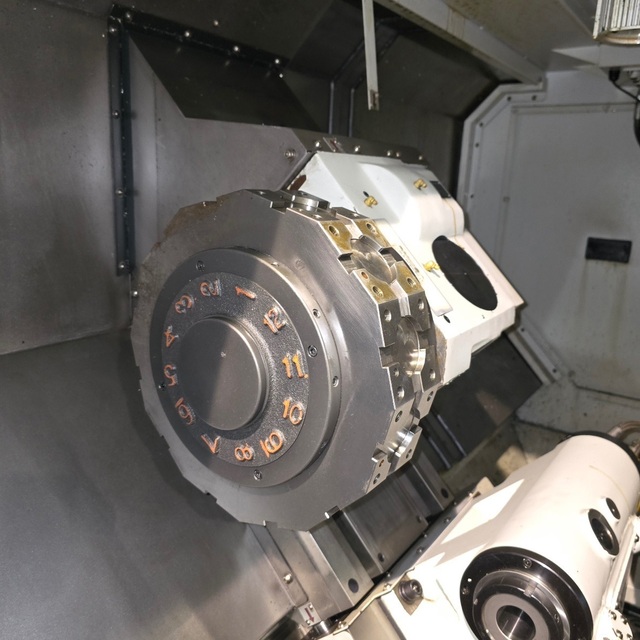

Turret:
Number of tool Stations:12 tools
Turret Indexing Speed:.2 seconds
Indexing Type:Non-Stop, Bi-Directional
Tool Size (turning/facing):1"-wedge clamp
Tool Size (boring bar max):1.75"

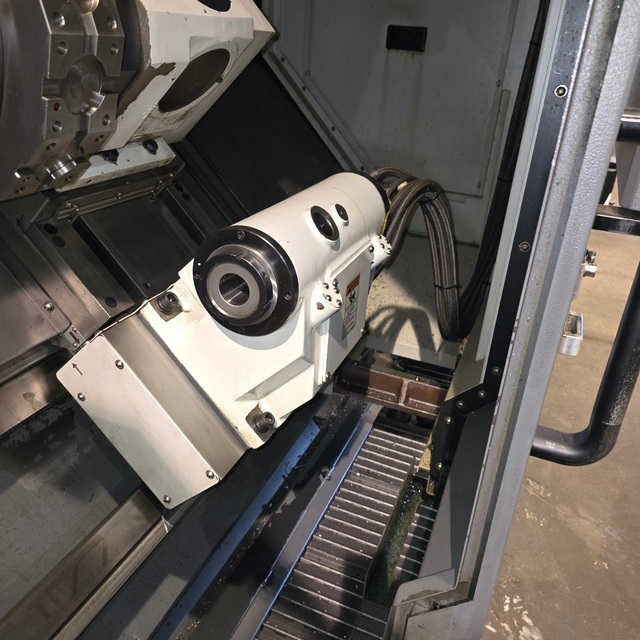

Tailstock:
Tailstock Center:MT#5
Quill Diameter:4.33"
Quill Travel (hydraulic):3.94"
Max thrust of Quill:2,222lbs
Machine Size:
Floor Space Requirements:161.42" x 74.21"
Machine weight:15,652 lbs
Power Consumption:34 Kva
Voltage:220 Volt +/- 10%, 60 HX, 3 phase
Capacity:
Maximum Swing:24.02"
Maximum cutting diameter:15.75"
Maximum cutting length:42.52"
Chuck Size:10"
Spindle:
Spindle nose:A2-8
Bore Diameter:4.13"
Main Spindle motor:30/25 HP
Spindle Speed:3000 RPM with 12" chuck
Maximum Spindle Torque: 462.91 ft-lbs
Slide and Carriage:
X axis travel:9.06"
Z axis travel:44.49"
Rapid Traverse X:787 ipm
Rapid Traverse Z:945 ipm
Guide Ways:Box Ways
Bed Structure:45 degree slant
Turret:
Number of tool Stations:12 tools
Turret Indexing Speed:.2 seconds
Indexing Type:Non-Stop, Bi-Directional
Tool Size (turning/facing):1"-wedge clamp
Tool Size (boring bar max):1.75"
Tailstock:
Tailstock Center:MT#5
Quill Diameter:4.33"
Quill Travel (hydraulic):3.94"
Max thrust of Quill:2,222lbs
Machine Size:
Floor Space Requirements:161.42" x 74.21"
Machine weight:15,652 lbs
Power Consumption:34 Kva
Voltage:220 Volt +/- 10%, 60 HX, 3 phase
