For Sale by RAM Opportunities
Description

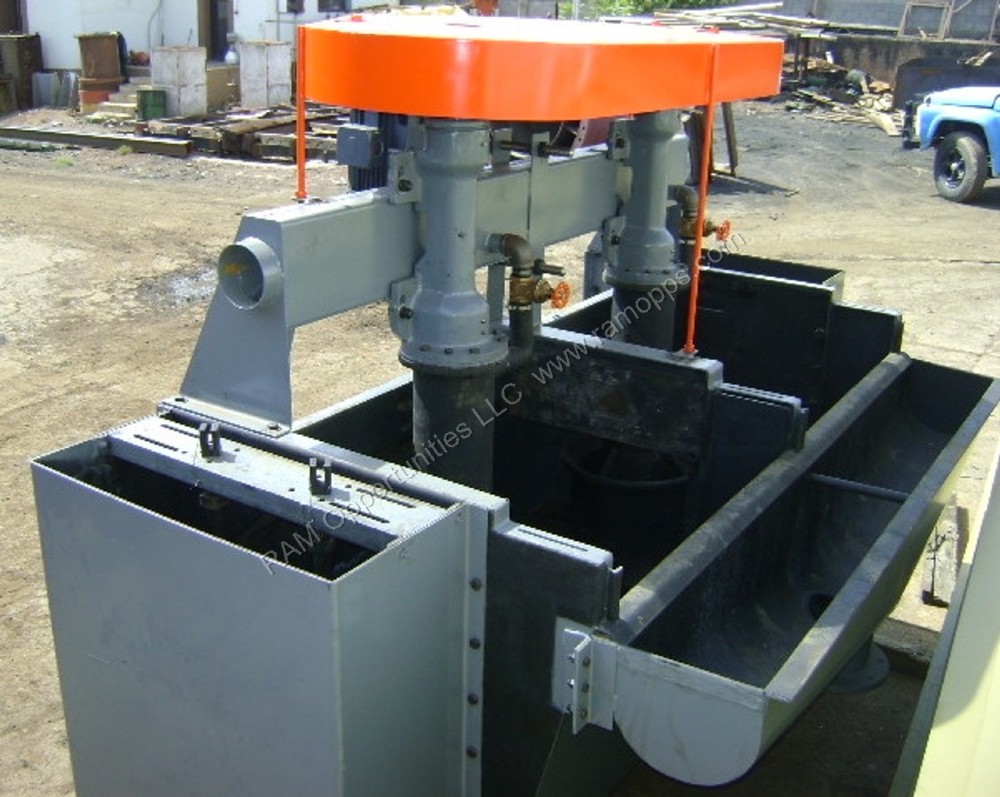

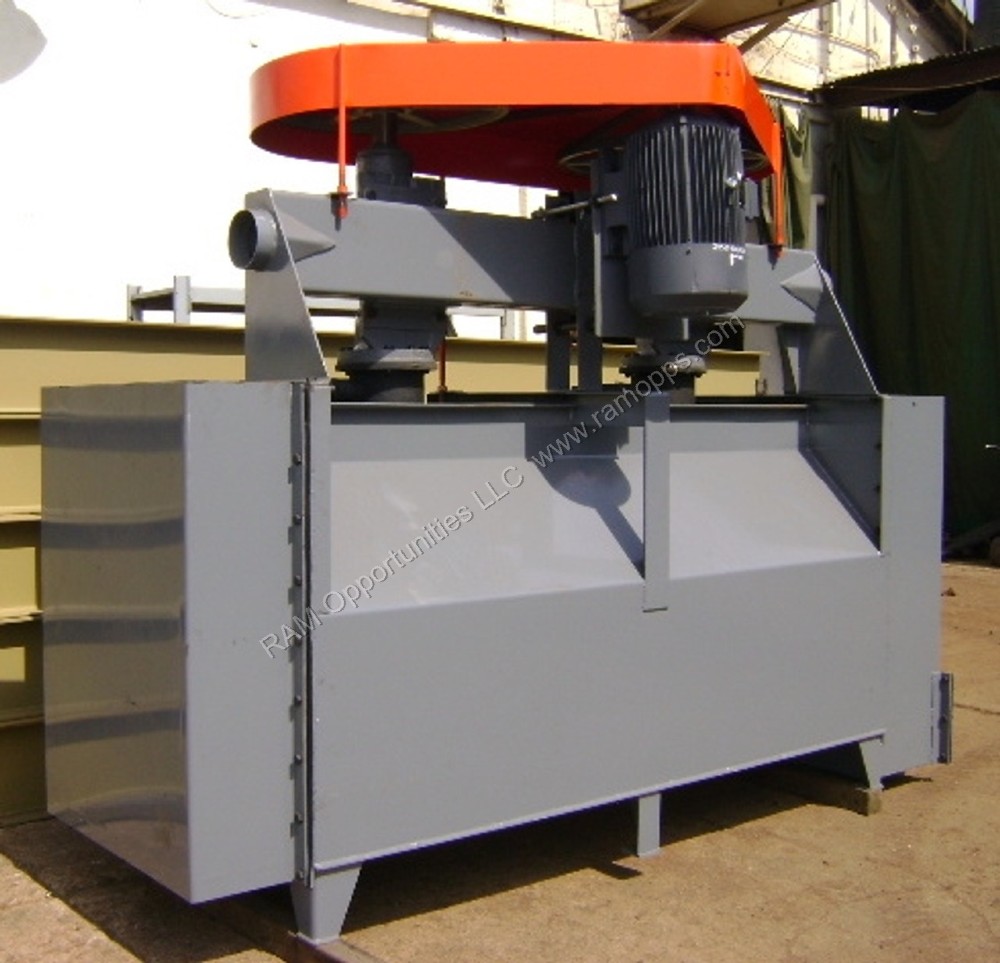

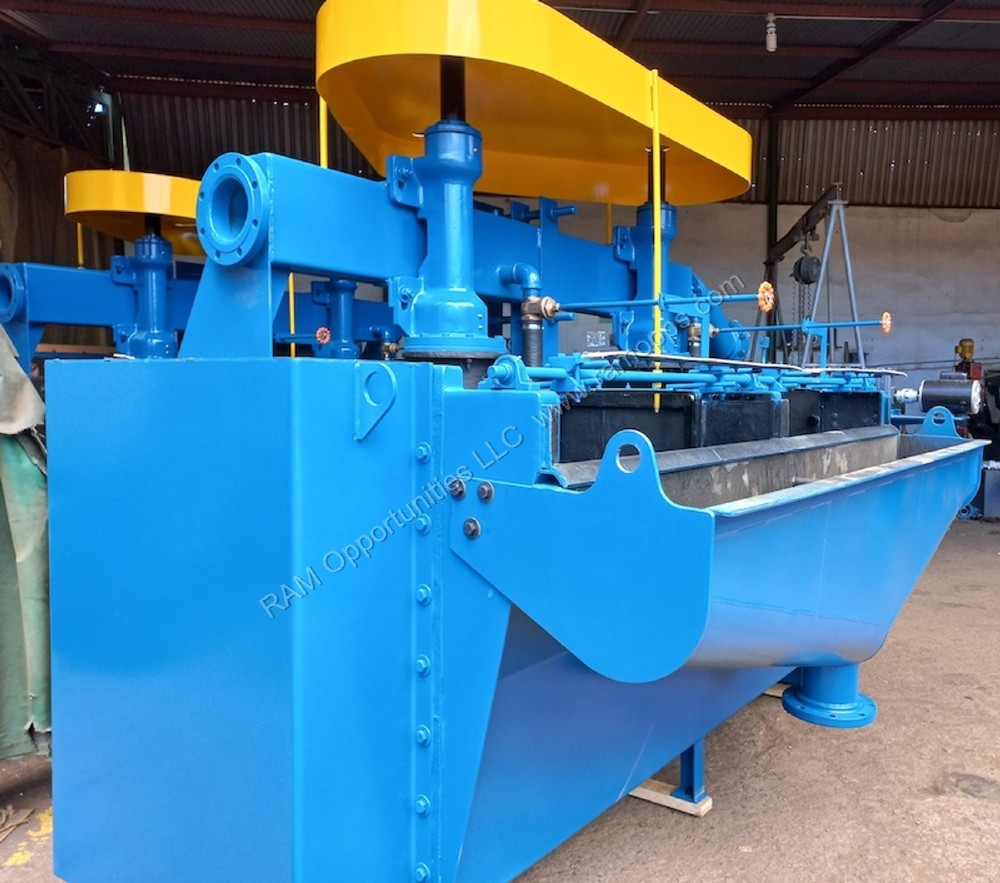

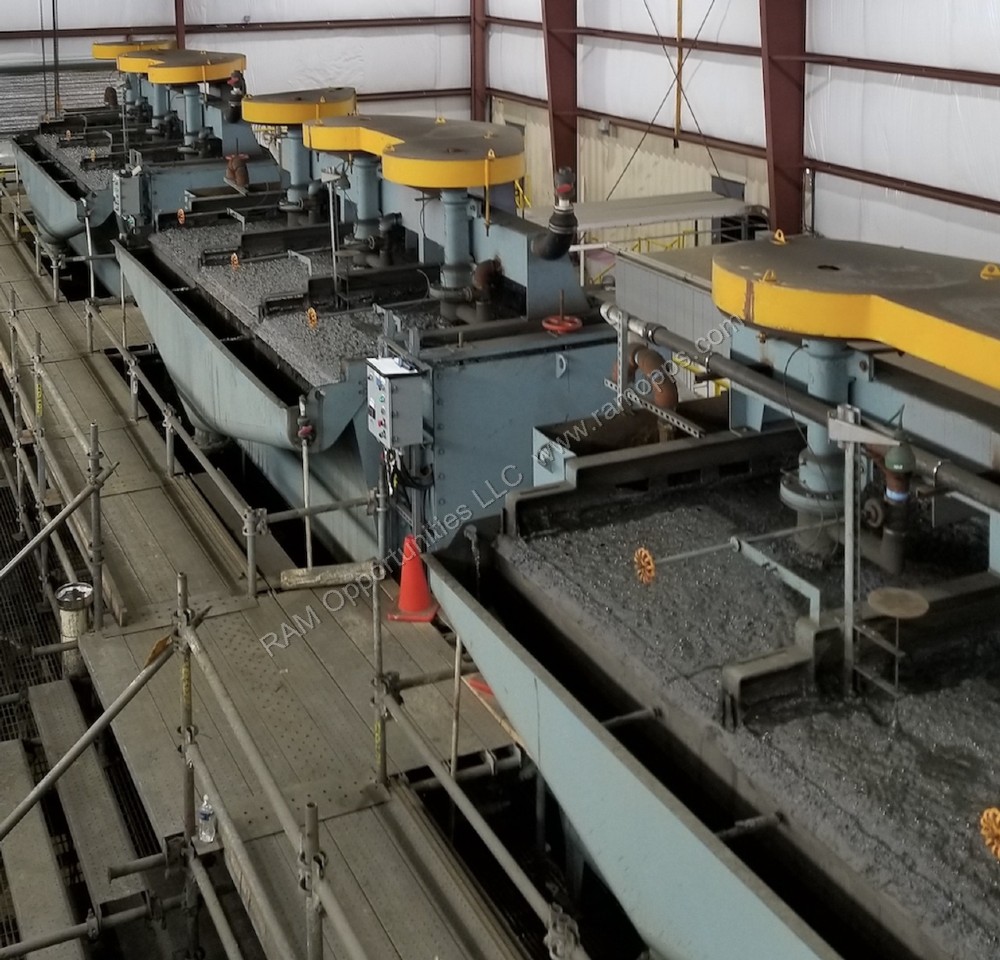

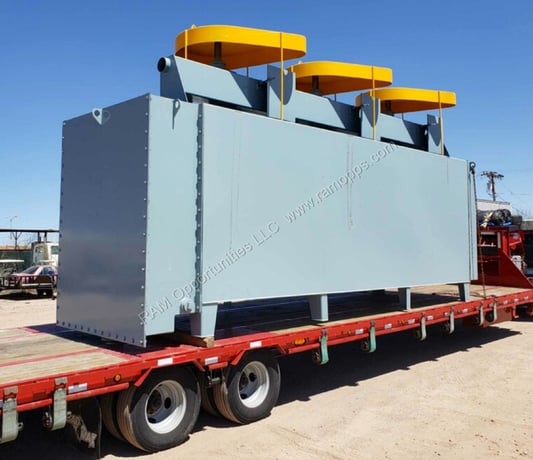

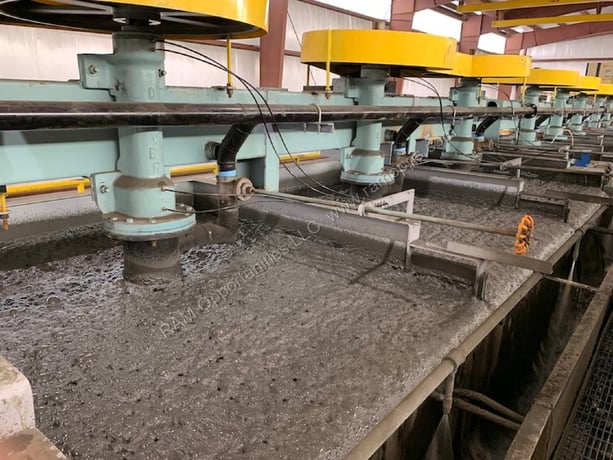

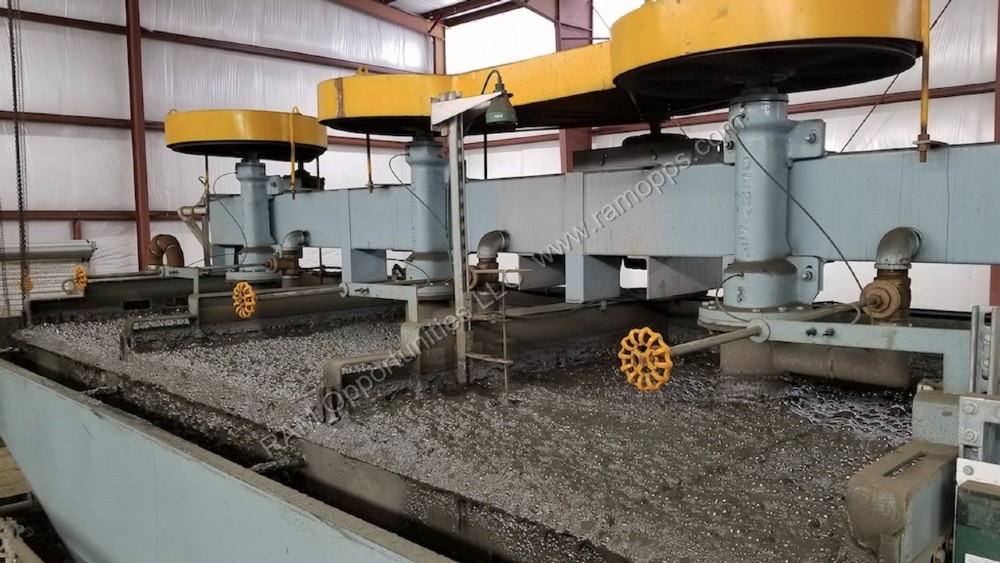

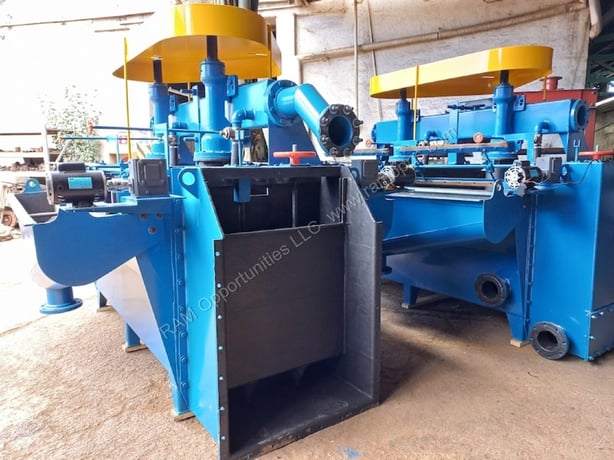

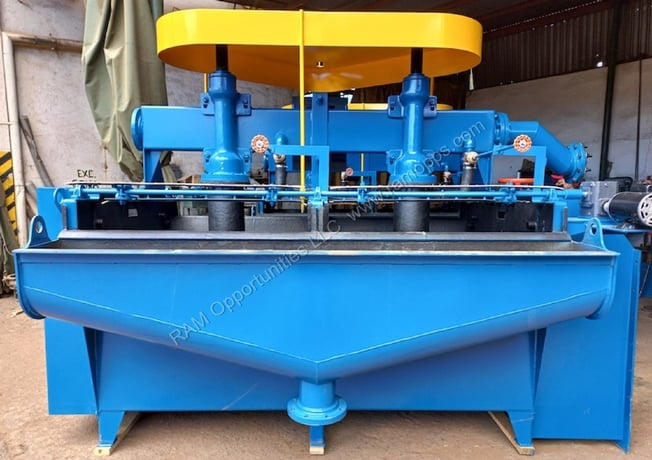

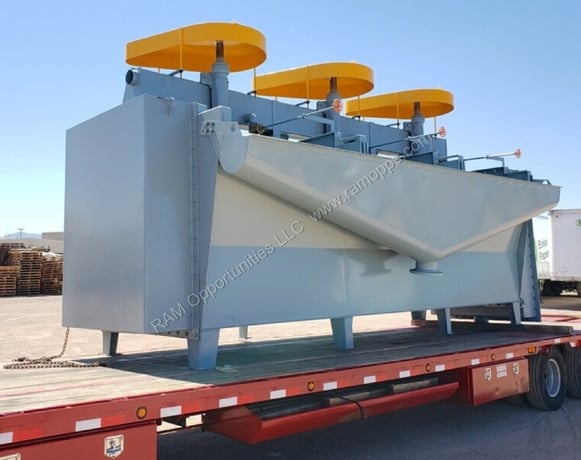

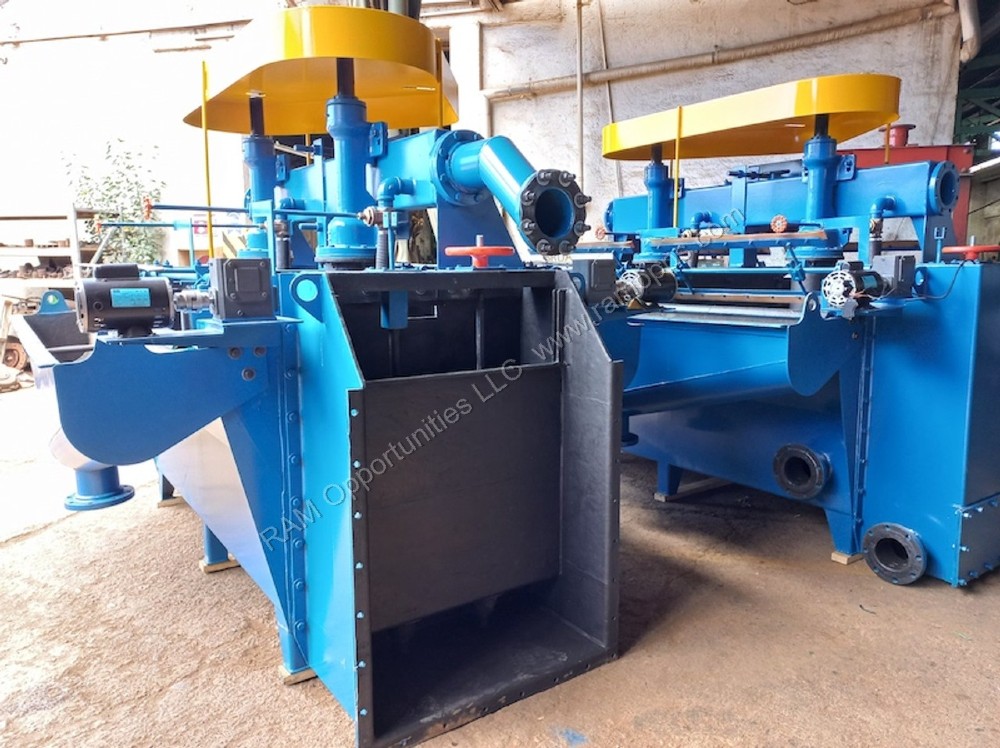

Denver style DR flotation Cells for Sale.
OVERVIEW
Denver-Style Flotation Cells Manufactured in North America
Inspected, Final Assembly, Stocked, Quality Control & Support in Arizona, USA.
Cells are complete with Denver style mechanisms, motors, pulleys, tanks, dart valves, feed tank, union tank, discharge tank, etc.
TANKS:
- Manufactured from A36 steel
- Rubber lined with natural rubber
- Launder box with flanged discharge and rubber lining
- Lifting eyes for transport/installation
- Belt guard mounting structure
MECHANISM:
- Cast bearing housing with inserts and seals
- Steel shaft
- Rubber coated bell and standpipe
- Rubber impeller and diffusor
- Belt guard
- Motor base
- Air inlet line
- Configured for dual or single drives based on cell size and end user preference
FEED BOX:
- Manufactured from A36 steel
- Rubber lined with natural rubber
DISCHARGE BOX:
- Manufactured from A36 steel
- Rubber lined with natural rubber
- Two dart valves with threaded stems - 1 valve manually set with hand wheel
- 1 valve ready to automate
- Discharge pipe with flange
- Drain pipe with flange
UNION BOX:
- Manufactured from A36 steel
- Rubber lined with natural rubber
Sizes available:
| Model | Vol (ft3) | Vol (M3) | HP (per 2 cells) |
| DR 18 | 25 | ||
| DR 21 | 40 | ||
| DR 24 | 50 | 1.4 | 10 |
| DR 30 | 100 | 2.8 | 15 |
| DR 160 | 160 | 4.5 | 17 |
| DR 300 | 300 | 8.5 | 30 |
| DR 500 | 500 | 14.2 | 40 |
Get Your Price from RAM Opportunities!
