Description

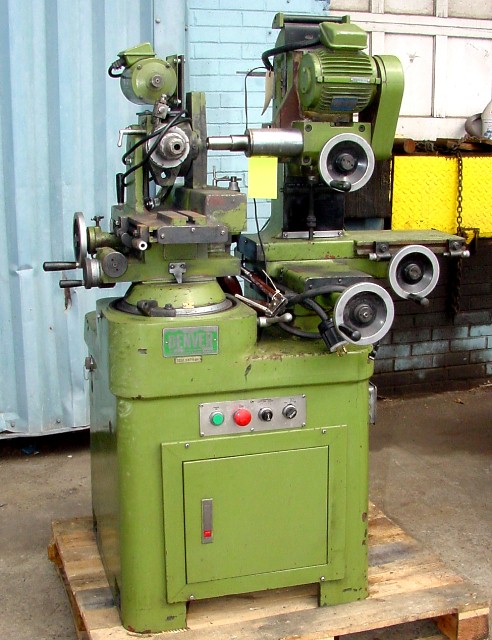

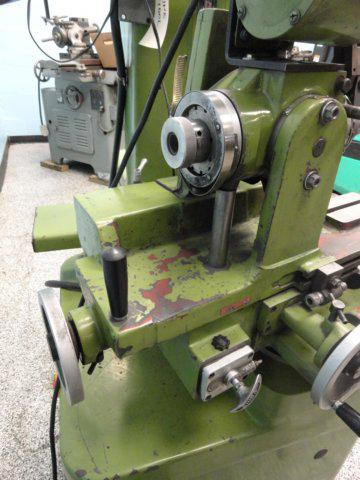

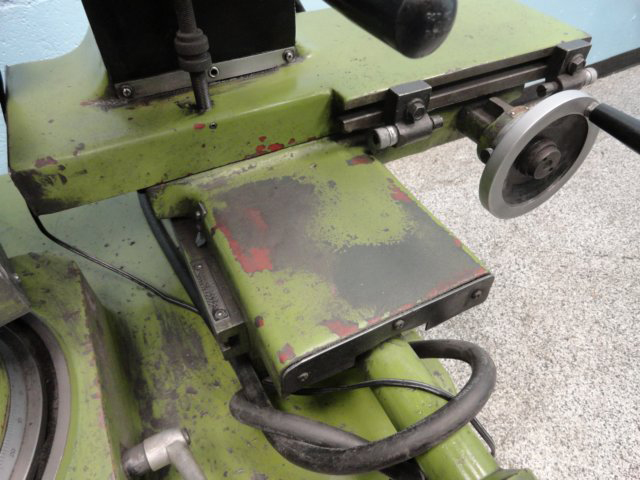

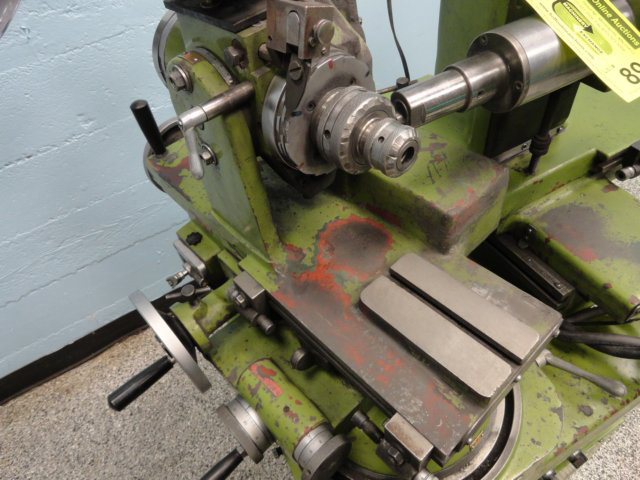

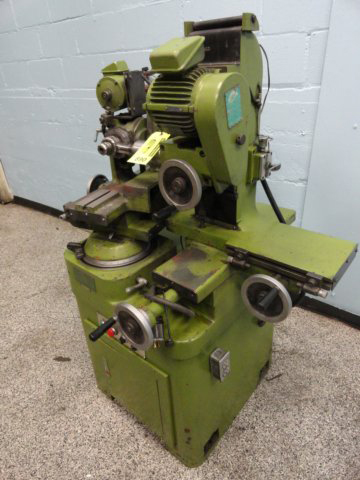

DENVER…"ASTRO"…"MONOSET COPY" TOOL… CUTTER GRINDER

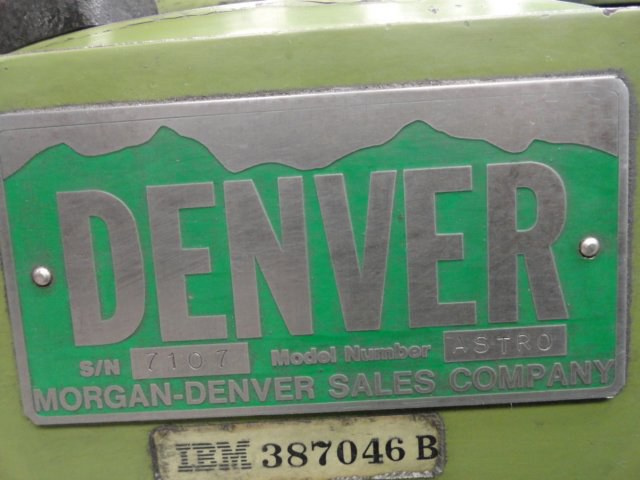

S/N: 7107… NEW: 1993
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:...... 12"
MAX. WORKHEAD COLLET HOLE DIA.:................. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA.:................. 0.12"
MAX. GRINDING WHEEL DIA.:....................... 4"
LEAD GENERATION BY SPIRAL LEAD MECHANISM,
MINIMUM:........................................ 1.81"
MAX. LENGTH OF WORK BETWEEN SPINDLE…
TAILSTOCK CENTER:............................... 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
MAIN SLIDE TRAVEL:.............................. 5-″/4"
OFFSET SLIDE TRAVEL, TOTAL:..................... 5- 1/4"
-FRONT OF CENTER:...............................″"
-REAR OF CENTER:................................ 2- 1/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL:.......................... 235 DEG.
ABOVE AND BELOW CENTER:......................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL SLIDE TRAVEL:...................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:................... 9-1/2"
-ABOVE CENTER:.................................. 4- 1/2"
-BELOW CENTER:.................................. 5"
CROSS SLIDE TRAVEL, TOTAL:...................... 7- 1/2"
-FRONT OF CENTER:...............................″"
-REAR OF CENTER:................................ 4- 1/2"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS: .................. 4,000, 5,729, 8,000 RPM
WORKHEAD SPINDLE SPEEDS: ....................... INFINITELY VARIABLE
APPROXIMATE WEIGHT ............................. 1,525 LBS.
APPROX. DIMS. ..................................″4"F-B x 42"L-R x 62"H
EQUIPPED WITH:
POWER WORKHEAD
ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
SPECIAL NOTE:
ORIGINALLY OWNED BY IBM. THIS IS ONE VERY NICE MACHINE TOOL!
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
