For Sale by National Machinery Exchange
Description

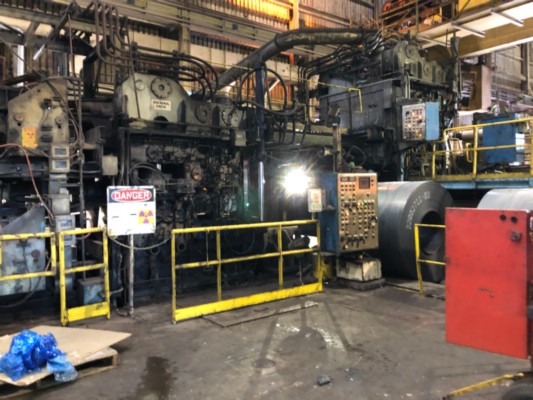

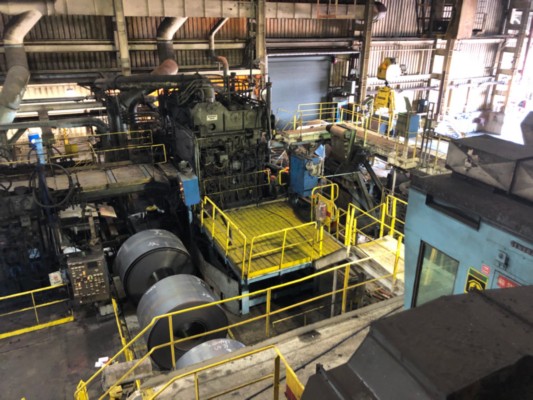

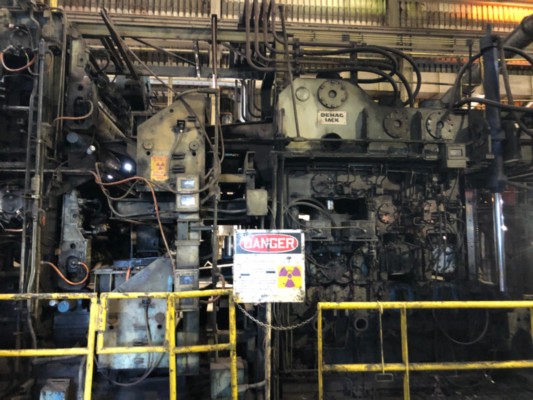

MANUFACTURER - SACK DEMAG
TYPE - INLINE PULL THRU TURRET SIDE TRIMMER
YEAR - 1986
SIDE TRIMMER COMPONENT LIST:
SIDE NOTCHER (ONE ON EITHER SIDE)
HYDRAULICALLY ACTUATED
MAX CLEAR WIDTH NOTCHER - 1800MM
NOTCH DEPTH FROM STRIP EDGE - 120MM
NOTCH LENGTH - 650/714MM
NOTCHING DIE STROKE - 130MM
STEERING ROLL #5 - TO CORRECT STRIP MISTRACKING
NUMBER OF CLAMPING ROLLS - 3
CLAMPING PRESSURE - HYDRAULICALLY ACTUATED
ROLL SIZE - 550MM X 1650MM DIAMETER
BEARINGS SUPPORT - ANTI-FRICTION BEARINGS
TURRET SIDE TRIMMING UNIT
MAX WORKING WIDTH - 1600MM
MIN WORKING WIDTH - 550MM
KNIFE DIAMETER - 400 - 350MM
MAXIMUM TURRET ASSEMBLY SWING - 2400MM
SCRAP CHUTE & SIDE TRIMMER SHEAR CUTS TRIMMINGS
SCRAP CHOPPER TO CUT SIDE TRIMMINGS
KNIFE ARBOR - 350MM
KNIFE LENGTH - 200MM
MOTOR - DC MOTOR
SCRAP CONVEYORS AND CHUTES CONSISTING OF BELTS CONVEYORS FOR DISCHARGE
DEFLECTOR ROLLS #3 & #4
DESIGN - S-TYPE
ASSEMBLY - VERTICALLY
DIAMETER - 1200MM
FACE - 1650MM
