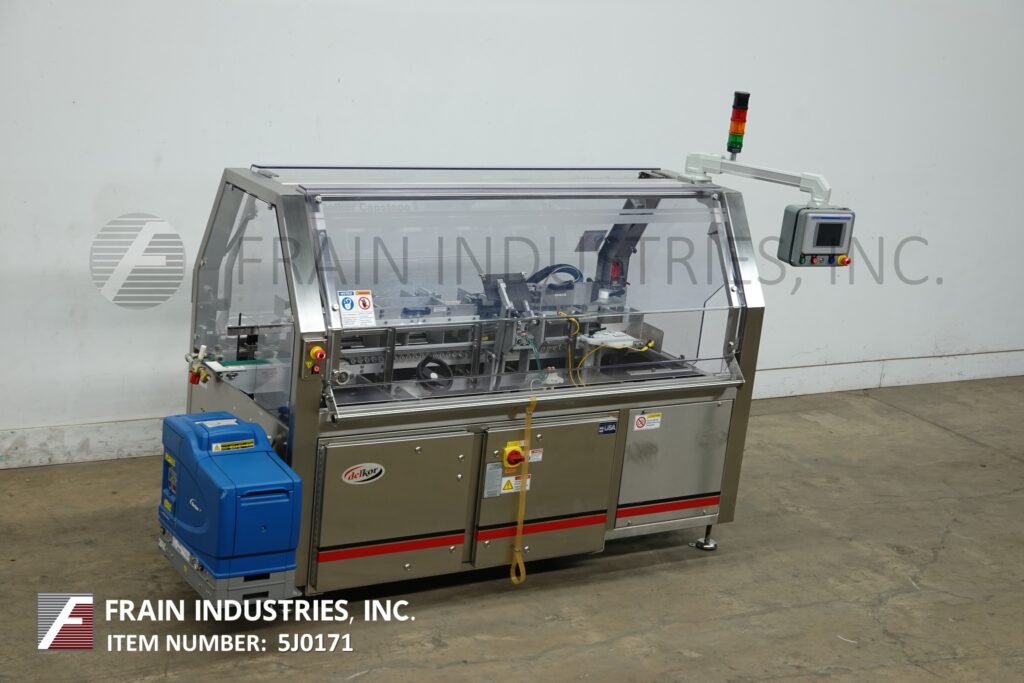

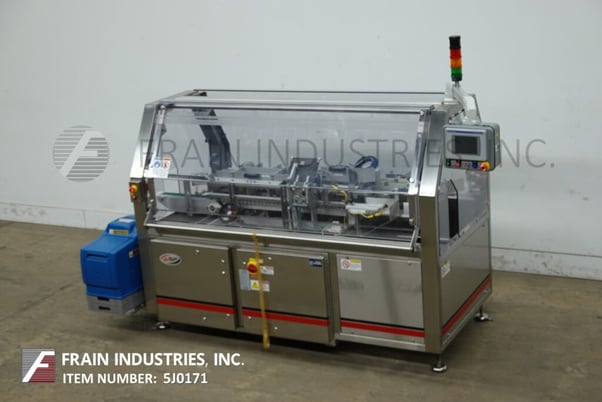

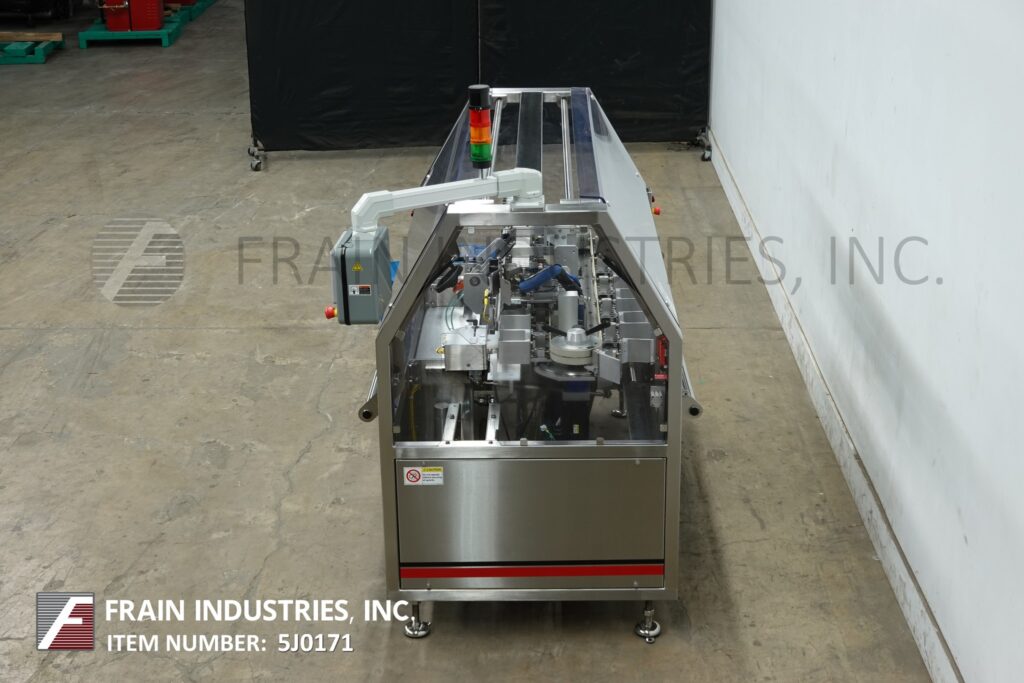

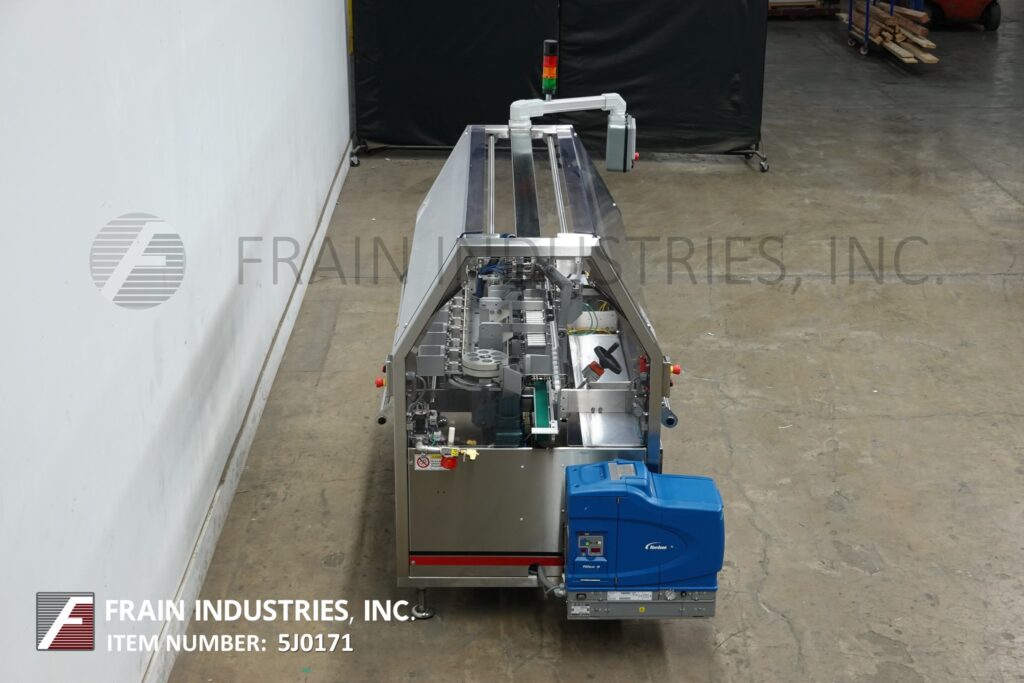

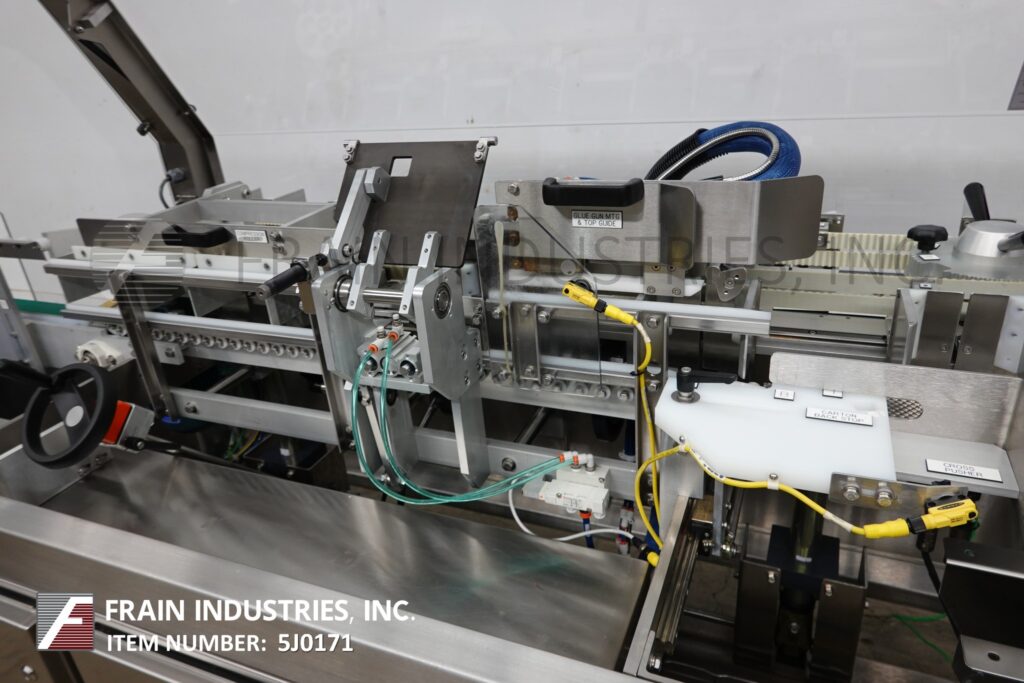

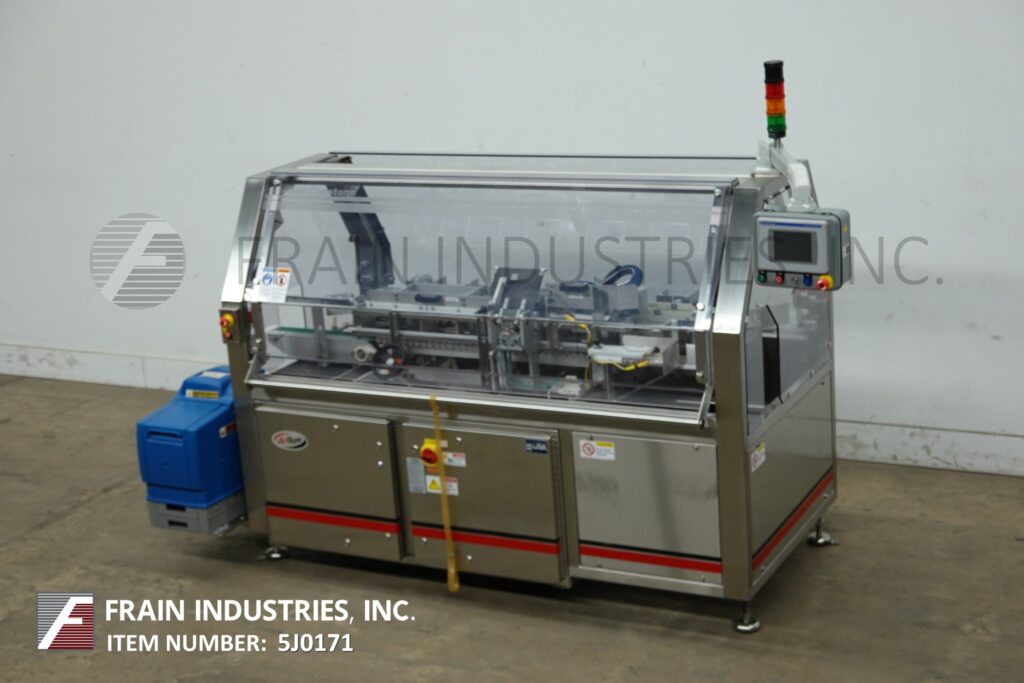

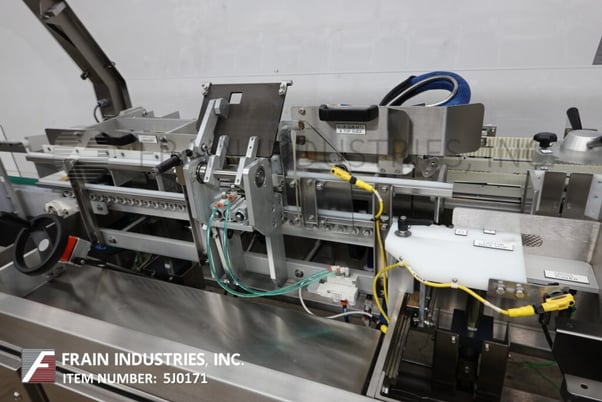

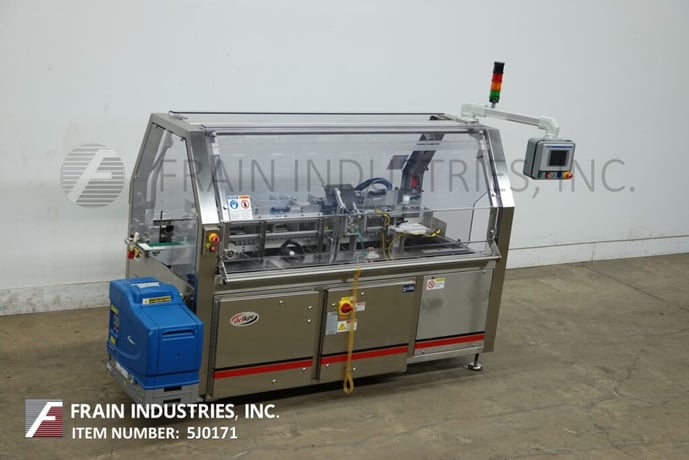

Delkor #Capstone-Series, thru spindle coolant, Stainless steel, top carton closer, hot melt glue sealer rated up to 150 CPM, mounted on a stainless steel frame with safety guarding, statis light bar & leveling legs

Delkor Capstone Series, TSC, Stainless steel, top carton closer and hot melt glue sealer rated up to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 10½" in Length x 1" to 5" in Width x 4" to 7½" in Height. Capable of handling both corrugated and paper board in a variety of carton styles such as tri-seal, front-flap seal, hooded or hinged cartons, all with proper change parts. Equipped with adjustable carton carriers set on 11¾" centers, Nordson ProBlue hot melt glue system and Siko gages. Control panel has A/B PLC controls with swing arm A/B Panelview Plus 700 HMI and A/B Kinetix 6000 servo motors and A/B Powerflex, with start, stop, reset and e-stop push buttons. Mounted on a stainless steel frame with safety guarding, statis light bar and leveling legs.

OAD: 96" L x 48" W x 64" H
