Description
Specifications
Deister No. 6 Concentrating Table
- Make: Deister
- Model: No. 6
- Type: Gold Concentrating Table
- Condition: Used Condition

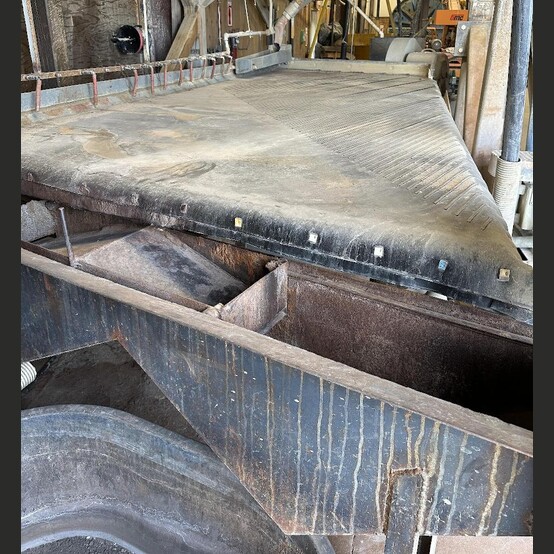

- Deck: Full Size Diagonal Deck

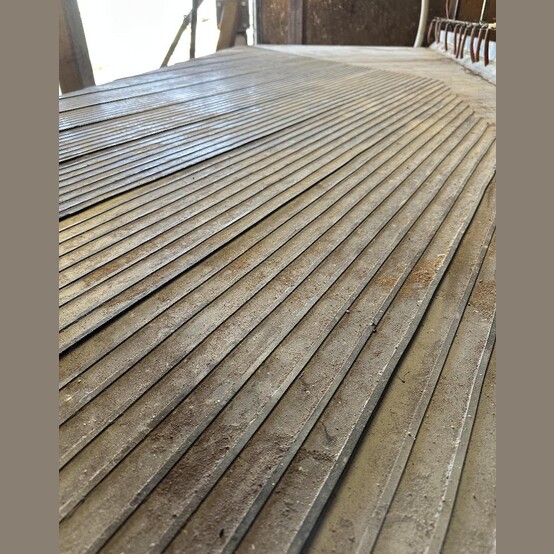

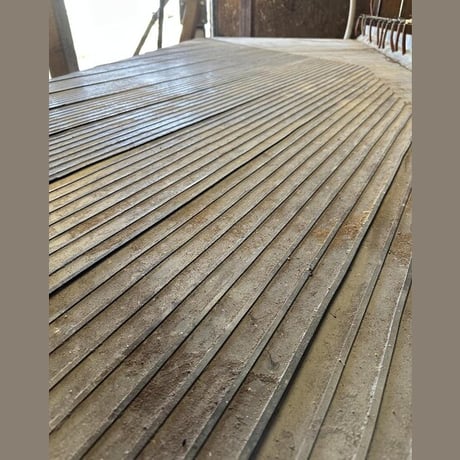

- Deck Top: Rubber Cover with Riffles
- Feed Trough and Launders

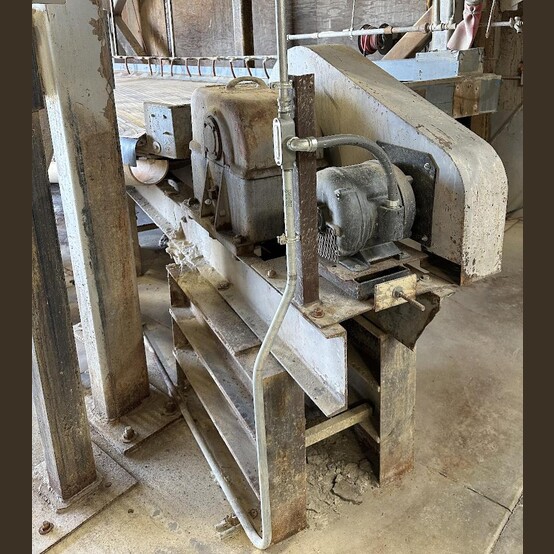

- Drive: Electric Motor - Belt Drive
- General Model Specifications:
- Capacity (Standard Tons Per Hour):
- Coarse Sand - 2.5 STPH (2.3 MTPH)
- Medium Sand - 1.5 STPH (1.4 MTPH)
- Fine Sand - 1.0 STPH (0.9 MTPH)
- Slime - 0.5 STPH (0.4 MTPH)
- Particle Top Size:
- Coarse Sand - 10 Mesh (2.0mm)
- Medium Sand - 48 Mesh (0.30mm)
- Fine Sand - 100 Mesh (0.15mm)
- Slime - 325 Mesh (0.044mm)
- Dressing Water Consumption:
- Coarse Sand: 10-16 GPM (2.3-3.6m³/h)
- Medium Sand: 8-12 GPM (1.8-2.7m³/h)
- Fine Sand: 5-9 GPM (1.1-2.0m³/h)
- Slime: 3-5 GPM (0.7-1.1m³/h)
- Capacity (Standard Tons Per Hour):
- Location: Western USA
