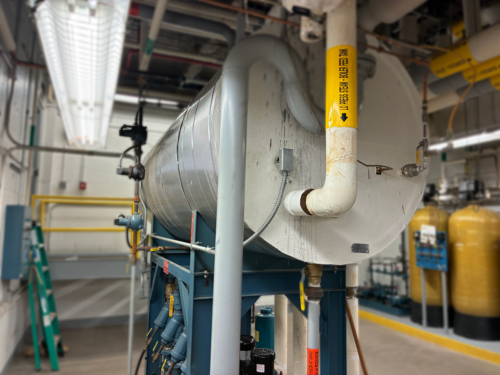

Deaerator Tank System, Multi-Pump Configuration, 4 pump, LTI BFT Control panel

Overview

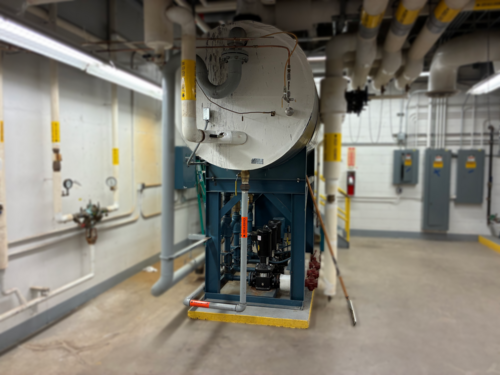

This industrial deaerator tank system provides essential feedwater treatment for steam boiler operations. Featuring a robust insulated pressure vessel with four independent boiler feed pumps, this system ensures continuous, oxygen-free water supply to your boilers. The complete package includes LT Industries control panel, multiple feedwater lines with manual isolation valves, and comprehensive safety systems. Currently installed and operational in an active facility, demonstrating proven reliability and professional craftsmanship.
Design and Performance
- Tank Type: Horizontal Cylindrical Deaerator
- Configuration: Multi-pump redundant system
- Feedwater Pumps: 4 Independent units
- Control System: LT Industries BFT-1 Panel
- Piping: Color-coded with flow direction markers
- Insulation: Full tank insulation with protective white coating
- Mounting: Elevated steel framework
- Safety Features: Multiple relief valves with chain operators
- Installation Status: Currently operational
System Components
Primary Equipment

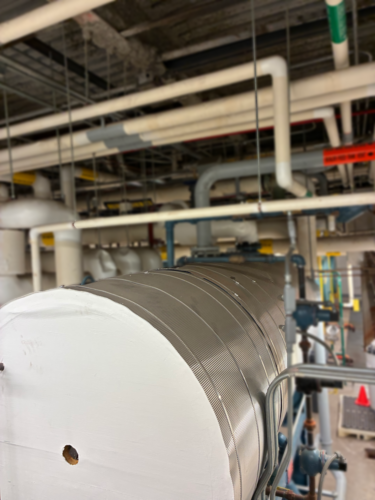

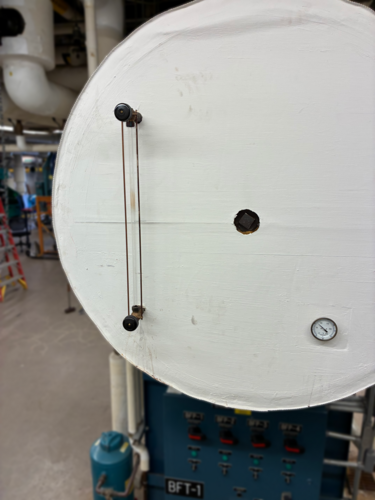

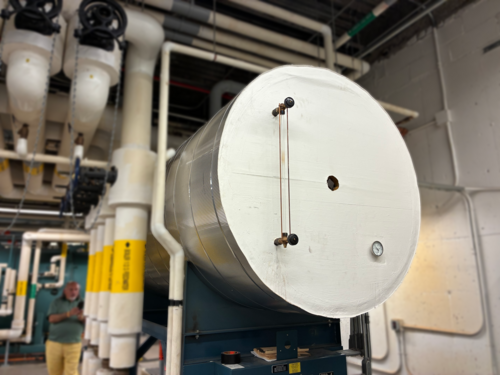

- Deaerator Tank: Horizontal pressure vessel with inspection ports

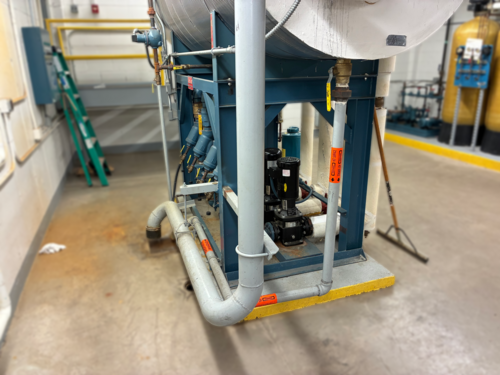

- Pump Configuration: Four (4) vertical feedwater pumps

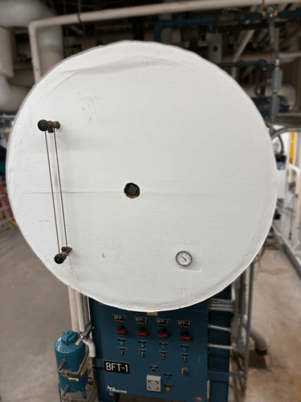

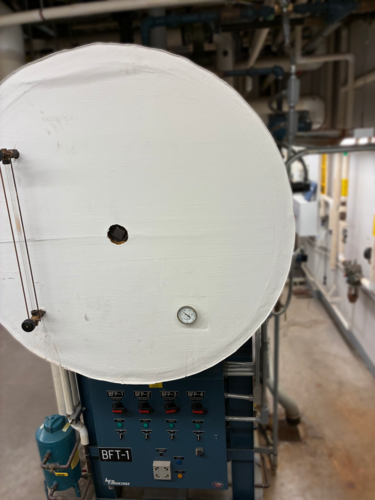

- Control Panel: BFT-1 with individual pump controls
- Valve System: Manual isolation valves on each line
- Safety Valves: Multiple pressure relief points
- Support Structure: Heavy-duty steel framework

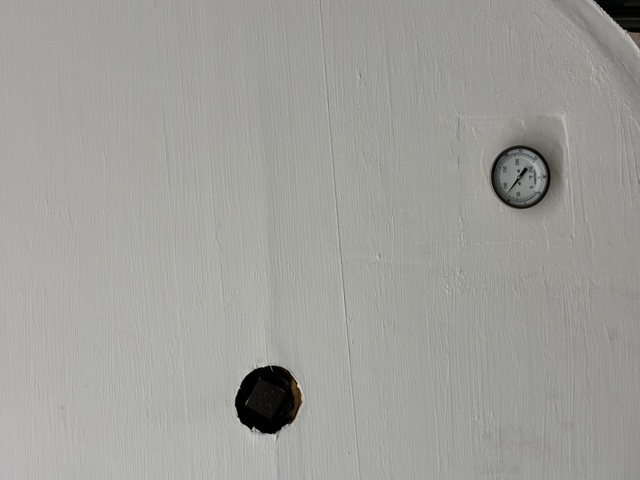

- Instrumentation: Pressure gauges and monitoring points
Control System Features

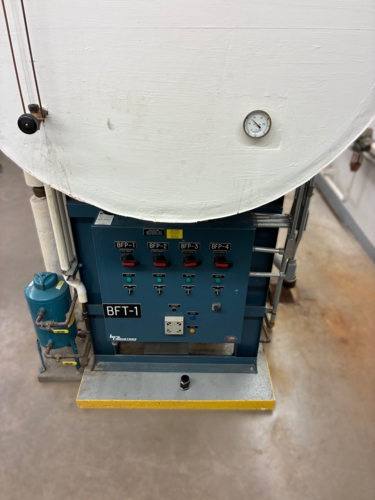

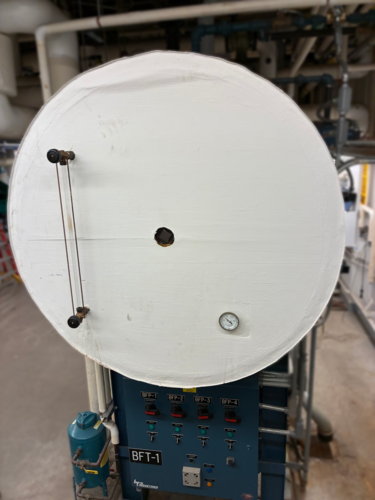

- Panel Model: LT Industries BFT-1
- Pump Controls: BFP-1, BFP-2, BFP-3, BFP-4
- Control Type: Individual start/stop switches
- Indicators: Status lights for each pump
- Protection: Industrial-grade enclosure
- Mounting: Wall-mounted at operator height
Piping Configuration
- Feedwater Lines: Four (4) vertical lines
- Valve Type: Manual gate valves
- Line Marking: Yellow directional flow indicators
- Headers: Properly sized distribution manifolds
- Connections: Flanged for easy maintenance
- Layout: Organized for optimal access
Technical Specifications
- Number of Pumps: 4 independent units
- Control Voltage: Standard industrial voltage
- Piping Material: Carbon steel with appropriate ratings
- Insulation Type: Thermal insulation with protective jacket
- Safety Compliance: ASME code construction
- Pressure Rating: Suitable for standard boiler systems
- Temperature Rating: High-temperature operation capable
Key Features
- Redundancy: Four-pump design ensures continuous operation
- Control Flexibility: Individual pump control for maintenance
- Safety Systems: Multiple relief valves and pressure monitoring
- Professional Installation: Properly supported and piped
- Easy Maintenance: Accessible valves and components
- Proven Design: Currently in active service
- Complete Package: All components included
Ideal Applications
- Multi-boiler plants
- Industrial steam systems
- Process steam facilities
- Power generation
- Manufacturing plants
- Hospital steam systems
- University central plants
- Food processing facilities
- Any facility requiring reliable deaerated feedwater
Benefits
- Continuous Operation: Multi-pump redundancy prevents downtime
- Oxygen Removal: Protects boilers from corrosion
- Flexible Control: Individual pump operation
- Safety First: Multiple pressure relief points
- Professional Quality: Industrial-grade components throughout
- Proven Performance: Currently operational
- Complete System: Turnkey installation
- Easy Integration: Standard connections and controls
System Advantages
Operational Benefits
- Eliminates dissolved oxygen from feedwater
- Prevents boiler corrosion and pitting
- Improves overall system efficiency
- Reduces chemical treatment requirements
- Extends boiler life
- Provides consistent water temperature
- Enables scheduled pump maintenance without shutdown
Design Benefits
- Compact footprint for space efficiency
- Elevated design for gravity feed
- Multiple pump redundancy
- Easy operator access to controls
- Clear valve identification
- Professional piping layout
- Robust construction for long life
Installation Features
- Current Status: Installed and operational
- Mounting: Structural steel support system
- Access: Walk-around design for maintenance
- Connections: Standard flanged connections
- Control Location: Ergonomic panel placement
- Safety Access: Chain-operated relief valves
- Documentation: Installation follows industry standards
Maintenance Considerations
- Individual pump isolation for service
- Accessible valve locations
- Clear component identification
- Standard replacement parts
- Multiple access points
- Organized piping layout
- Professional installation quality
Safety & Compliance
- ASME code construction standards
- Multiple pressure relief valves
- Proper vessel support system
- Safety valve accessibility
- Clear operational markings
- Industrial-grade components
- Professional installation standards
- Comprehensive pressure monitoring
Additional Information
- Condition: Operational system
- Installation Quality: Professional grade
- System Completeness: All components included
- Control Features: Individual pump control
- Redundancy Level: Four independent pumps
- Maintenance Access: Excellent
- Space Requirements: Compact design
- Integration: Standard connections
System Details
This complete deaerator system demonstrates professional installation and design, featuring:
- Four independent boiler feed pumps for ultimate reliability
- Individual pump controls allowing maintenance without system shutdown
- Comprehensive safety systems with multiple relief valves
- Professional piping with clear identification
- Currently operational proving system reliability
The multi-pump configuration ensures your boiler system never lacks properly treated feedwater, while the individual controls provide maximum operational flexibility.
Location: Ohio
