Description

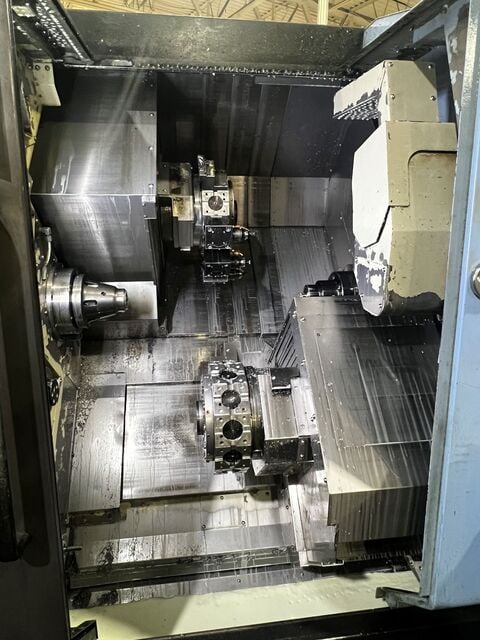

2010 Doosan Puma TT1800SY CNC multitasking center with Y-axis, equipped with bar feed, 8" hydraulic chucks, and tool setter. Features include 5,000 RPM spindle speeds, 30 hp, IEMCA Master 21 bar feed, and a chip blaster unit. Perfect for high-precision tasks.
2010 DOOSAN PUMA TT1800SY
SPECIFICATIONS:
Turning Diameter................... 9.05"
Turning Length..................... 27"
Distance Between Spindles.......... 38.5"
Chuck Size 1....................... 8"
Spindle Nose 1..................... A2 -6
Spindle Bore Diameter 1............ 2.99"
Bar Capacity 1..................... 2.6"
Spindle Speeds 1................... 5,000 RPM
Spindle Horsepower 1............... 30 hp
Chuck Size 2....................... 8"
Spindle Nose 2..................... A2 - 6
Spindle Bore Diameter 2............ 2.99"
Bar Capacity 2..................... 2.55"
Spindle Speeds 2................... 5,000 RPM
Spindle Horsepower 2............... 30 hp
X1 - Axis Travel................... 6.5"
X2 - Axis Travel................... 7.48"
Z1 - Axis Travel................... 27.5"
Z2 - Axis Travel................... 28.34"
Y1 - Axis Travel................... 3.93"
C - Axis Indexing 1................ 0.001
C - Axis Indexing 2................ 0.002
W - Axis Travel Sub Spindle........ 30.3"
Rapid Traverse Rate - X1........... 787 ipm
Rapid Traverse Rate - X2........... 787 ipm
Rapid Traverse Rate - Z1........... 1575 ipm
Rapid Traverse Rate - Z2........... 1575 ipm
Rapid Traverse Rate - Y1........... 295 ipm
Turret Tool Positions 1............ 122455 station
Turret Rotary Tool Speeds 1........ 5,000 RPM
Turret Rotary Tool Horse Power 1... 7.5 hp
Turret Tool Positions 2............ 122455
Turret Rotary Tool Speeds 2........ 5,000 RPM
Turret Rotary Tool Horse Power 2... 7.5 hp
Machine Weight..................... 19,400 lb
Control............................ CNC (FANUC 31i - A CNC COLOR CONTROL)
Weight............................. 0.00
EQUIPPED WITH:
Y AXIS UPPER TURRET ONLY
CHIP CONVEYOR
BAR FEED INTERFACE
IEMCA MASTER 21 880 SHORT MAGAZINE BAR FEED SYSTEM
TOOL SETTER
S - 26 COLLET CHUCK MAIN & SUB SPINDLE
8" / 8" 3 JAW HYDRAULIC CHUCKS
OVERHEAD PARTS CATCHER
(4) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTARY HEADS
STANDARD STATIC HOLDERS
CHIP BLASTER UNIT 1000 PSI THROUGH THE TOOL COOLANT
2010 DOOSAN PUMA TT1800SY
SPECIFICATIONS:
Turning Diameter................... 9.05"
Turning Length..................... 27"
Distance Between Spindles.......... 38.5"
Chuck Size 1....................... 8"
Spindle Nose 1..................... A2 -6
Spindle Bore Diameter 1............ 2.99"
Bar Capacity 1..................... 2.6"
Spindle Speeds 1................... 5,000 RPM
Spindle Horsepower 1............... 30 hp
Chuck Size 2....................... 8"
Spindle Nose 2..................... A2 - 6
Spindle Bore Diameter 2............ 2.99"
Bar Capacity 2..................... 2.55"
Spindle Speeds 2................... 5,000 RPM
Spindle Horsepower 2............... 30 hp
X1 - Axis Travel................... 6.5"
X2 - Axis Travel................... 7.48"
Z1 - Axis Travel................... 27.5"
Z2 - Axis Travel................... 28.34"
Y1 - Axis Travel................... 3.93"
C - Axis Indexing 1................ 0.001
C - Axis Indexing 2................ 0.002
W - Axis Travel Sub Spindle........ 30.3"
Rapid Traverse Rate - X1........... 787 ipm
Rapid Traverse Rate - X2........... 787 ipm
Rapid Traverse Rate - Z1........... 1575 ipm
Rapid Traverse Rate - Z2........... 1575 ipm
Rapid Traverse Rate - Y1........... 295 ipm
Turret Tool Positions 1............ 122455 station
Turret Rotary Tool Speeds 1........ 5,000 RPM
Turret Rotary Tool Horse Power 1... 7.5 hp
Turret Tool Positions 2............ 122455
Turret Rotary Tool Speeds 2........ 5,000 RPM
Turret Rotary Tool Horse Power 2... 7.5 hp
Machine Weight..................... 19,400 lb
Control............................ CNC (FANUC 31i - A CNC COLOR CONTROL)
Weight............................. 0.00
EQUIPPED WITH:
Y AXIS UPPER TURRET ONLY
CHIP CONVEYOR
BAR FEED INTERFACE
IEMCA MASTER 21 880 SHORT MAGAZINE BAR FEED SYSTEM
TOOL SETTER
S - 26 COLLET CHUCK MAIN & SUB SPINDLE
8" / 8" 3 JAW HYDRAULIC CHUCKS
OVERHEAD PARTS CATCHER
(4) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTARY HEADS
STANDARD STATIC HOLDERS
CHIP BLASTER UNIT 1000 PSI THROUGH THE TOOL COOLANT
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Daewoo Doosan #Puma-TT1800SY, 5-Axis CNC Lathe, 9" swing, 38.5" machining length, 8" chuck, 2.6" bar, 30 HP, 5000 RPM, live tooling, sub spindle, Fanuc i Series CNC, 2021
Category: CNC Lathes and Turning Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Doosan
Model: PUMA TT1800SY
Year: 2021
Used 5-axis lathe, s a 9" swing, 38.5" machining length, 8" chuck, and 2.6" bar capacity. live tooling, sub spindle, Y-axis, and Fanuc i Series CNC control. Maximum 5000 RPM with 30 hp power., # AXIS 5, SWING 9", MACHINING LENGTH 38.5", CHUCK SIZE 8", BAR CAPACITY 2.6", POWER 30 hp, MAX RPM 5,000 RPM, TURNING DIA 9".
JUST ADDED!

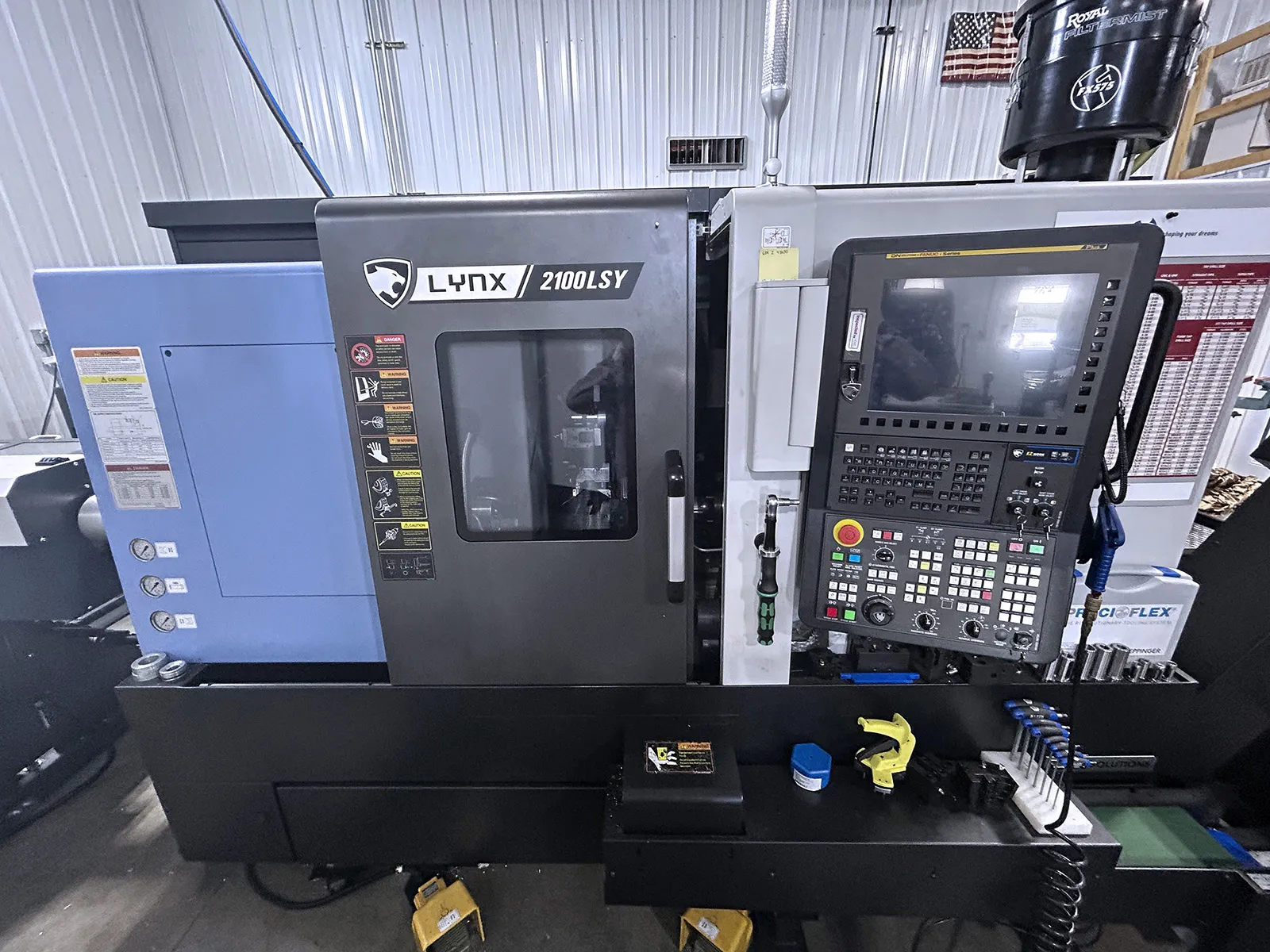

Daewoo Doosan #Lynx-2100LSYB, CNC turning center, 8" chuck, 2.6" bar, 11.8" diameter, 20.1" length, 4500 RPM, sub spindle, 6000 RPM, 12 turret, 2024
Category: CNC Lathes and Turning Centers
Seller: Machine Tool Bids
Location: Chicago, IL
Mfr: Daewoo Doosan
Model: LYNX-2100LSYB
Year: 2024
This used 2024 Doosan Lynx 2100LSYB CNC turning center delivers high-productivity multi-tasking machining, and completing complex parts in a single setup. Ideal for aerospace, automotive, medical, hydraulics, and precision job-shop production, helping reduce setups, improve efficiency, and maximize machining ...more
JUST ADDED!

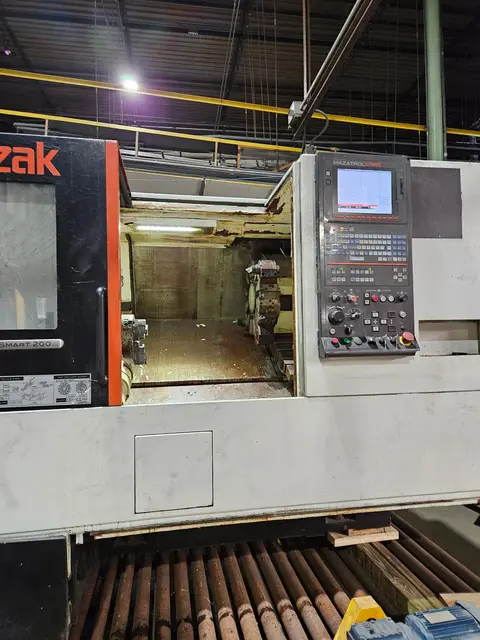

Mazak #Quick-Turn-Smart-200, CNC Lathe, 26" swing, 8" chuck, 2.6" bar, 20" centers, 14" turning diameter, 5000 RPM, 12 turret, 2016, (2 available)
