Manufacturer: Daewoo Doosan
Model: PUMA-480XL
Year: 2014
Swing: 35.4
Chuck: 24
Bar Capacity: 6.5
Centers: 124.0
Stock # 10081
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

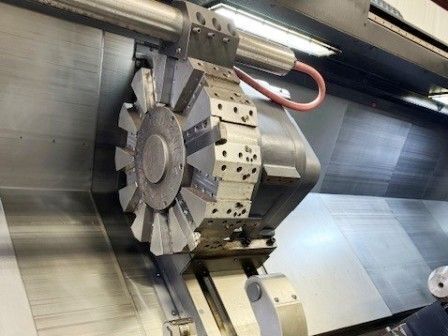

DOOSAN PUMA 480XL CNC Turning Center with hydraulic steady rest. 2014 model, designed for precision in 2-axis applications utilizing a programmable hydraulic open and close steady rest. Ideal for enhancing your machining capabilities with reliable performance.
2014 DOOSAN PUMA 480 XL
SPECIFICATIONS:
Swing Over Bed..................... 35.4"
Machining Length................... 120.7"
Distance Between Centers........... 124"
Turning Diameter, Shaft Diameter... 25.6"
Chuck Size 1....................... 24"
Spindle Nose 1..................... A1 - 15
Spindle Bore Diameter 1............ 7.12"
Spindle Bar Capacity 1............. 6.55"
Spindle Speeds 1................... 1,500 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 14.3"
Z1 - Axis Travel................... 122"
Rapid Traverse Rate - X1........... 630 in/min.
Rapid Traverse Rate - Z1........... 394 in/min.
Spindle Torque..................... -2975
Gear Ranges........................ 2
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 4.7"
Tailstock Taper.................... MT 6
Tailstock Quill Travel............. 4.7"
Tailstock Travel................... 121.3"
Control............................ CNC (FANUC 32I B CNC COLOR CONTROL)
Weight............................. 27558.00
EQUIPPED WITH:
24" 3-JAW HYDRAULIC CHUCK SYSTEM
FANUC 32IB CNC COLOR CONTROL
SMW PROGRAMMABLE OPEN & CLOSE STEADY REST
MANUAL GUIDE I CNC CONVERSATIONAL PROGRAMMING
FANUC 32IB CNC COLOR CONTROL
PROGRAMMABLE TAILSTOCK
DOOSAN TOOL LOAD MONITORING SYSTEM
PROGRAMMABLE STEADY PREPERATION
TOOL SETTER
CUSTOM MACRO B
CHIP CONVEYOR
2014 DOOSAN PUMA 480 XL
SPECIFICATIONS:
Swing Over Bed..................... 35.4"
Machining Length................... 120.7"
Distance Between Centers........... 124"
Turning Diameter, Shaft Diameter... 25.6"
Chuck Size 1....................... 24"
Spindle Nose 1..................... A1 - 15
Spindle Bore Diameter 1............ 7.12"
Spindle Bar Capacity 1............. 6.55"
Spindle Speeds 1................... 1,500 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 14.3"
Z1 - Axis Travel................... 122"
Rapid Traverse Rate - X1........... 630 in/min.
Rapid Traverse Rate - Z1........... 394 in/min.
Spindle Torque..................... -2975
Gear Ranges........................ 2
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 4.7"
Tailstock Taper.................... MT 6
Tailstock Quill Travel............. 4.7"
Tailstock Travel................... 121.3"
Control............................ CNC (FANUC 32I B CNC COLOR CONTROL)
Weight............................. 27558.00
EQUIPPED WITH:
24" 3-JAW HYDRAULIC CHUCK SYSTEM
FANUC 32IB CNC COLOR CONTROL
SMW PROGRAMMABLE OPEN & CLOSE STEADY REST
MANUAL GUIDE I CNC CONVERSATIONAL PROGRAMMING
FANUC 32IB CNC COLOR CONTROL
PROGRAMMABLE TAILSTOCK
DOOSAN TOOL LOAD MONITORING SYSTEM
PROGRAMMABLE STEADY PREPERATION
TOOL SETTER
CUSTOM MACRO B
CHIP CONVEYOR
