Manufacturer: Daewoo Doosan
Model: PUMA-2600YII
Year: 2023
Swing: 30.7
Chuck: 10
Bar Capacity: 3.0
Centers: 34.0
Stock # 10262
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description
Explore the 2023 Doosan PUMA 2600YII multi-tasking CNC lathe, offering precision turning and milling. Equipped with Ethernet, USB, chip conveyor, Doosan EZ Guide, auto parts catcher, and more. Max swing 30.7", spindle speeds up to 3,500 RPM.
2023 DOOSAN PUMA 2600YII
SPECIFICATIONS:
Swing Over Bed..................... 30.7"
Turning Diameter................... 14.8"
Turning Length..................... 29.9"
Distance Between Centers........... 34"
Chuck Size 1....................... 10"
Spindle Nose 1..................... A2 - 8
Spindle Bore Diameter 1............ 3.4"
Bar Capacity 1..................... 3"
Spindle Speeds 1................... 3,500 RPM
Spindle Horsepower 1............... 30 hp
X1 - Axis Travel................... 10.2"
Z1 - Axis Travel................... 32.7"
Y1 - Axis Travel................... 4.1"
C - Axis Indexing 1................ 0.001
Rapid Traverse Rate - X1........... 1181 ipm
Rapid Traverse Rate - Z1........... 1181 ipm
Rapid Traverse Rate - Y1........... 393 ipm
Turret Tool Positions 1............ 1224 station
Turret Rotary Tool Speeds 1........ 5,000 RPM
Turret Rotary Tool Horse Power 1... 7.5 hp
Tailstock Quill Diameter........... 3.9"
Tailstock Taper.................... MT 5
Tailstock Quill Travel............. 3.9"
Tailstock Travel................... 25
Machine Weight..................... 13,227 lb
Control............................ CNC (FANUC 31I CNC CONTROL)
EQUIPPED WITH:
ETHERNET, USB
CHIP CONVEYOR
FULL COMPLIMENT OF STATIC TOOL HOLDERS
BUILT IN LIVE CENTER FOR TAILSTOCK
PROGRAMMABLE TAILSTOCK

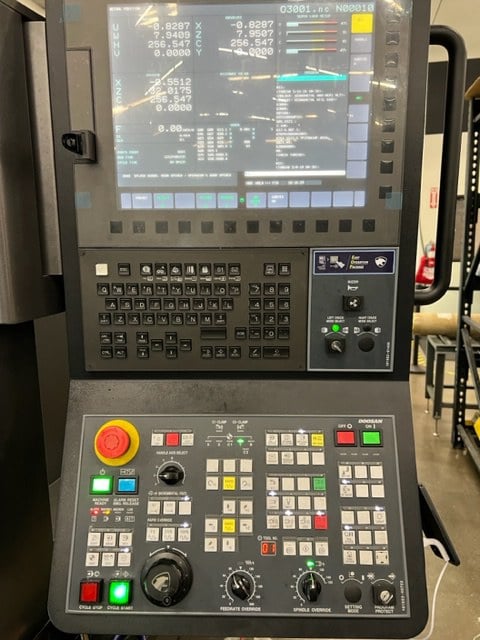

DOOSAN EZ GUIDE I CNC COLOR CONVERSATIONAL CONTROL
ROTARY TOOL HOLDERS (3) NOT SET UP FOR THROUGH TOOL COOLANT.
STANDARD TURRET SET UP 65 PSI THROUGH ROTARY HEAD.
FULL C-AXIS .001
AUTO PARTS CATCHER
BAR FEED INTERFACE
TOOL PRESETTER
2023 DOOSAN PUMA 2600YII
SPECIFICATIONS:
Swing Over Bed..................... 30.7"
Turning Diameter................... 14.8"
Turning Length..................... 29.9"
Distance Between Centers........... 34"
Chuck Size 1....................... 10"
Spindle Nose 1..................... A2 - 8
Spindle Bore Diameter 1............ 3.4"
Bar Capacity 1..................... 3"
Spindle Speeds 1................... 3,500 RPM
Spindle Horsepower 1............... 30 hp
X1 - Axis Travel................... 10.2"
Z1 - Axis Travel................... 32.7"
Y1 - Axis Travel................... 4.1"
C - Axis Indexing 1................ 0.001
Rapid Traverse Rate - X1........... 1181 ipm
Rapid Traverse Rate - Z1........... 1181 ipm
Rapid Traverse Rate - Y1........... 393 ipm
Turret Tool Positions 1............ 1224 station
Turret Rotary Tool Speeds 1........ 5,000 RPM
Turret Rotary Tool Horse Power 1... 7.5 hp
Tailstock Quill Diameter........... 3.9"
Tailstock Taper.................... MT 5
Tailstock Quill Travel............. 3.9"
Tailstock Travel................... 25
Machine Weight..................... 13,227 lb
Control............................ CNC (FANUC 31I CNC CONTROL)
EQUIPPED WITH:
ETHERNET, USB
CHIP CONVEYOR
FULL COMPLIMENT OF STATIC TOOL HOLDERS
BUILT IN LIVE CENTER FOR TAILSTOCK
PROGRAMMABLE TAILSTOCK
DOOSAN EZ GUIDE I CNC COLOR CONVERSATIONAL CONTROL
ROTARY TOOL HOLDERS (3) NOT SET UP FOR THROUGH TOOL COOLANT.
STANDARD TURRET SET UP 65 PSI THROUGH ROTARY HEAD.
FULL C-AXIS .001
AUTO PARTS CATCHER
BAR FEED INTERFACE
TOOL PRESETTER
