Manufacturer: Daewoo Doosan
Model: LYNX-200LC
Year: 2000
Swing: 18.1
Bar Capacity: 1.5
Centers: 19.6
Stock # 179226
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Mike DeRisi
Phone Number: 973...> Show Phone Number 973-497-7540
Let the seller know you found their listing on Surplus Record!
Description

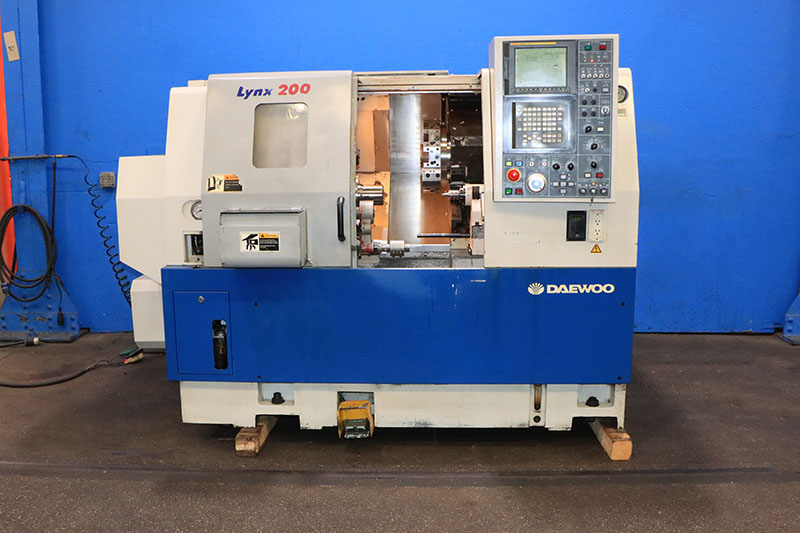

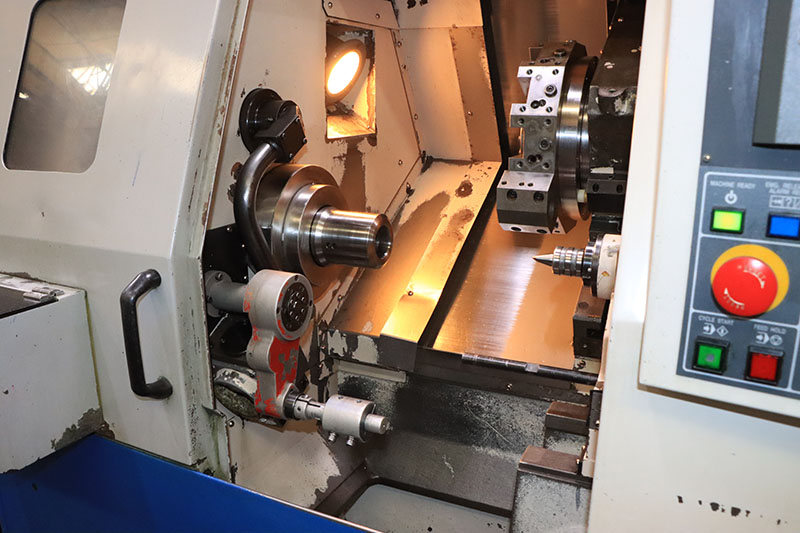

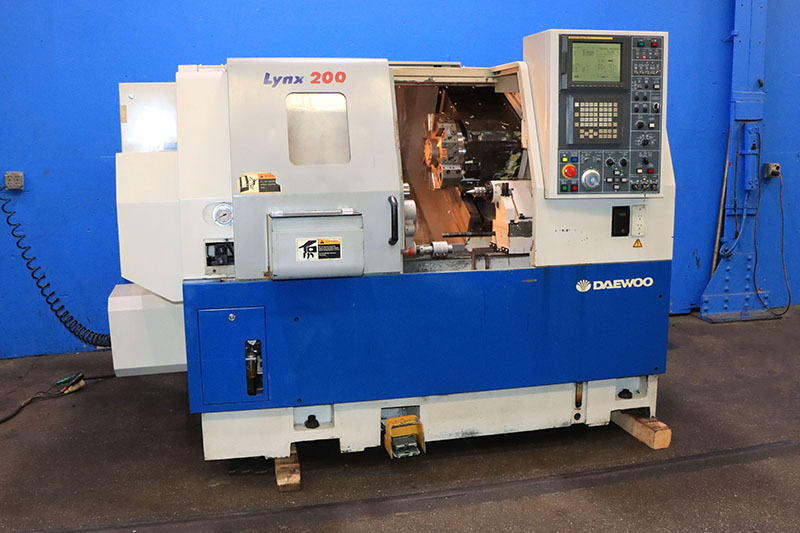

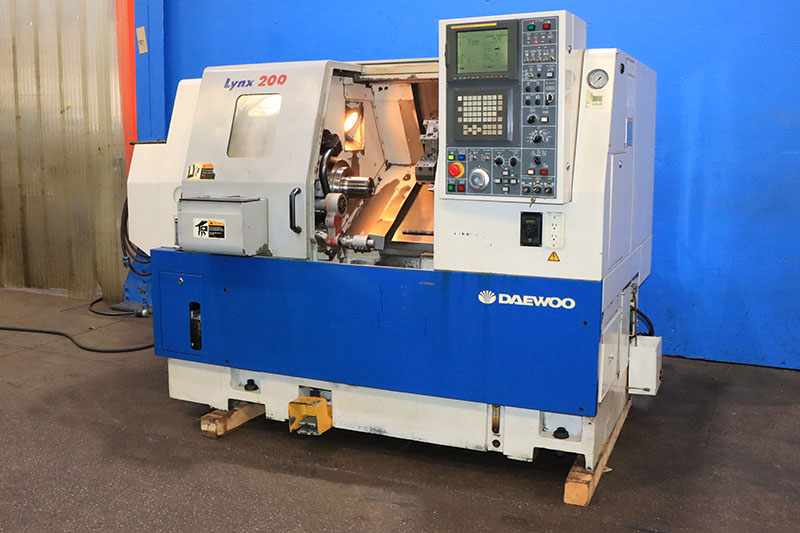

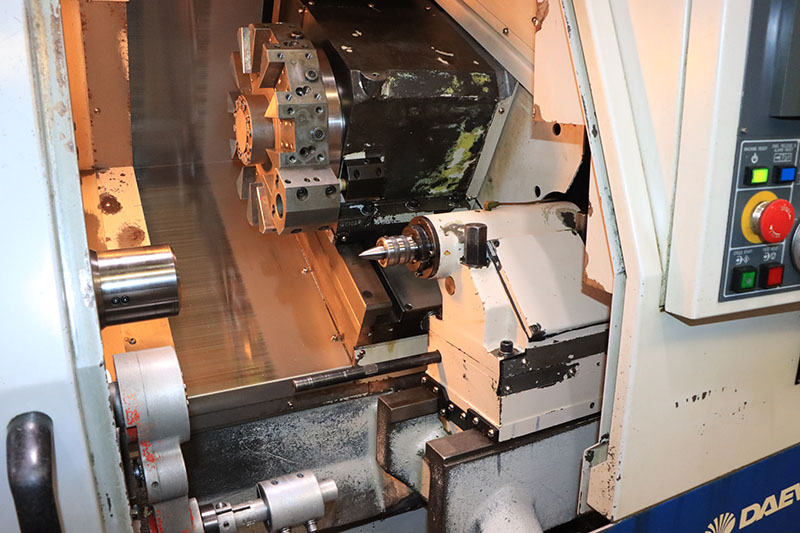

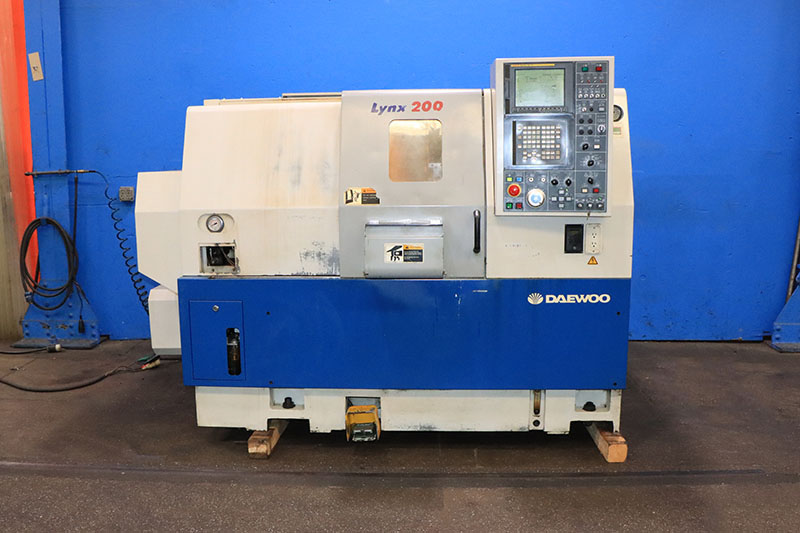

Daewoo Lynx 200LC CNC Turning Center
New: 2000
Video Link: https://youtu.be/iMTAXBKxI2I?si=0anu3WHr3pbjhzfZ
Specifications:
Swing Over Bed: .................. 18.11"
Swing Over Saddle: ............... 13.78"
Recommended Machining Daimeter: .. 6.5"
Maximum Machining Diameter: ...... 11.02"
Maximum Work Length: ............. 19.68"
Draw Tube Diameter: .............. 2.59"
X-Axis Travel: ................... 6.3"
Z-Axis Travel: ................... 20.86"
Spindle Chuck Diameter: .......... 8"
Spindle Speed Range: ............. 40 - 4500 RPM
Spindle Nose: .................... A2-6
Spindle Bore Diameter: ........... 2.99"
Number of Turret Stations: ....... 12
OD Tool Height ................... 1"
Boring Bar Dia. .................. 1.5"
Tailstock Quill Diameter: ........ 2.56"
Tailstock Quill Travel: ..........″.15"
Tailstock Quill Taper ............ MT#4
Spindle Drive (Cont/30 Min): ..... 9/11 kW
Approx. Weight ................... 7,000 Lbs.
Equipped with:
Fanuc 21i-T CNC Control
Toolsetter
Collet Chuck
12 Position Turret
Tailstock
All Available Toolholders
All Available Manuals
Get Your Price from Machinery Values Inc!
