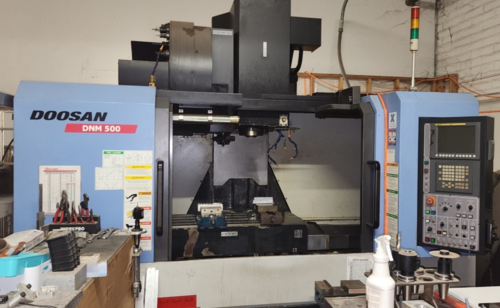

Manufacturer: Doosan
Model: DNM-500
Year: 2012
Automatic Tool Changer: 30
Longitudinal" X: 40.0
Cross" Y: 21.2
Vertical" Z: 20.1
RPM: 8000
Stock # X3X4075
1 / 6
Click to zoom in
1 / 6
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description
X-Axis Travel 40" 1020mm
Y-Axis Travel 21.2" 540mm
Z-Axis Travel 20.1" 510mm

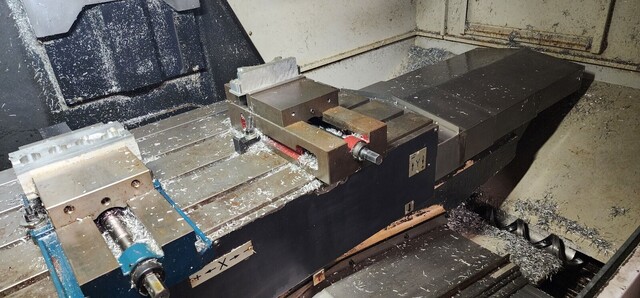

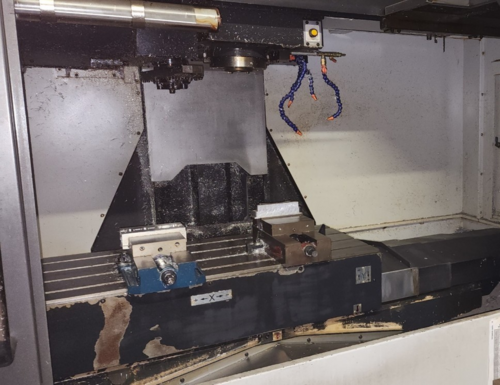

Table loading area 47.2" x 21.2" 1200 x 540mm
Table load capacity 1,764 lbs. 800 kg

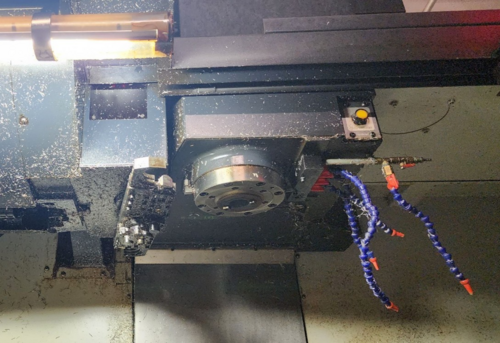

SPINDLE
Spindle nose to table top 5.9" to 26" 150 to 660mm
Column to spindle center 23" 587mm
Spindle speed 8,000 rpm
AC Spindle motor (15 min) 20 HP 15 kW
Spindle torque (15 min) 154 ft-lbs 210 Nm
AUTOMATIC TOOL CHANGER
Number of Tools 30
Tool shank CAT-40
Max. Tool Dia. 3.15" 80mm
Max. Tool Length 11.8" 300mm
MOTION
X and Y axis rapid traverse rate 1,417 ipm 36m
Z axis rapid traverse rate 1,181 ipm 30m
Cutting feed rate .04 - 590 ipm 1 - 15,000mm
GENERAL POWER & SIZE
Power required 100 amp @ 220V 34 KVA

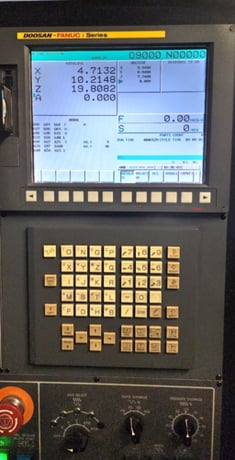

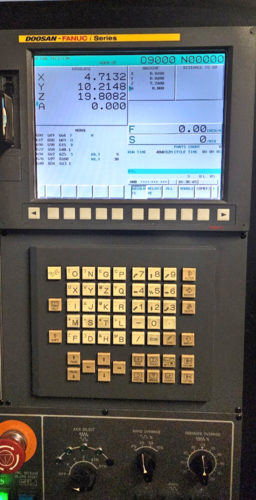

Voltage required - Fanuc 205-235 Volts 3 Phase
Coolant tank capacity 100 gal. 380 L
Machine height 104" 2630mm
Floor space required 134" x 89" 3400 x 2250mm
Machine weight 14,330 lbs. 6500 kg
Y-Axis Travel 21.2" 540mm
Z-Axis Travel 20.1" 510mm
Table loading area 47.2" x 21.2" 1200 x 540mm
Table load capacity 1,764 lbs. 800 kg
SPINDLE
Spindle nose to table top 5.9" to 26" 150 to 660mm
Column to spindle center 23" 587mm
Spindle speed 8,000 rpm
AC Spindle motor (15 min) 20 HP 15 kW
Spindle torque (15 min) 154 ft-lbs 210 Nm
AUTOMATIC TOOL CHANGER
Number of Tools 30
Tool shank CAT-40
Max. Tool Dia. 3.15" 80mm
Max. Tool Length 11.8" 300mm
MOTION
X and Y axis rapid traverse rate 1,417 ipm 36m
Z axis rapid traverse rate 1,181 ipm 30m
Cutting feed rate .04 - 590 ipm 1 - 15,000mm
GENERAL POWER & SIZE
Power required 100 amp @ 220V 34 KVA
Voltage required - Fanuc 205-235 Volts 3 Phase
Coolant tank capacity 100 gal. 380 L
Machine height 104" 2630mm
Floor space required 134" x 89" 3400 x 2250mm
Machine weight 14,330 lbs. 6500 kg
Get Your Price from Toolquip Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Okuma #MB-56VA, CNC vertical machining center, 32 automatic tool changer, 41.3" X, 22" Y, 18.1" Z, 8000 RPM, #40, 30 HP, OSP-P100, thru spindle coolant, 2005
Category: Vertical CNC Machining Centers
Seller: MachineStation
Location: Lake Elsinore, CA
Mfr: Okuma
Model: MB-56VA
Year: 2005
JUST ADDED!

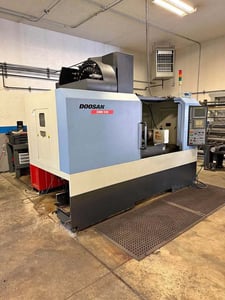

Daewoo Doosan #DNM-500, CNC vertical machining center, 40" X, 21-1/4" Y, 20-1/16" Z, 8000 RPM, 30 automatic tool changer, 21-1/4" x 47-1/4" table, Fanuc, 2009
