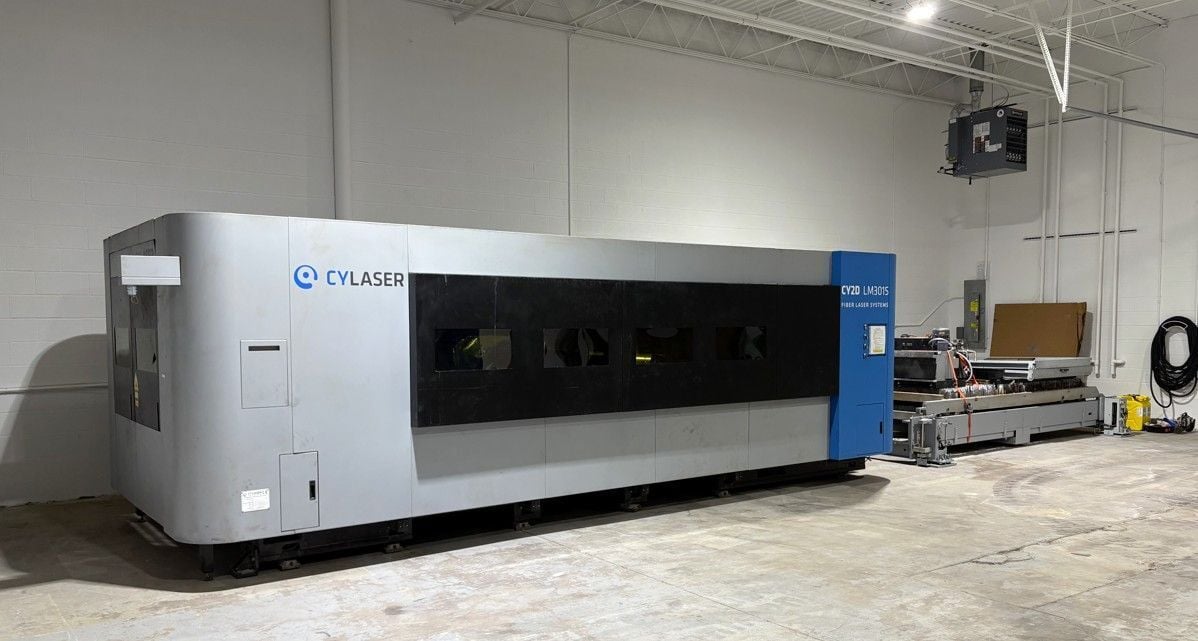

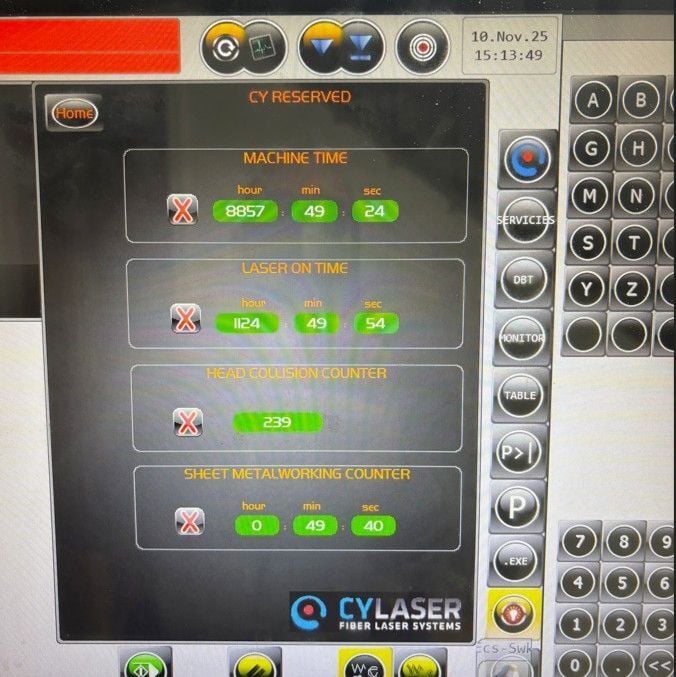

CY2D #LM3015, fiber laser cutting system, 5' x10'tbl., 122" X, 61" Y, 4.7"Z, chiller, dust collector, 2019

The fiber laser technologyGenerator: The traditional CO2 resonator, with its scheduled maintenancerequirements and its high energy consumption, is replaced by a high-brilliance lasergenerator (aka fiber laser generator). It does not use any special gas for the generationand emission of the beam and it does not require, therefore, turbines or compressionsystems. No scheduled maintenance is required, thus reducing operation costsdramatically. Energy consumption is also drastically reduced with a wall plug efficiencyof over 35%.Beam Delivery: The fiber laser beam is delivered, from the generator to thecutting head, directly within an optical fiber (feeding fiber) thus eliminatingany energy dispersion. Mirrors or pressurized nitrogen paths are notneeded, making the beam delivery very simple. No maintenance is required,hence no cost to the user.Cooling unit: CY2D systems include a cooling unit to manage the fiber laser generator temperature control. This chilleris much smaller compared to those used in for the CO2 lasers, and use a fraction of the energy. Minimal maintenancerequired annually.Cutting head EVO IIIThis is a CYLASER OWN design and built cutting head specifically developedfor the fiber laser technology. No compromise. The machine features onesingle lens cutting head. The cutting head also features automatic heightand focus adjustment, eliminating the need for alignments and headchanging. The cutting head is mounted onto the Y axis transversalcomponent. The Z axis used to raise and lower the head to the appropriateheight for cutting or travel has a 120 mm (4.7) range of motion. Additionalfeatures of the cutting head include, break-away torch (no breaking parts orconsumables) with no tools need restore, integrated cooling system for heavyusage, HRC High Back Reflection Control, ACF Automatic Sheet Finder andNesting Alignment, AFR Automatic focal point adjustment, CHC CapacitiveHeight Sensing Control, SLM Etching System in 4 different power levels, ABSpierce air-blow jet, NCS Automatic Nozzle Cleaning, RMS Micro JunctionManagement, SZP Axis Origin Point Setting, FCM Fly cut module, CSP Cylaser Servo Piercing System.This is a linear motor machine not a rack and pinonMade in ItalyApprox New Cost $500k
CY2D40LM3015 (5x10)
System Working area
X Axis mm (in) 3100 (122)
Y Axis mm (in) 1550 (61)
Z Axis mm (in) 120 (4.7)
Loading Capacity on each pallet Kg (lb) 700 (1540)
Speed
Maximum Axis Acceleration g (in/s2 ) 4 (1544)
Maximum positioning speed parallel axis X/Y in/min 5,906
Maximum positioning speed simultaneous axis X/Y in/min 8,268
Precision
Repeatability in 0.00098
Positioning Accuracy (over 10 inch travel) in 0.0019
Laser Nominal Power kW 4.0
Power Consumption kW 12
Cutting Range
Carbon Steel mm (in) 25.4 (1.00)
Stainless Steel mm (in) 15 (0.59)
Aluminum mm (in) 15 (0.59)
Brass mm (in) 8 (0.31)
Complete
System
Overall Dimension Area
Length mm (ft in) 11299 (37 0.9)
Width mm (ft in) 3000 (9 10)
Height mm (ft in) 2199 (7 2.6)
Weight (ancillary equipment excluded) Kg (lb) 11000 (24250)
Total Installed Power (generator, chiller & dust collector included) kW 30
Color RAL 7040 Gray
5015 Blue
Power Supply 480 V. 60 Hz. (or on
request)
