Custom Assembled Industrial Power Distribution Panel Enclosure

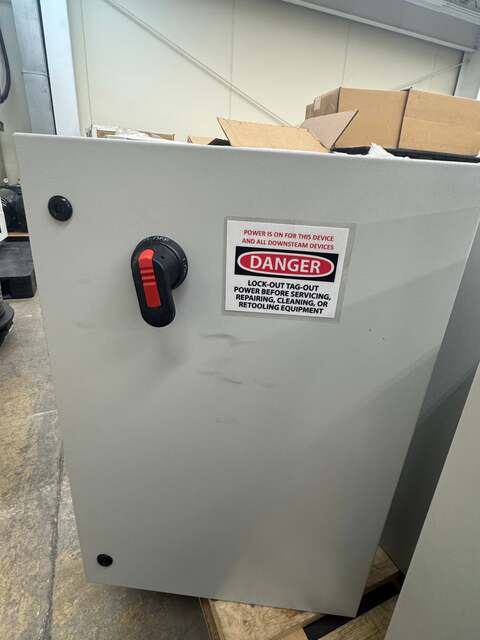

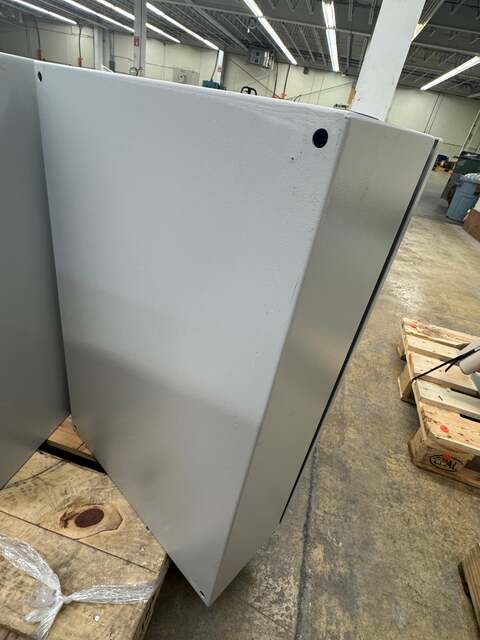

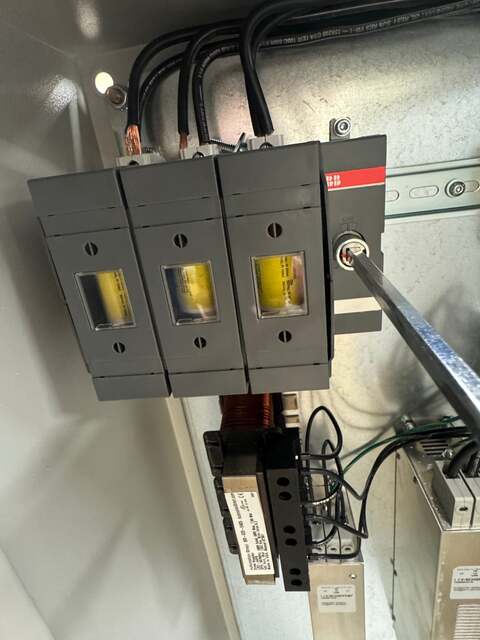

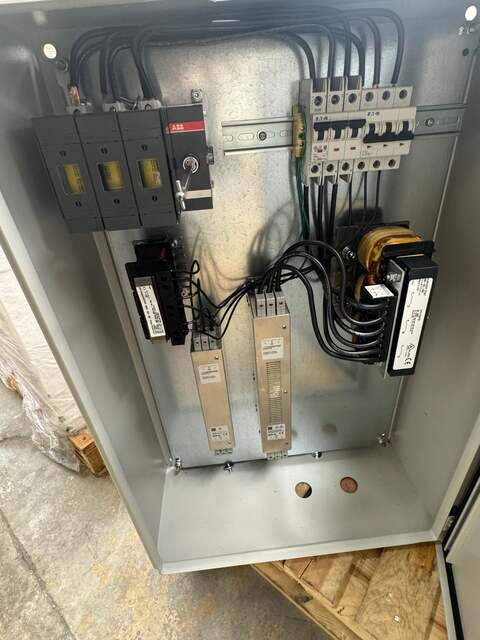

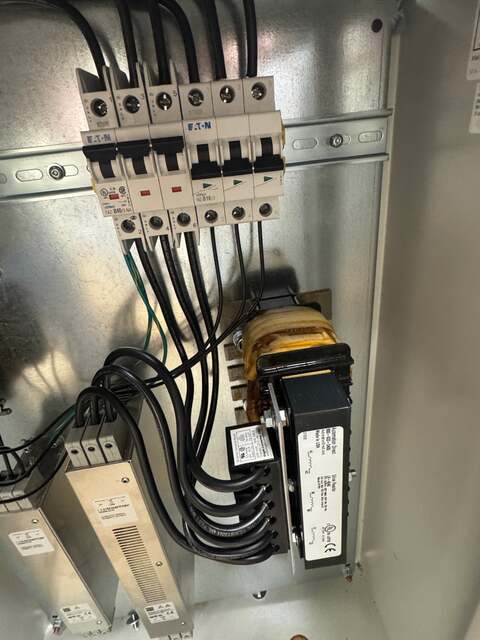

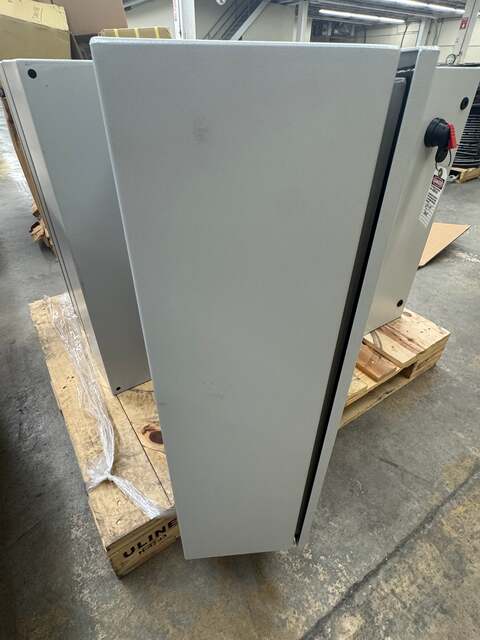

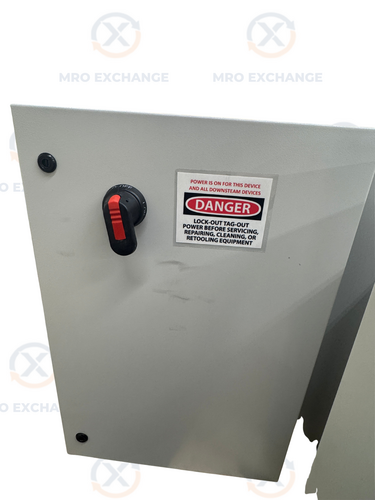

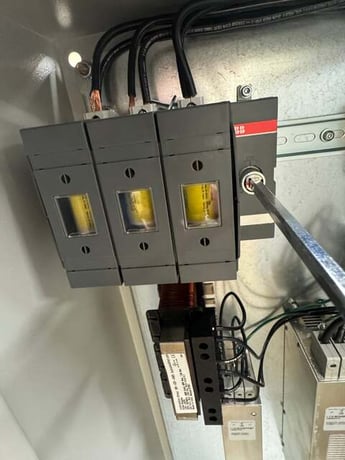

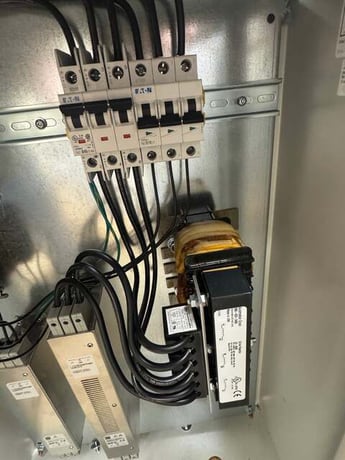

Used in machine tool, automation, and industrial equipment applications, this custom-assembled power distribution panel enclosure contains a complete set of pre-wired electrical protection and filtering components mounted on DIN rail inside a steel enclosure with a front-mounted rotary disconnect handle. The enclosure includes an ABB 3-pole fusible disconnect switch with key-lock rotary operator, two Eaton FAZ series DIN-rail miniature circuit breakers (confirmed part numbers FAZ-B40/3-NA rated 40A 3-pole and FAZ-B16/3 rated 16A 3-pole), two Schaffner DIN-rail EMC line filters, a control transformer with visible toroidal core construction, and an Automation Direct line reactor/input choke. All components are mounted to galvanized steel DIN rail inside a powder-coated steel enclosure with a single front door. The exterior door features an ON/OFF rotary disconnect operator with a red safety warning label indicating lockout/tagout requirements. No manufacturer label or assembly drawing was visible on the enclosure exterior. Dimensions and exact voltage ratings for the enclosure assembly as a whole are unable to confirm from available visual evidence. Individual component specifications are consistent with those confirmed from nameplate markings and published manufacturer data for the identified part numbers. This panel is suited for buyers sourcing a complete pre-wired power entry and branch circuit protection assembly for repurposing or integration.

Stock # 0326-910
