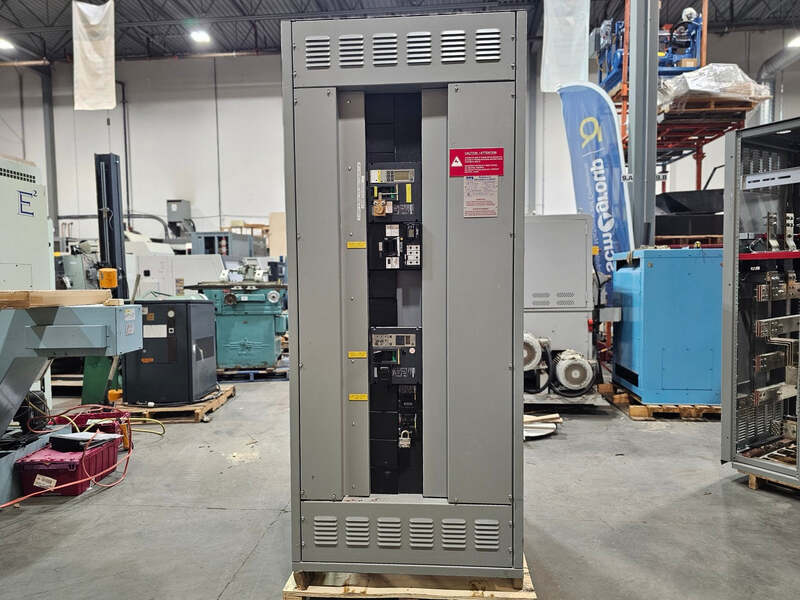

CSL, 480/277 Volts, 3 Phase, 3000 Amps Switchgear Unit w/ PowerPact 1200 Amps, 800 Amps Main Breakers

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 154392
Condition: Used
Electrical Specifications:
Amps: 3000 amps
Voltage: 277/480 volts
Phase: 3-phase
Made In: CANADA
Dimensions: 36.00 (H) x 48.00 (W) x 92.00 (L) inches

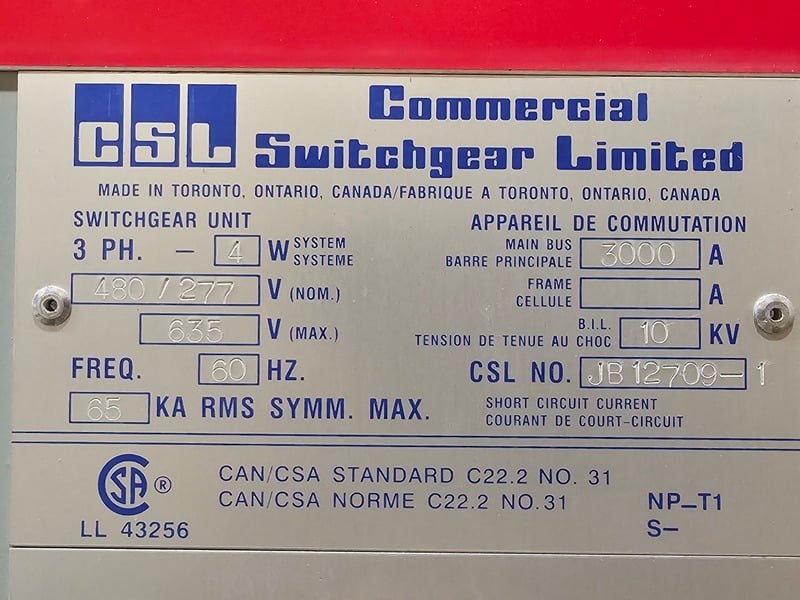

Additional Description:
CSL No.: JB12709-1
Nominal Voltage: 480/277 V
Max. Voltage: 635 V
Main Bus: 3000 A
Interrupting Capacity: 65 kA RMS Symm. Max.
B.I.L.: 10 kV

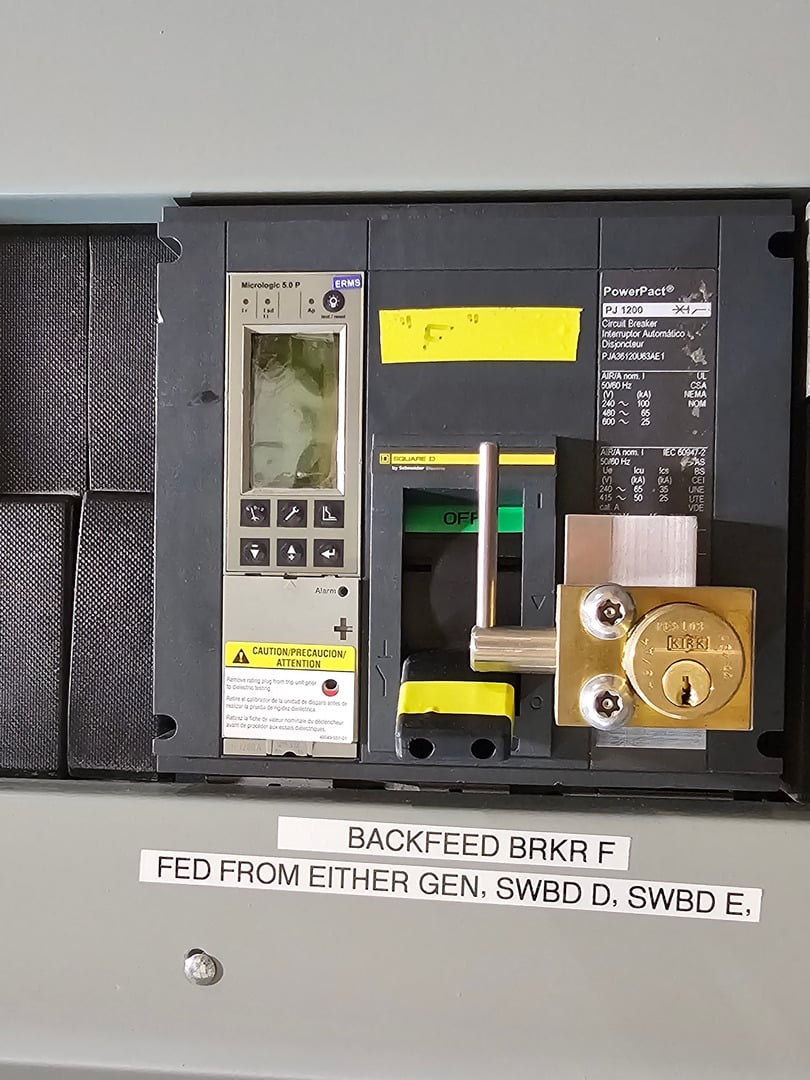

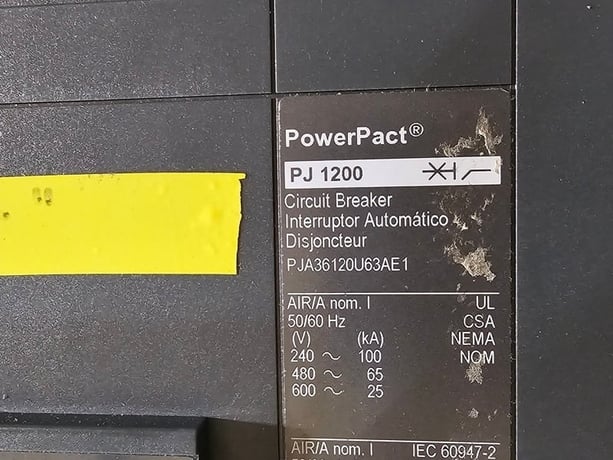

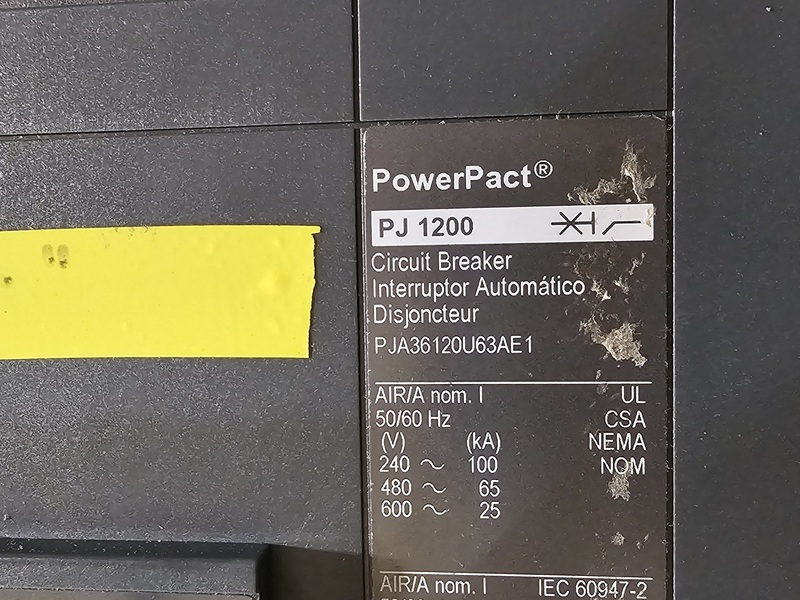

(1) PowerPact PJ 1200 Circuit Breaker
Model: PJA36120U63AE1
Current: 1200 A
Pole: 3
Electronic Trip Unit: Micrologic 5.0 P
Interrupting Capacity:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V

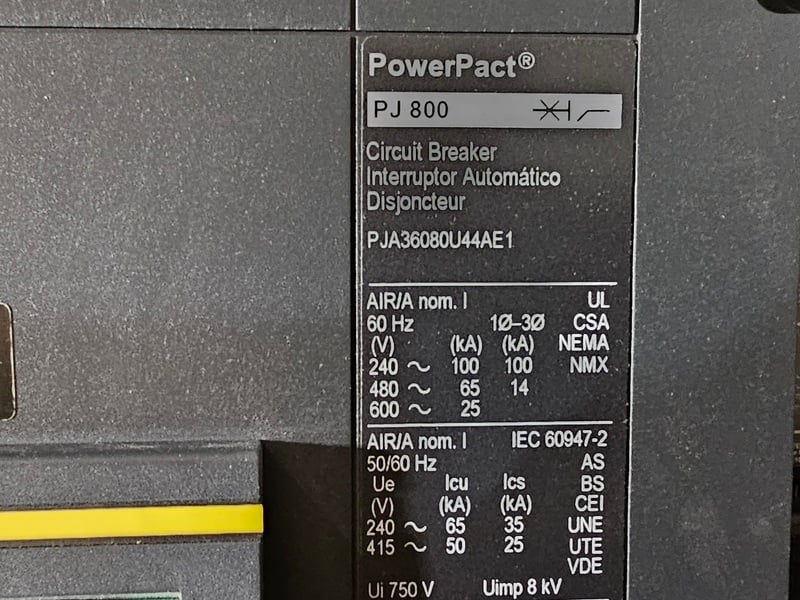

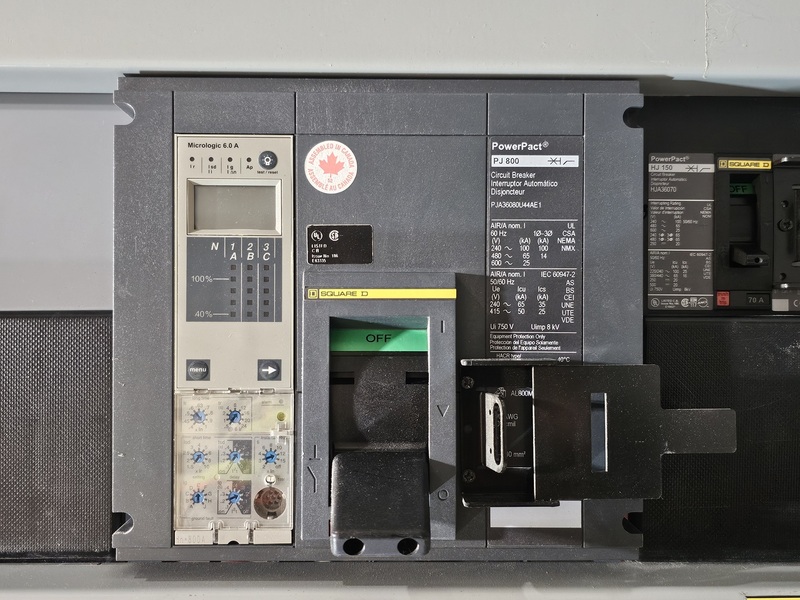

(1) PowerPact PJ 800 Circuit Breaker
Model: PJA36080U44AE1
Current: 800 A
Pole: 3
Electronic Trip Unit: Micrologic 6.0 A
Interrupting Capacity:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V

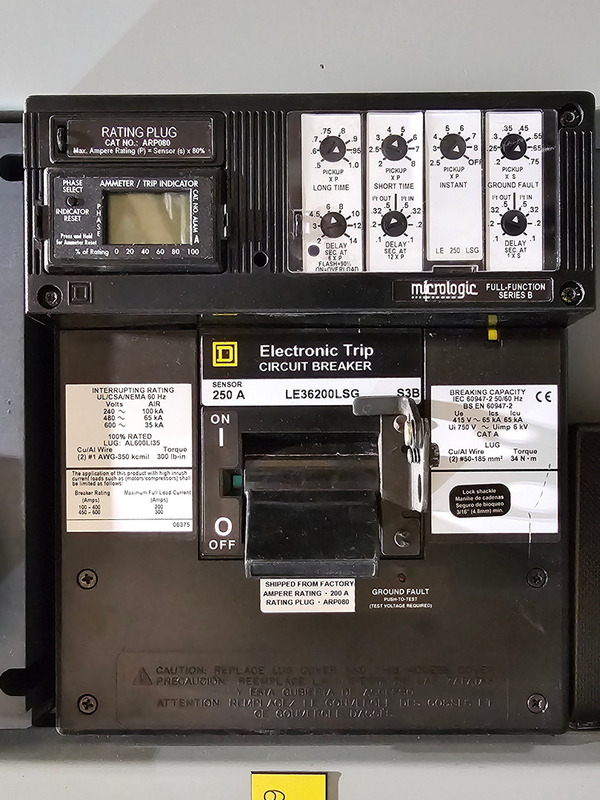

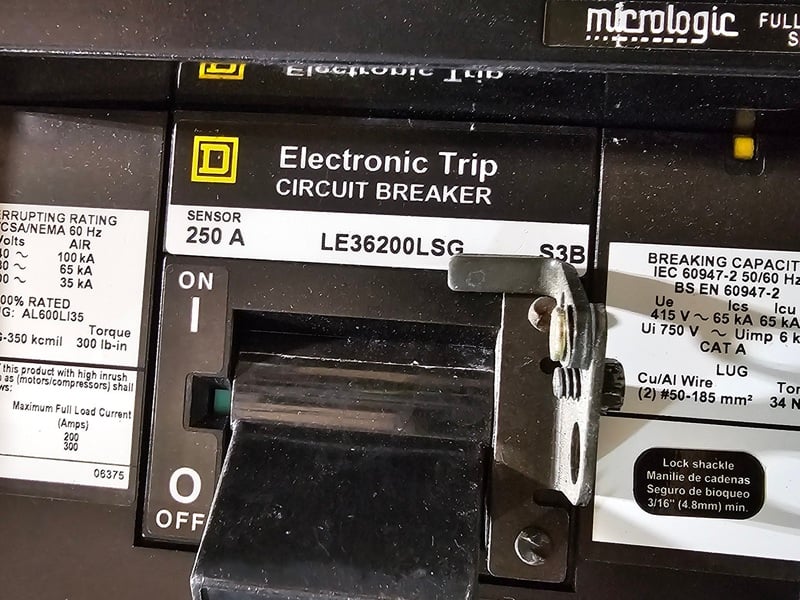

(1) 200A I-Line Circuit Breaker
Model: LE36200LSG
Sensor: 250 A
Max. Current: 200 A
Pole: 3
Control Unit: Micrologic
Interrupting Capacity:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 35 kA @ 600 V

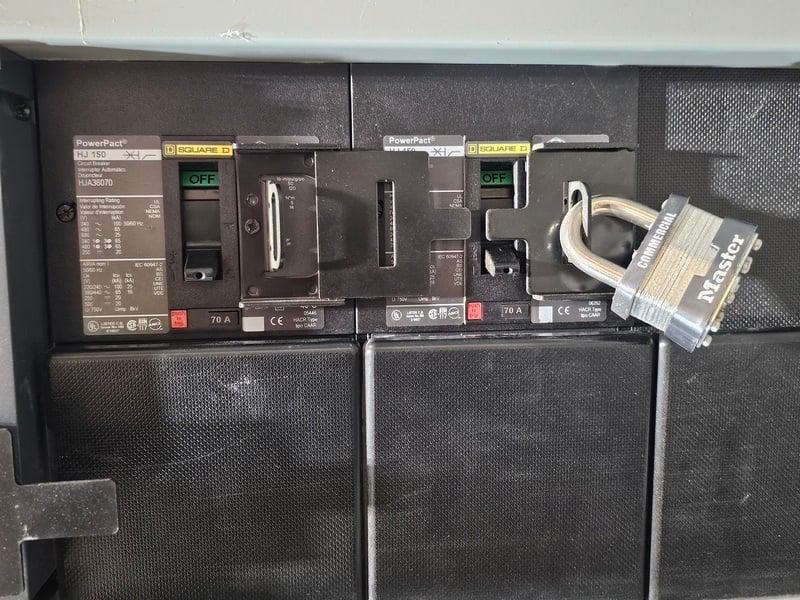

(2) PowerPact HJ 150 Circuit Breakers
Model: HJA36070
Current: 70 A
Pole: 3
Interrupting Capacity:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V
