For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

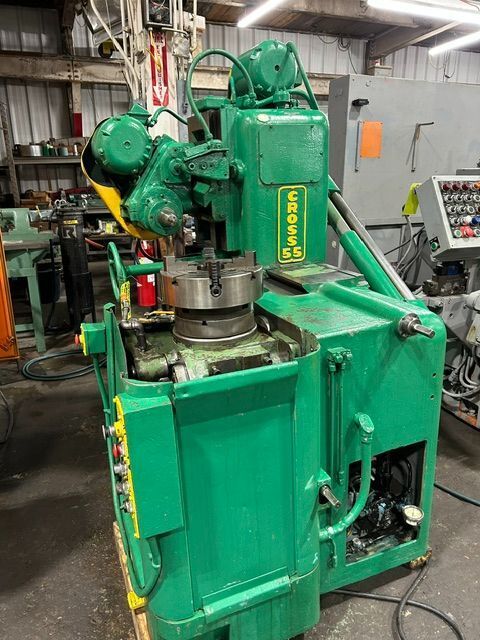

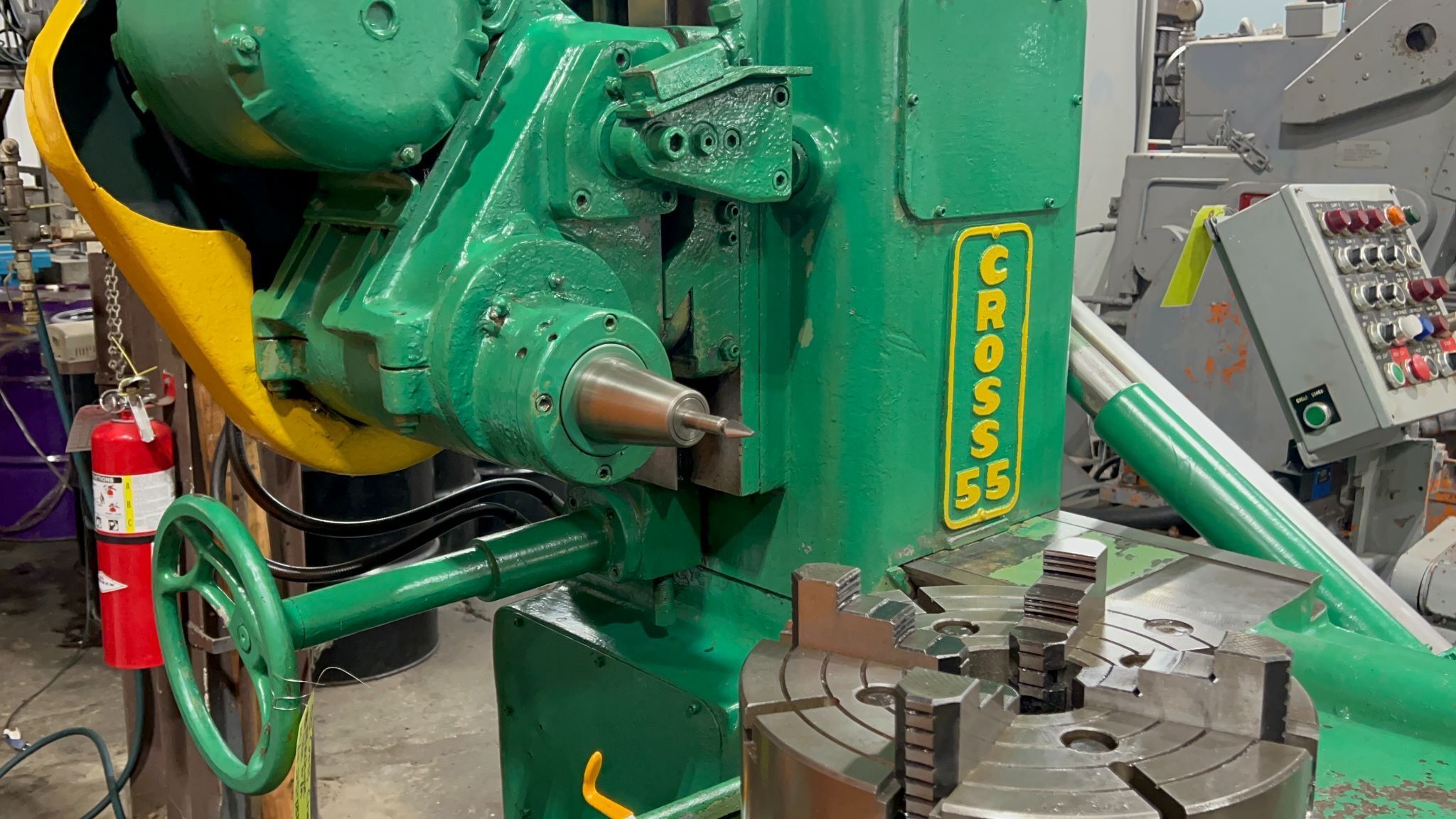

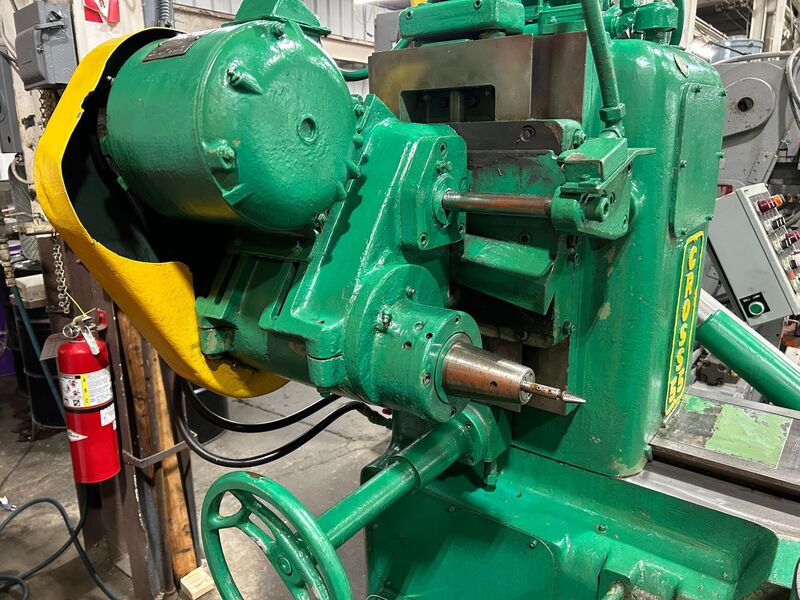

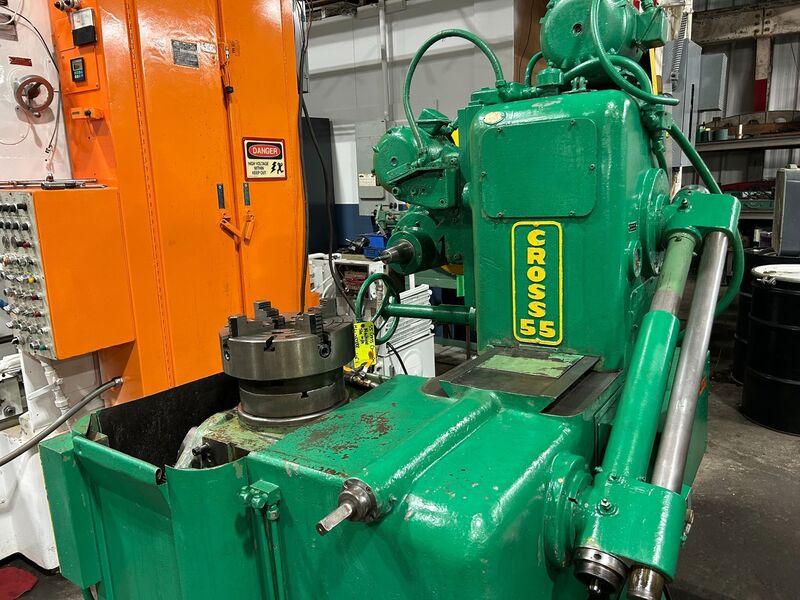

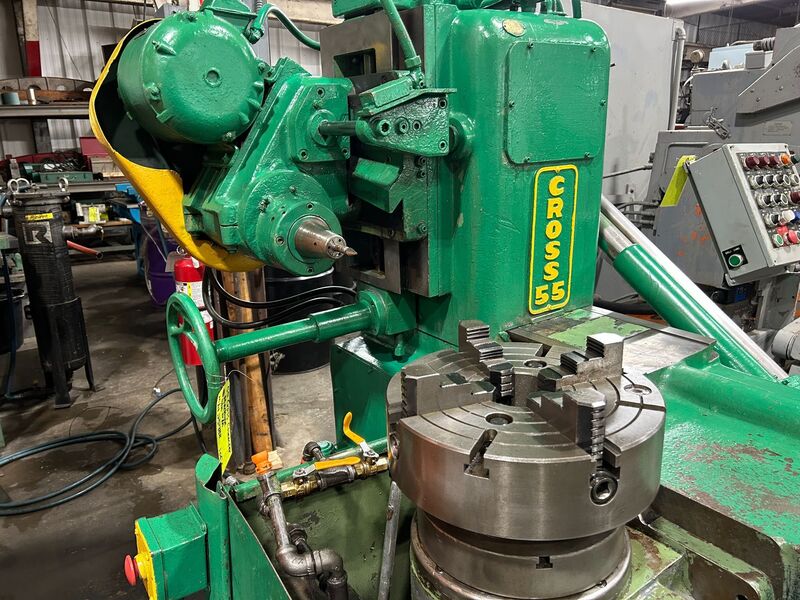

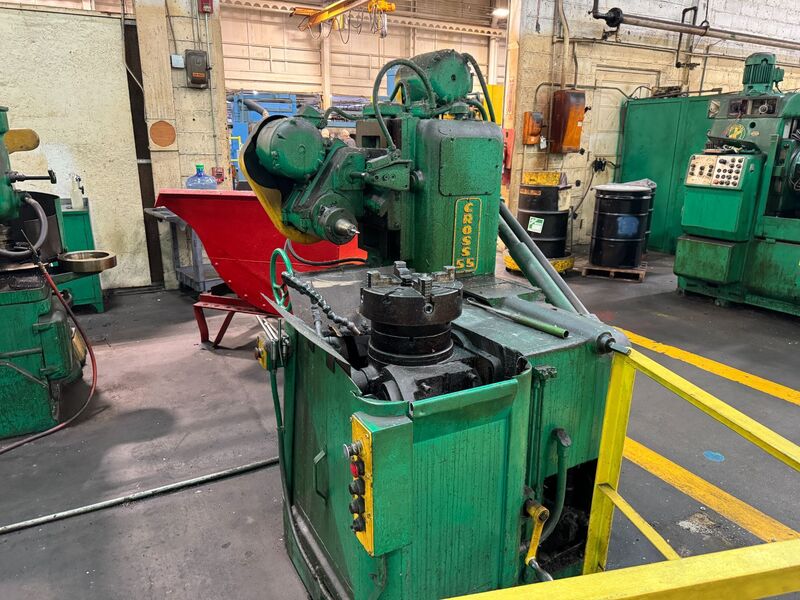

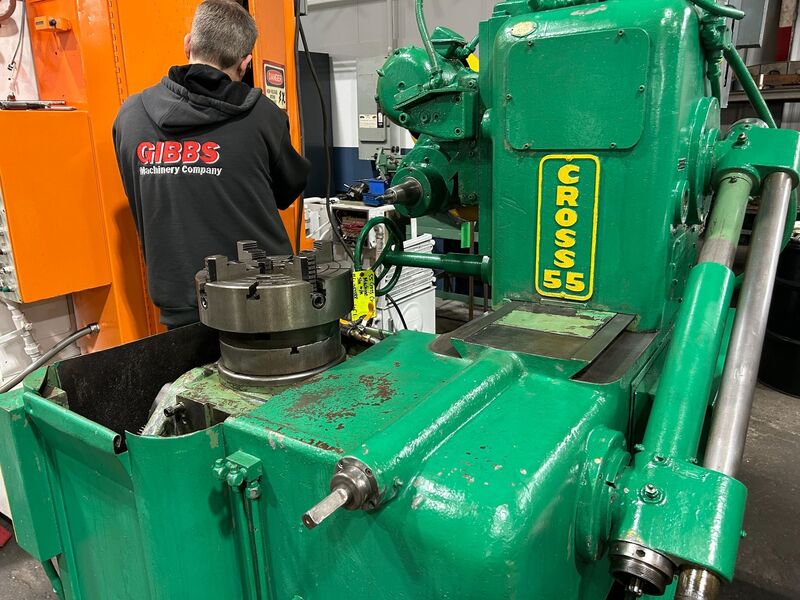

The Cross Model 55 Gear Tooth Chamfering Machine is a heavy-duty industrial tool used to finish and shape the edges of gear teeth. It cuts a smooth angle onto sharp 90-degree gear edges. This makes the gears easier to put together, makes them run quieter, and stops them from breaking under stress.
Specifications:
Diameter of Gear to be Processed: 0-18"
Gear Face Width Capacity: 0-14"
Max Pitch 1.6 DP (16.9 Module)
Indexing Range: 10-80 Teeth (When equipped with suitable gears)
Diameter of Hole Through Worktable: 3"
Cutter Spindle/Main Drive Motor: 1 HP
Indexing Drive: Continuous
Oil Capacity: 15 Gallon
Floor Space Requirements: 50" x 50"
Net Weight: 3,700#
Specifications:
Diameter of Gear to be Processed: 0-18"
Gear Face Width Capacity: 0-14"
Max Pitch 1.6 DP (16.9 Module)
Indexing Range: 10-80 Teeth (When equipped with suitable gears)
Diameter of Hole Through Worktable: 3"
Cutter Spindle/Main Drive Motor: 1 HP
Indexing Drive: Continuous
Oil Capacity: 15 Gallon
Floor Space Requirements: 50" x 50"
Net Weight: 3,700#
Get Your Price from Gibbs Machinery Co!
