For Sale by MRO Exchange
Description
Product Specifications
- Manufacturer: Allied Machine and Engineering

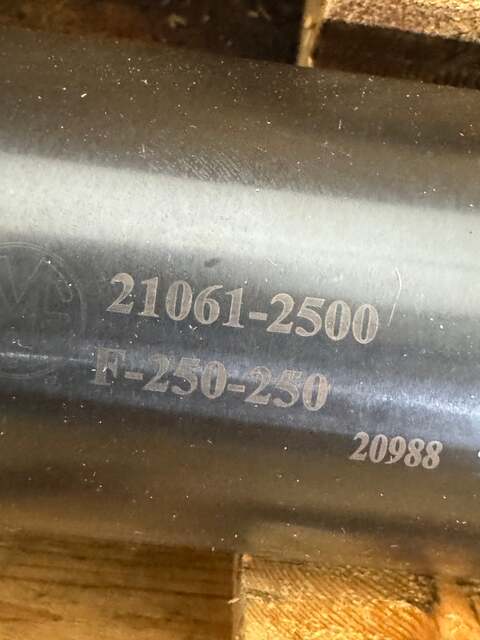

- MPN / Model: 21061-2500
- Model Designation: F-250-250
- Serial Number: 20988
- Product Type: Universal Series Replaceable Insert Spade Drill Holder
- Series: F Series
- Shank Type: Straight Lathe Shank
- Shank Diameter: 2.500 in.
- Shank Length: 4 in.
- Blade Range: 3.000 in. to 3.875 in.
- Overall Length: 24 in.
- Body Length: 20 in.
- Maximum Drill Depth: 20 in.
- Coolant: Through coolant channel, 1/2 NPT
- Flute Style: Straight flute
Product Description

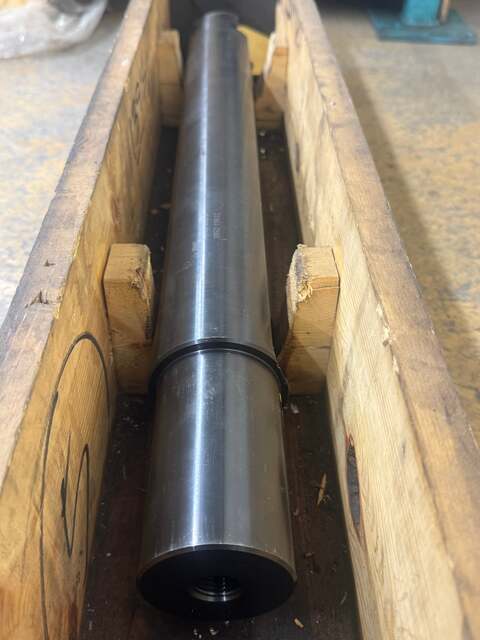

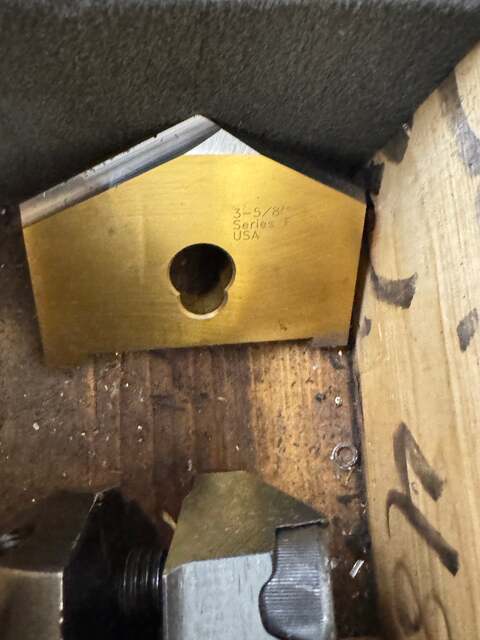

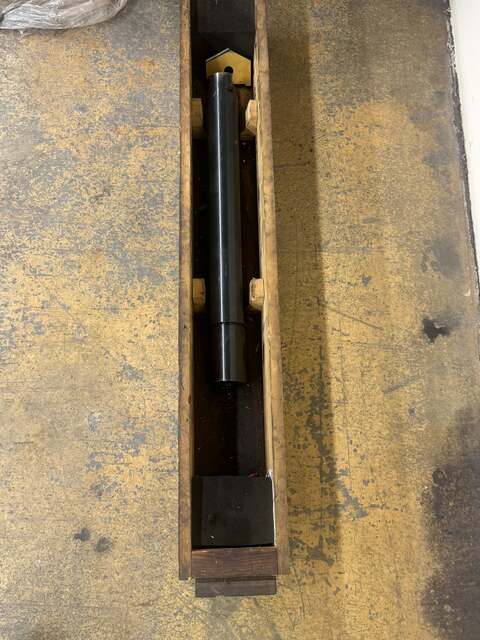

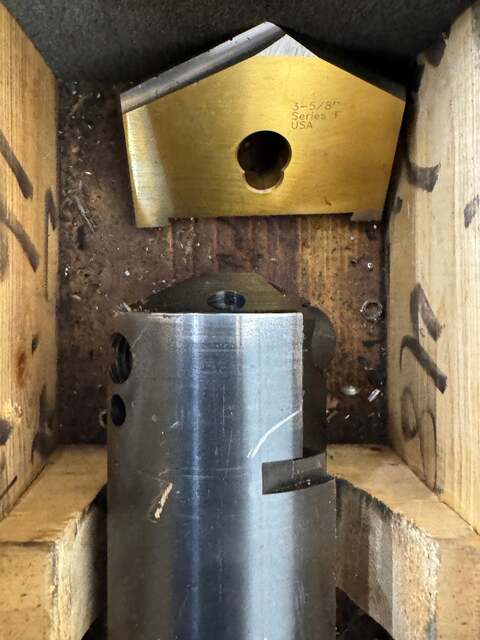

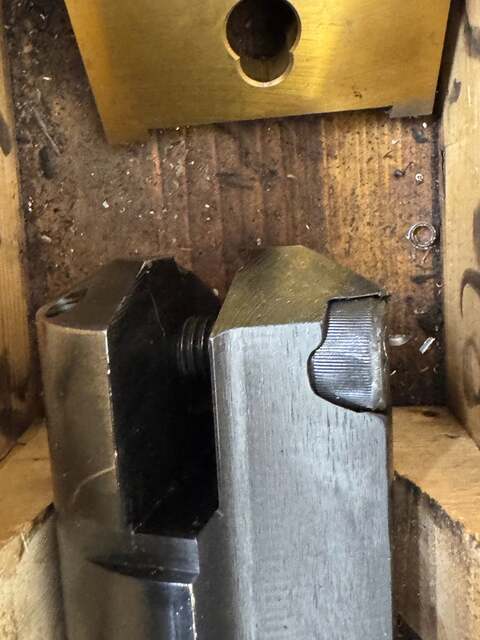

Allied Machine and Engineering 21061-2500 is an F Series Universal straight flute spade drill holder with a 2.500 in. straight lathe shank and a 24 in. overall length. Catalog designation F-250-250, serial number 20988. The holder accepts replaceable spade drill inserts in the 3.000 in. to 3.875 in. blade range and supports a maximum drill depth of 20 in. Through coolant delivery is provided via a 1/2 NPT coolant channel for chip evacuation and cutting edge cooling in horizontal machining center applications. The Universal series accepts standard universal style spade insert blades. Buyers sourcing spare or replacement holders for existing Universal series tooling setups should verify insert blade compatibility using the confirmed MPN and blade range specifications.
