Corix, Dewatering Pump Station, 255" x 120" x 110" Container, 3' x 4' triple-pane window, 10" Valves, 20 kVA Transformer, 100 HP, 1800RPM, 575 V Motor

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 105618
Condition: Used
Dimensions: 144.00 (H) x 120.00 (W) x 288.00 (L) inches
Additional Description:
This 100HP Dewatering Pump Station Package is complete with a weather-proof, all-temperature enclosure with heating and ventilation, a separate electrical/control room, and a main mechanical room housing a 100HP dewatering pump assembly capable of delivering 3400 GPM. This package is suitable for mining and water/wastewater applications.
Structural Specifications

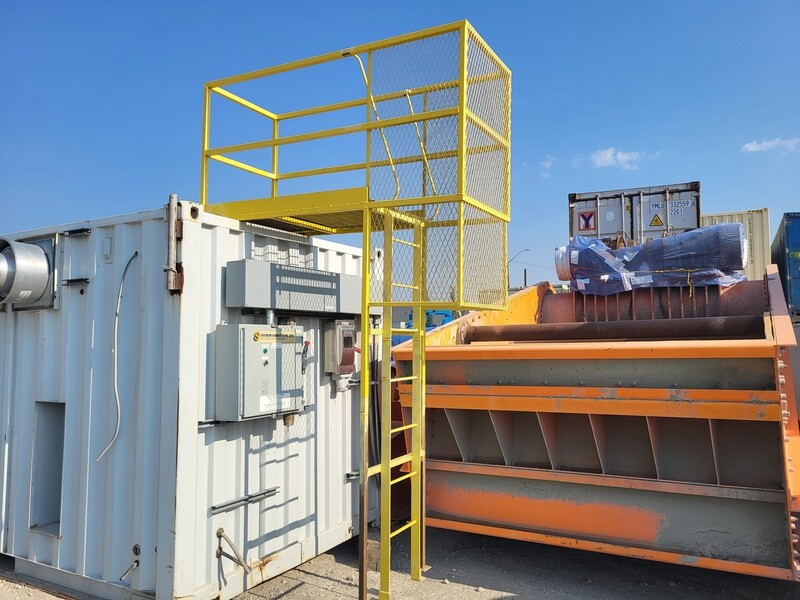

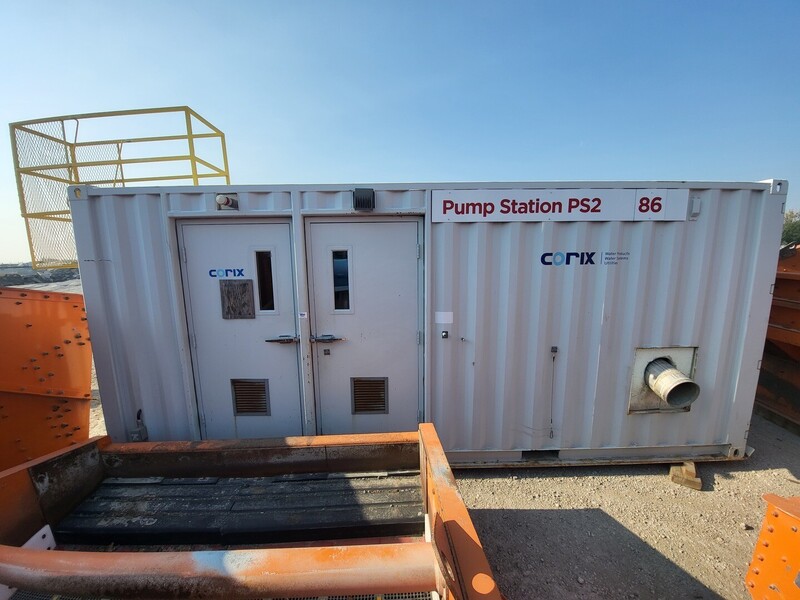

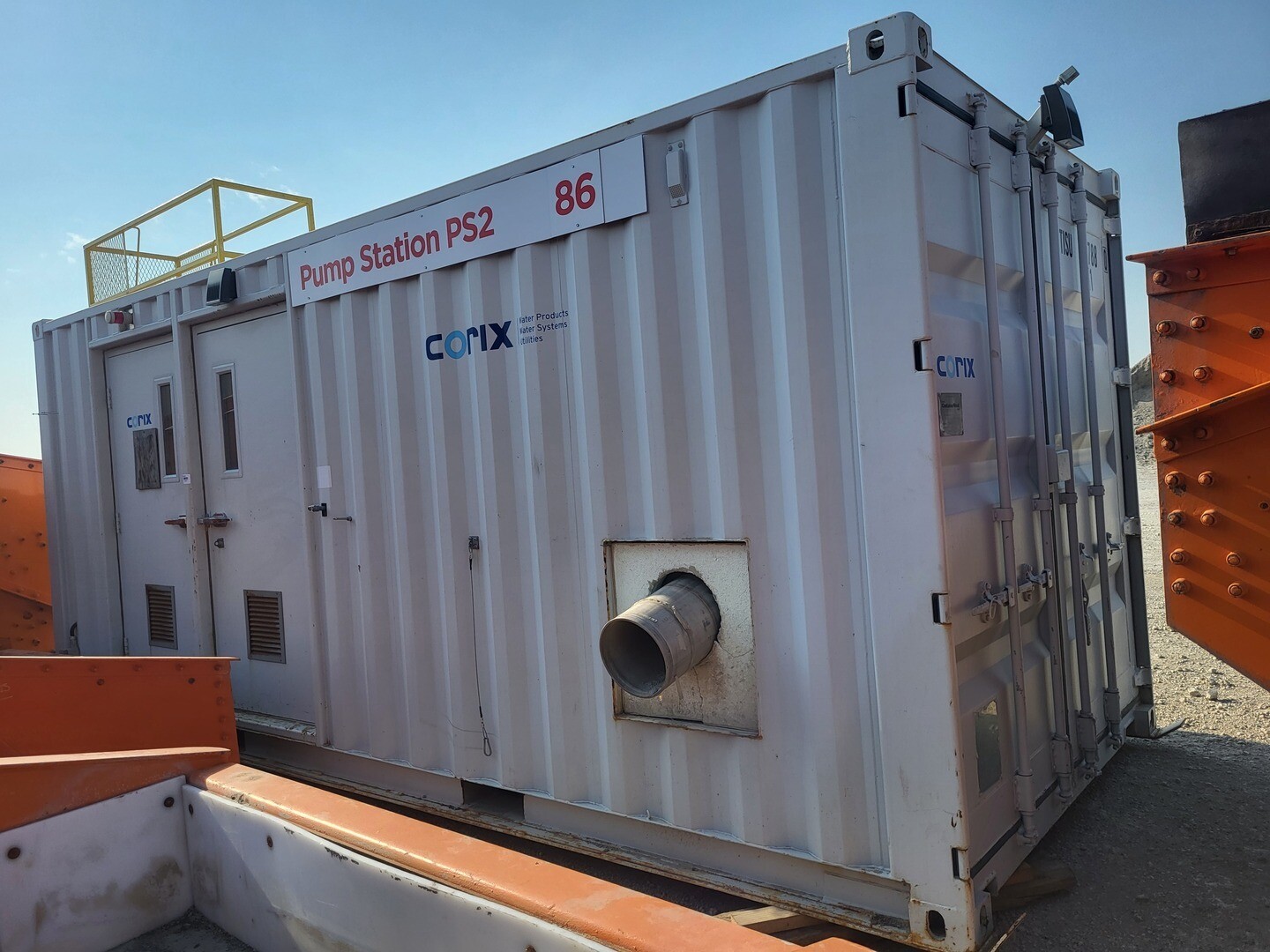

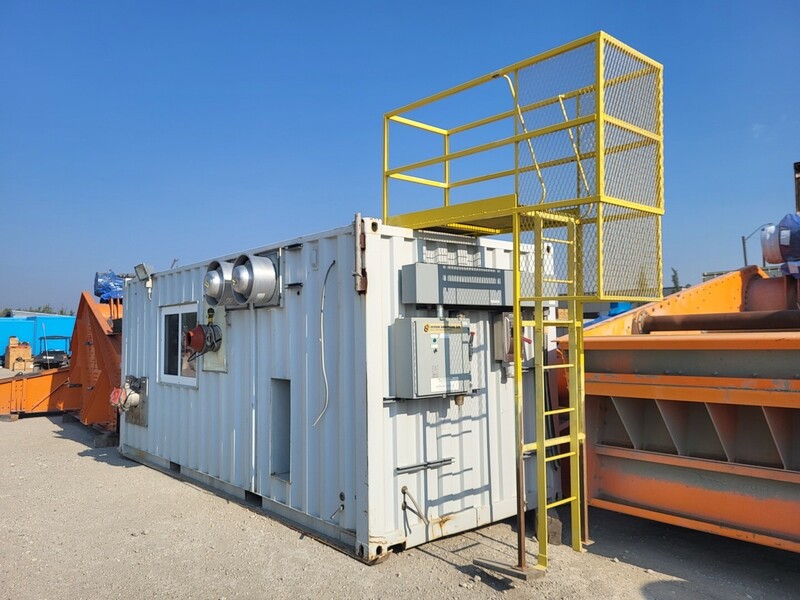

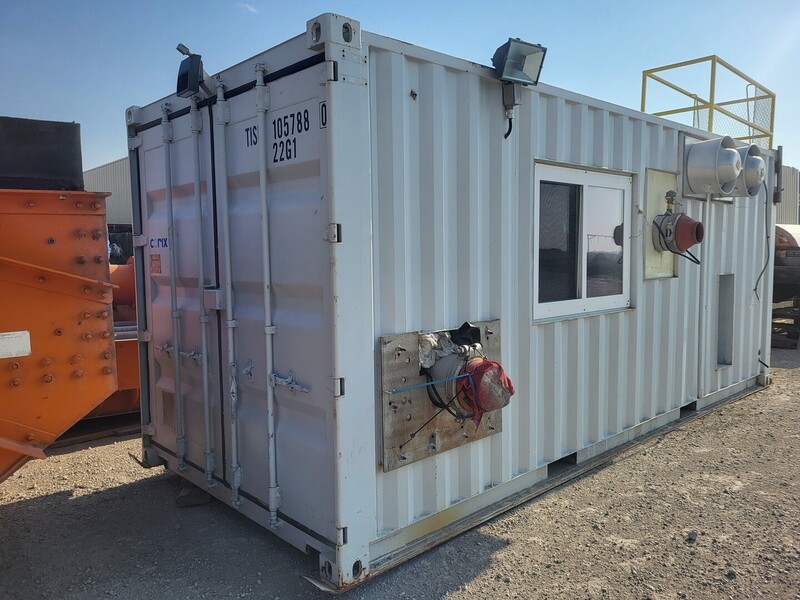

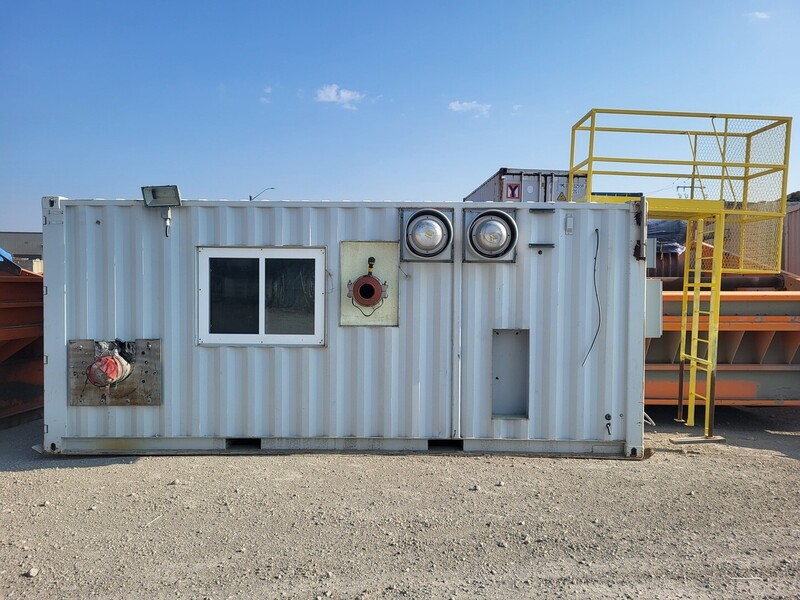

- Enclosure is a 255" x 120" x 110" (LxWxH) standard steel shipping container, metal-lined and insulated with a demising wall to divide the mechanical/electrical rooms

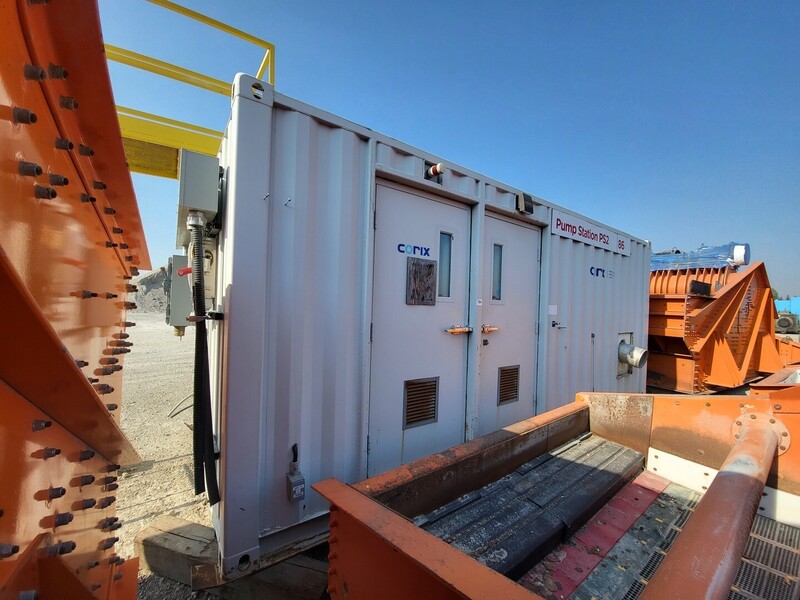

- Separate insulated doors to the the mechanical/electrical rooms
- The pumphouse is suitable for all-weather and temperatures between -50C to +30C
- Walls, ceiling, and doors are finished with minimum 4" Thermawall (R32), secured to strapping welded throughout the interior of the container and doors
- Mechanical room contains a 3ft. x 4ft. triple-pane window with a screen
- Structure contains an electrical panel with LED ceiling lighting ,switches, duplex receptables, and 2 x 500W ceiling hung fan forced heaters with a fan-mode for warm weather
- 2 x 10" shutter mounted exhaust fans with back draft dampers
- Undercarriage insulated with 4" polyurethane spray foam
- Overhead service monorail, 1T (2200lbs)
Electrical Room Components
- Control panel /w Siemens PLC, HMI control relay to operate jockey, pump control & miscellaneous control components and wiring materials
- PLC program to operate pump systems
- Transformer 600V/120-208V, 20kVA

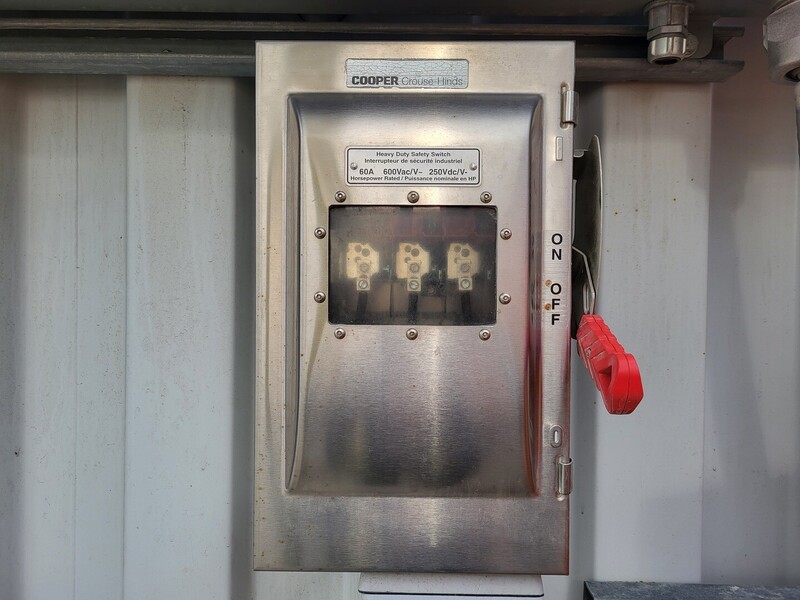

- 60A, 600V receptable and circuit breaker
- Pressure transducer
- Junction box

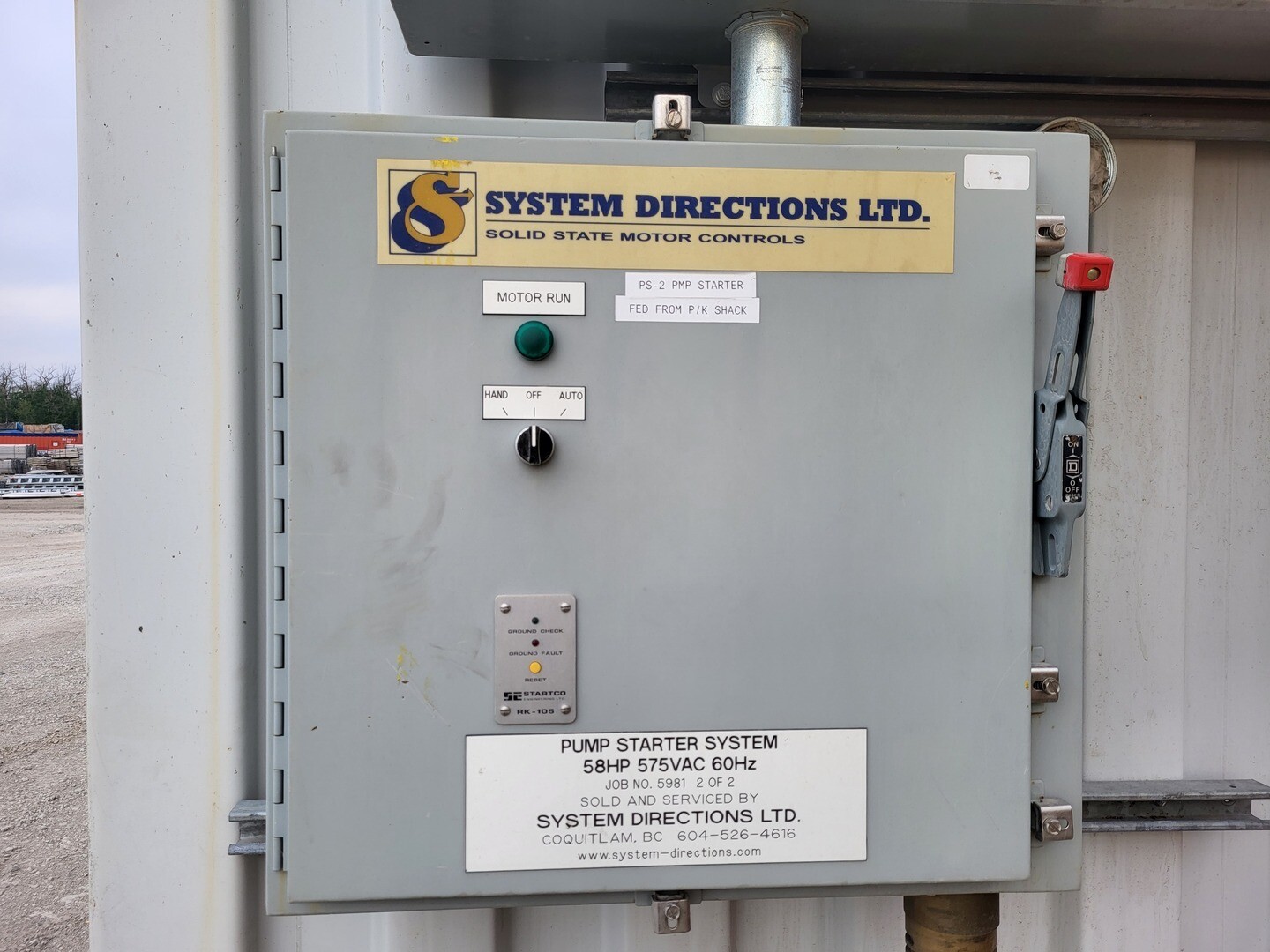

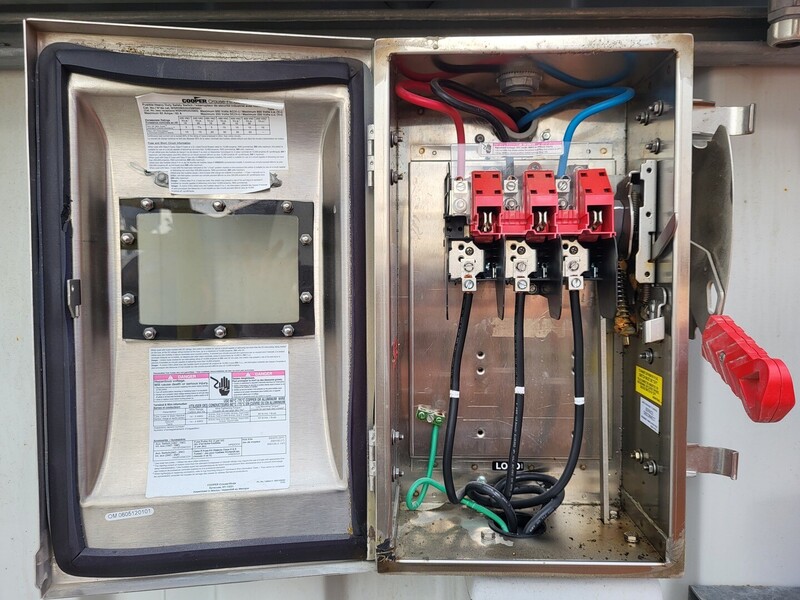

- 100HP ABB VFD Model ASC800-U1 w/ line reactor, load reactor and line side fused disconnect device
- Electronic thermostat Model UTC-2030-13 w/ ground fault detection circuitry, 120-240VAC, 30A, 2-Poles in a NEMA4 painted steel enclosure
- System engineering; system operation/design/drawing/manual/system software and program
Mechanical Room Components
- SUMMIT self-priming centrifugal pump Model SN10A3B, 10", 3400GPM, 2 vanes, 160ft. max. head
- 100HP, 1800RPM, 575/3/60, TEFC, 405T frame, TECO/Westinghouse Motor Advantage Plus IEEE 841
- V-belt driven complete with baseplate and fabricated steel guard
- 2 x AY McDonald convertible jet pump Model 8611 w/ 1HP 230/1/60 motor
- Endress-Hauser magnetic flowmeter Model 50W2F-ULHA1R10BAAA1, 10" 150# RF ANSI CS flange connections, alloy 22 bullet nose measuring electrodes, polyurethane line, 316SS grounding rings and strap kit, NEMA4X and IP67 junction box, 1/2" NPT conduit holes, standard factory calibration
- Endress-Hauser integral converter, configurable graphical and alphanumeric display, NEMA4X enclosure, 1/2" NPT conduit holes, 100-230VAC power, outputs 4-20mADC, HART, ambient temperature range -20C to 60C
- DeZurik 10" Knife Gate Valve
- DeZurik 10" Pug Valve
- CRF Flapper Check Valve
- TOYO 1" Gate Valve
- 10" Shurjoint Flex Coupling
- All hard piping is 10", schedule 40, 304SS pipe
SUPPORTING DOCUMENTS
-
-
-
-
-
Overall Dimensions (Enclosure + Platform): 288" x 120" x 144"
