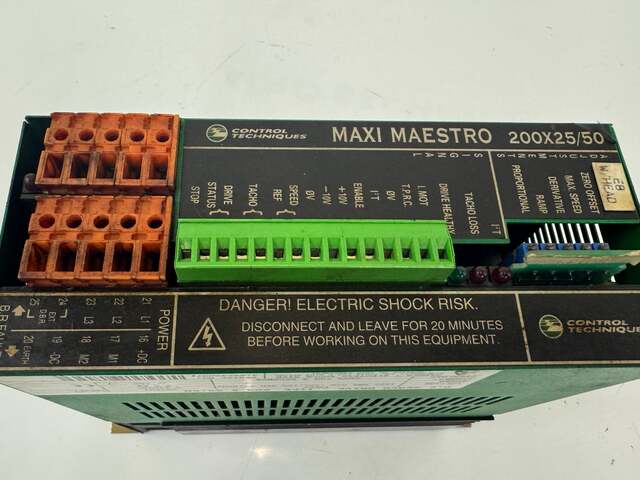

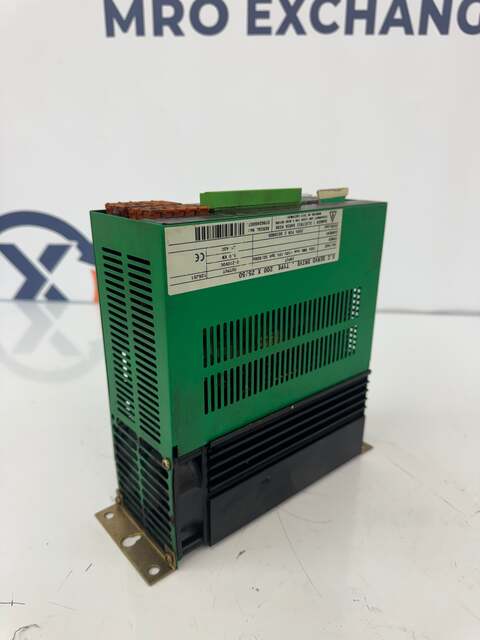

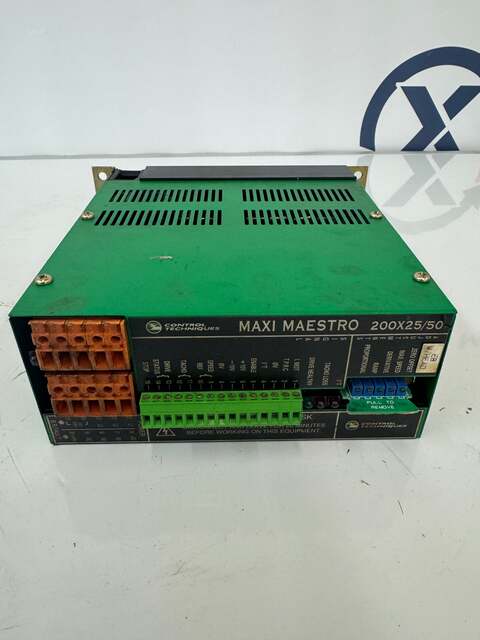

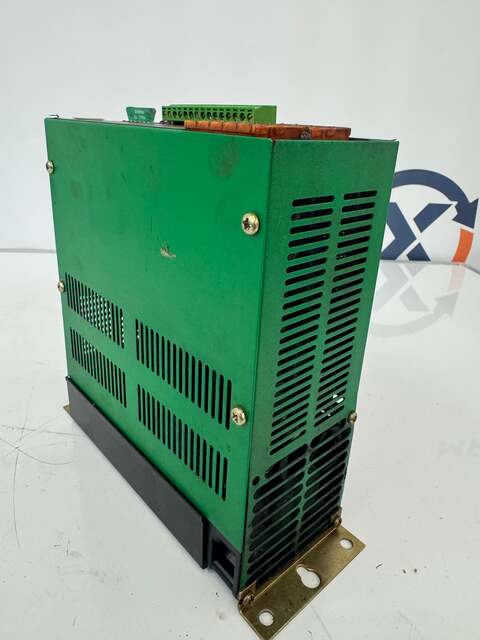

Control Techniques Servo Drive MAXI MAESTRO 200X25/50

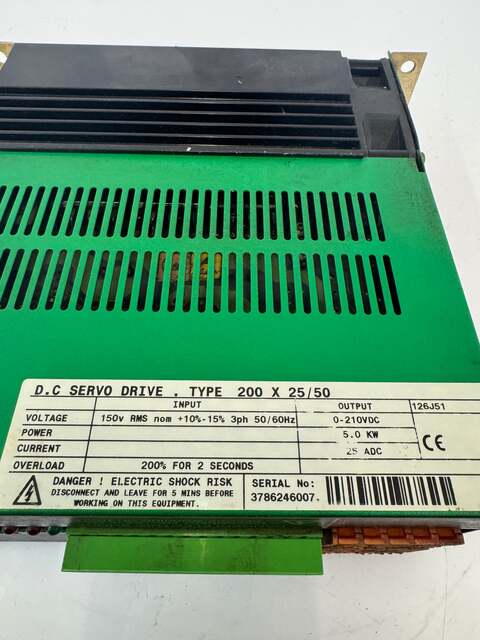

The Control Techniques 200X25/50 is a DC servo drive from the Maxi Maestro range, used in CNC machine tools and industrial servo positioning systems to control permanent magnet DC servo motors. The nameplate identifies it as a D.C. Servo Drive, Type 200 X 25/50, with input rated at 150V RMS nominal +10/15%, 3 phase, 50/60 Hz. Output is rated 0 to 210V DC at 25 A continuous, with a power rating of 5.0 kW. The drive supports a 200% current overload for 2 seconds. The nameplate also carries the marking 126J51 and CE compliance. The serial number recorded on this unit is 3786246007. A safety advisory on the rating plate warns of electric shock risk and instructs that the unit be disconnected and left for 5 minutes before working on the equipment. The Maxi Maestro range was developed for industrial servo applications requiring closed loop speed and torque control of brushed DC servo motors. This drive is suited for retrofit and replacement service in legacy machine tool platforms and OEM industrial equipment where the original Control Techniques DC servo platform remains installed. Part number 200X25/50, MPN 200X25/50, manufactured by Control Techniques, now part of Nidec Control Techniques. Searchable terms include Control Techniques 200X25/50, Maxi Maestro 200 X 25 50, DC Servo Drive 5 kW, 25 A servo drive, and CNC DC servo amplifier.

Stock # 0226-146
