Consolidated Bearings Bearing NN3013K P51NAW33 65 mm ID x 100 mm OD x 26 mm Width - NEW

The Consolidated NN3013K P51NAW33 is a precision double row cylindrical roller bearing with a tapered 1:12 inner bore and a brass cage. Bore diameter measures 65 mm, outer diameter measures 100 mm, and width measures 26 mm. The P51 designation indicates ISO Class 5 (P5) dimensional and running accuracy with NA non interchangeable rings designation. The W33 suffix indicates a lubrication groove and three oil holes in the outer ring for circulation of lubricant during operation.

NN series double row cylindrical roller bearings feature a solid inner ring with double flanges and an outer ring without flanges, allowing the outer ring to be separated for assembly and disassembly. The double row of cylindrical rollers provides high radial load capacity, high rigidity, and low cross section, making this configuration well suited to machine tool main spindle applications, rolling mill stands, gearboxes, grinding spindles, and other precision rotating equipment requiring tight running accuracy.

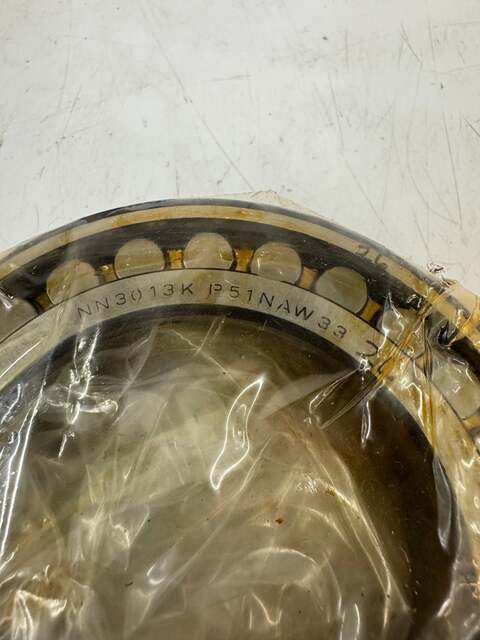

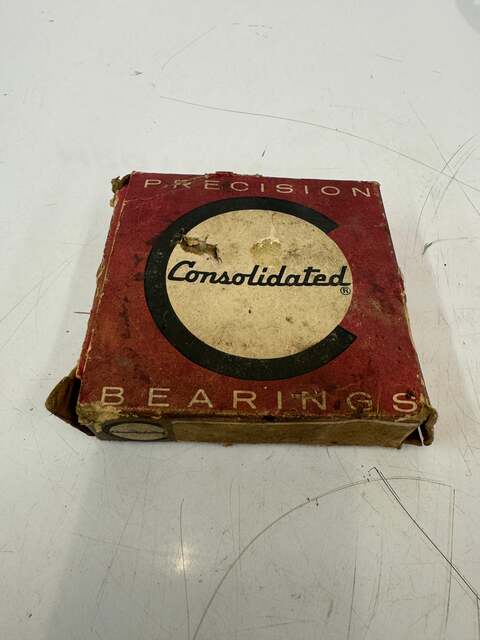

Item is presented in the original Consolidated Precision Bearings box and remains sealed in the factory wax paper packaging. Manufacturer markings on the outer ring read NN3013K P51NAW33 with JPN country of origin marking. The tapered bore is engineered to mate with a 1:12 tapered spindle journal or with an adapter sleeve for clearance adjustment during installation. Brass cage construction supports higher speed operation and resistance to deflection under load.

Part numbers cross referenced across major bearing OEMs include NSK NN3013K, FAG NN3013K, SKF NN3013K, NTN NN3013K, Koyo NN3013K, and Nachi NN3013K with equivalent precision class designations.

Stock # 0226-244
