Consolidated Bearings Angular Contact Ball Bearing 7008 TG P/4 40 x 68 x 15 mm

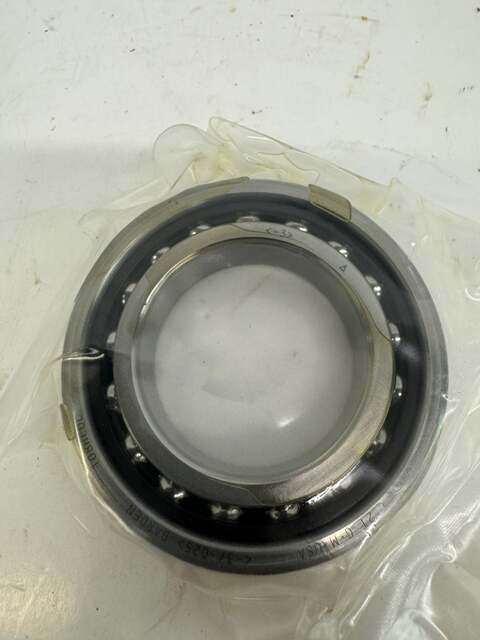

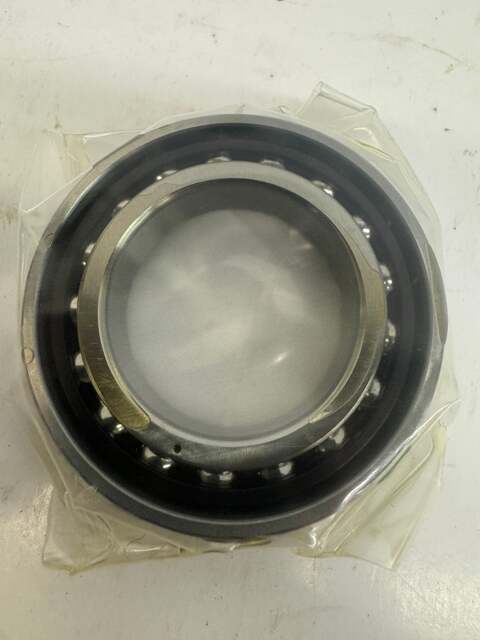

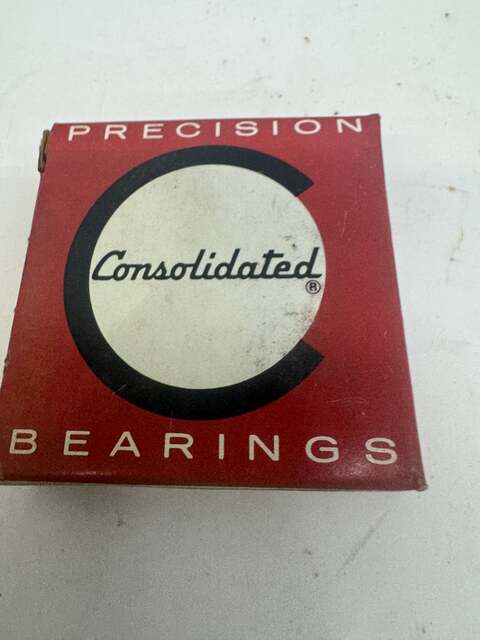

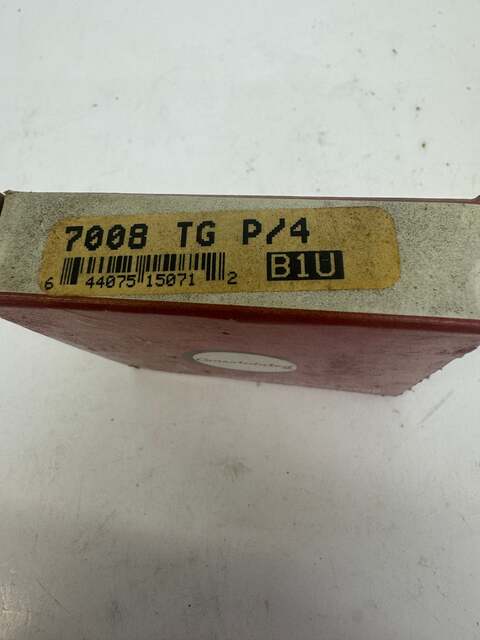

The Consolidated Bearings 7008 TG P/4 is a single-row angular contact ball bearing with ABEC-7 (P4) precision tolerance. It measures 40 mm bore, 68 mm outer diameter, and 15 mm width. The TG suffix designates a phenolic cage that rides on the outer ring land, with universally flush-ground faces that allow Back-to-Back, Face-to-Face, or Tandem mounting configurations without additional spacers. The bearing features a 15-degree contact angle and a counterbored outer ring with light preload, making it suited for combined radial and axial load applications at elevated speeds. Consolidated Bearings is a US-based precision bearing manufacturer and wholesaler with a history dating to 1932, offering products that meet the dimensional and tolerance standards associated with ABEC-7 rated angular contact bearings. The 7008 series in this specification is commonly used in machine tool spindles, gearboxes, electric motors, pumps, clutches, and similar high-speed industrial machinery where dimensional accuracy and mounting flexibility are required. Item is sourced from industrial surplus and includes original Consolidated Bearings box packaging. Part number 7008 TG P/4 is confirmed from the box label.

Stock # 0426-01332
