Stock # 201648
1 / 10
Click to zoom in
1 / 10
For Sale by RT Machine
Surplus Record Dealer Since 2025
Location: Hughesville, PA
Contact Sales
Phone Number: 570...> Show Phone Number 570-584-2002
Let the seller know you found their listing on Surplus Record!
Description
- Entire Rough Mill System with Tilt Hoist, OSI SCP-24 Self-Centering Double-Sided Planer, Mid-Oregon 6 Moving Blade Gang Rip Saw, Eagle Talon 3000 Optimizing Saw and Paul C14 Optimizing Saw

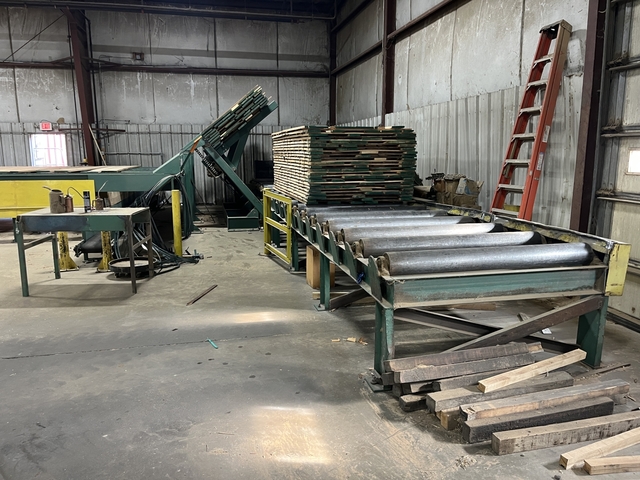

- Driven Roll case set-up to handle pack up to 60" wide and will handle 6-16' long packs

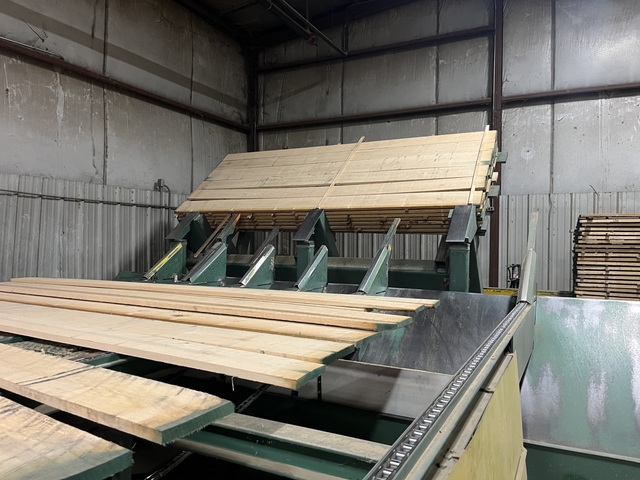

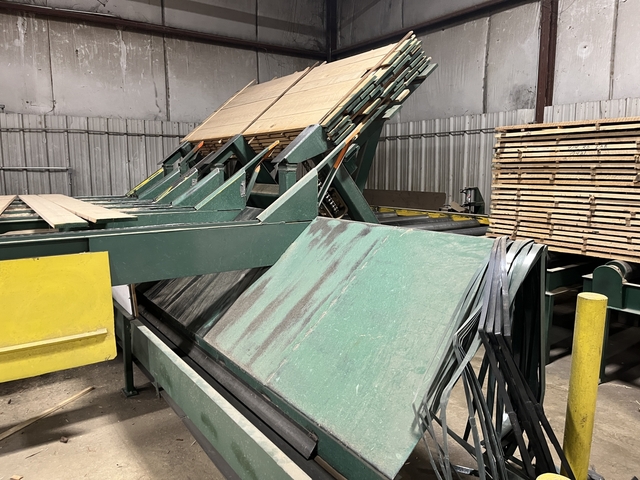

- 3 arm tilt hoist with Mid Oregon Hydraulic Power Pack

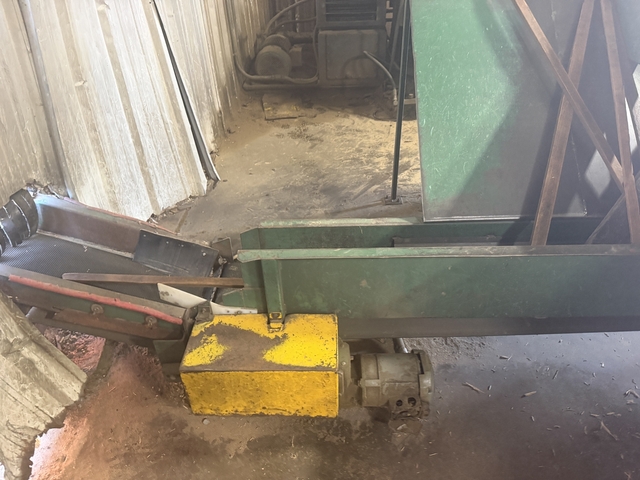

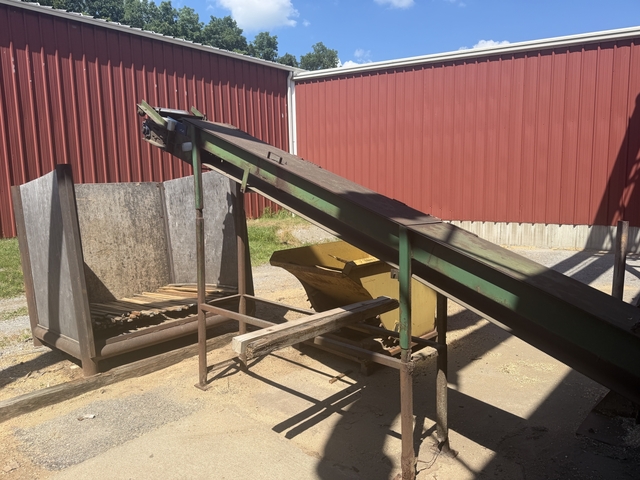

- Has a sticker belt conveyor measuring approximately 12" x 20' long - followed by an approximately 15' long incline conveyor
- Does not have a stick stacker - sticks fall into a bin at the out-feed

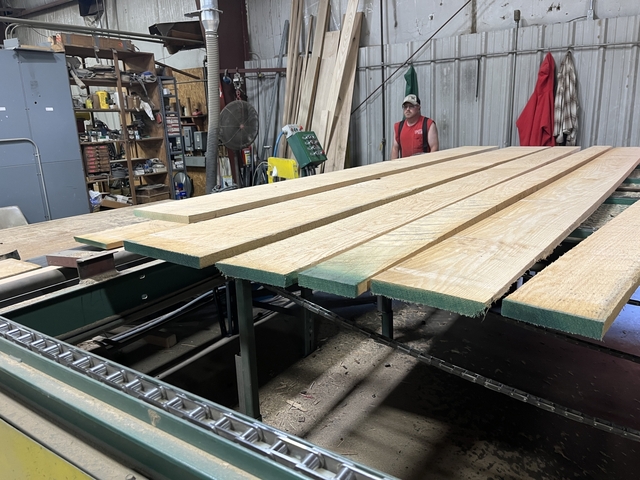

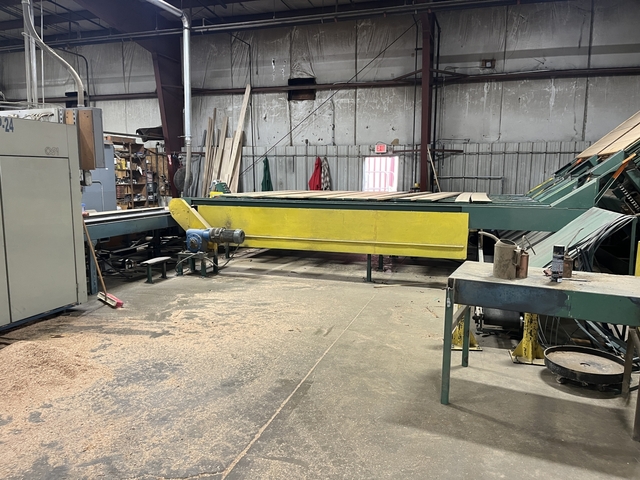

- 6 Stand flat top chain deck with chain spacing at 0-24"-48"-72"-96"-144"

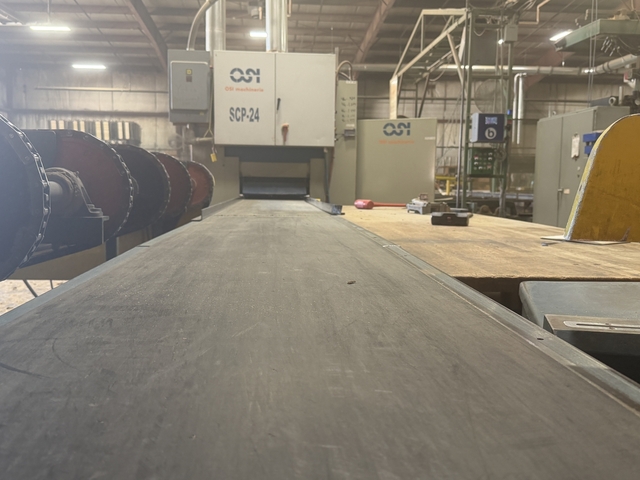

- 24" x 20' Belt conveyor feeding the planer

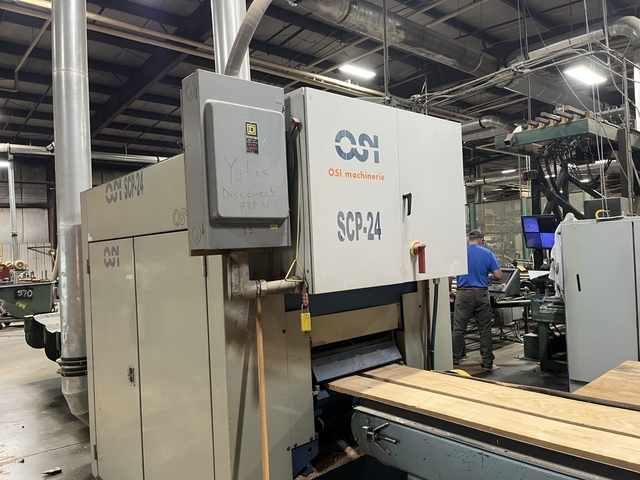

- OSI Self Centering Planer Width Capacity: 24"
- Top Head Motor: 40 HP
- Bottom Head Motor: 40 HP
- Thickness Capacity from 1/2" - 5 1/2"
- Upgraded feed speed of 125FPM
- Machine Currently has Direct-Opposing steel insert cutterheads installed which utilize 15mmx15mmx2.5mm inserts
- Includes a Spare set of aluminum insert cutterheads which were originally sold with the machine when new
- Face-to-Face Segmented Feed Rolls Ensures Perfect Centering of Every Workpiece
- Segmented Pressure-Fingers follow the shape of each board, eliminating jams and splitting
- 24" Minimum Single Workpiece Length
- OSI Self Centering Planer was installed new in late December of 2007
- 6 Stand Panned C550 Roof Top Chain Deck at the out-feed
- Chain Deck measures approximately 12' wide x 12' Deep
- Mid Oregon PR 2000 Hydraulic 6 Moving Blade 24" Gang Rip Saw and In-Feed System
- At the End of the Deck feeding out of the Planer there is a board dealer to separate and go into the in-feed system
- In-feed System: Mid Oregon In-feed with 7 Strand Deck with Fence
- Fence has two rolls on the top and feed deck has 6 rolls in the bottom for feeding into the rip saw
- Movable laser stand with 6 lasers to show operator solutions
- Photo eyes for width sensing, Allen Bradley controls, and drives for the in-feed
- After disappearing fence the system has 5 boards stops for material in cue to be fed into the rip saw
- Gang Rip Saw has a 3" Diameter arbor driven by 100HP Motor
- 6 moving blades moved by Hydraulic unit with hydraulic servo valves
- 4 top pneumic pressure rolls
- Slat bed dip chain gang rip saw with 4" pitch with 24" use-able width capacity
- Thickness capacity: 3/4" - 2 1/4"
- Minimum Rip Width: 7/8"
- Feed Speed: 50-300FPM
- Gang Rip Saw New in 2004
- In-feed and all controls for the ripsaw were upgraded in 2017
- Material Handling between the Gang Rip Saw and Scanner Consisting of the items to follow
- Automated Lumber Handling 36" Wide x 80" Long belt conveyor with 2 Idle Pinch Rolls Mounted
- ALH 12' Wide x 64" Deep panned landing rooftop chain deck with H78B chain
- ALH 12' Wide x 14" Deep inclined, panned Rooftop Chain Deck - 81X chain with rubber padded inserts on top
- After Incline it flatens out with 81X Flat Top Chain also ALH
- The system makes a right angle turn
- System has a board dealer followed by 11 stops
- After board stop 9 the system starts to decline toward the a belt conveyor that feeds the Scanner
- Paul Belt Conveyor 459" Long x 12 1/2" Wide
- Woodeye Scanner is not available for Sale
- Eagle Y-transfer coming out of a Woodeye Scanner
- Woodeye Scanner is not for sale
- Machine is currently feeding 2 saws (Eagle Talon 3000 and Paul C14E)
- The entire line was set-up to handle 6-16' material
- The transfer would send stock narrower than 8" at 4/4 thickness to Eagle Talon 3000
- Wider stock would be sent to the Paul C14
- 2018 Eagle Talon 3000 Through-Feed Optimizng Cut-off Saw!
- Feeds from Left-to-Right
- Currently in a line set-up with a (Woodeye Scanner - not for sale) but is also set up for crayon mark reading in the software
- 90 Degree Saw Lateral Feeder Approximatley 14'4" long x 6' Deep
- Ten Top & Bottom Feed Rolls
- Servo Feed Drive driven by 5 kW servo motor
- 7 kW Saw Stroke Servo
- 20HP Blador arbor motor
- 20" Diameter Blade Capcity
- Cut Envelope of 1"x8" or 2"x6"
- Machine has a total of 11 kickers stations
- Eagle Kicker Belt 26' long x 12" wide with 2 kickers
- Additional Kickers (9) are on an Automated Lumber Handling Belt Conveyor (kickers were made by current owner)
- Model C14E - 12" Optimizng Cross Cut Saw
- Material Length (Min/Max): 6'-16'
- Timber Thickness (Min/Max): 5/8" - 2-1/2"
- Min/Max Timber Cross-section: (2"x5/8")/(12"x2-1/2")
- Saw Motor: 10HP
- Saw Blade: 600mm
- Six Top and Bottom Feed Rolls - Bottom are Steel and the Top are Rubber / Urethane coated
- Initial Outfeed Belt with 1 Kicker
- Secondary Transfer belt with pinch roll at the end measuring Aprroximatley 47'9" x 12" wide
- Linux Operating System
- Current Voltage: 460V 3ph
- This system is currently in a line that is being fed by a Scanner (Woodeye - not for sale) - it has the software and crayon reader to take it back to the original function
- Year of Manufacture: 2006
- Machine is part of an entire rough mill that is for sale and will be available in late Dec. or Jan.
- Specifications are written to the best of our knowledge with some being sourced from literature, we encourage you to inspect the machine and verify
Get Your Price from RT Machine!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Complete Sawmill, 8'-20' x 4"-27" logs
Category: Sawmills
Seller: Carolina Machinery Sales
Location: Monroe, NC
Complete sawmill operation for sale. All systems are still installed and ready to be removed. They cannot be operated on the current site. All equipment is available for inspection., Log and lumber info:, - Log length: 8'-20', - Log diameters: 4" - 27", - Dimension lumber: 2x4 to 2x12 capable, Asset list ...more
JUST ADDED!
Custom Built, circular sawmill, heavy duty vertical grain / quarter-sawn lumber production, octagon center cant, 2015
Category: Sawmills
Seller: Fabco Welding
Location: Horseshoe Bend, ID
Year: 2015
Featured
Wood-Landia #200X, Single-Pass Log Ripper/Scragg Mill, 105 KVA, 200 amps, 380/460 Volts, 50/60 Hz, 3PH
Category: Sawmills
Seller: Machinery Scene
Location: Toledo, WA
Model: 200X
LOG RIPPER -200X, Single Pass Scragg/Scraggers, FT-KR-83, Power required : 200A/105KVA, 3 phase, 460V/60Hz, 380/50Hz., Weight: 5,300 LBS., Made By Woodlandia, Ontario, Canada., Included: Controller, In-feed and out-feed, fan, Low Usage, Currently operating in a building- Videos available., Additional photos and ...more
Bandmill Wheel, 54" solid wheel, 1 pair
Category: Sawmills
Seller: Ex-Factory
Location: Charlotte, NC
One Pair of 54″ SOLID BANDMILL WHEELS.
Featured

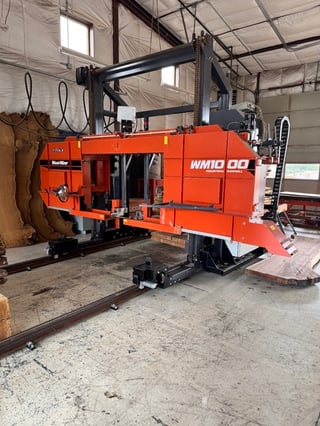

Wood-Mizer #WM-1000, Industrial Sawmill, cuts hard/soft/tropical wood 67" diameter
