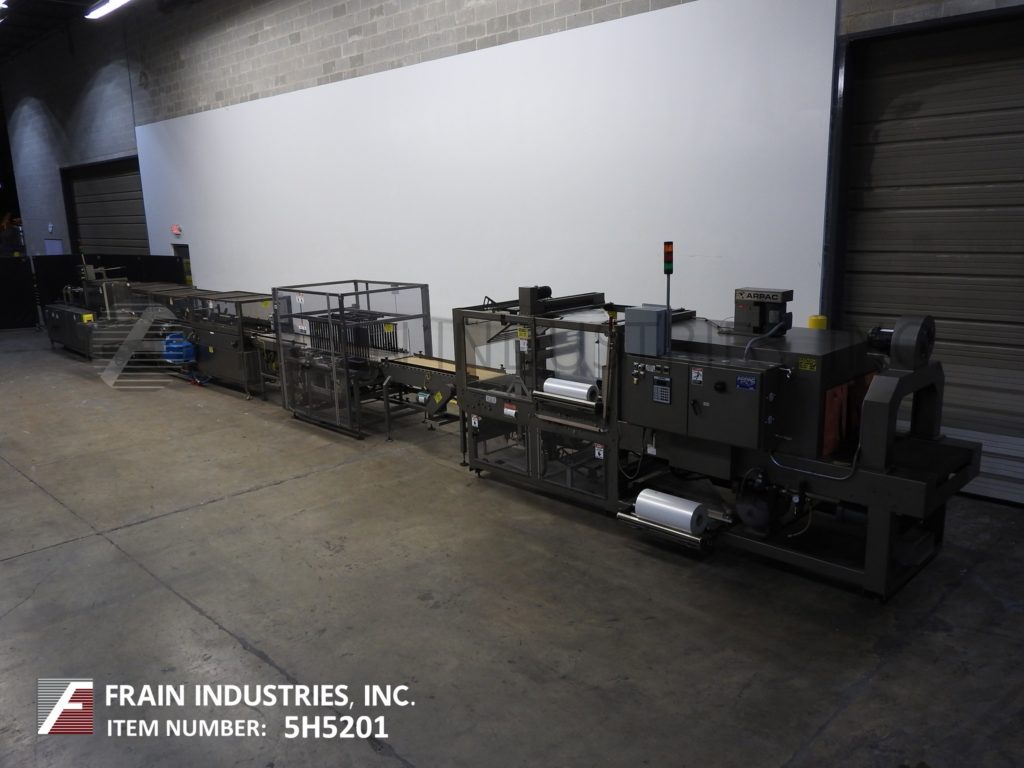

Arpac #TS2212/45TW28, complete line container, automatic, continuous motion, servo driven, tray former, packer, upstacker

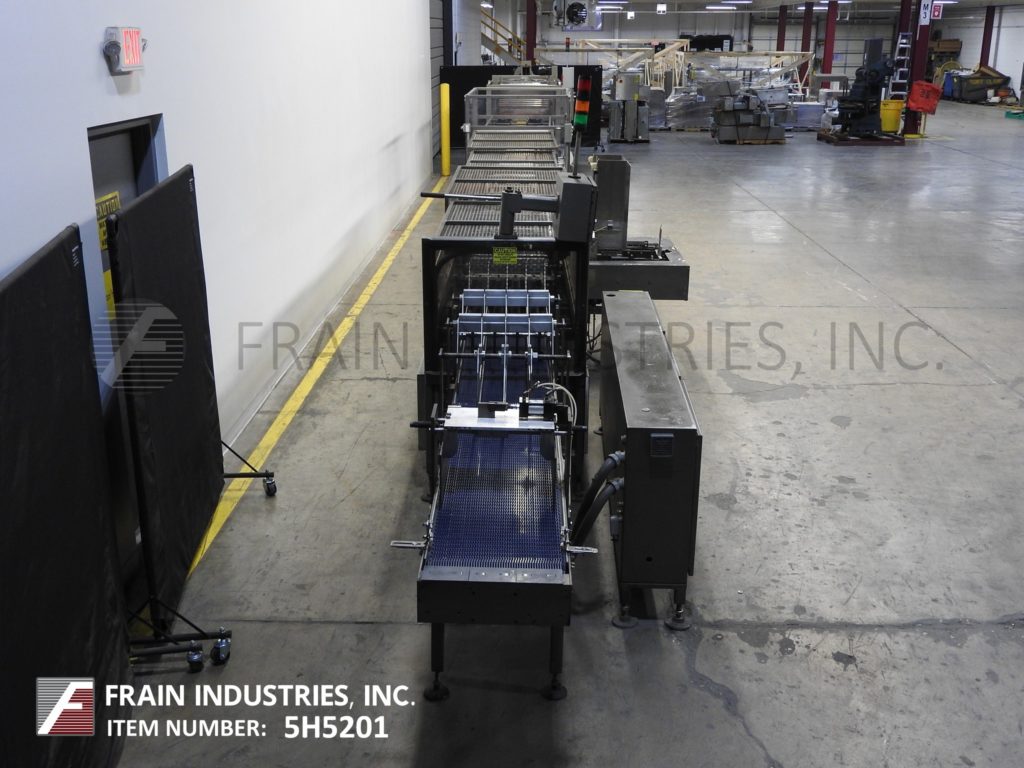

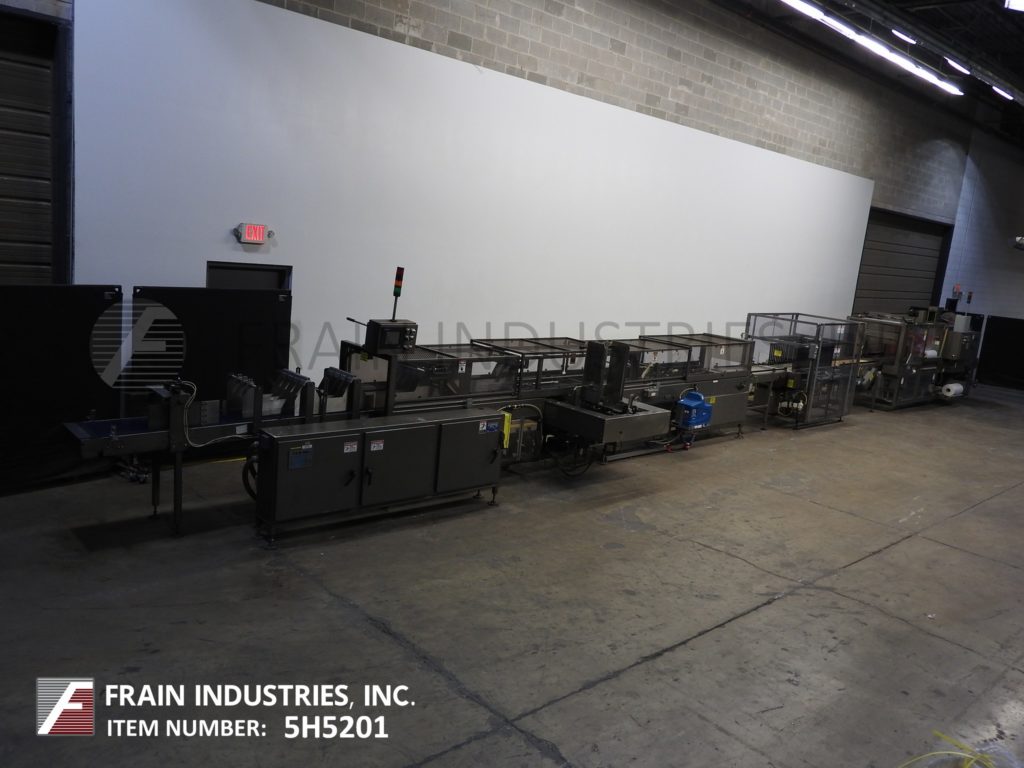

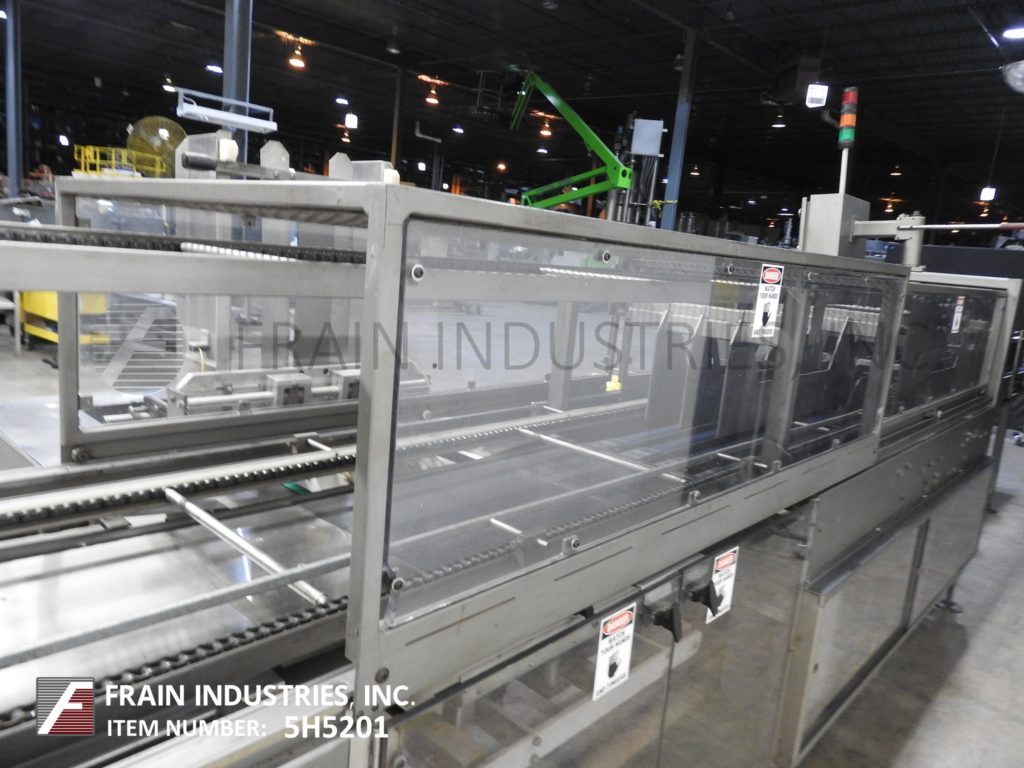

Arpac Models TS2212 / TS60 / 45TW-28, complete, automatic, continous motion, servo driven, tray forming, packing, upstacking and shrink bundling line rated from 5 to 45 trays per minute with number of product per tray – depending on materials and application. Tray Size per application. System consists of Arpac Model 2212 tray former, packer and hot melt glue sealer with 120" long x 18" wide product in feed conveyor with (4) lane dividers to (4) 48" long x 2-1/2" wide product grouping conveyors side mounted 68" wide x 32" high blank tray magazine with (2) suction cup pic n place to tray forming, packing and sealing section with (4)106" long x 1/2" wide lugged compression / discharge conveyor belt section set on 12" centers with Nordson hot melt glue unit with major / minor flap closers. Arpac Model TS60 double upstacker 60" long roller in feed conveyor with 21" wide x 1-1/4" OD rollers set on 1-1/2" centers with 1/8" gaps. collation system has 70" long roller section with 22" wide x 1-3/4" OD rollers set on 2-1/2" centers with 1/2" gaps, 54" long x 16" wide upstack section to

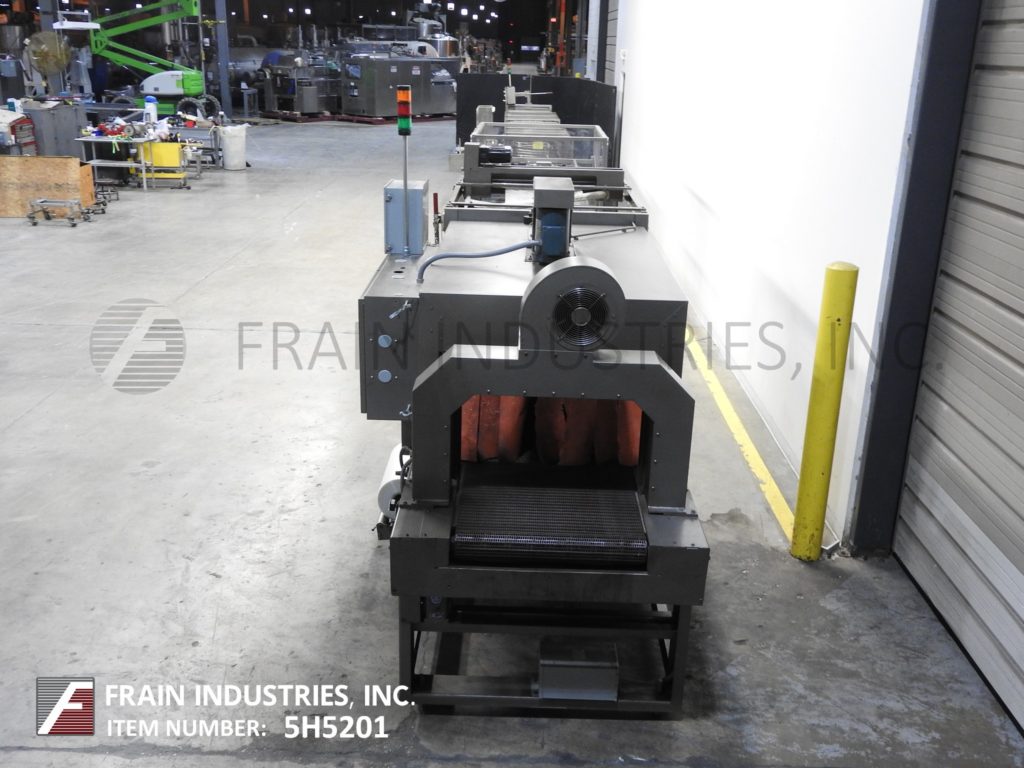

72" long x 17-1/4" wide canvas transfer conveyor to Arpac Model 45TW-28 shrink bundler and tunnel with (1) 36" x 19" wide and (1) 36" wide x 72" long in feed conveyors thru bundler, top and bottom film rolls with maximum film roll width of 27" and 14" OD has 29" wide seal jaws x 13" high total clearence, to single zone shrink tunnel with 36" wide x 19-1/2" high total aperture x 72" long shrink chamber with 29" wide x 108" long product conveyor thru shrink tunnel with top discharge cooling fan. Control panels have A/B controllers with touch pad controls. and readout. All mounted on heavy duty base frames with safety guarding and statis light bars.

OAD: 280" L x 72" W x 70" H Tray Erector/Packer
144" L x 55" W x 72" H Upstacker
72" L x 25" W x 41" H Transfer Conveyor
189" L x 60" W x 80" H Bundler/Tunnel
