Complete Combined Heat & Power Plant, boilers & generators, 2019

OVERVIEW
This is a complete combined heat and power (CHP) equipment package, factory new/nearly new, dated 2019, originally specified for a Stuytown/Cummins Power Systems-Bronx installation. The package includes dual Superior vertical firetube boilers, dual Bryan flexible water tube boilers, a Cummins 1100 kW generator set, a Cummins/Onan 250 kW diesel generator with subbase fuel tank, a Superior heat recovery steam generator (HRSG), a gas booster, an auxiliary equipment trailer, and a bank of cooling fan/blower units. Sold as a complete plant package. Contact us to schedule an inspection.
EQUIPMENT SPECIFICATIONS

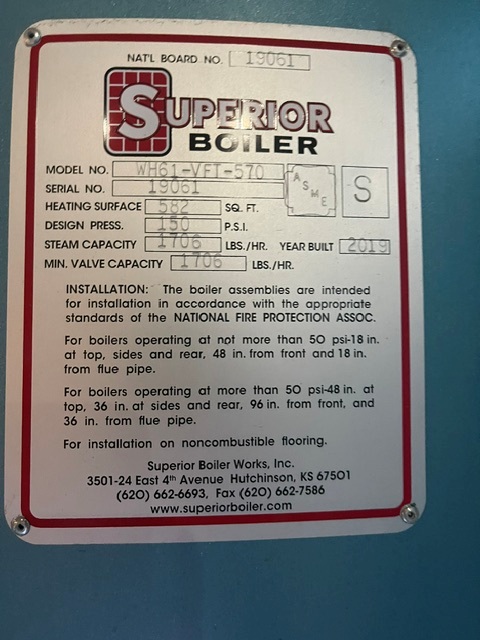

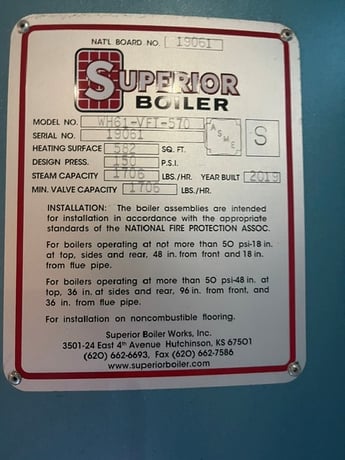

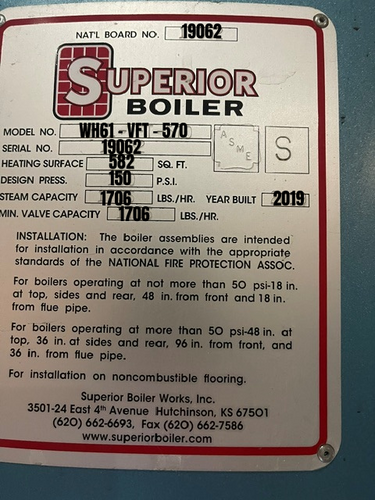

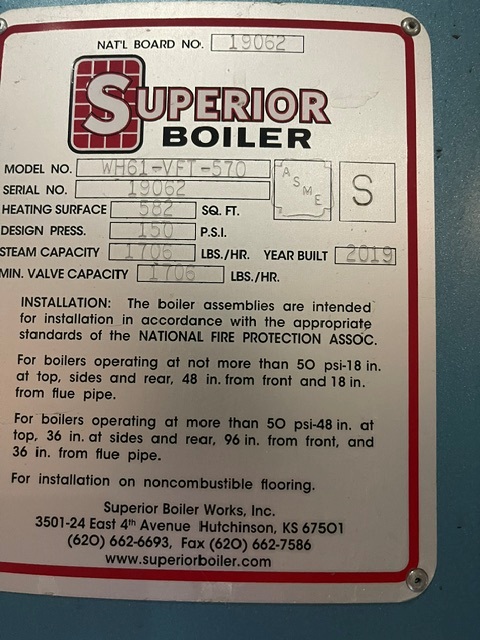

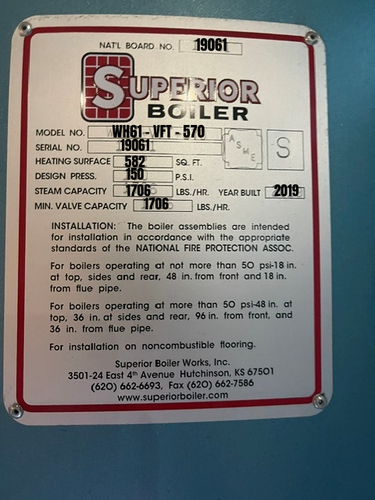

Boiler 1 & 2 — Superior Boiler (Qty. 2):
- Manufacturer: Superior Boiler Works, Inc., Hutchinson, KS
- Model: WH61-VFT-570
- Serial Nos.: 19061 and 19062
- National Board Nos.: 19061 and 19062
- Heating Surface: 582 sq. ft. each
- Design Pressure: 150 PSI
- Steam Capacity: 1,706 lbs/hr each
- Min. Valve Capacity: 1,706 lbs/hr each
- Year Built: 2019

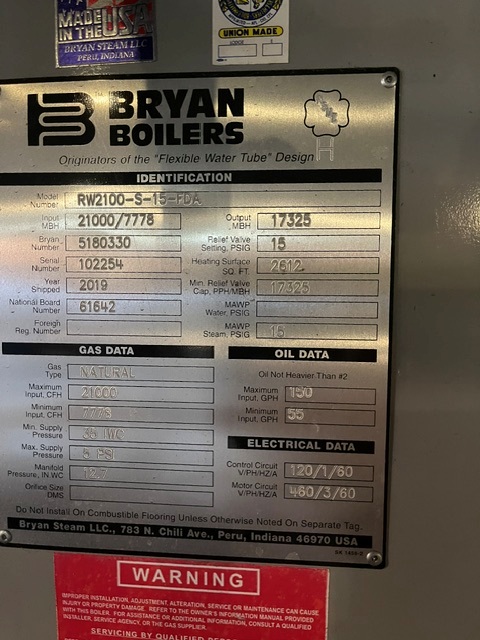

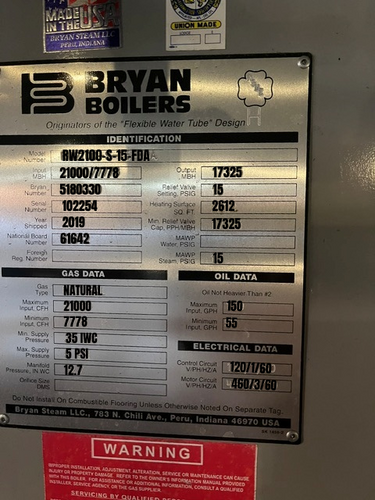

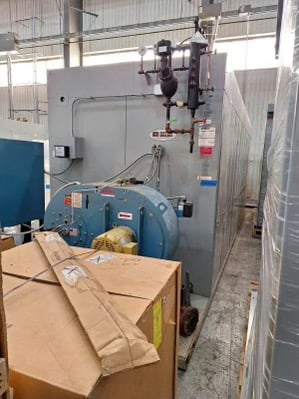

Boiler 3 & 4 — Bryan Boilers (Qty. 2):
- Manufacturer: Bryan Steam LLC, Peru, IN
- Model: RW2100-S-15-FDA
- Serial No.: 102254 (shown unit)
- National Board No.: 61642
- Design: Flexible Water Tube
- Input: 21,000/7,778 MBH
- Output: 17,325 MBH
- Heating Surface: 2,612 sq. ft.
- Relief Valve Setting: 15 PSIG
- Fuel: Natural Gas (Max 21,000 CFH) / #2 Oil (Max 150 GPH)
- Electrical: Control Circuit 120V/1PH/60Hz; Motor Circuit 460V/3PH/60Hz
- Year Shipped: 2019
Heat Recovery Steam Generator:
- Manufacturer: Superior (HRSG)
- Type: Skid-mounted heat recovery steam generator
- Condition: Used, removed from service

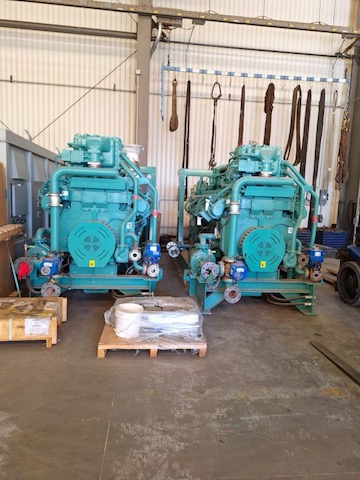

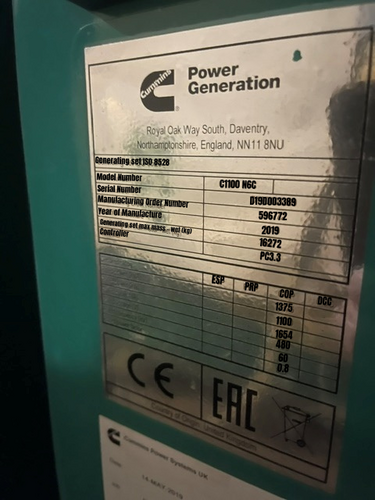

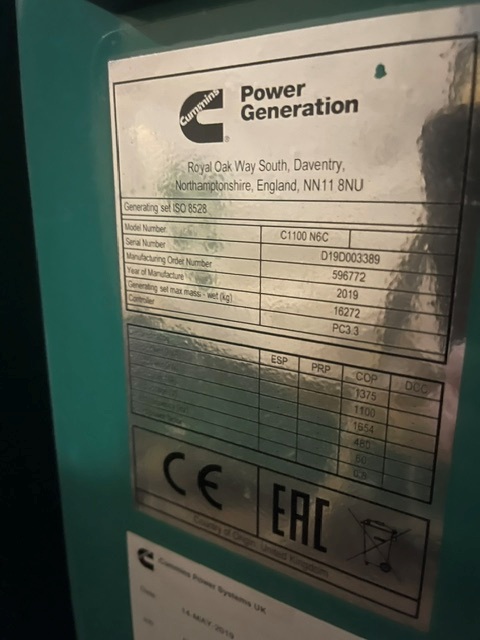

Generator Set 1 — Cummins Power Generation:
- Manufacturer: Cummins Power Generation, Daventry, UK
- Model: C1100 N6C
- Serial No.: D19D003389
- Rated Output: 1,100 kW (Prime), 1,375 kVA (Standby)
- Generating Set Max Mass: 16,272 kg
- Controller: PC3.3
- Year of Manufacture: 2019
Generator Set 2 — Cummins/Onan Diesel Generator:
Manufacturer: Cummins/Onan
- Rated Output: 250 kW, 277/480V, 3-Phase, 4-Wire, 60 Hz, 1800 RPM
- Fuel: Diesel
- Genset Model: DQDAA 250KW WE
- Genset Footprint: 50" x 119"
- Includes: Battery rack/cables, float-type battery charger, jacket water heater, engine-mounted radiator/fan, vibration isolators, structural steel base rails, weather housing, Isochronous governor, 2-year warranty
Subbase Fuel Tank (paired with 250kW Generator):
- Manufacturer: Global Power Components
- Job No.: 34641 / Dwg. No. 15-34641
- Tank Capacity (Actual): 969 Gal
- Tank Capacity (Useable): 940 Gal (48-hour supply)
- Tank Weight: Approx. 3,450 lbs (dry, per BOM: 8,500 lbs)
- Dimensions: 42"H x 50"W x 218"L
- UL-142 Listed, Double Wall Secondary Containment
- Features: Standard electrical stub-up area, removable end plate, 1/2" supply/return dip tubes, low/high level alarms, basin drain, locking manual fill cap, standard vent cap, emergency vent, flush mount lifting plates (4 min.), fuel-in-basin alarm, Rochester fuel level gauge, 150% rupture secondary basin, rain runoff option
- Paint: Gloss Black
Gas Booster:
- Type: Gas booster unit (fuel gas pressure boosting for engine/boiler package)
Auxiliary Equipment:
- Auxiliary equipment trailer, containerized/mobile support unit
- Bank of cooling fan/blower units for CHP heat rejection (multiple units shown, skid-mounted)
KEY FEATURES AND BENEFITS
- Complete factory-packaged CHP plant, boilers, generators, and HRSG
- Dual Superior vertical firetube boilers and dual Bryan flexible water tube boilers
- 1,100 kW primary generator plus 250 kW backup diesel generator with 48-hour subbase fuel tank
- Heat recovery steam generator for combined efficiency
- UL-142 listed fuel tank with double wall secondary containment
- Nearly new 2019 manufacture across major components
- Includes auxiliary trailer and cooling fan bank for complete plant support
SPECIFICATIONS SUMMARY
- Boilers: (2) Superior WH61-VFT-570, 150 PSI; (2) Bryan RW2100-S-15-FDA, 15 PSIG
- Generators: (1) Cummins C1100 N6C, 1,100 kW; (1) Cummins/Onan 250 kW diesel
- Fuel Tank: 940 usable gal subbase tank, UL-142 listed
- HRSG: Superior heat recovery steam generator
- Auxiliary: Gas booster, equipment trailer, cooling fan bank
- Year: 2019 (boilers and generators)
- Condition: Used/Nearly New
ADDITIONAL INFORMATION
- Condition: Used, nearly new — 2019 manufacture on major components
- Configuration: Complete CHP plant package
- Origin: Superior Boiler (Hutchinson, KS), Bryan Steam (Peru, IN), Cummins Power Generation (Daventry, UK), Global Power Components (Milwaukee, WI)
- Inspection: Welcome, contact us to schedule
Location: Ohio
