For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

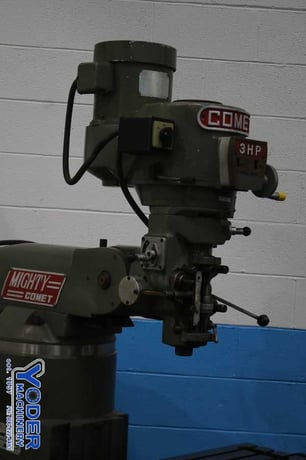

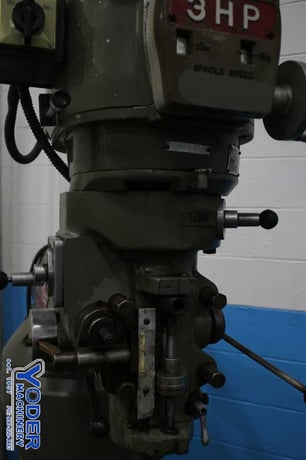

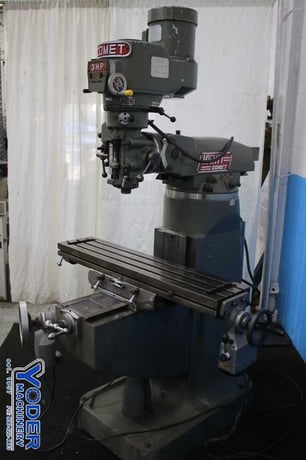

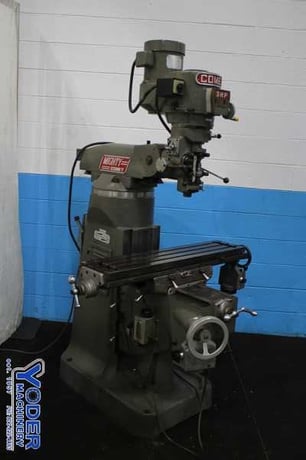

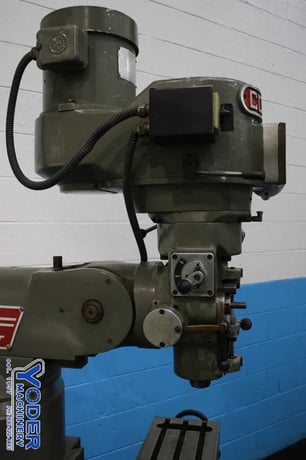

Description
SERIAL ................................... 1231
MODEL .................................... 3-VHG

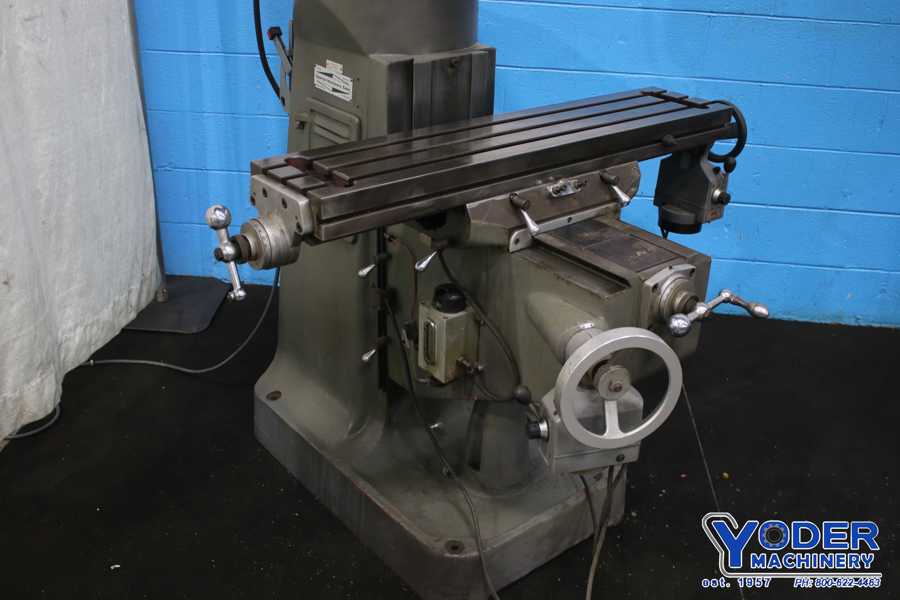

AREA OF TABLE ............................ 9" X 42"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 16"
VERTICAL KNEE TRAVEL ..................... 16"

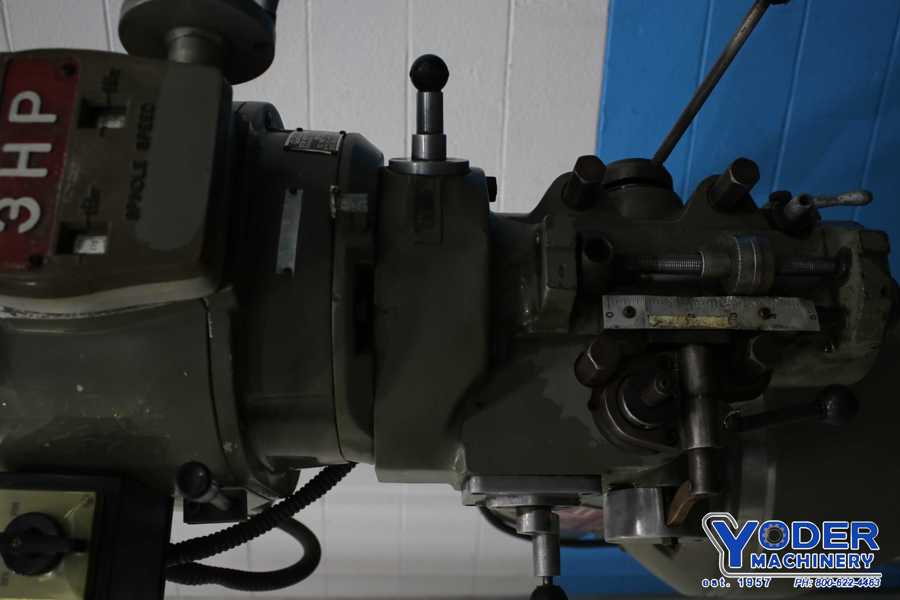

QUILL TRAVEL ............................. 5"
RAM TRAVEL IN/OUT ........................ 24"
SPINDLE SPEEDS VARIABLE SPEED ............ 60 TO 4,200 RPM
SPINDLE TAPER ............................ R-8
POWER QUILL FEEDS ........................ 0015, .003 & .006 IPR

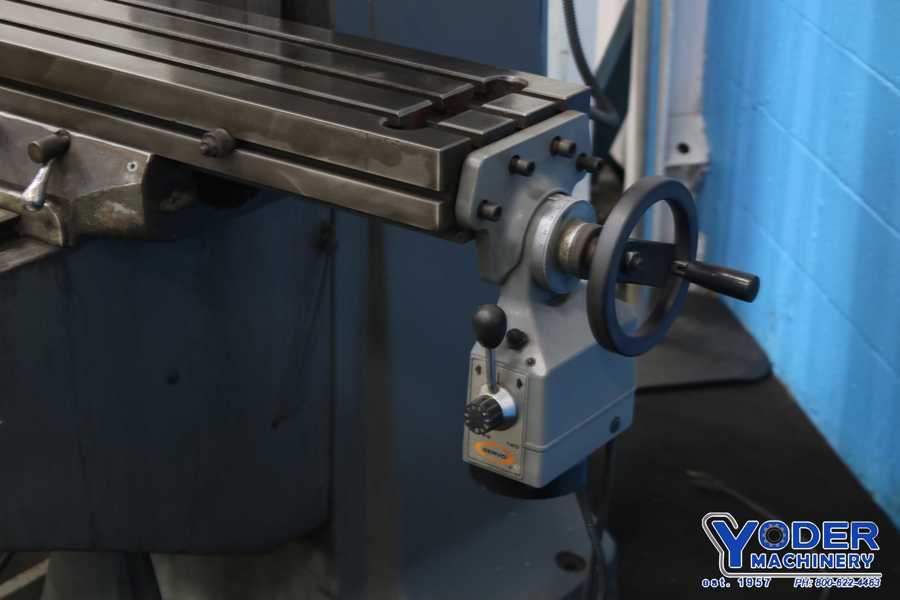

POWER LONGITUDINAL TRAVEL ................ YES

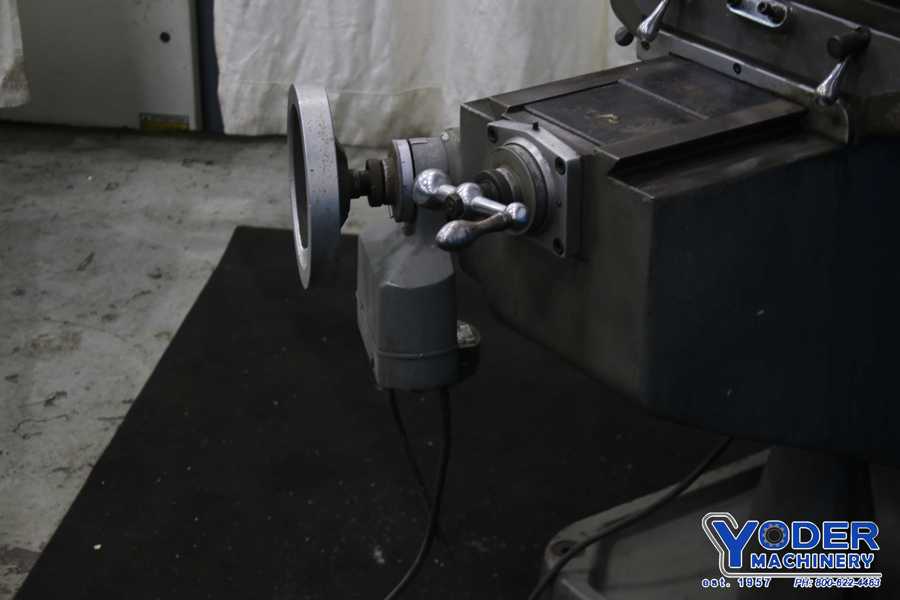

POWER KNEE TRAVEL ........................ YES
DISTANCE, SPINDLE NOSE TO TABLE .......... 2" MINIMUM 18" MAXIMUM
DISTANCE SPINDLE CENTERLINE OF COLUMN .... 4" MINIMUM 28" MAXIMUM

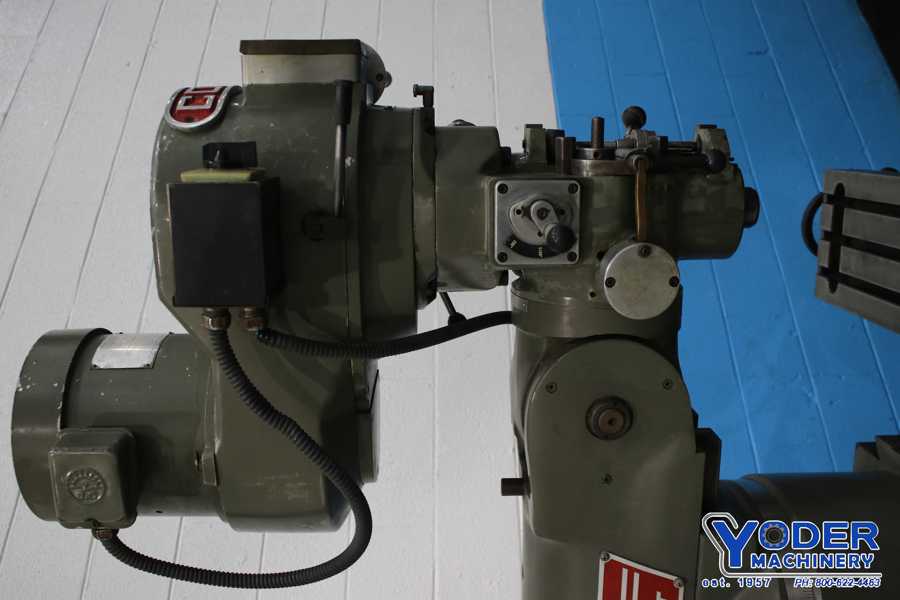

HEAD TILTS ............................... 45 DEGREES (BACK & FORWARD)
HEAD ROTATES ............................. 90 DEGREES (RIGHT & LEFT)

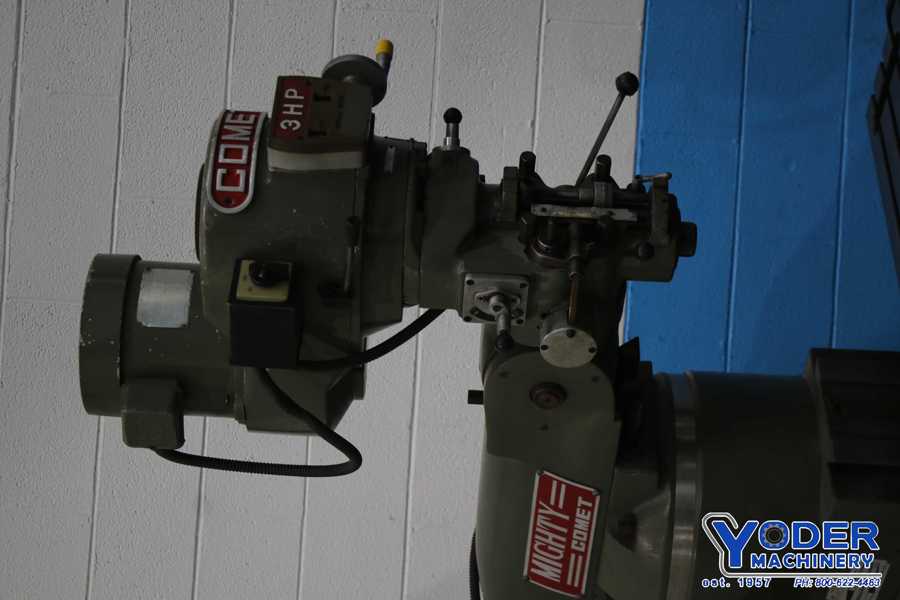

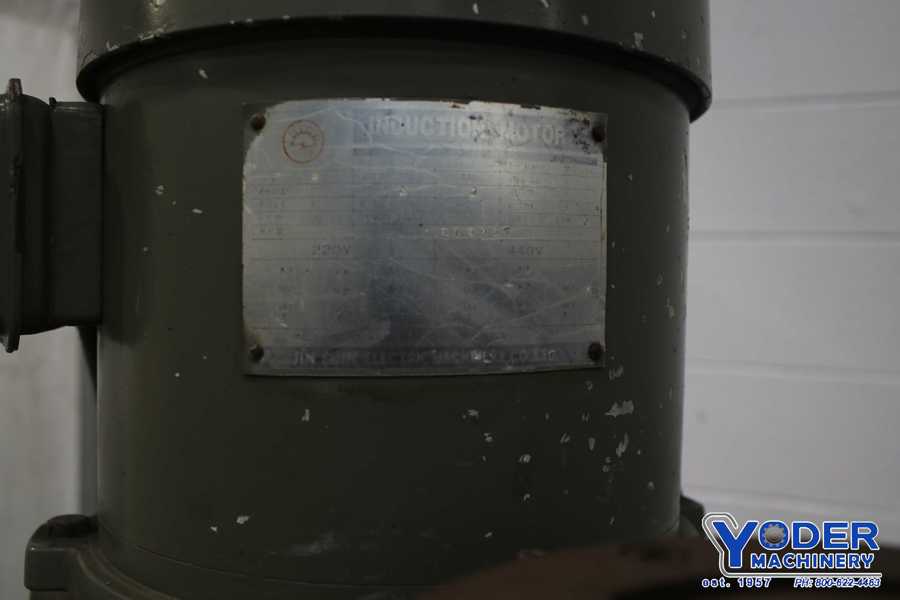

MOTOR .................................... 3 HORSEPOWER
MODEL .................................... 3-VHG
AREA OF TABLE ............................ 9" X 42"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 16"
VERTICAL KNEE TRAVEL ..................... 16"
QUILL TRAVEL ............................. 5"
RAM TRAVEL IN/OUT ........................ 24"
SPINDLE SPEEDS VARIABLE SPEED ............ 60 TO 4,200 RPM
SPINDLE TAPER ............................ R-8
POWER QUILL FEEDS ........................ 0015, .003 & .006 IPR
POWER LONGITUDINAL TRAVEL ................ YES
POWER KNEE TRAVEL ........................ YES
DISTANCE, SPINDLE NOSE TO TABLE .......... 2" MINIMUM 18" MAXIMUM
DISTANCE SPINDLE CENTERLINE OF COLUMN .... 4" MINIMUM 28" MAXIMUM
HEAD TILTS ............................... 45 DEGREES (BACK & FORWARD)
HEAD ROTATES ............................. 90 DEGREES (RIGHT & LEFT)
MOTOR .................................... 3 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Milltronics #VMM3417, Vertical Mill, 40" X, 15" Y, 16" Z, 22" ram, 54" x 10" table, 3 HP, 3750 RPM, power knee, 3-Axis Acu-Rite digital read out, 220 V., 2015
Seller: Hildebrand Machinery Co Inc
Location: York, PA
Mfr: Milltronics
Model: VMM3417
Year: 2015
JUST ADDED!
MSC, Vertical Milling Machine, 42" table, 3 HP, variable speed, 230 V., 3PH
Seller: S and R Machines
Location: Bristol, CT
Mfr: Msc
The MSC 3HP Vari Speed Milling Machine with a 42" table is a high-quality milling machine designed for precise and efficient machining tasks. With a powerful 3HP spindle and manual control, this unit offers a wide range of milling capabilities. This electric-powered milling machine operates at 230V and is ideal for ...more
JUST ADDED!

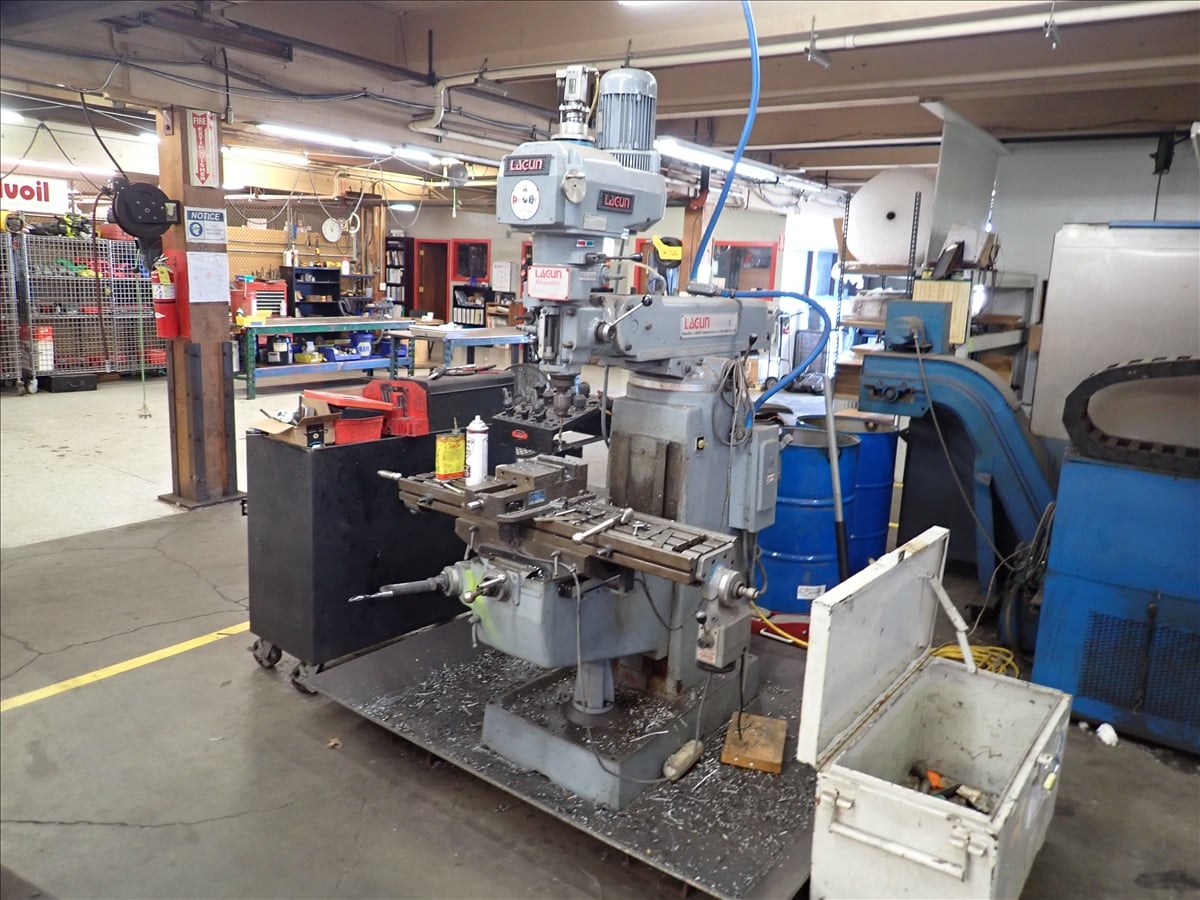

Lagun #FTV-1S, Manual Vertical Knee-Type Mill, 10" x 44" table, 3 HP, pneumatic drawbar, Huot tool holder, steel pan base
Seller: James G Murphy Co
Location: Seattle, WA
Mfr: Lagun
Model: FTV-1S
2.2KW VERTICAL MILLING MACHINE, 10"X44" POWER TABLE, PNEUMATIC DRAWBAR, HUOT TOOL HOLDER, STEEL PAN BASE.
JUST ADDED!
Willis #1050, Vertical Knee Mill, 10" x 50" table, 34" X, 16" Y, 16" knee, 3 HP, 60-4200 RPM, R8, 3-3/8" quill, new
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Willis
Model: 1050
TABLE DIMENSIONS 50" X 10" KNEE TRAVEL 16 inches QUILL DIAMETER 3.375 inches SPINDLE MOTOR 3 HP HEAD TILTING (FRONT TO BACK) 45 - 0 - 45 MACHINE WEIGHT 2800 pounds X, Y TRAVELS 34 X 16 RAM TRAVEL 24 inches QUILL TRAVEL 5 inches SPINDLE SPEEDS 60-4,200 RPM HEAD TILTING (LEFT TO RIGHT) 90 - 0 - 90 SPINDLE NOSE TO TABLE ...more
JUST ADDED!

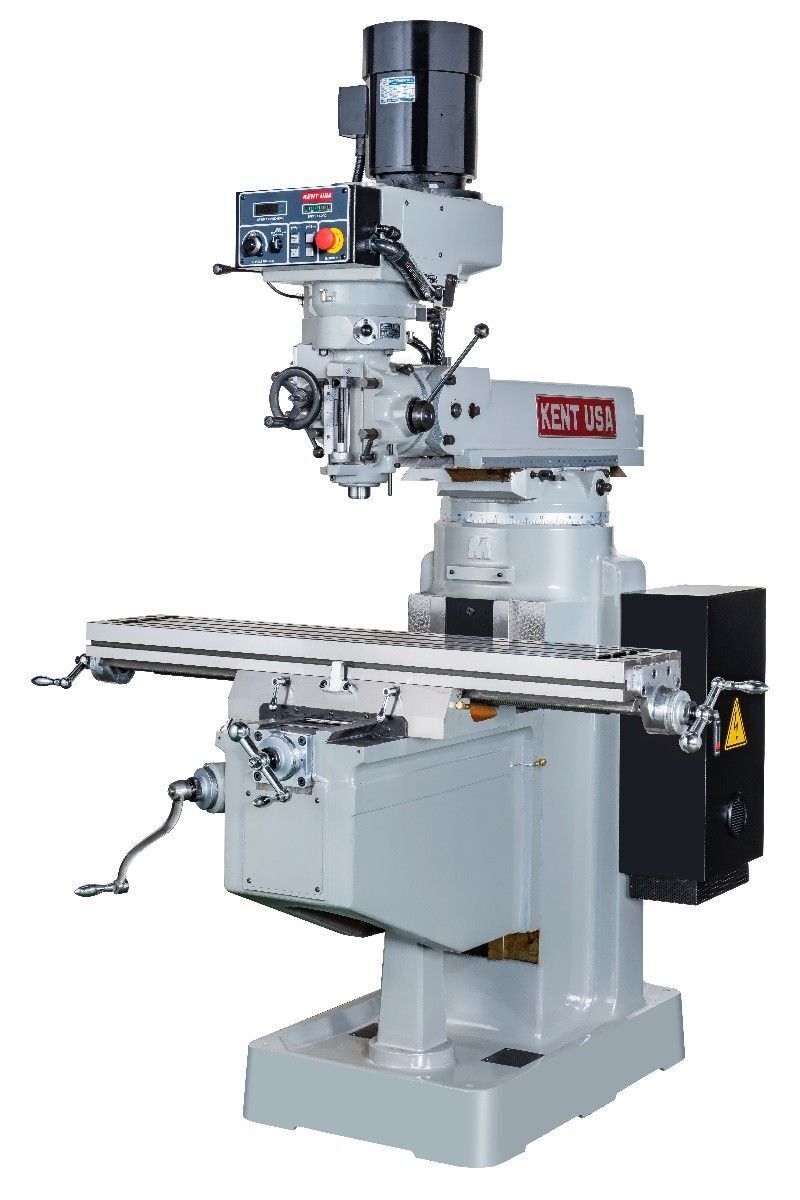

Kent #KTM-3VKF, Vertical Knee Mill, 35" X, 15.25" Z, 10" x 54" table, 5" quill, 3 HP, 50-4500 RPM, variable speed, 2026
