For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

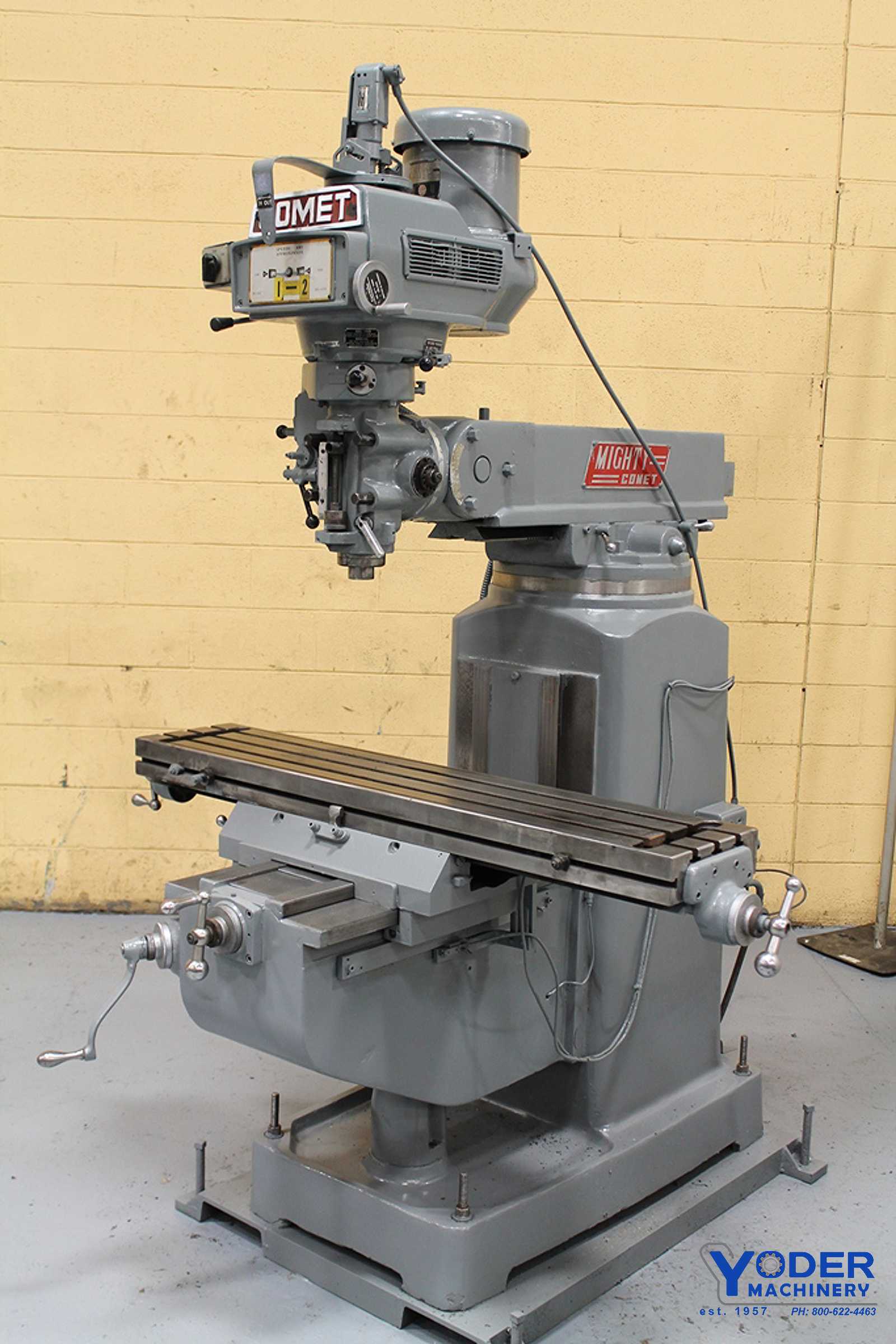

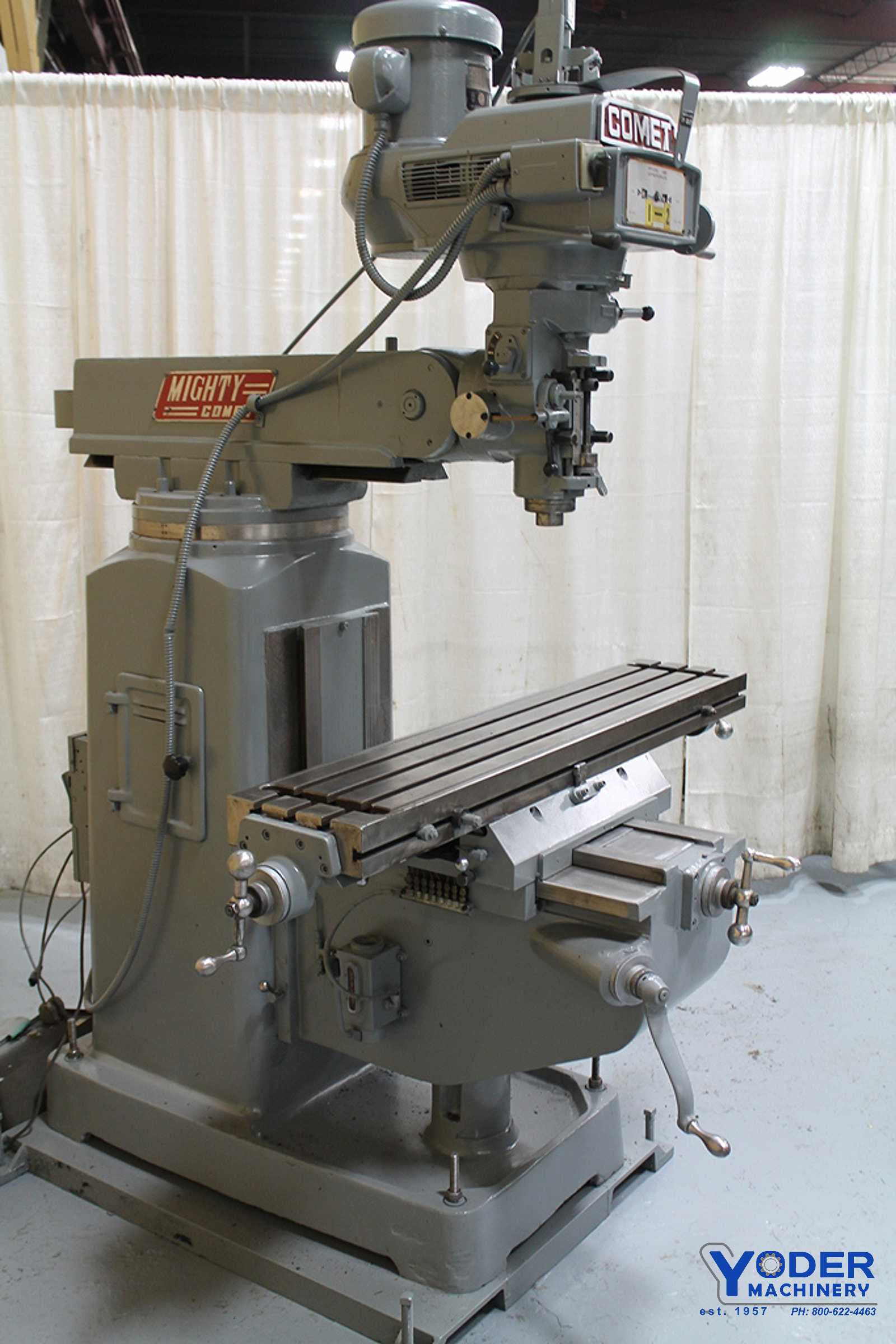

MODEL .............................. 3KV
YEAR NEW ........................... 1984

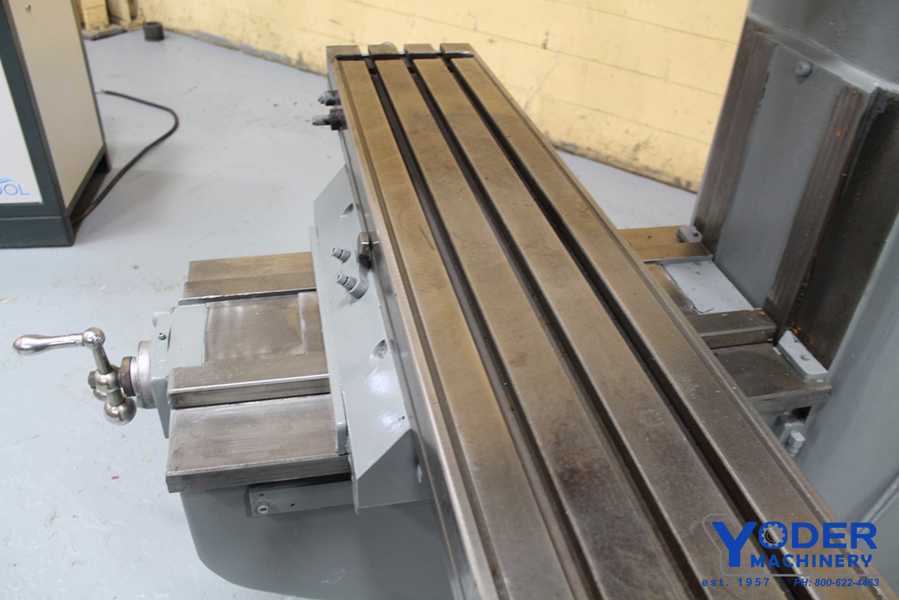

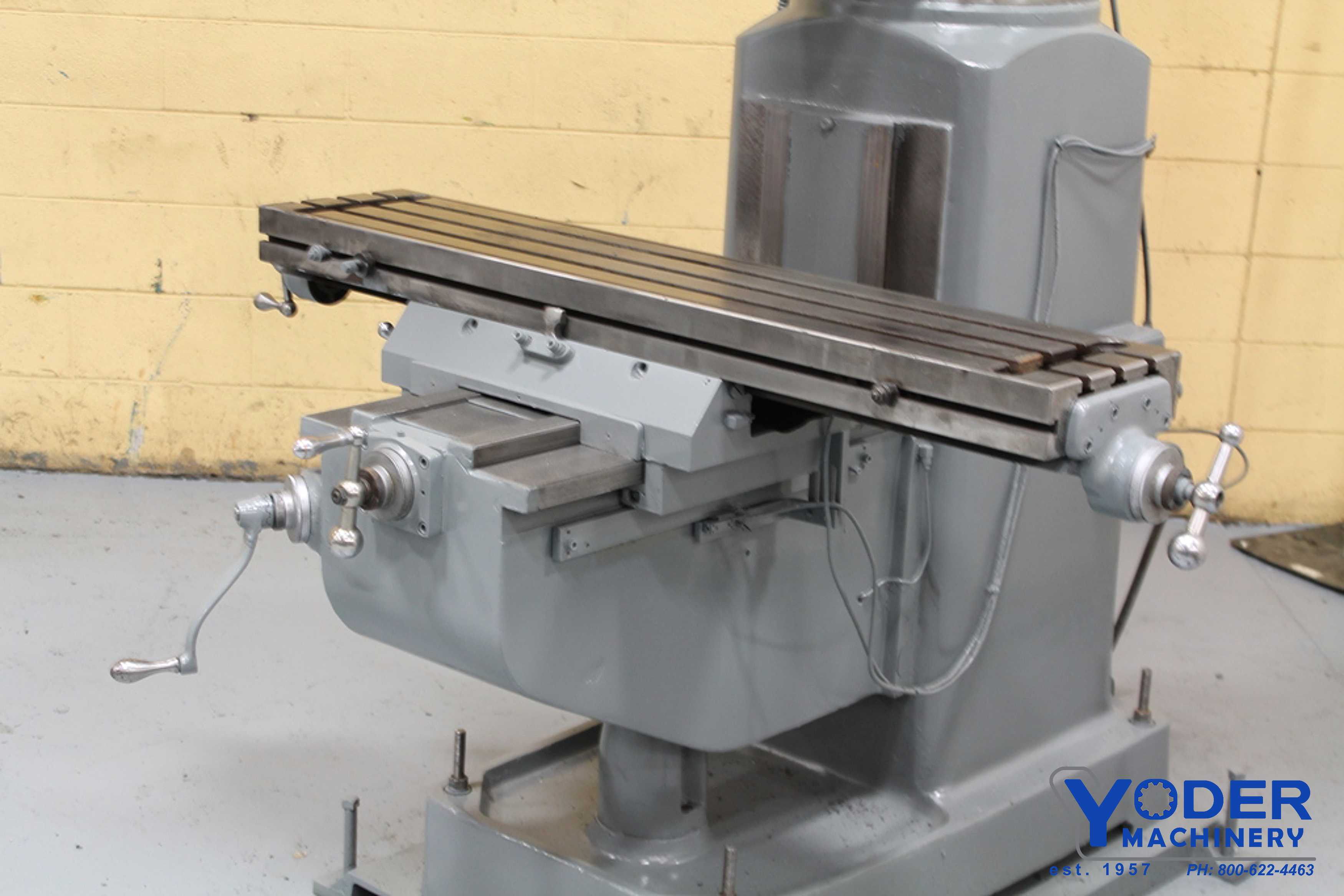

AREA OF TABLE (T-SLOTTED) .......... 50" X 10"
LONGITUDINAL TABLE TRAVEL .......... 36"
CROSS TABLE TRAVEL ................. 15"
VERTICAL TRAVEL OF KNEE ............ 16"

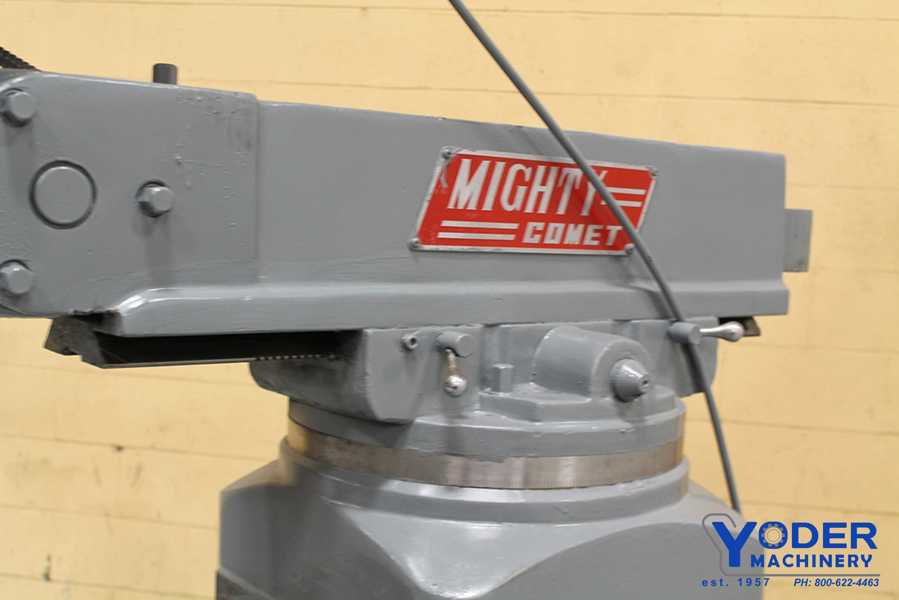

RAM TRAVEL ......................... 24"

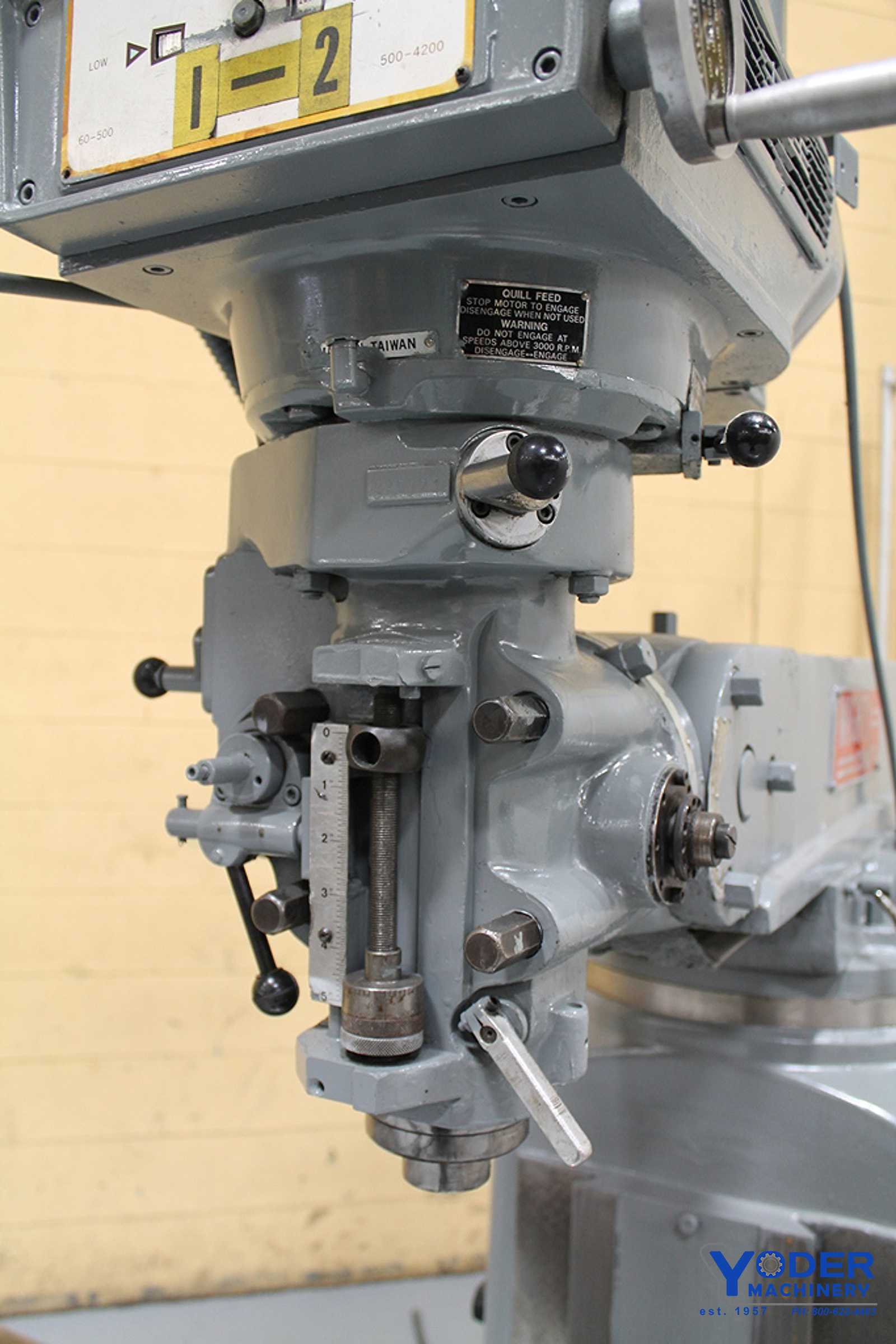

QUILL TRAVEL ....................... 5"
QUILL DIAMETER ..................... 3-3/8"
SPINDLE SPEEDS (VARIABLE) .......... 60 TO 4250 RPM
SPINDLE FEEDS ...................... .0015/.003/.006 IPR
SPINDLE TAPER ...................... R-8
MOTOR .............................. 2 HORSEPOWER
YEAR NEW ........................... 1984
AREA OF TABLE (T-SLOTTED) .......... 50" X 10"
LONGITUDINAL TABLE TRAVEL .......... 36"
CROSS TABLE TRAVEL ................. 15"
VERTICAL TRAVEL OF KNEE ............ 16"
RAM TRAVEL ......................... 24"
QUILL TRAVEL ....................... 5"
QUILL DIAMETER ..................... 3-3/8"
SPINDLE SPEEDS (VARIABLE) .......... 60 TO 4250 RPM
SPINDLE FEEDS ...................... .0015/.003/.006 IPR
SPINDLE TAPER ...................... R-8
MOTOR .............................. 2 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

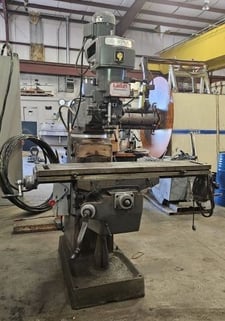

Lagun #FT-2S, knee mill, 10" x50" tbl, 2 HP, step pulley head, Hi/Lo range, one shot lube
