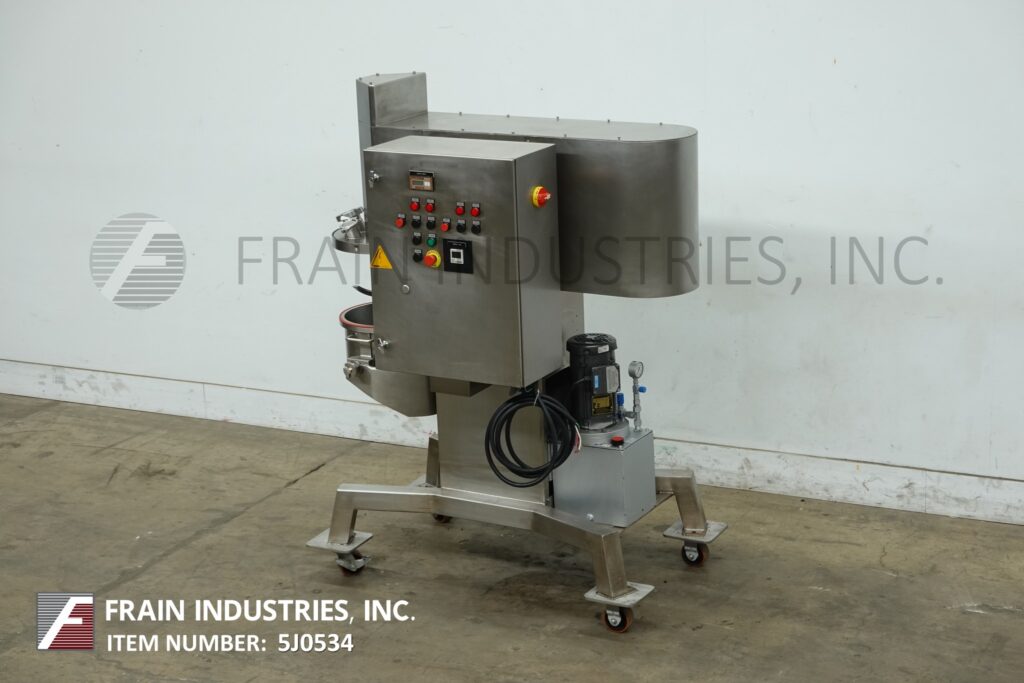

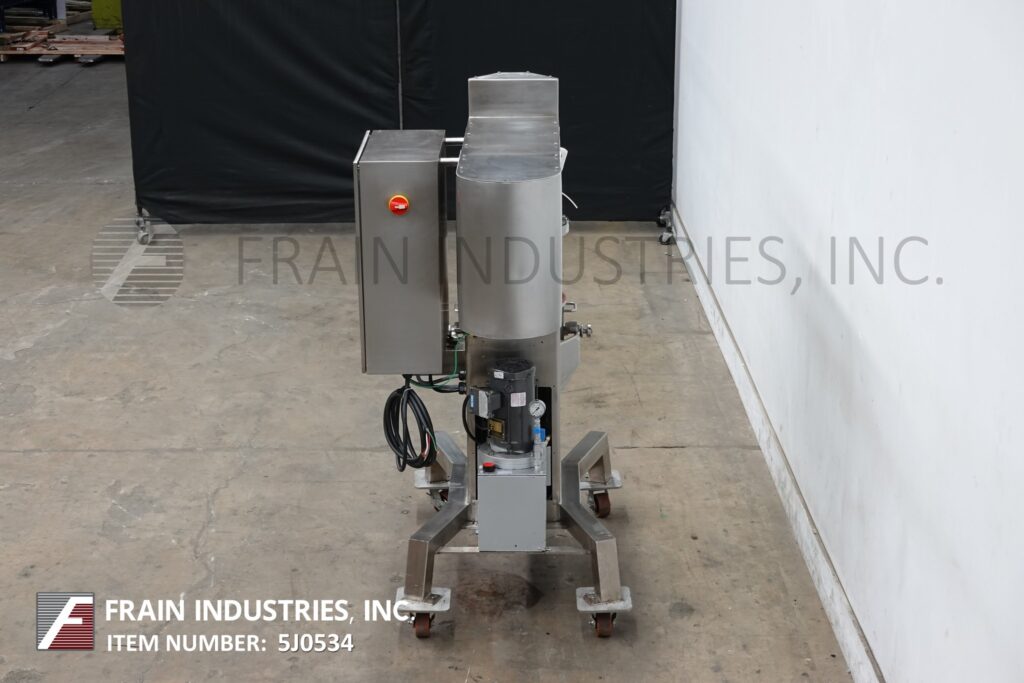

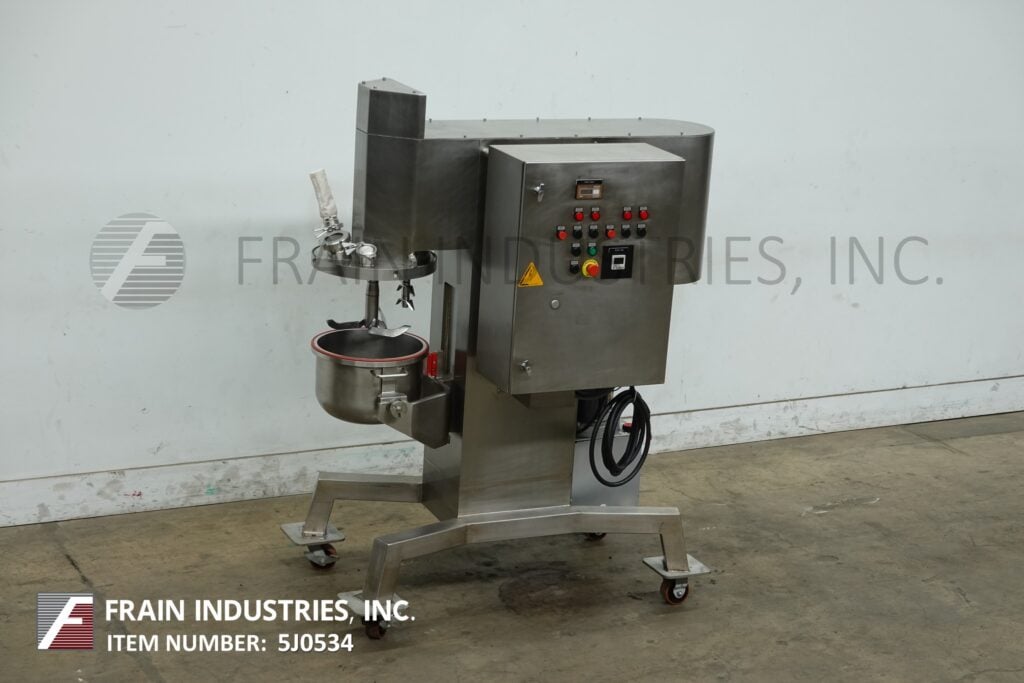

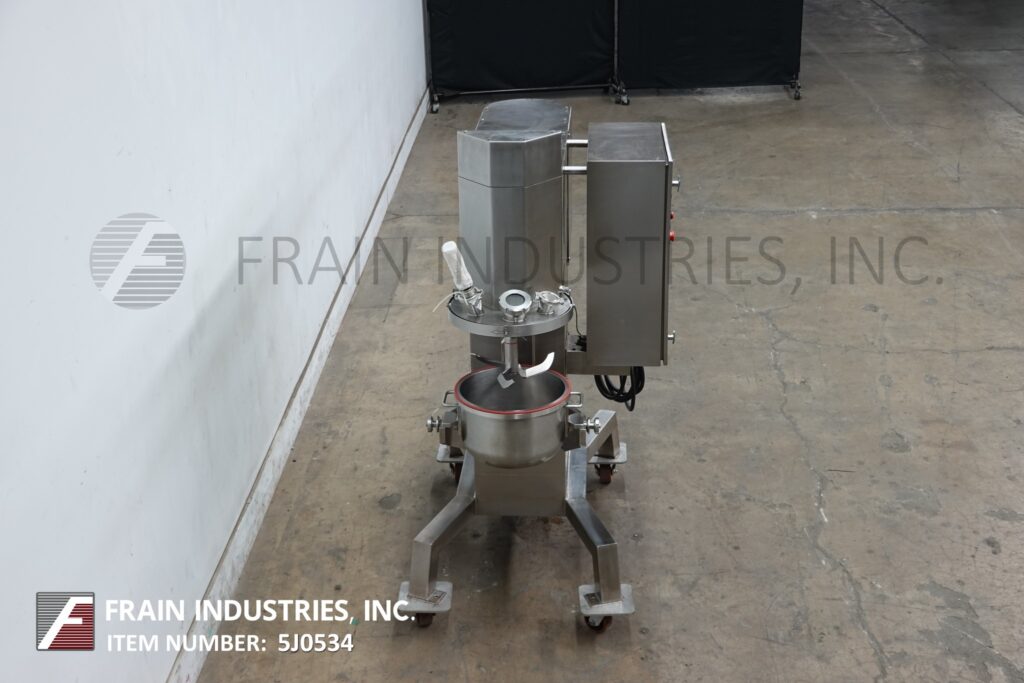

Collette #Gral-25, high speed, high shear, Stainless Steel, vertical, single pot, mounted on Stainless Steel 4 leg base with casters

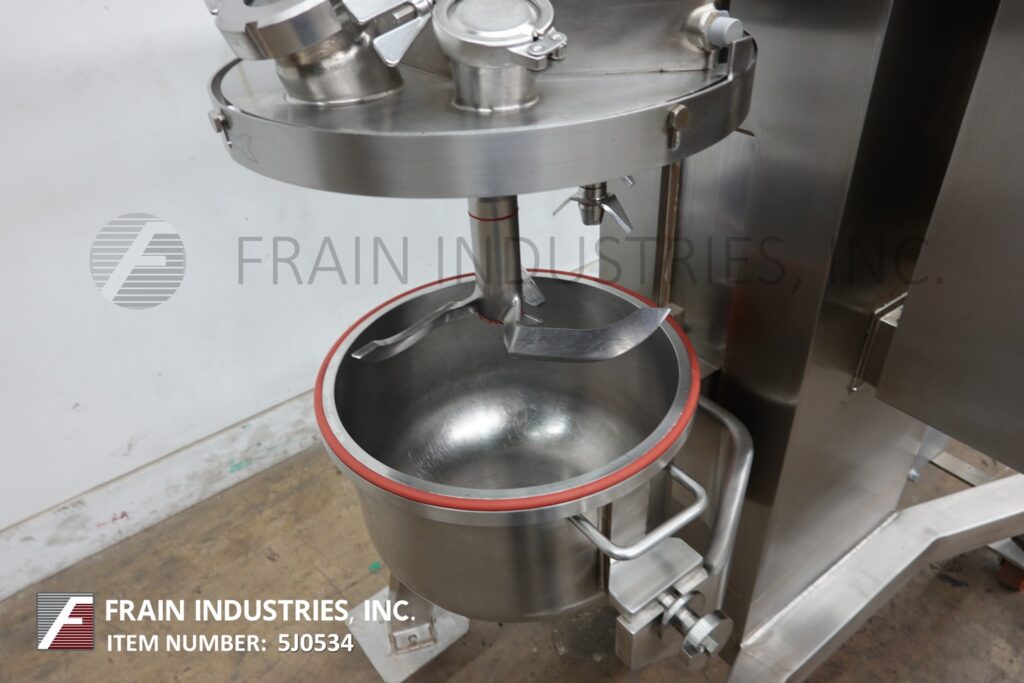

Collette Model GRAL 25, High speed, high shear, stainless steel, vertical, single pot R & D granulator, with gross bowl volume capacity of 27 liters and typical batch weight of 11 @ 0.6g/ml (kg). 316 stainless steel construction. Equipped with variable speed chopper and impeller, (3) blade main mixer with 12" OD (3) 7" long x 1½" wide blades and high shear mixer with (3) 4½" long x 1" wide blades. Control panel has power on, mixing time gauge, mixer low, high speed start, stop, bowl up, chopper low, high speed start, stop and e-stop push buttons. Mounted on stainless steel (4) leg base with casters.

OAD: 55" L x 48" W x 69" H

Single pot processing is the production of pharmaceutical granules using a wet granulation process in which dry mixing, liquid addition, wet granulation, drying and sizing of the granules is done in one machine.

GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction in drying time with no wet sizing required.
