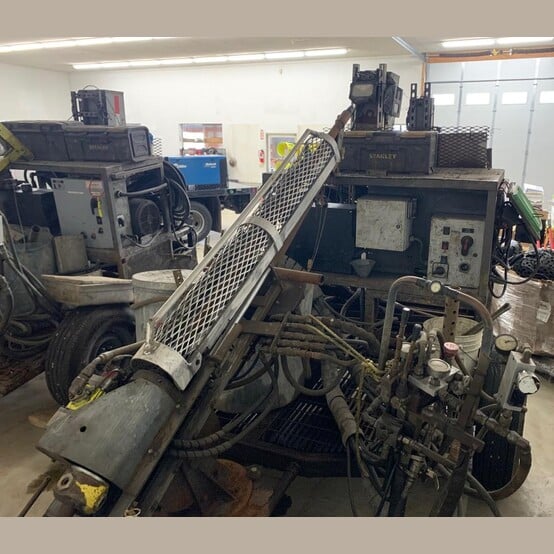

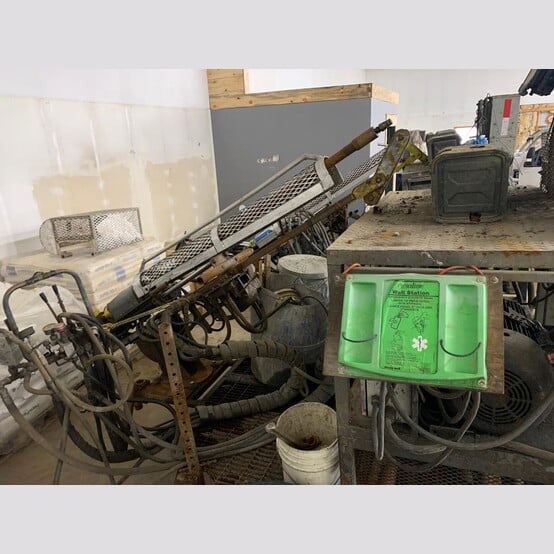

Coeur #Termite, Diamond Core Drill, up to 300' depth, AQ core holes, BQ capable

Coeur Termite Diamond Core Drill

Quantity: (1) Drill with (2nd) Drill Subject to Availability

• Make: Coeur Products
• Model: Termite
• Depth Capacity: Optimal Up to 100m (300ft)
  • Drill is Equipped to Drill AQ Diameter Core Holes up to 300ft in Length
  • Drill is Capable of Drilling BQ Size

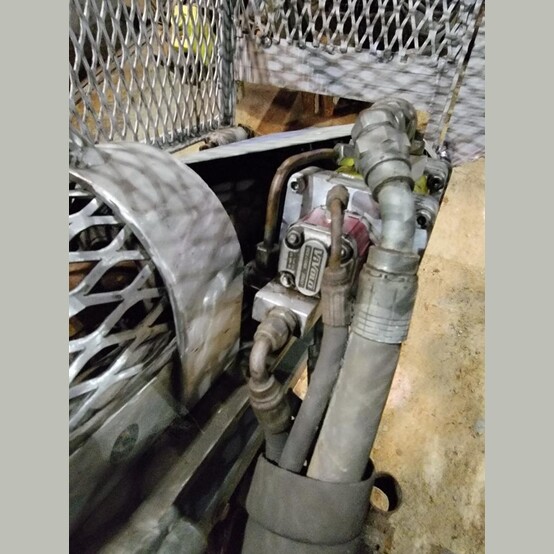

• Electric Over Hydraulic
• Voltage: 480 Volt
• Condition: Used Condition
• Turntable Allows for 180-Degree Azimuth Rotation Without Moving the Drill
• Can Drill Minus 90° Degree to Plus 45° Degree Dip
• Always Stored in Heated Shop

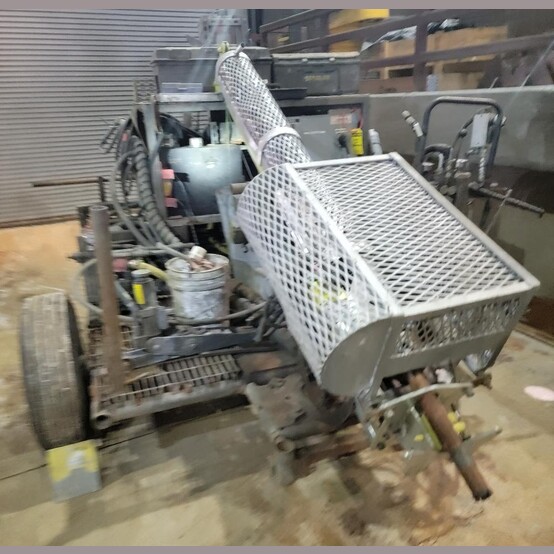

• Mine-Ready with Guarding

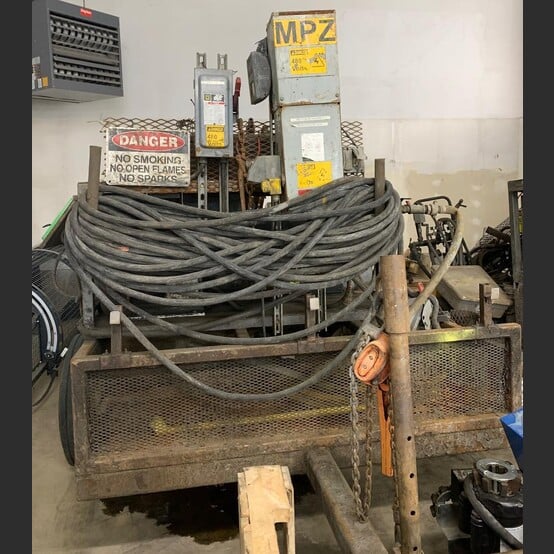

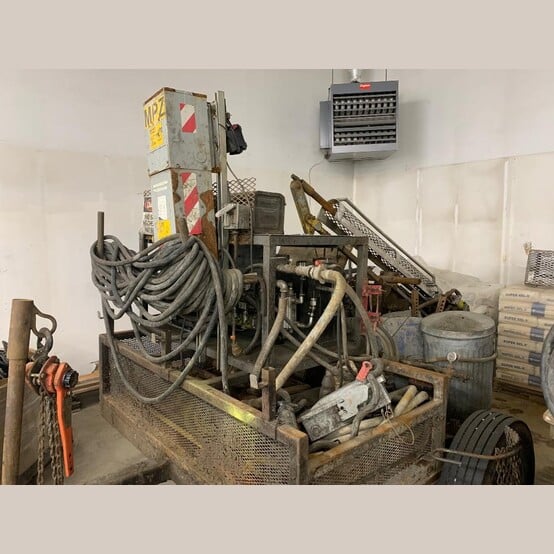

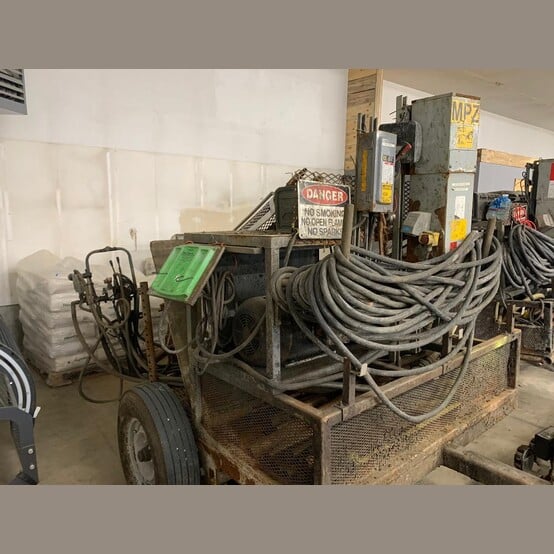

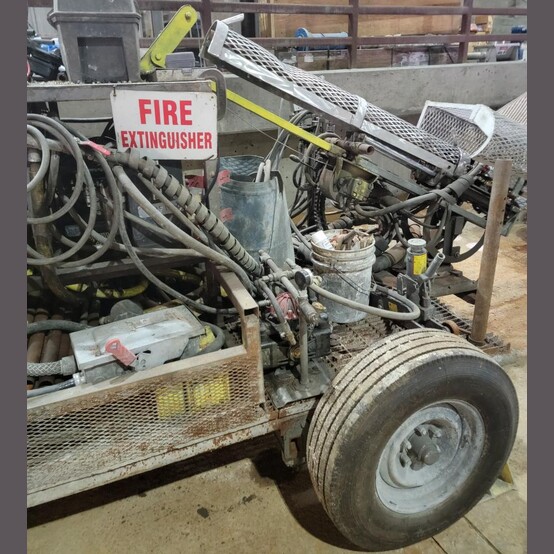

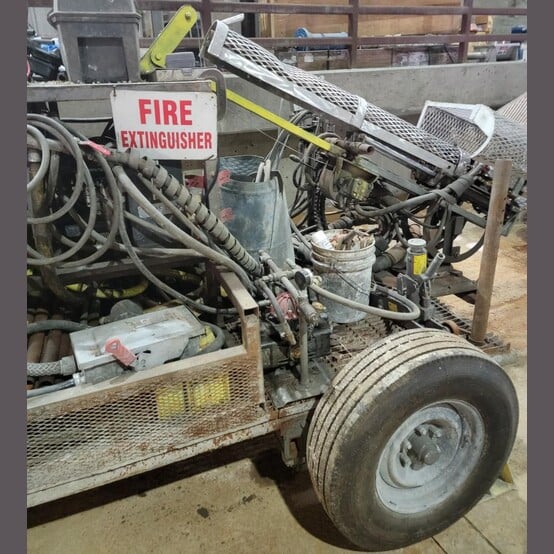

• Wheeled Trailer Mount
  • Trailer Mounted Setup can be Pulled Behind Mine Tractors or Pickup Trucks
• Optional Drill Deck For Fast Moves
• Container of Tooling, Bits, and Spares including Reflex EX-AQ Downhole Survey Tool

• General Model Specifications: @ 50 Liters/Minute, 180 bar
  • Max. Feed Force: 20 kN (Approx. 4,400 lbs.)
  • Max. Pull Force: 18 kN (Approx. 4,000 lbs.)
  • Revolutions: 1450 RPM
  • Rod Running Speed: 1.7m/sec (Approx. 4.6ft/sec)
  • Max. Feed Speed: 1.3m/min (Approx. 3.3ft/min)
  • Stroke: 0.5m (Approx. 20in)
  • Power: 15kW (Approx. 20HP)

• Location: Western USA
