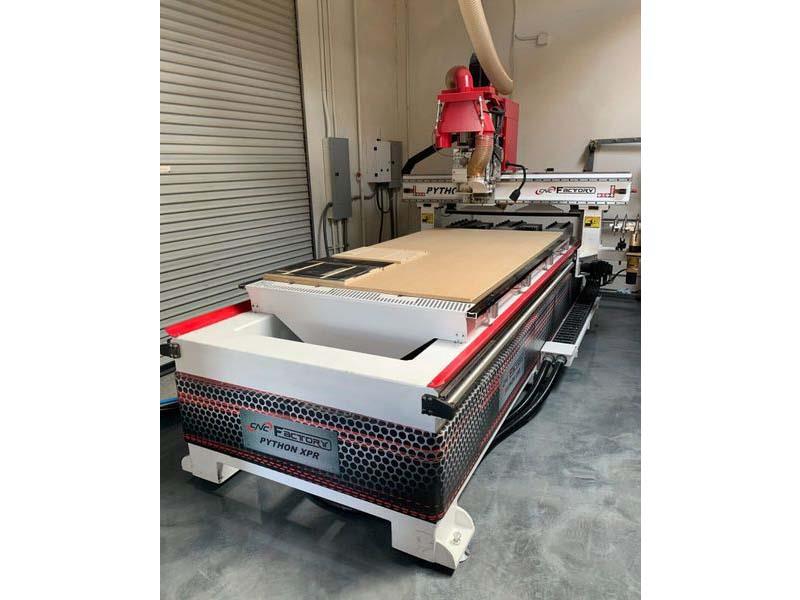

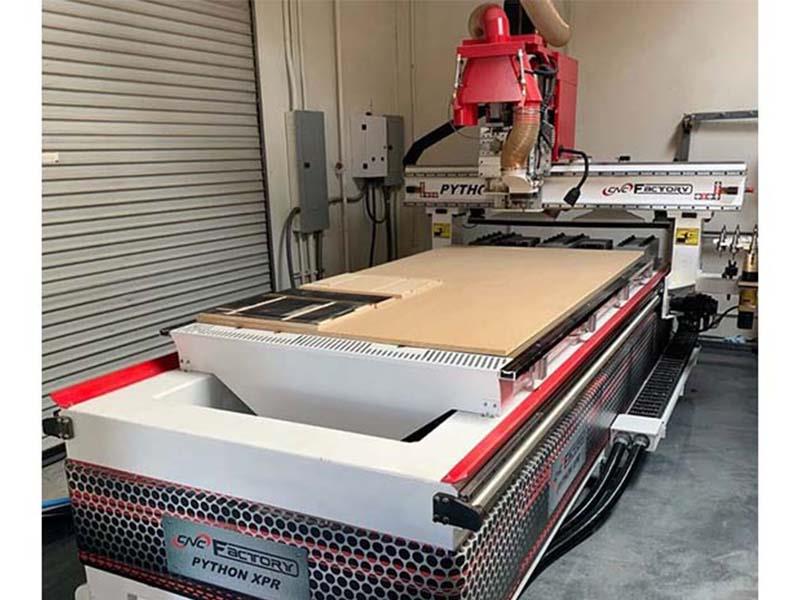

CNC Factory #Python-XPR, Flat Table Machine w/ATC, 4' x 8' table, 97" X, 49" Y, 20.2" Z stroke, 10" thickness, 279 FPM X & Y, 115 FPM Z, 2020

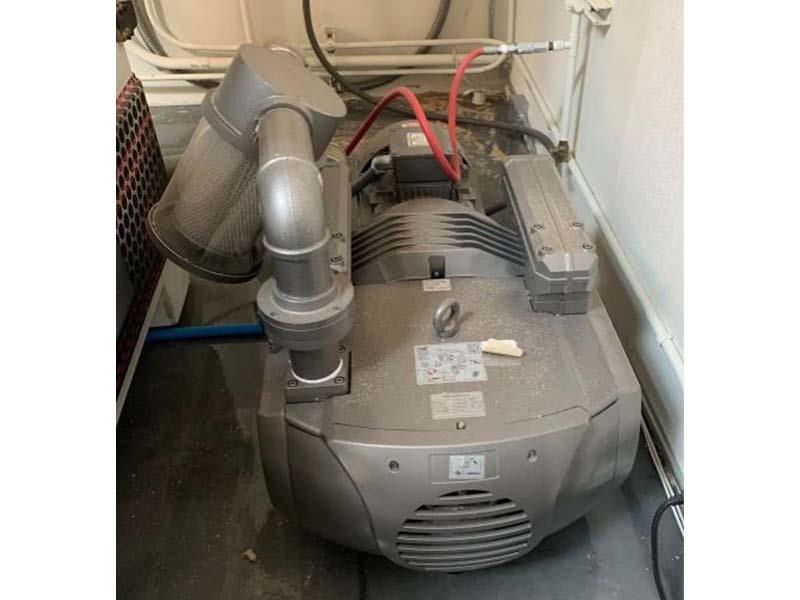

CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/ATC): -- Specifications:4' x 8' Flat Table "Bridge Gantry" machine with: "Phenolic "MATRIX" grooved flat table for "NESTED BASE MANUFACTURING". -- Working capacity:"X" Axis 97" (2,464 mm); "Y" axis 49" (1,245 mm); "Z" axis stroke is 20.2" (515 mm); max. material thickness 10" (250 mm). -- Positioning Speed:"X" & "Y" Axis 279 FPM (85 MPM); "Z" axis 115 FPM (35 MPM).All axes movement is with 5G driverless Servo System with direct helical rack & pinion & 5G no homing calibration. -- Work Area:Flat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing".The machine has: (6) Independent working zones with dual layer high flow vacuum; 2-left origins, 2-right origins, 1-front origin & 1-rear origin.Auto-material alignment pins, auto-unloading arm, material loading wheels; rear & side material alignment pushers. Automatic on/off vacuum flow, vacuum hold-down communication, automatic parts hold down, and release.Robotic Material Sensing Dust Hood; Single and dual vacuum ports. -- Machining:(1) 12 HP (8.9 kW) Air-cooled "HSD Electro-Spindle" (143 Hours Total) with: ISO 30 adaptor, RH & LH rotation; variable speed from 1,000 - 24,000 RPM.(1) Rapid Fire 12-position revolving tool changer for "on the fly "ATC". -- Operator & Machine Control:"SYNTEC" PC Front End with: CNC Factory 5G, 5th generation CNC control + At machine cabinet and cutting software. Handheld MPG remote control with individual axis & real time simulation control; CNC speed control overrides & compensation at machine virtual support, HD digital monitoring camera, Wi-Fi, and Ethernet ready.Air-Conditioned control cabinet, 21" "TOUCH SCREEN" monitor; All mounted on a mobile cart. -- Complete with:(1) 150 m/Hr (60 Hz) Vacuum Pump; automatic pressurized Lubrication System for linear guides, pads and recirculating ball screw. Auto tool length measurement probe. Perimeter Safety System & fencing. -- Actual Model is: CNC FACTORY PYTHON XPR CNC
