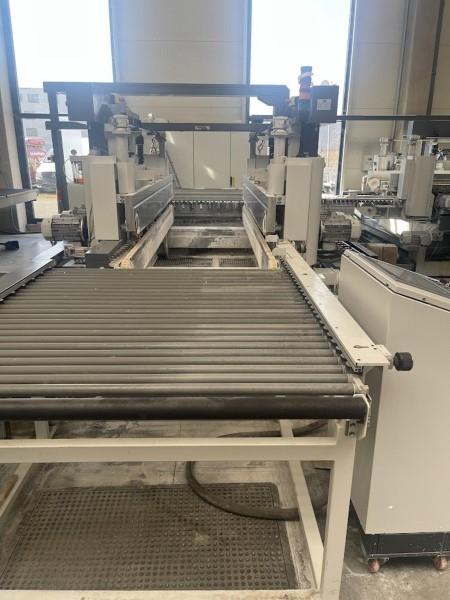

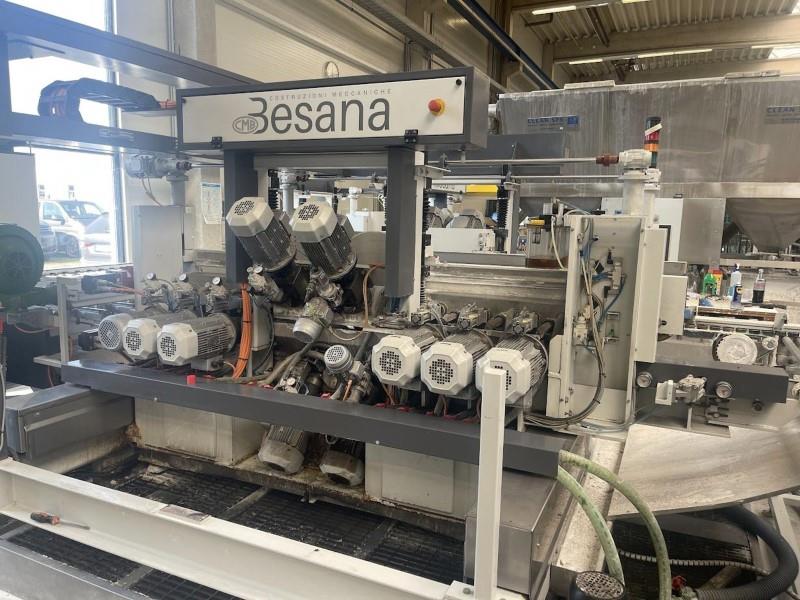

CMB-Besana #SQT.10L, Glass Double Edger Line w/ Horizontal Washer, 59" x 98" max. glass size, 3-40 mm thickness, 26 FPM, 30 KW blower, 2019

$159,500 USD

Request Formal Quote

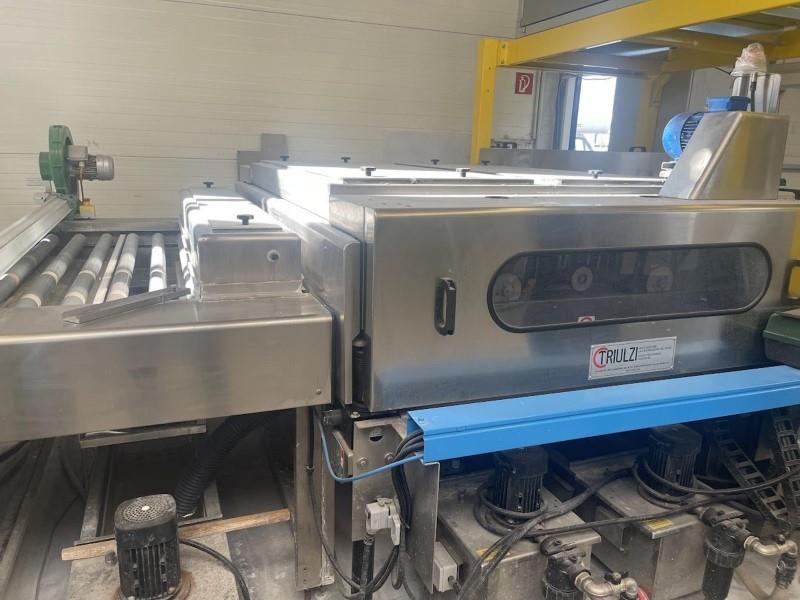

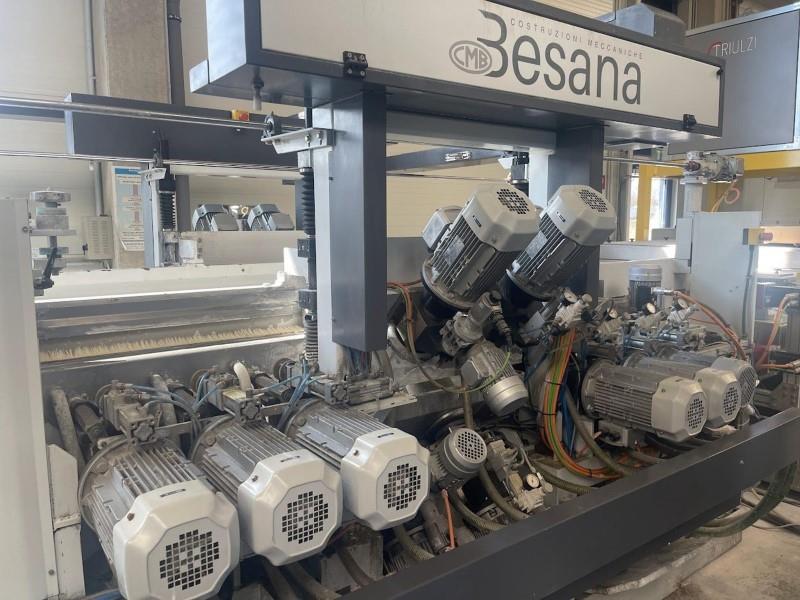

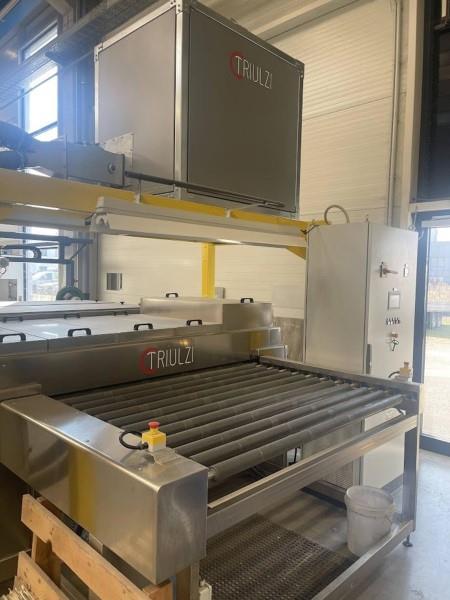

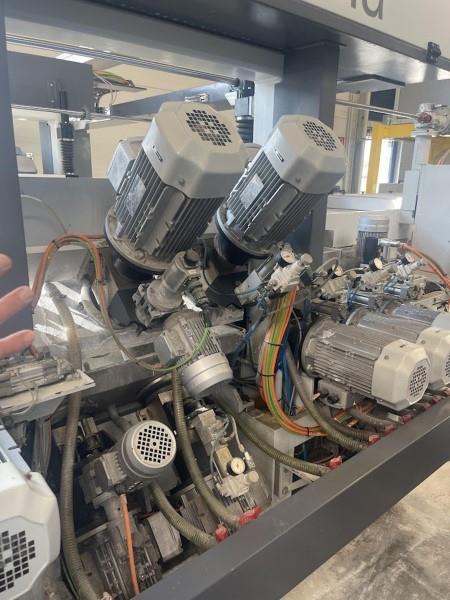

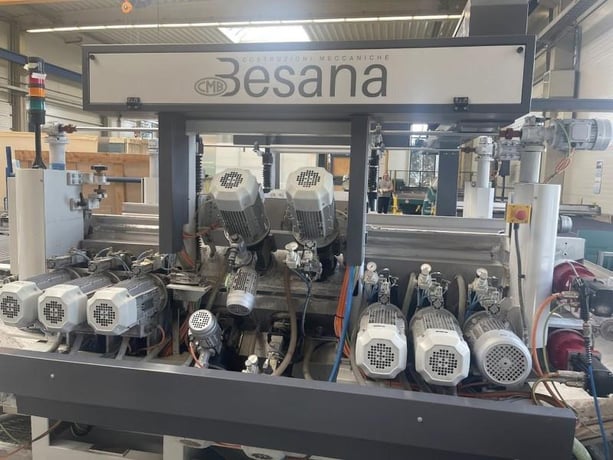

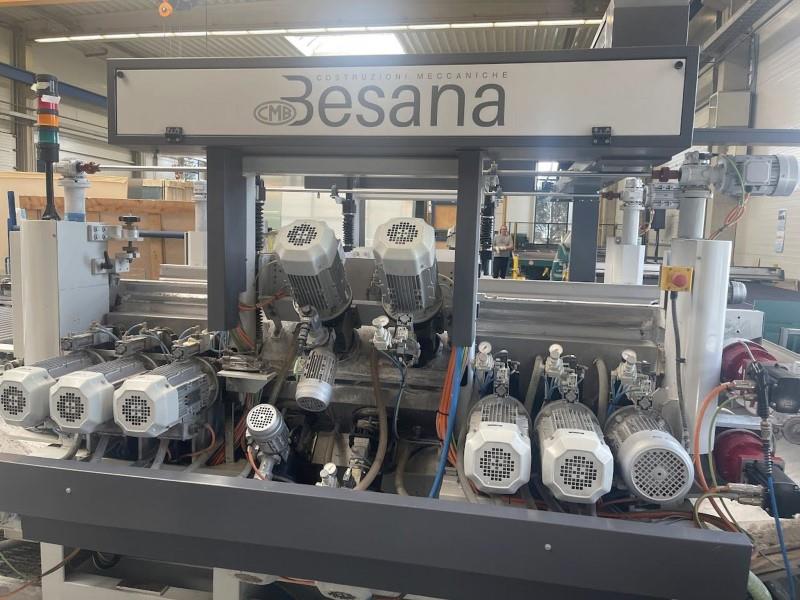

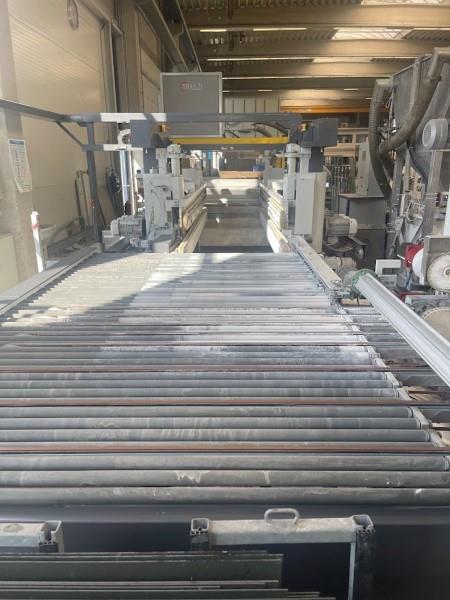

CMB-BESANA - SQT.10 L: Double Edge Grinder for Flat Glass (1,300 x 1,600 mm) + TRIULZI - SYA 1610.4.1: Horizontal Washer Classic Double Edger designed for Fabricators who need to produce large quantities of: Glass with precise orthogonality, which vertical machines are not able to offer. Its configuration has on each side: (3) Diamond wheels; (3) polishing wheels for flat edge; (2) diamond wheels; (2) polishing wheels for threads. The Double Edger's range enables processing flat edge of: Threads; arrises; pencil edge; removal of the edge.Wheel Configuration (each side)(3) Spindles for cup diamond wheels for: Roughing; medium finishing; super edge finishing.(2) Spindles for cup wheels for: Thread execution with automatic feed.(2) Mandrels for: Polishing threads.(3) Spindles for: Polishing the flat edge with automatic feed.Specifications Max. glass size: 1,500 x 2,500 mm (59" x 98").Min. glass size: 120 x 400 mm (4-3/4" x 15-3/4").Glass thickness: 3 - 40 mm. Speed: 0.8 - 8 MPM (2.6 - 26 FPM).Polishing degree: Optimum shine.Worktable height: 950 mm (36").Weight: 6,090 kG (13,400 Lbs).TRIULZI SYA 1610.4.1 Horizontal WasherAutomated Closed-Loop Horizontal Flat Glass Washing & Drying System: The System is designed for: Most effective washing & drying of glass sheets with an emphasis on: Quality; efficient energy usage; minimal maintenance in a high-production environment. This system is fitted with a high-velocity air drying component for fast cycle times & high-volume production. The size and thickness capacities are adjusted via the operator Control Panel, and the space-saving, overhead mounted blower is high-powered to optimize the drying cycle. Specifications● Max. width: 1,600 mm (63").● Min. glass size: 150 x 300 mm.● Glass thickness: 2 - 19 mm.● Max. speed: 13 MPM.● Inlet conveyor: 3,830 mm long.● Outlet conveyor: 3,690 mm long.● Dimensions: 11,122 x 4,600 x 3,610 mm (with blower platform).Features● Prewashing.● (2) Pairs of cylindrical brushes (4 pcs.).● (1) Pair of Air-Drying Knives (2 pcs.).● (3) Water tanks (all with heating).● (3) Water pumps.● (3) Pairs of: Water spray bar nozzles (6 pcs.).● Full stainless steel construction.● Blower: 30 kW power.● Overhead Blower platform.● Glass thickness: Adjusted from the Control Panel.● Conveyor speed: Adjusted from the Control Panel.NOTE: Machine is in excellent operating condition with low hours and ready for immediate delivery.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
