Citizen #L20E-XII-2M12, Swiss Type CNC Lathe, 2015

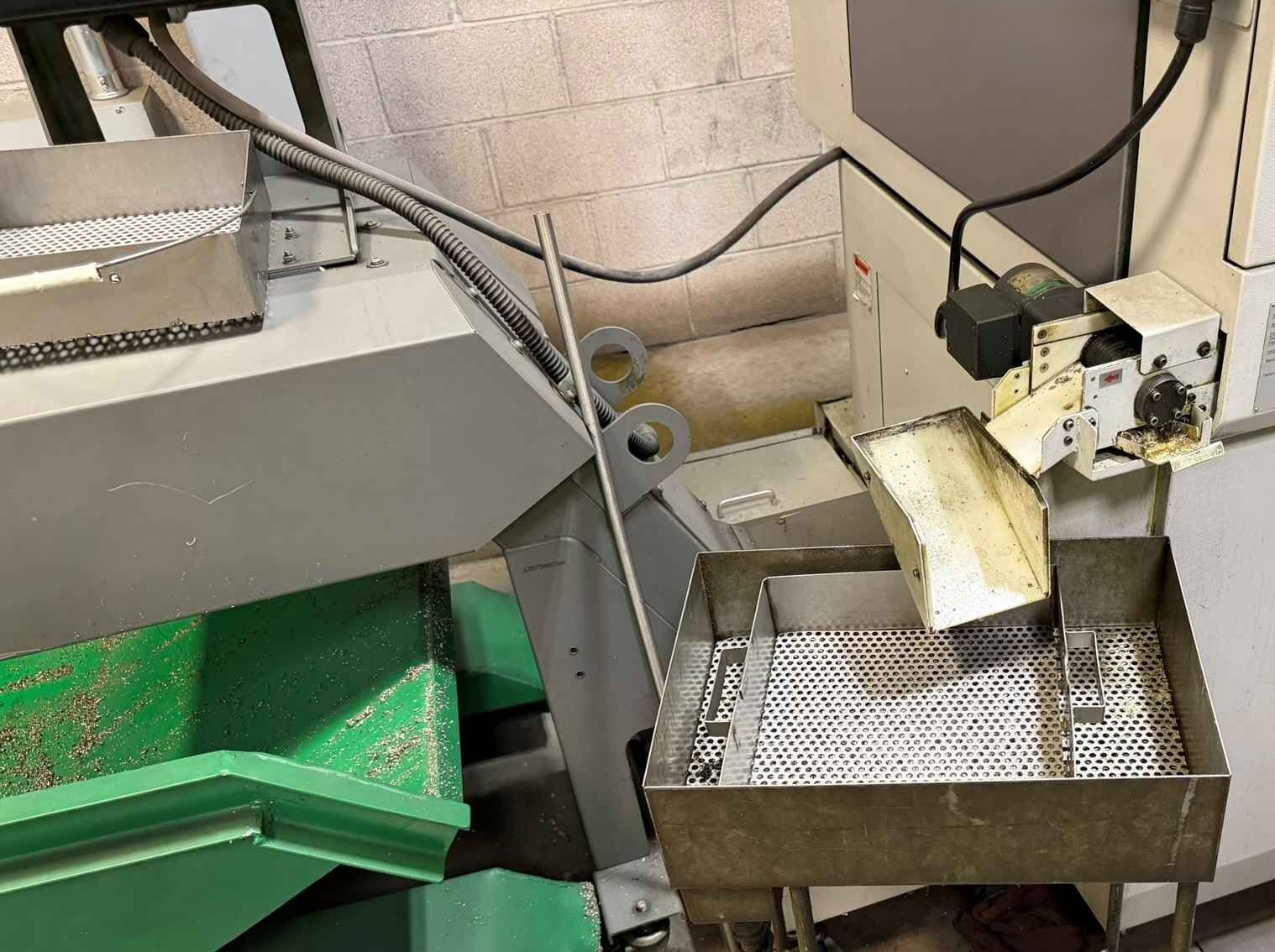

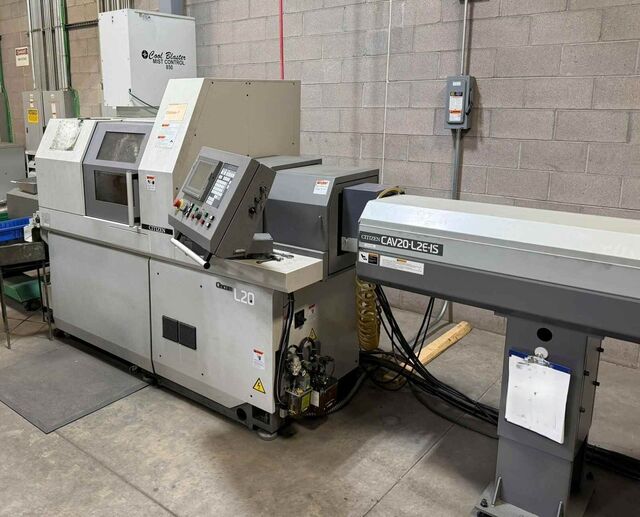

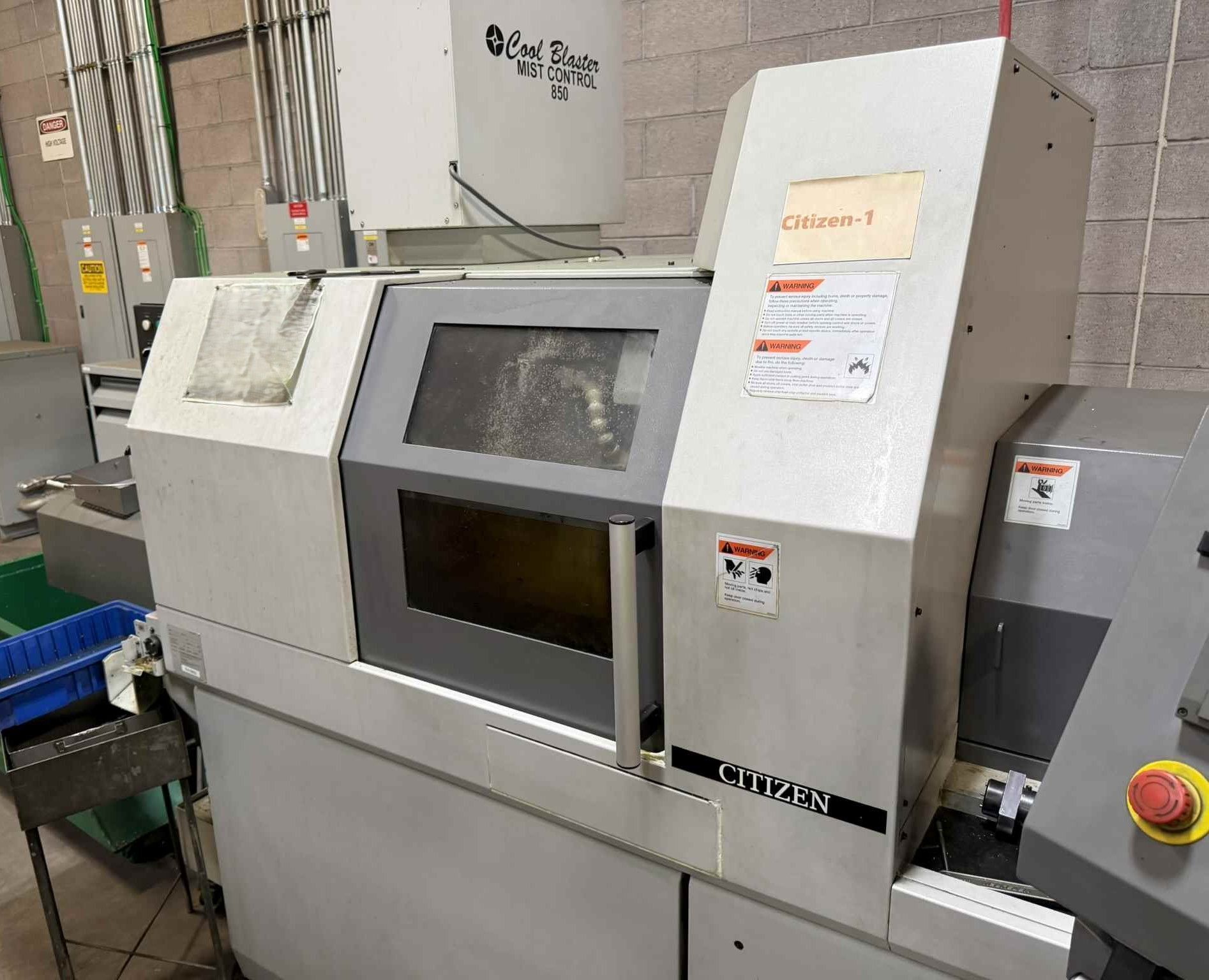

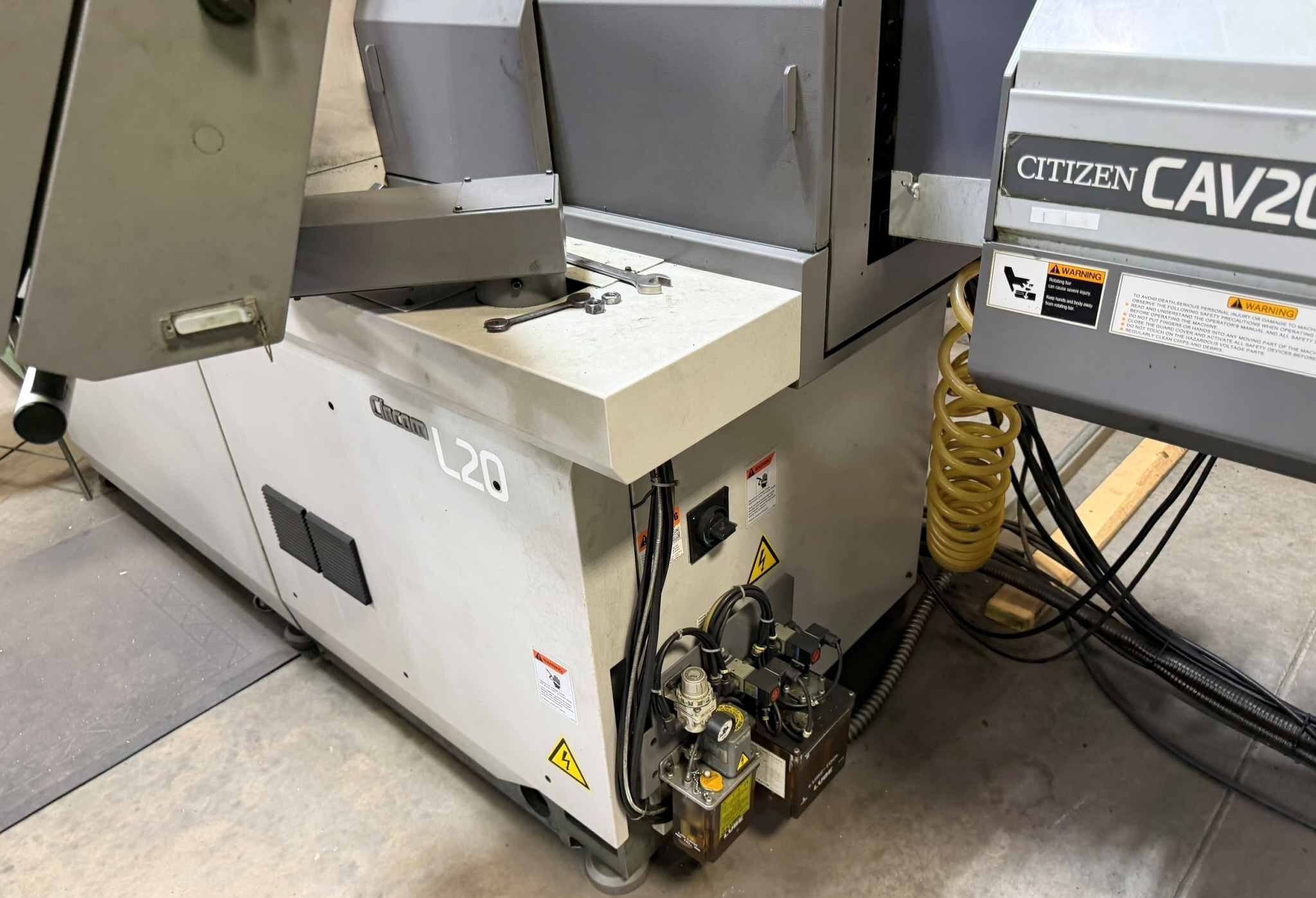

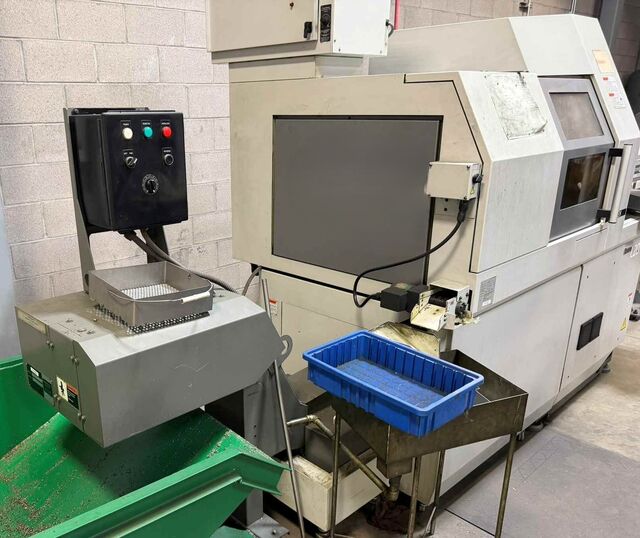

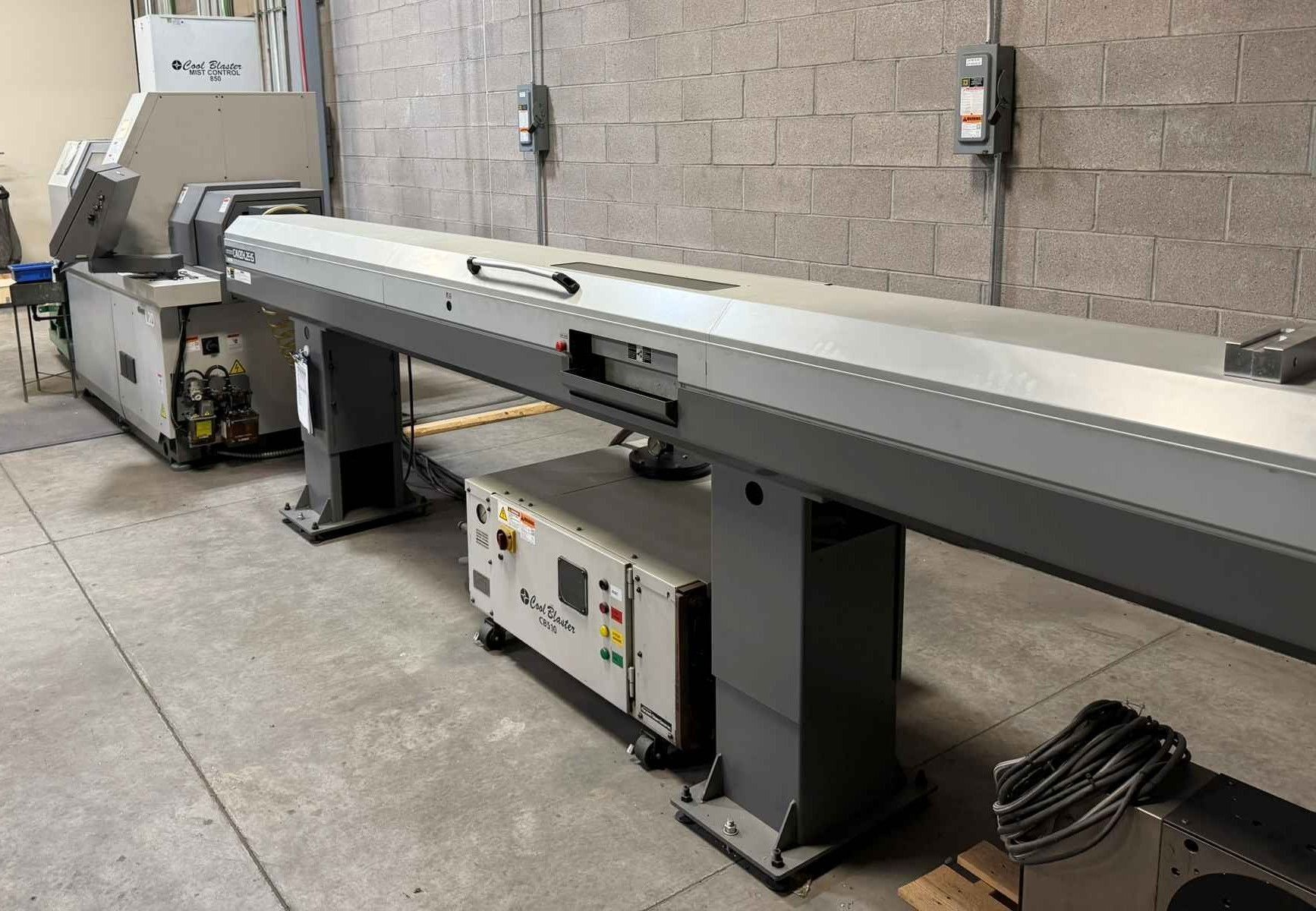

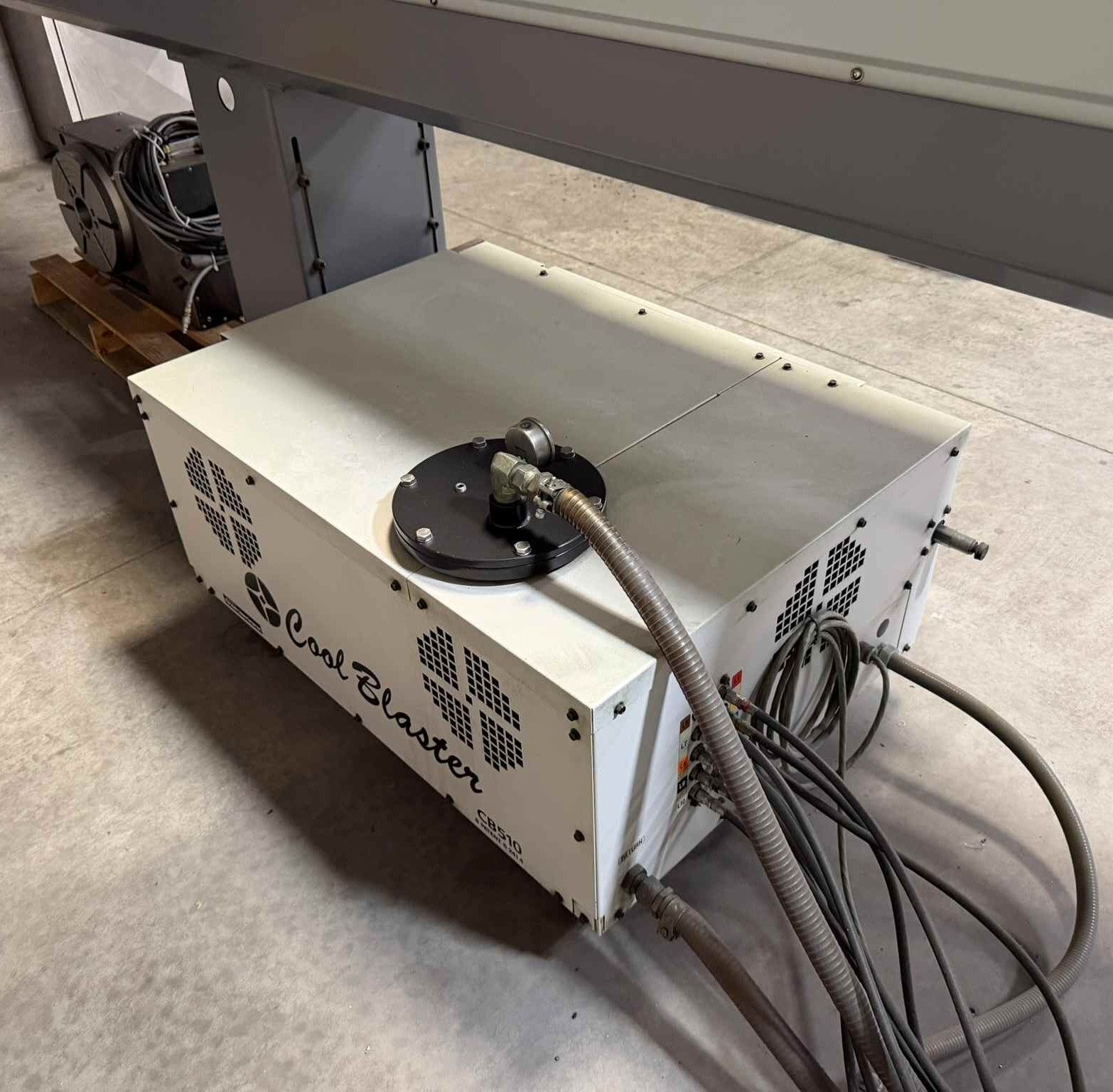

CITIZEN L20E XII (2M12) Swiss Type CNC Lathe (used) New 2015, Equipped w/Programmable B-Axis live tool attachment, Chucker Conversion Capable, CAV20-L2E-IS Magazine Bar Loader, Cool Blaster Mist Collector Mist Con 850, Cool Blaster High Pressure Coolant System 10 Line CB510, Y-axis Live Back working, Low Profile Chip Conveyor, Part Conveyor, Misc tooling, manuals, tool kit, keys. Machine ran oil and is under power. Can be converted to 25mm!
CITIZEN Cincom L20XII
The CINCOM L20 is a state of the art Swiss Turning Center manufactured by CITIZEN MACHINERY MIYANO CO LTD. It features the ALL axis Simultaneous Cincom System M70 Control (Mitsubishi Meldas 70LPC-VU).
Its standard Nine Cutting Axes (X1, Y1, Z1, X2, Y2, Z2, B1, C1, C2) and One bar loader axis (A7) can make easy work of your toughest applications.
The user-friendly editing function which utilizes Multi line Multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.
1) Simultaneous Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 8,000 rpm 4-digit stepless command
5) Live Tool Spindle Speed
Gang Tool Post: 200 ~ 6,000 rpm 4-digit stepless command
Opposite Tool Post: 200 ~ 7,500 rpm4-digit stepless command
B-axis Spindle ~ 8,000 rpm
Back Tool Post: 200 ~ 7,500 rpm 4-digit stepless command

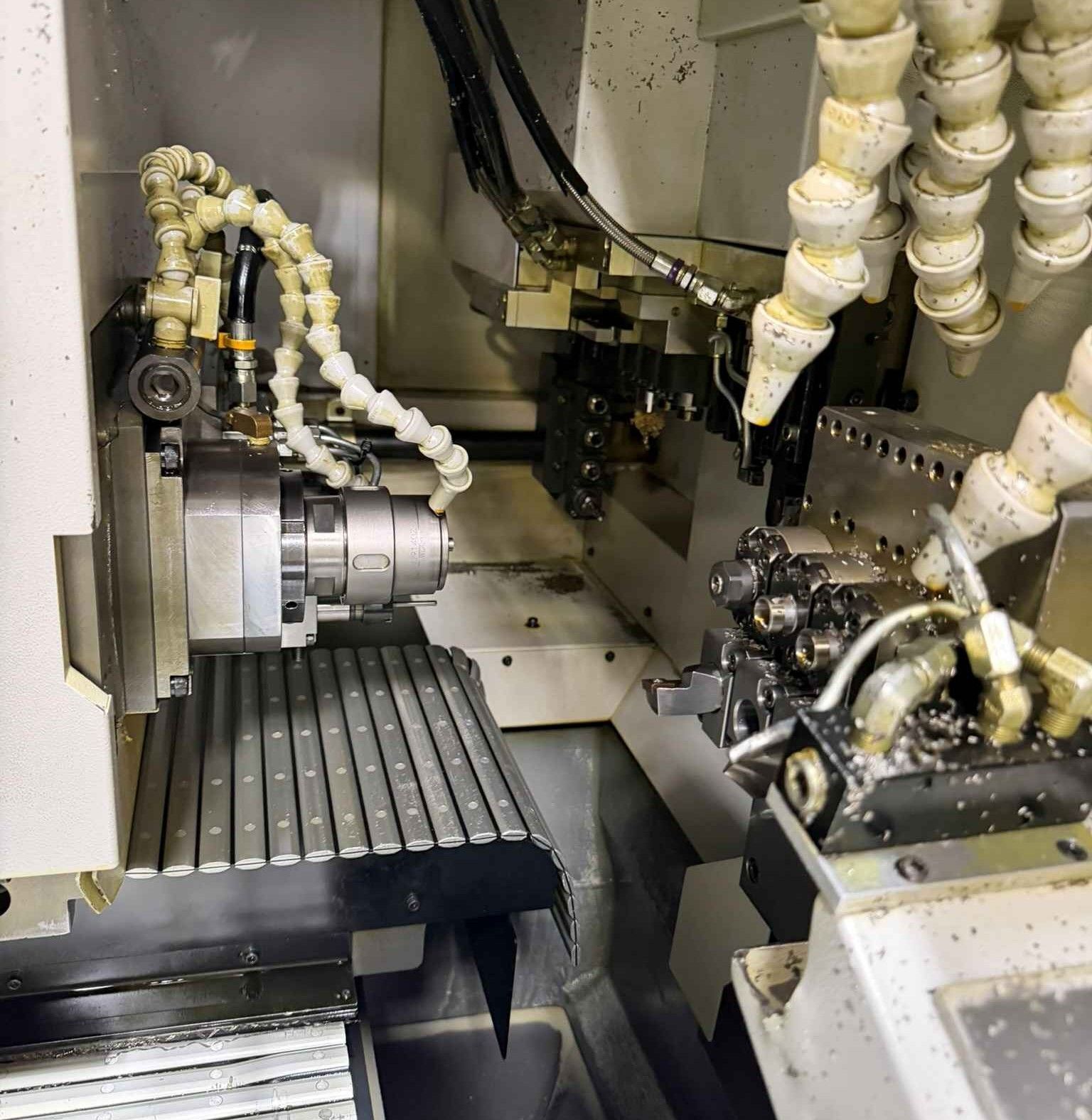

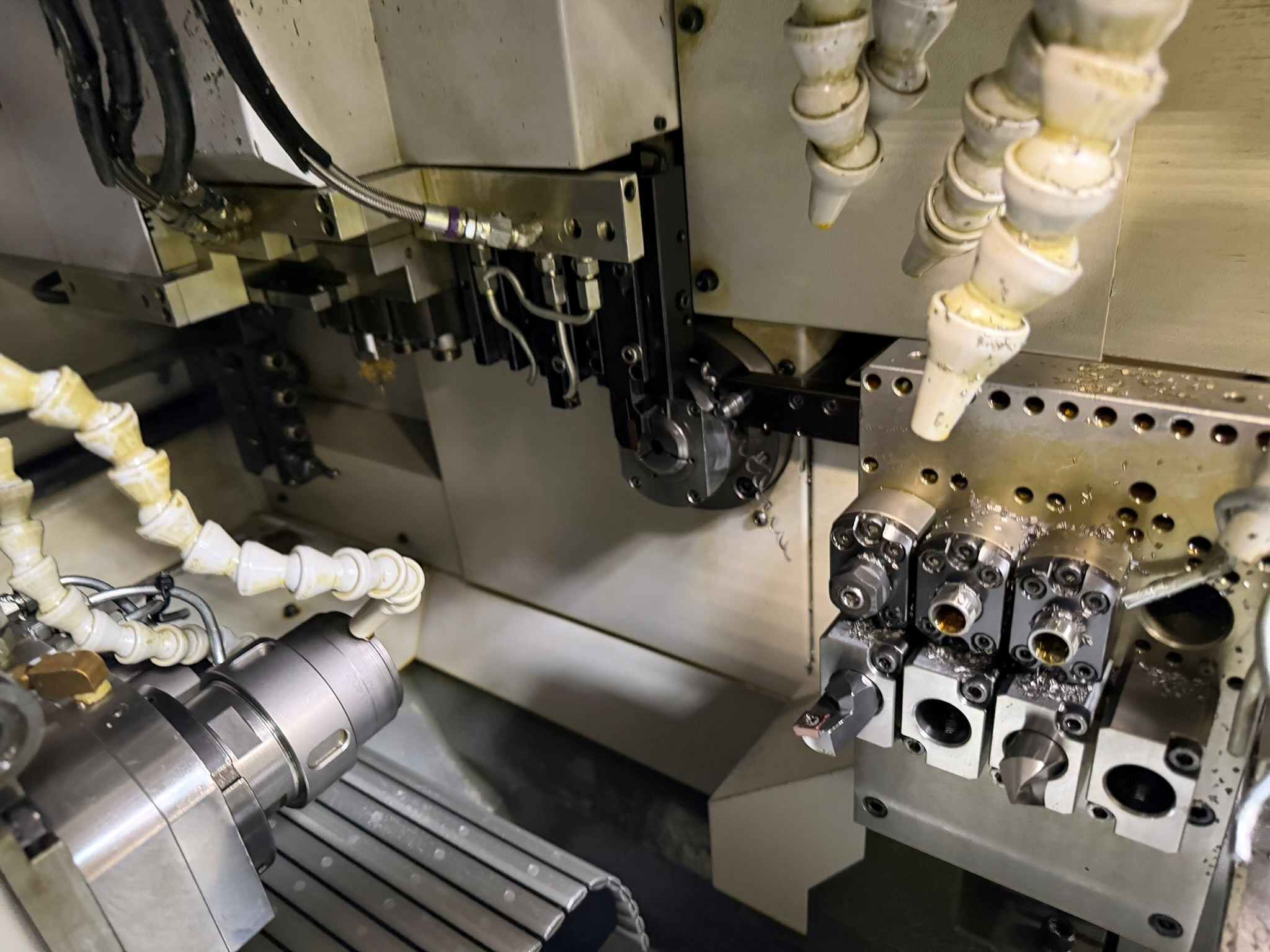

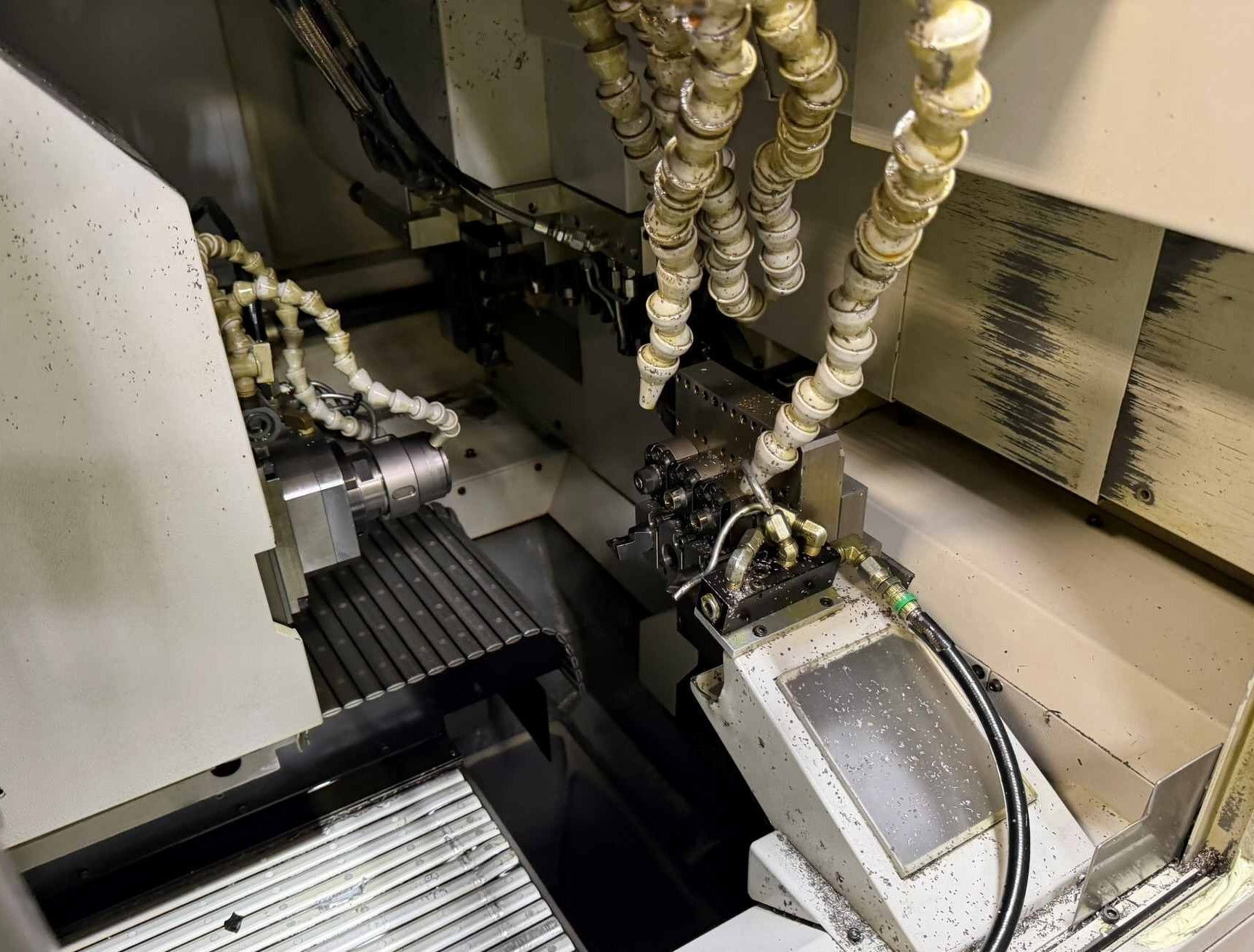

6) Rotary Tools Drive System
3-Stations plus B axis on Gang Tool Post (L220EU33B)
3-stations on Opposite Tool Post (+3-stationary) (L220EU128B)
4-Stations on Back Tool Post (+ 4-stationary) (L220EU155B)
7) Main Spindle Collet Chuck Unit (S&M TF25)
8) Back Spindle Collet Chuck Unit (S&M TF25)
9) Work-piece Separator (max part length = 80mm)
10) Cutting Oil Tank with Oil Level Detector (40 Gal Oil capacity)
11) Back Spindle Air Blow Unit
12) Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
13) Door Interlock with Switches
14) Tool Package: GTF3613 5 Turning (1/2") Tool Holder 1 pc
GSC1310 Cross Milling Spindle (ER16) 3 pcs
MEU307 4-Front and Back B-axis Spindle (ER11) 1 pc
GSE3407 End face Spindle use w/ U128B (ER11) 2 pcs
SAU919 Sleeve Adapter on U128B and U155B 7 pcs
BDS707 " Diameter Drill Sleeve (ER11) 2 pcs
16) Centralized Lubrication System w/ Oil Level Detector (0.8 Litter Oil Capacity)
17) Air Pressurized Guide Bushing Unit
18) Leveling Bolts & Pads
19) Hand Tools (spanners, wrenches, etc.)
20) One Complete Set of Manuals
21) Test Chart
22) Parameter List
23) Oil/Air Lube Unit for Gearbox with U82R + U821R
Standard Specifications of CNC System
24) 8.4" Color LCD
25) 4-Spindle Speeds Command in the Single Block
26) 8 bit B-code Function
27) Absolute/Incremental Command (Combined Use in Same Block)
28) Automatic Power Off Function
29) Background Edit Function
30) Canned Cycle for Threading
31) Chamfer/Corner Rounding Function
32) Constant Surface Speed Control ( Main & Back)
33) Continuous Threading Cycle
34) Cutting Feed rate: 1 - 8,000 mm/min
35) Cycle Time Check Function
36) Feed Command by inch/rev or inch/min (switchable by G code)
37) Help Function
38) I/O Interface for RS232C / Compact Flash Card / USB
39) Inch/Metric Conversion
40) Machine Status Memory/Display
41) Manual Feed by Pulse Generator for all Axes
42) Minimum Increment (0.00001 inch)
43) Multi-axis & Multi-line Free Control System
44) Multiple Repetitive Cycle
45) Number of Tool Offset: 40 pairs
46) Output of Miscellaneous Function during Axis Movement
47) Part Program Work Area: Program Storage Capacity 160m (64KB) tape length
48) Preparation Function
49) Program Check Function (run program forward & reverse by pulse generator)
50) Program Editing Support Function (Calculator , M&G codes list-up, Cutting condition)
51) Radius Designation on Arc
52) Rapid Feed rate: 32m/min (Y2 Axis: 8m/min)
53) Reference Point Return (Absolute Position Detector)
54) Run Hour Display
55) Self-Diagnosis Function
56) Single Point Threading
57) Spindle Speed Fluctuation Detection
58) Superimposed & Simultaneous Control System
59) Tape Code (ISO Automatic Recognition)
60) Three Dimensional Interference Check Function
61) Cut Off Tool Breakage Detector (Spindle Speed Check)
62) Tool Nose Radius Compensation
63) Main/Back Spindle Synchronization
64) C-Axis Control (Main)
65) C-Axis Control (Back)
66) Canned Cycles for Drilling (G80/83/85/89)
67) User Macro (G65-67)
68) Milling Interpolation
69) Polygon Turning Function
70) Hobbing Function
71) High Speed Synchronous Tapping
72) Synchronous Tapping Phasing Function
73) Differential Speed Tap Function option
74) Tool Life Management I
75) Tool Life Management II
76) Sub Inch Designation
77) Helical Interpolation
78) Slant Helical Interpolation
79) Circular Thread Cutting
80) Work-piece Counter Display
81) Variable Lead Thread Cutting
82) Geometric Command Function
83) 2-system simultaneous thread 1,2
84) Sub-Program Running in External Memory
