For Sale by CNC Exchange div. Gray Machinery Co.
Surplus Record Dealer Since 1966
Location: Prospect Heights, IL
Contact Glenn Gray
Phone Number: 847...> Show Phone Number 847-537-7700
Let the seller know you found their listing on Surplus Record!
Description

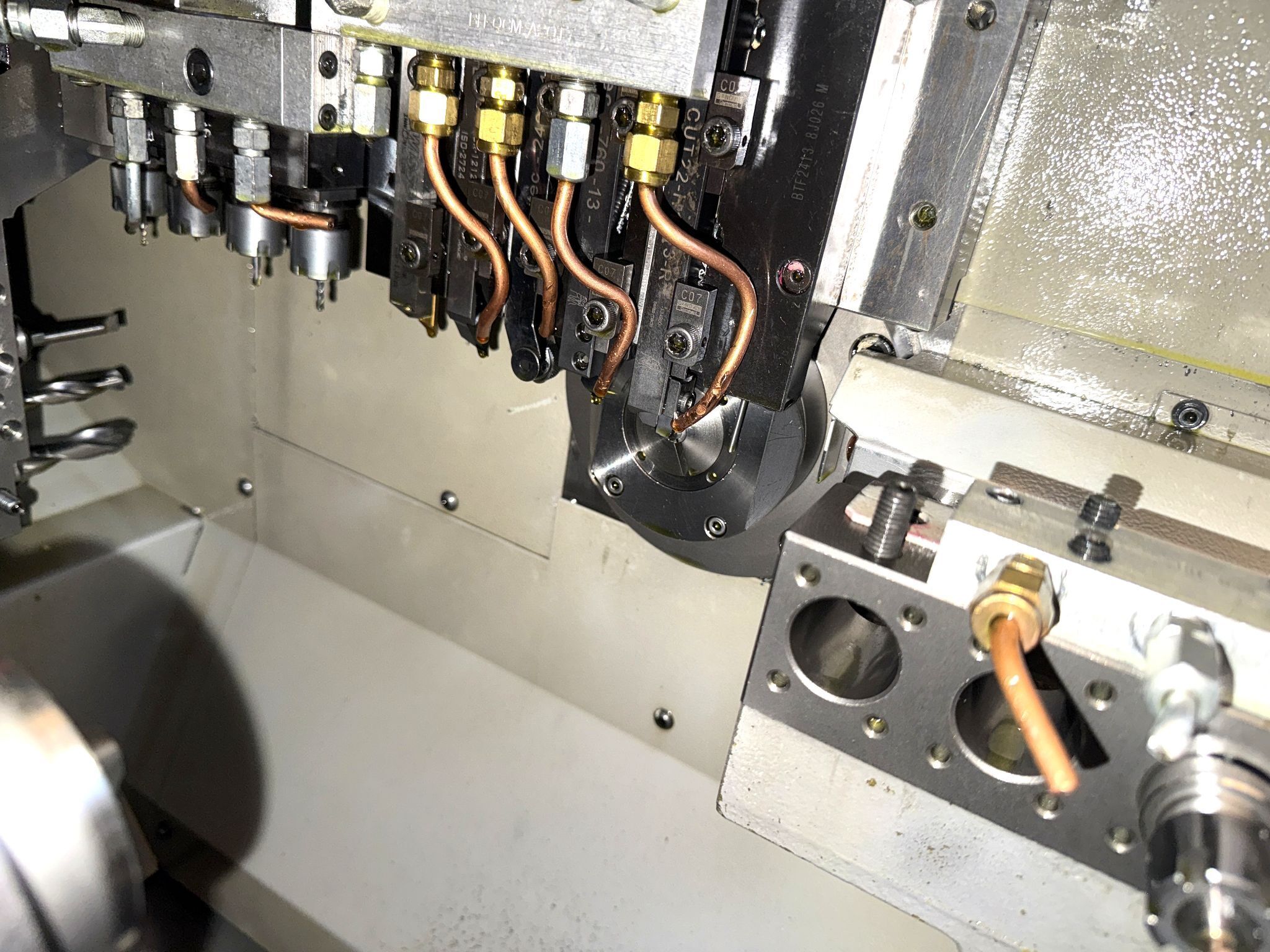

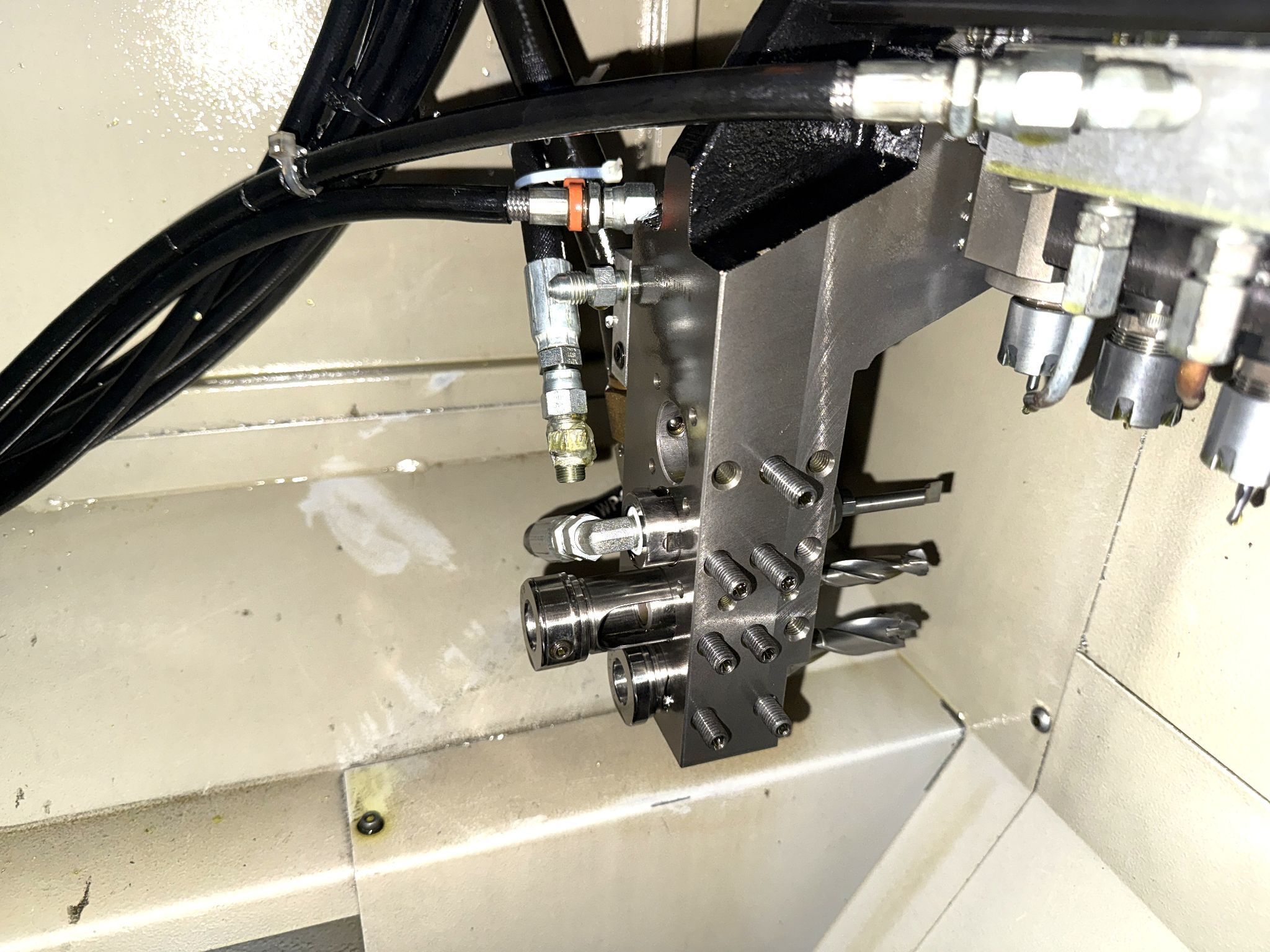

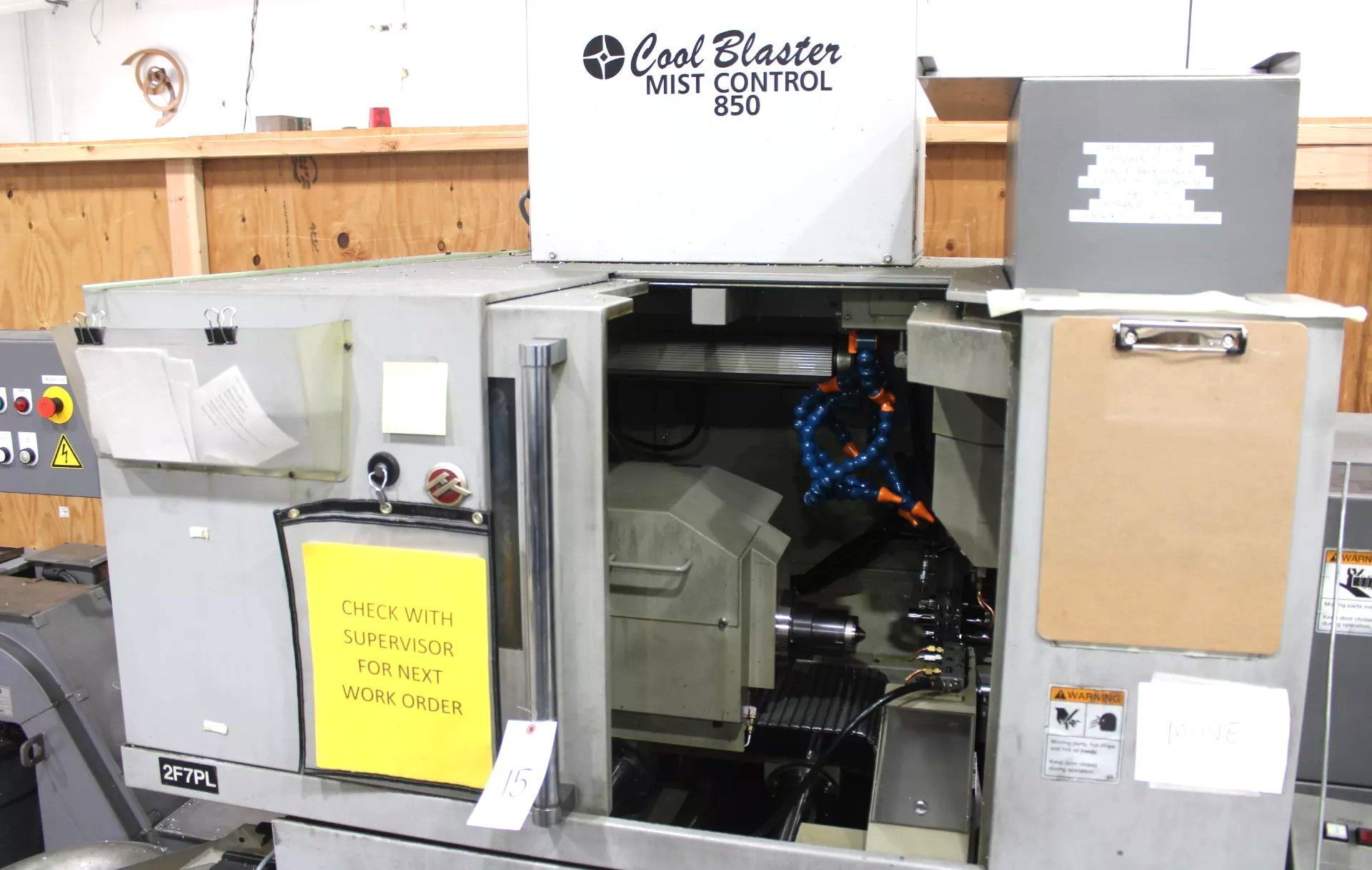

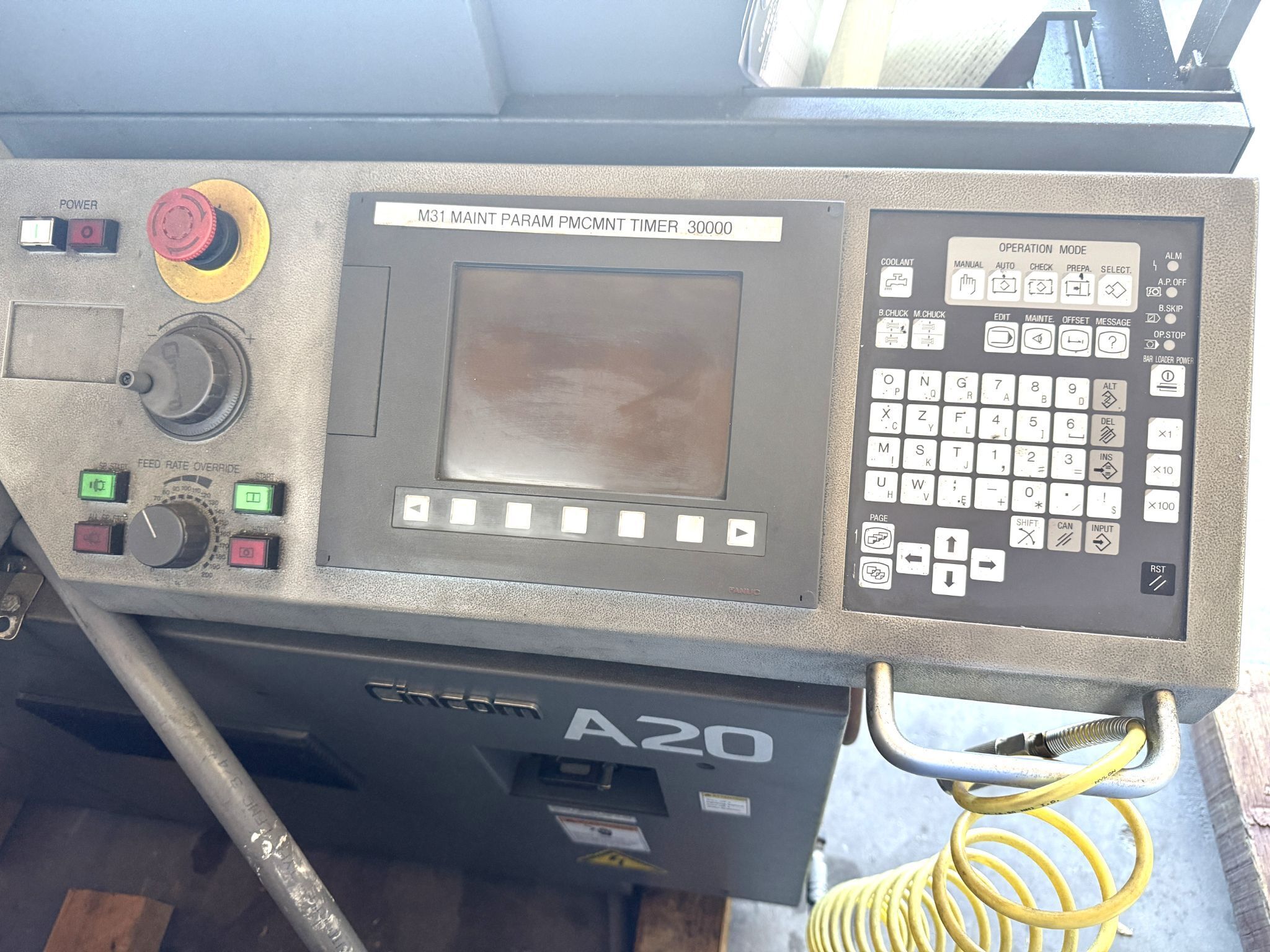

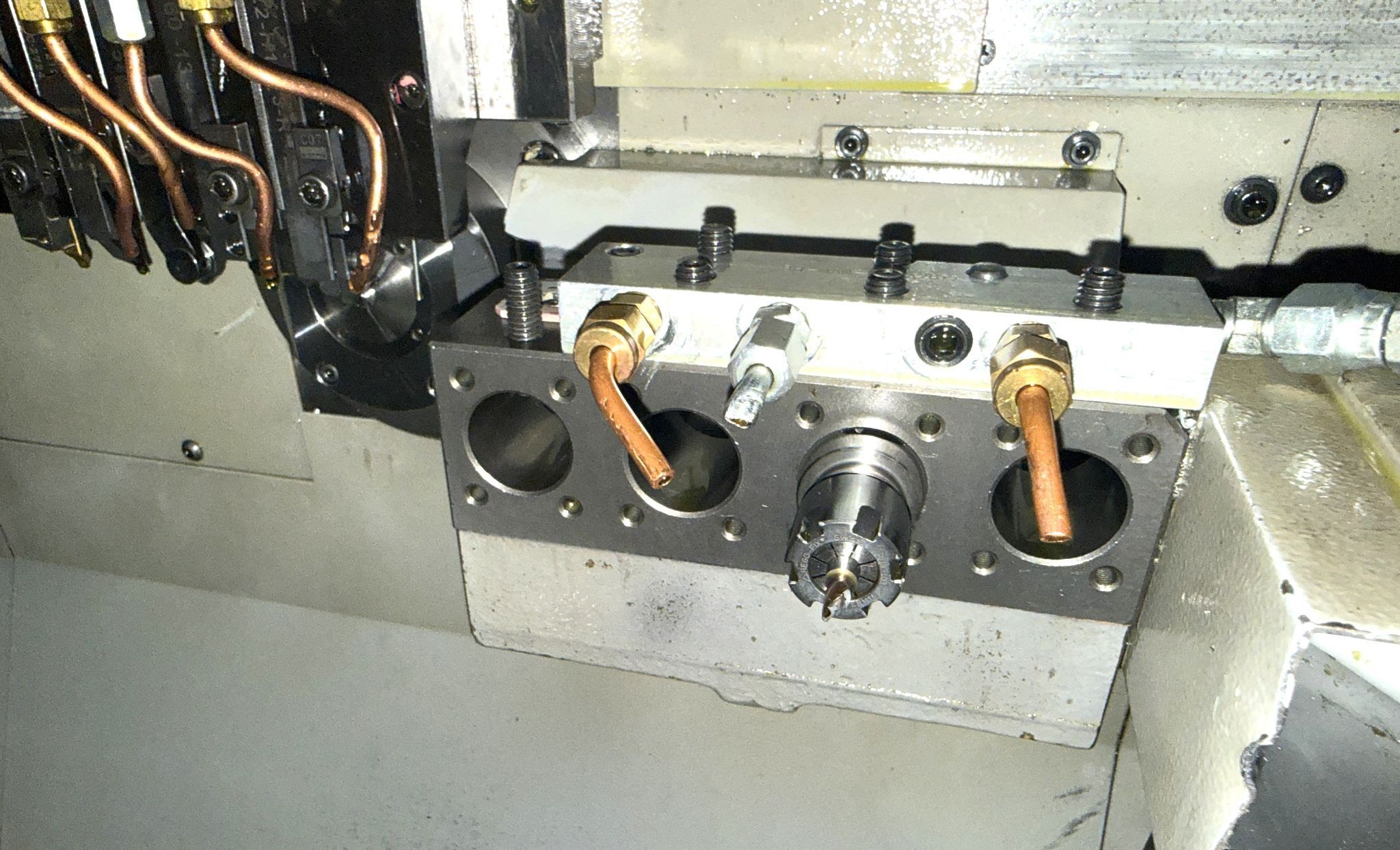

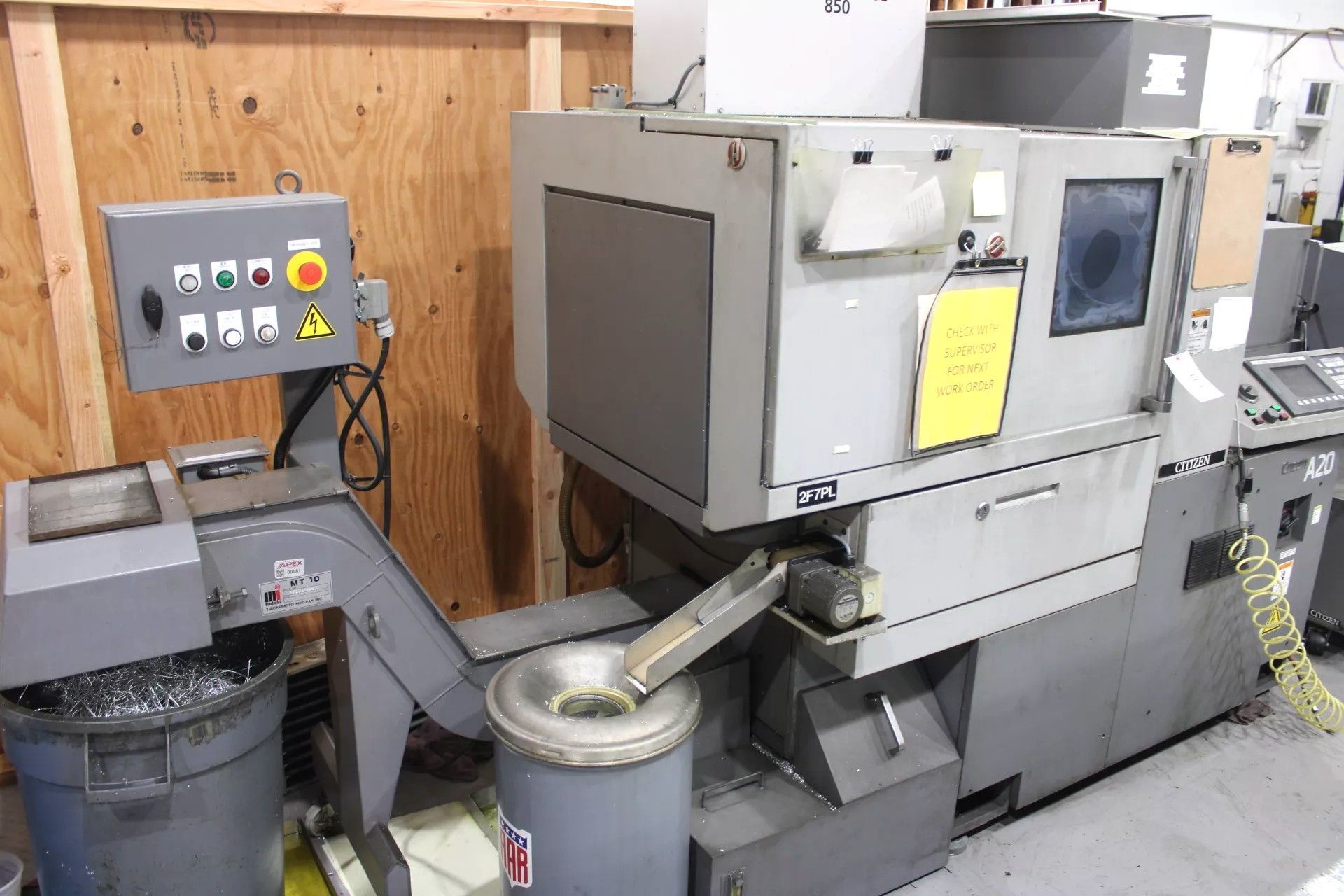

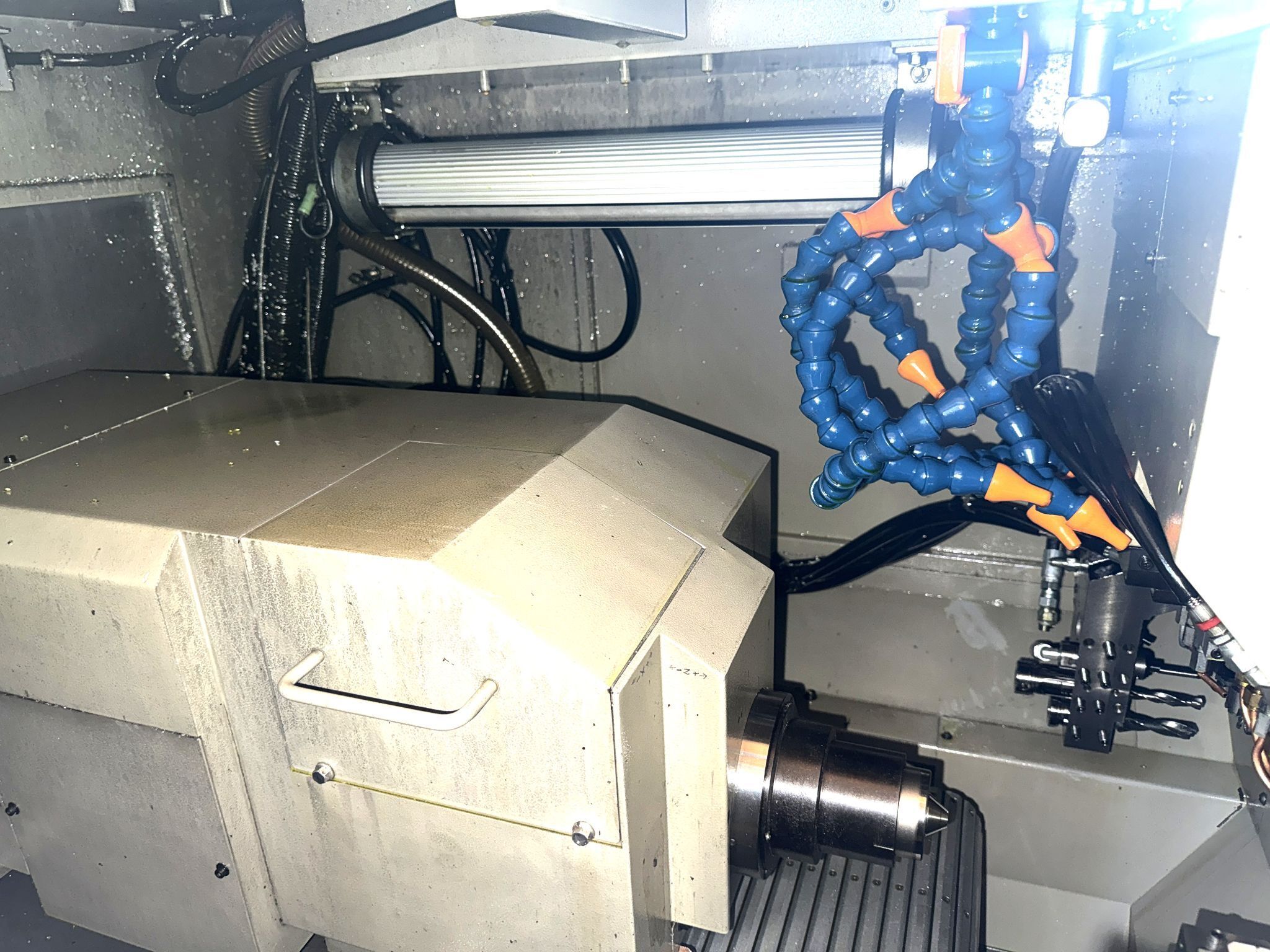

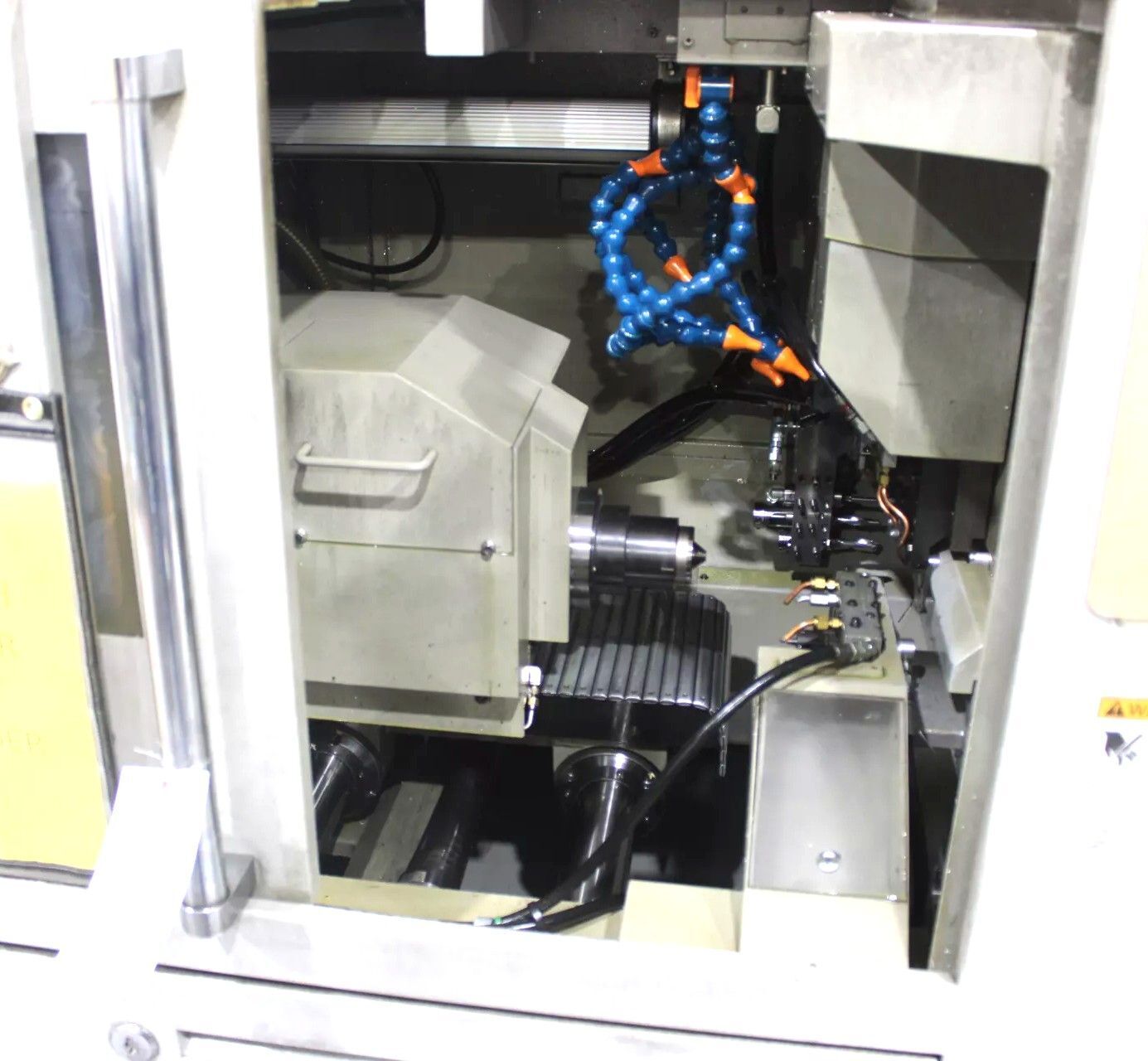

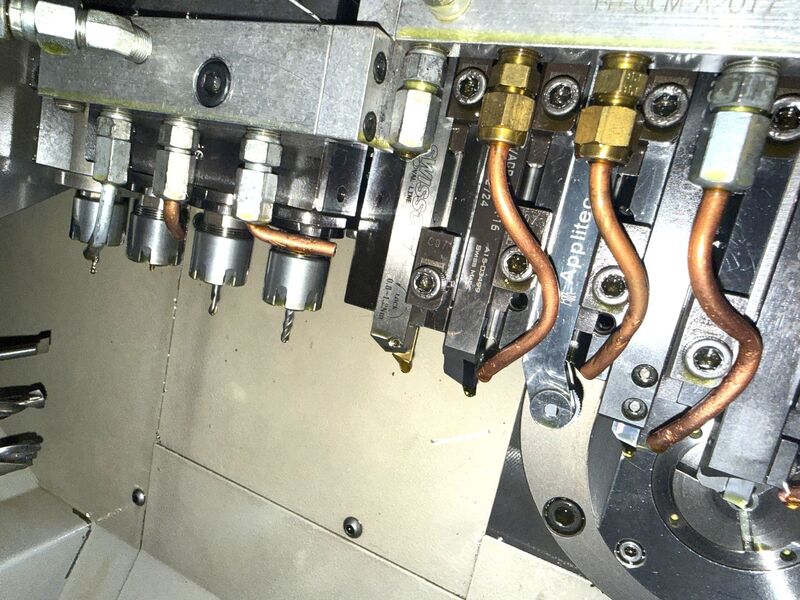

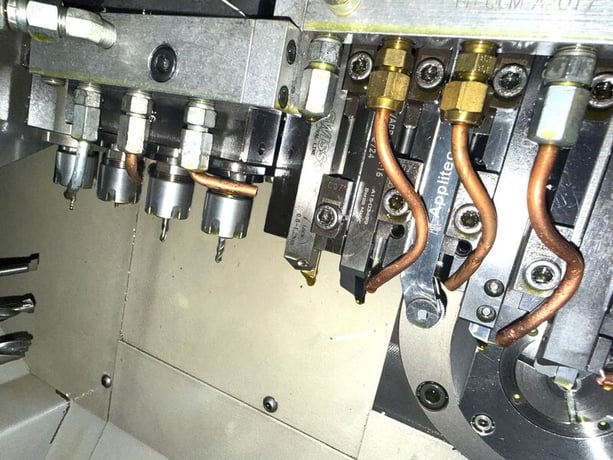

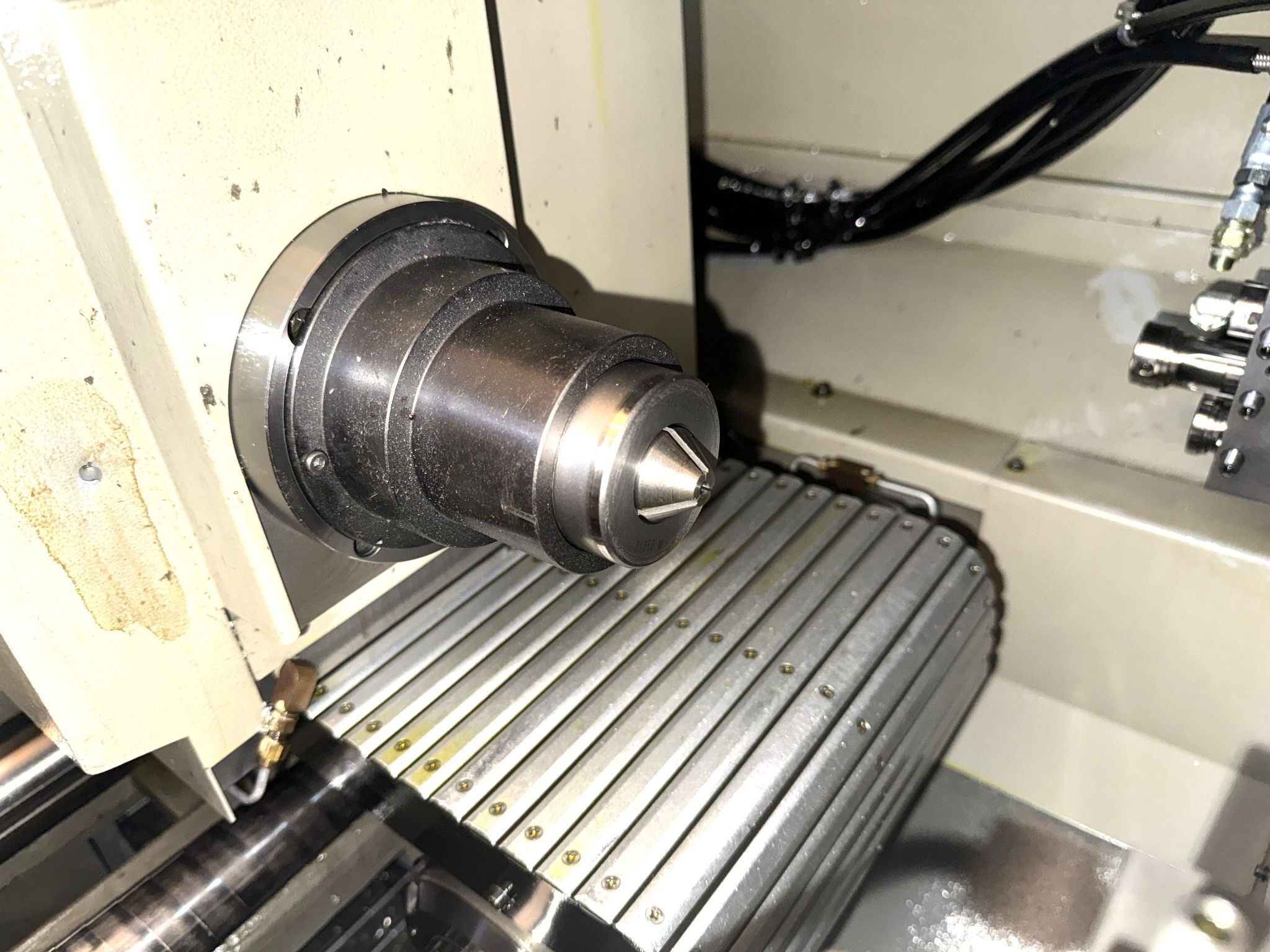

20MM CITIZEN A20 TYPE VIIPL CNC SWISS TYPE SLIDING HEADSTOCK PRECISION AUTOMATIC LATHE, NEW 2009
Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP
Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP
Get Your Price from CNC Exchange div. Gray Machinery Co.!
