Description
Description:
New in 2022
Specifications:
It is the buyers responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.
Specifications Direct From the OEM Brochure:
Max. machining diameter (D): 20 mm (25 option)
Max. machining length (L): GB:200 mm/1chucking (188 mm: 25 spec.) NGB: 2.5D
Spindle through-hole diameter: 26 mm
Main spindle speed: Max.10,000 rpm
Spindle speed of the gang rotary tool: Max. 6,000 rpm (Rating 4,500 rpm)
Max. chuck diameter of back spindle: 20 mm (25 option)
Max. protrusion length of back spindle workpiece: 50 mm
Max. protrusion length: 100 mm
Back spindle speed: Max. 8,000 rpm

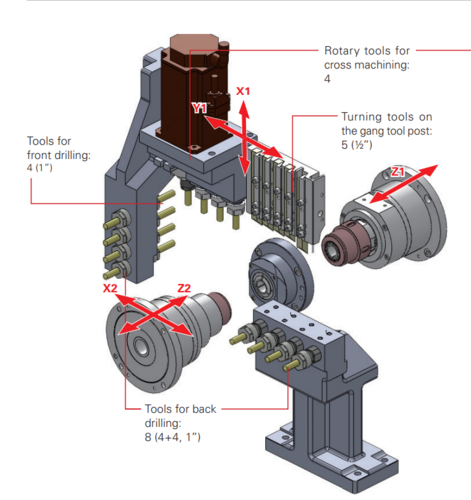

Number of tools to be mounted:21
Tool size:
Tool (gang tool post): 1/2
Sleeve: 1
Chuck and bushing:
Main spindle collet chuck: TF25 (TF30: 25 mm)
Back spindle collet chuck: TF25 (TF30: 25 mm)
Rotary tool collet chuck: ER11, ER16
Chuck for drill sleeves: ER11, ER16
Guide bushing: TD25NS (CD25: 25 mm)
Rapid feed rate:
All axes (except X1):32 m/min
X1 axis:18 m/min
Motors:
Spindle drive: 2.2 / 3.7 kW
Tool spindle drive: 0.75 kW
Back spindle drive: 1.1 / 1.5 kW
Coolant oil: 0.4 kW
Lubricating oil: 0.003 kW
Center height: 1,050 mm
Rated power consumption: 7.1 kVA
Full-load current: 20.2A
Main breaker capacity: 30A
Air pressure & air ow rate for pneumatic devices: 0.5 MPa 47NL
Weight: 4,851 lbs
Get Your Price from Machinery Resources Intl!
