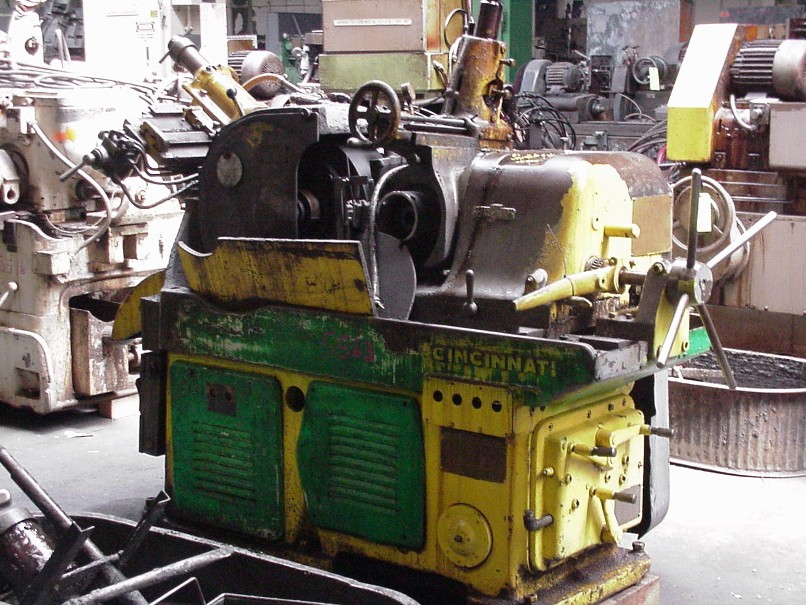

Cincinnati No. 2 Mdl. EA, centerless grinder, 4.75" capacity, 20" wheel

#2 EA Cincinnati Centerless Grinder, filmatic bearings and hydraulic profile truing on the grinding wheel. Size capacity: 1/16" to 3.5". Ideal for various grinding needs.
#2 EA CINCINNATI CENTERLESS GRINDERS
S/N 2M2H1J-432 Year: 1940
STANDARD CATALOG SPECIFICATIONS
CAPACITY(Depending on which work rest is ordered -
not included in price)
Standard work rest....................... 1/16 to 3 1/2 diameter
Low thru-feed work rest.................. 2 to 4 3/4 diameter
Bar work......(18' Long)................. 1/8 to 2 diameter
GRINDING WHEEL (Not supplied)
4,6, or 8 Width - 12 Hole
20 Maximum diameter
14 Minimum diameter
Speed -1200 RPM
REGULATING WHEEL (Not supplied)
4,6, or 8 Width - 5 Hole
12 Maximum diameter
9 Minimum diameter
Range of speeds - 12 to 300 RPM
MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x 86
Weight...................................6,400 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic profile truing on grinding wheel.
Manual profile truing on regulating wheel.
Grinding wheel mount.
Regulating wheel mount.
Coolant pump and tank.
Hydraulic pressure gage.
Manual feed with manual lever for retraction and advance.
