Cincinnati #Monoset, tool & cutter grinder, 12" swing, 1.25" Collet, 4" diameter grinding wheel, 4000-8000 RPM, 1971

$5,500 USD

Request Formal Quote

Cincinnati Monoset Tool & Cutter Grinder, 12" Swing, Motorized Workhead, All Dogs, ID Attachment, As Is.

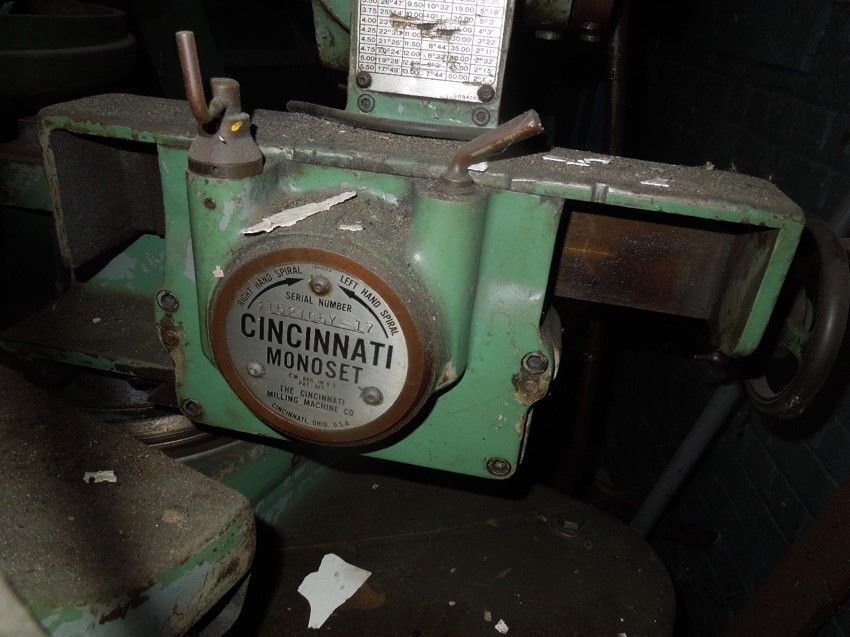

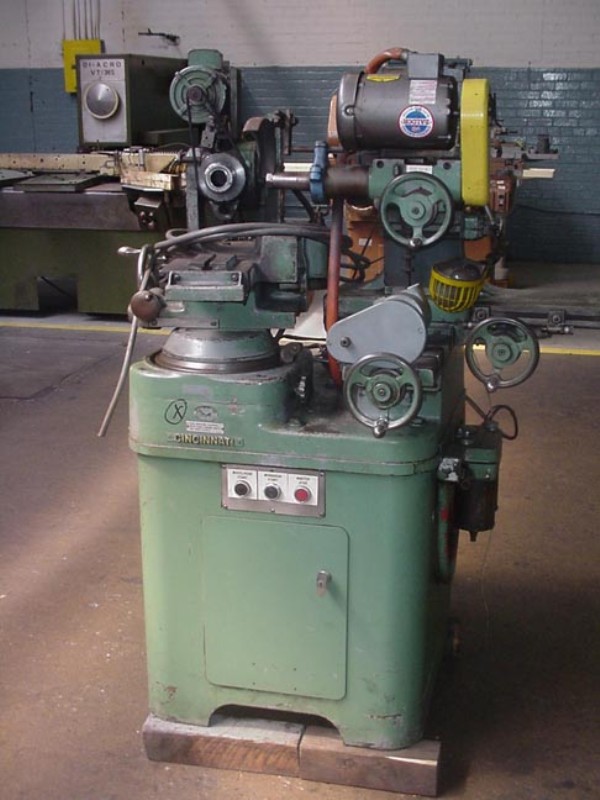

CINCINNATI MONOSET TOOL CUTTER GRINDER
S/N 31521C5Y-17Year: 1971
STANDARD MACHINE INFORMATION
GENERAL DESCRIPTION

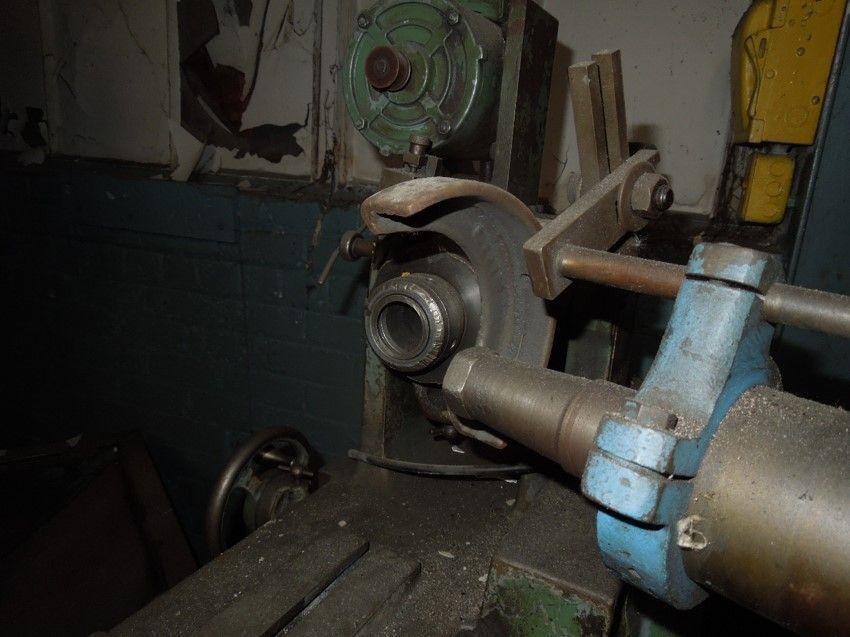

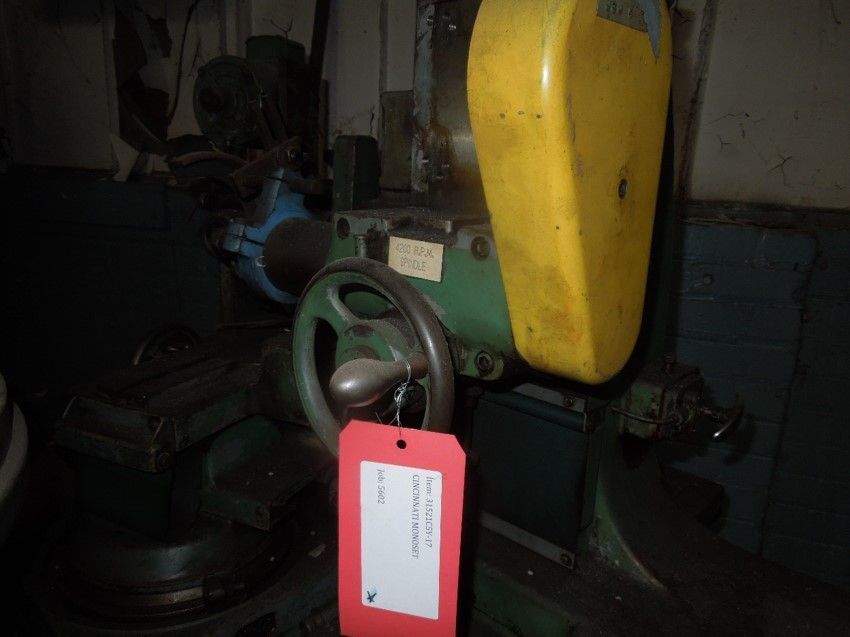

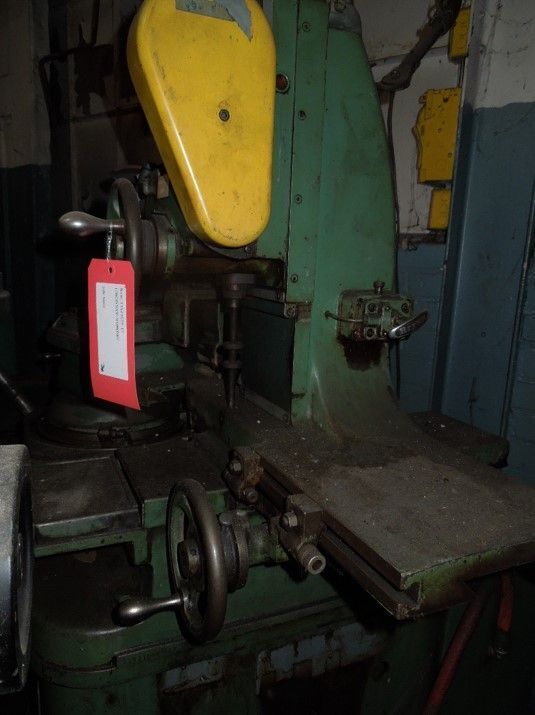

The MONOSET grinder consists of a fixed bed and two basic
units - the wheel head unit and the work head unit - strategically
located on the pedestal/base. These units provide 8 axes of
motion (5 linear, 2 swivel, and 1 rotary) that involve 8
separate machine elements as follows:

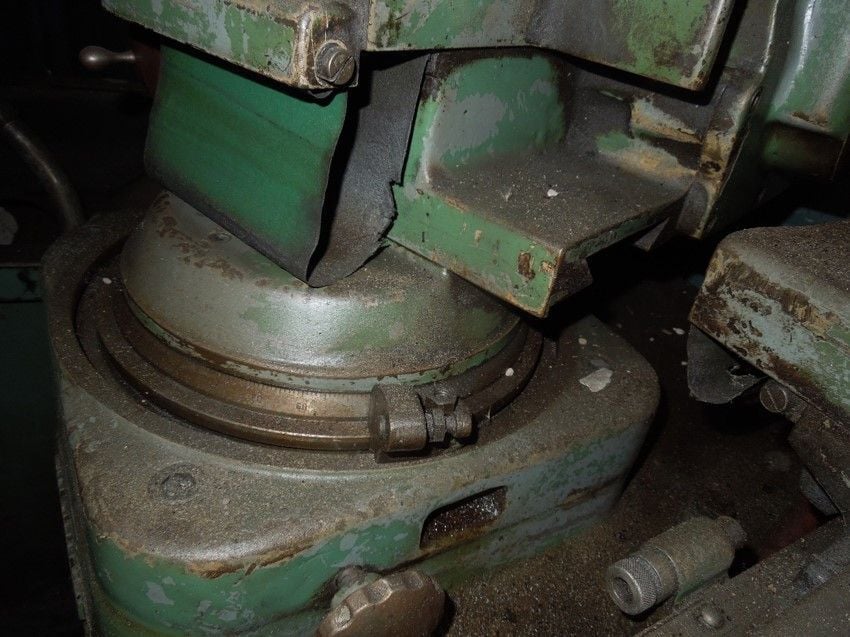

1. Work head turntable, swivels through 235 degrees
in the horizontal plane.
2. Work head offset slide, moves 5.25 inches in a
horizontal plane.
3. Work head main slide, moves 5.75 inches in a
horizontal plane.
4. Work head tilt, pivots through 80 degrees in a
vertical plane.
5. Work head spindle, rotates through 360 degrees
about its axis.
6. Wheel head cross slide, moves 7.50 inches
in a horizontal plane.
7. Wheel head longitudinal slide, moves 6.00 inches
in a horizontal plane.
8. Wheel head vertical slide, moves 9.50 inches in a
vertical plane.
CAPACITY
Work head swing over main slide max. dia............... 12
Work head collet hole - max. dia....................... 1.25
Grinding wheel - max. dia..............................4
Distance between work head spindle nose and tall
center - max. length...................................6

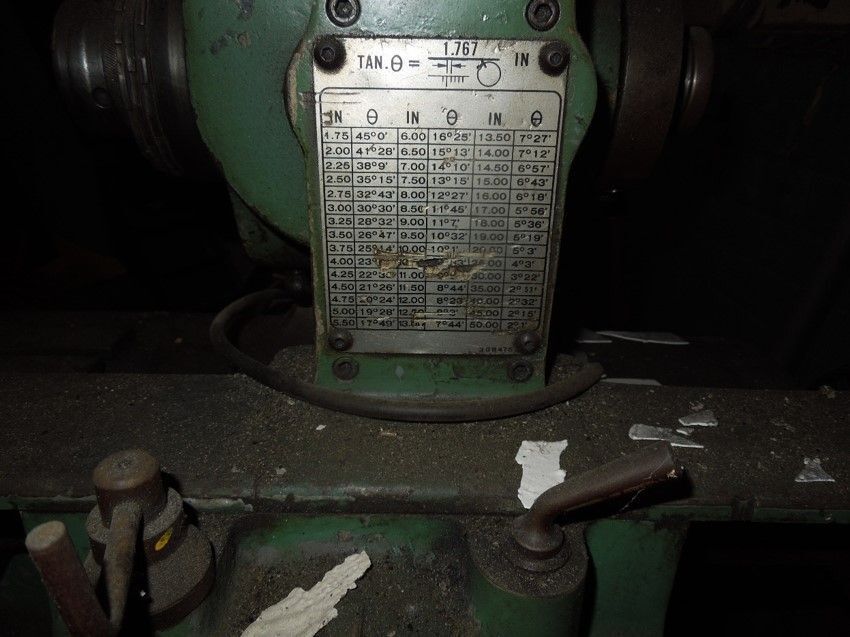

Lead generated by lead machine mechanism - min......... 1.81
RANGE
Work head, longitudinal slide movement................. 5.75
Work head, offset (cross) slide movement............... 5.25
Front of center........................................3
Rear of center.........................................2.25
Work head, turntable swivel -max (degrees)............ 235
Work head, vertical tilt(degrees)..................... 80
Above and below center(degrees)....................... 40
Work head, spindle rotation(degrees).................. 360
Wheel head, longitudinal slide movement................ 6
Wheel head, transverse (cross)slide movement.......... 7.50
Wheel head, vertical movement..........................9.50
Above center...........................................4.50
Below center...........................................5
SPEEDS
Allowable variations of speeds, with spindle running... 0%
Freely and under no load............................... -8%
Work head spindle - 1 speeds of (RPM).................. 295
Wheel head spindle - 3 speeds of (RPM)........ 4000, 5729, 8000
FLOOR SPACE SHIPPING DATA
Area of base only......................................25 x 26
Area required for machine, including swivel
and over travel movements.............................. 60 x 67
Height, from floor to center of work head
spindle................................................47.72
Height, overall with wheel head raised................. 62.12
Net weight (including motor controls),
approx.................................................1525 lbs.
EQUIPMENT FEATURES
Motorized work head.

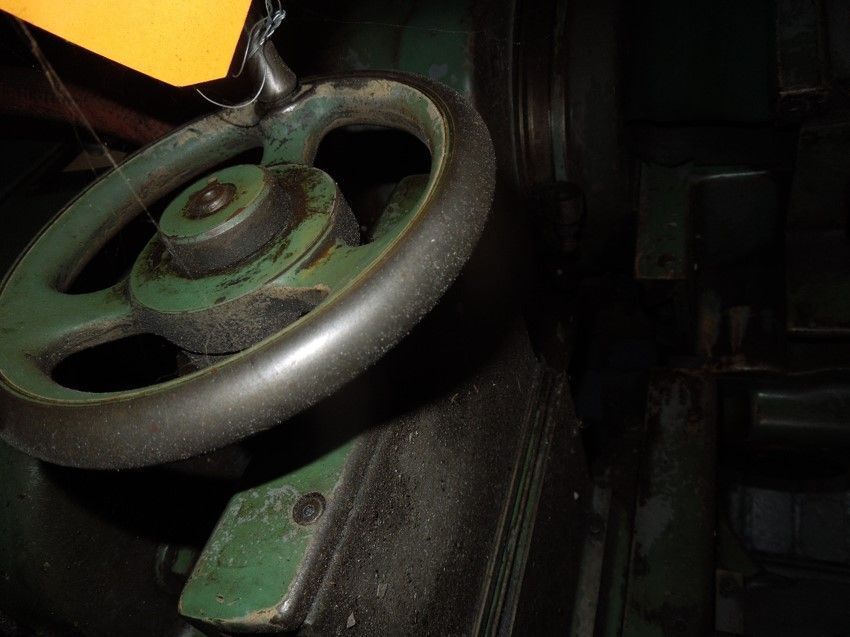

Micrometer hand wheel.
Table dogs.
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
