For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Louisville, KY
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$7,950 USD
Description
Spec Sheet:

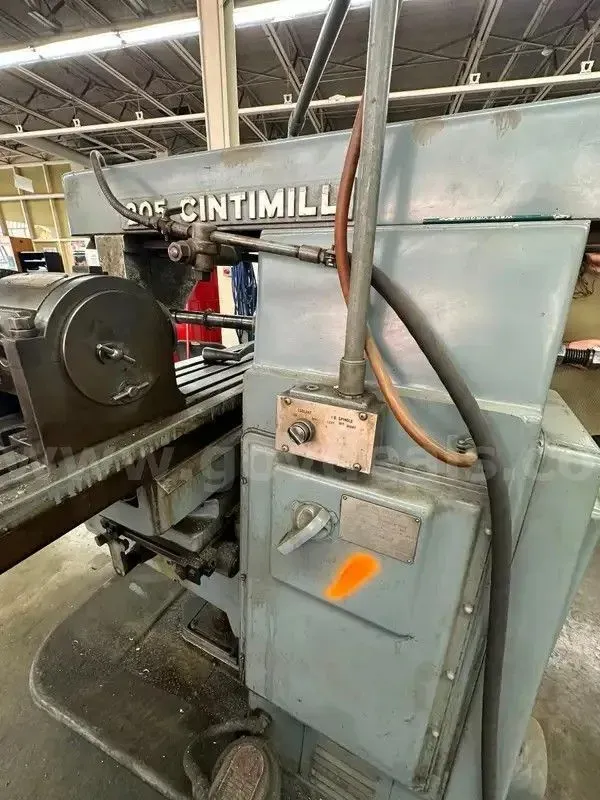

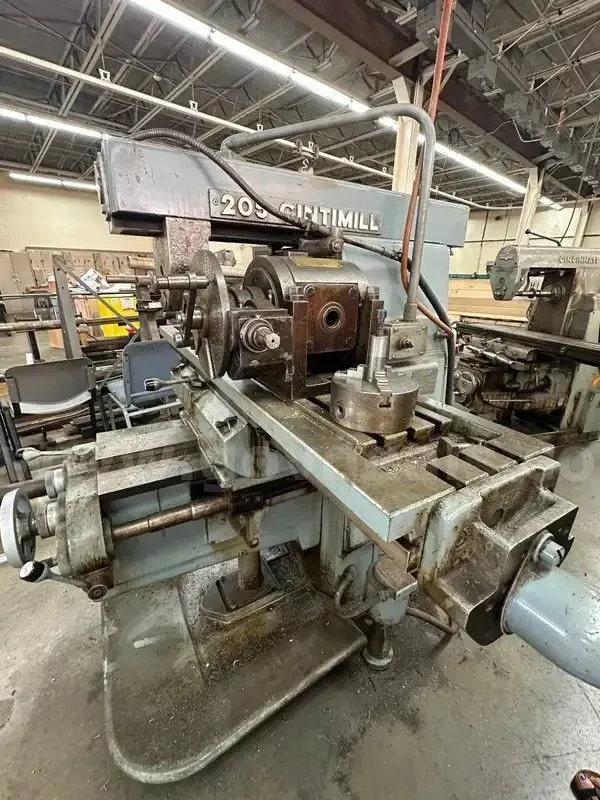

205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL HORIZONTAL MILL w/I.O.S VERTICAL-HEAD MILLING SPINDLE
Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL"
EQUIPPED WITH:
Cincinnati Universal Dividing Head
Knee Motor - Bijur One Shot Lube System
Arbor Support & Arbor - Built-In Backlash Eliminator
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 52.75"
Table Longitudinal Travel (X-Axis) 28"
Table Swivel, Range 45-DEGREES R & L
Saddle In-Out Cross Travel (Z-Axis) 10"
Knee Vertical Travel (Y-Axis) 14"
Spindle Taper #50 NSTD
(32) Spindle Speeds, Range 40 to 1800 RPM
(12) Longitudinal and Cross Feeds 1/2 to 30 IPM
(12) Vertical Feeds, Range 1/4 to 15 IPM
Power Rapid Traverse, Long & Cross 85 IPM
Power Rapid Traverse, Vertical 42.5 IPM
Spindle Motor, Horsepower 5 HP
Feed Motor, Horsepower 1 HP
Floor Space Required, W x D 8' x 7'
Weight, Approximately 4050 LBS
NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE.
205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL HORIZONTAL MILL w/I.O.S VERTICAL-HEAD MILLING SPINDLE
Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL"
EQUIPPED WITH:
Cincinnati Universal Dividing Head
Knee Motor - Bijur One Shot Lube System
Arbor Support & Arbor - Built-In Backlash Eliminator
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 52.75"
Table Longitudinal Travel (X-Axis) 28"
Table Swivel, Range 45-DEGREES R & L
Saddle In-Out Cross Travel (Z-Axis) 10"
Knee Vertical Travel (Y-Axis) 14"
Spindle Taper #50 NSTD
(32) Spindle Speeds, Range 40 to 1800 RPM
(12) Longitudinal and Cross Feeds 1/2 to 30 IPM
(12) Vertical Feeds, Range 1/4 to 15 IPM
Power Rapid Traverse, Long & Cross 85 IPM
Power Rapid Traverse, Vertical 42.5 IPM
Spindle Motor, Horsepower 5 HP
Feed Motor, Horsepower 1 HP
Floor Space Required, W x D 8' x 7'
Weight, Approximately 4050 LBS
NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE.
Inquire Further with Machinery Central!
