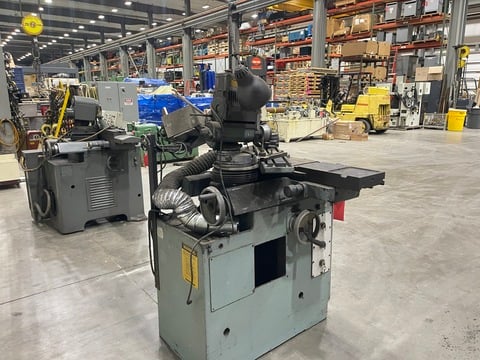

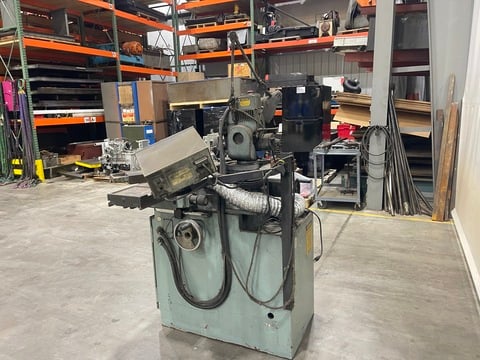

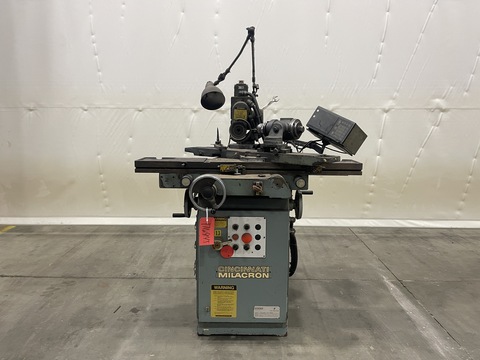

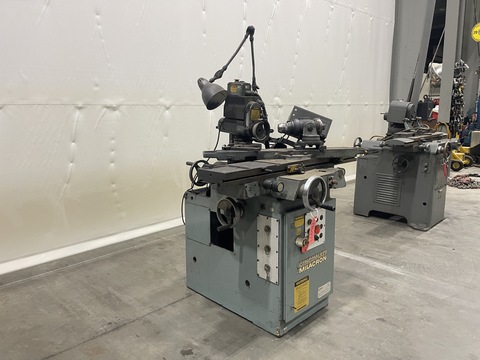

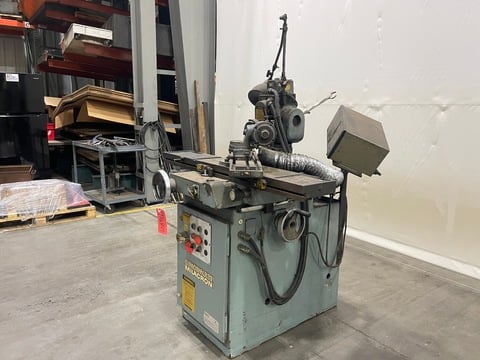

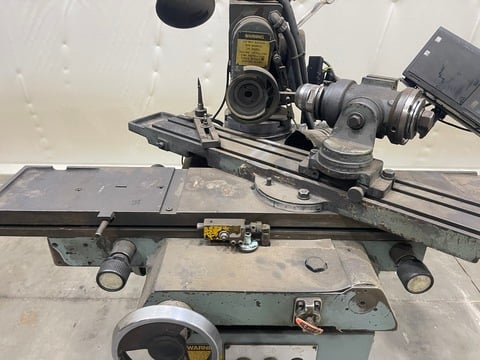

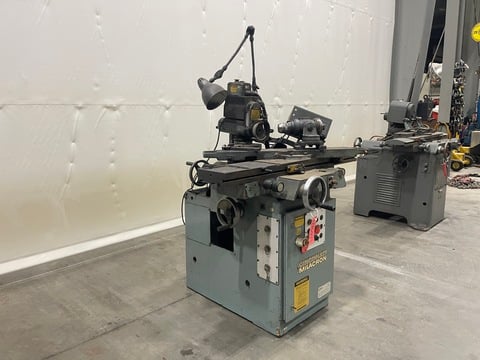

Cincinnati Milacron #2, Tool & Cutter Grinder

Capacity 16" Table Travel

Swing over table: 10" dia.

Swing over table using raising blocks: 14" dia.

Length, between right and left-hand tailstocks: 27"

Length, between tailstock and workhead: 21.5"

Face mills in workhead: 10" dia.

Formed cutters (using 6" wheel): 10 dia.

Table

T-Slots(number and size): One 0.563"/0.565"

Working Surface: 6" x 36"

Range

Longitudinal movement of table: 16"

Cross movement of table: 10"

Table swivel: 180 degrees

Tange bar taper setting device (taper/ft. on dia.):

Toward wheelhead: 5"

Away from wheelhead: 5"

Fine adjustment taper setting device (taper/ft. on dia.):

Toward wheelhead: 2"

Away from wheelhead: 2"

Table graduated in center: 90 degrees

Vertical movement of grinding wheel spindle: 10.5"

Maximum distance, spindle centerline to top of table: 13.5"

Tilting movement of grinding wheel spindle above

and below the horizontal centerline: 15 degrees

Swivel movement of grinding wheel spindle: 360 degrees

Speeds

6" wheel, surface speed 6022 ft/min.: 3834 rpm

3.5" wheel, surface speed 5887 ft/min.: 6425 rpm

Motor

Size: 1 hp

Frequency: 60 Hz

Voltage: 230/460

Shipping Data

Net weight: 2365 lbs.

Domestic shipping weight: 2464 lbs.

Size of case: 62" x 60" x 65"

Preliminary Specifications - Subject to Verification
