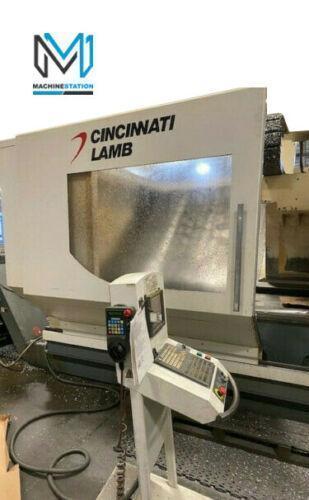

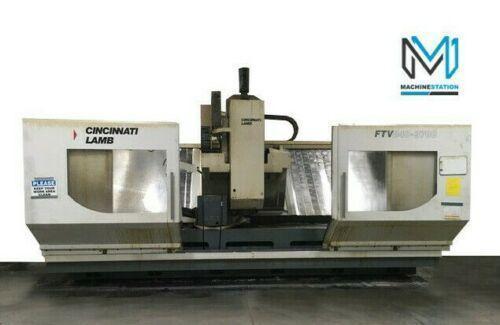

Cincinnati Lamb #FTV840-3700, CNC vertical machining center, 50 automatic tool changer, 145" X, 31.5" Y, 32" Z, 10000 RPM, #40, 25 HP, Fanuc 18i-MB, Renishaw RMI-Q probe, chip conveyor, thru spindle coolant, 2004

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

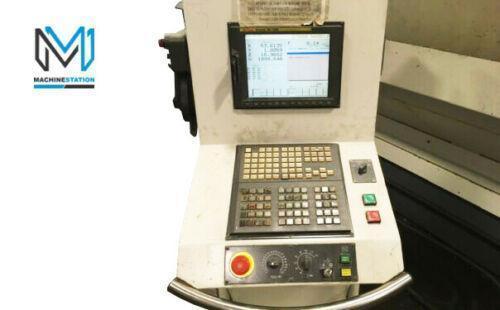

Fanuc 18i-MB CNC Control
25 HP High Torque Spindle Motor
40 Taper 10000 RPM Geared Head Spindle
PCMCIA Card Slot
MPG Control
Telescopic way covers
Coolant System
Travels:
X-Axis: 145"
Y-Axis: 31.5"
Z-Axis: 32"
Rapid Traverse Rates: 1575 Inch Per Minute
Cutting Feed Rates: Inch Per Minute
Spindle Nose to Table (Min.- Max.): " "
Table:
Length: 165"
Width: 31.5"
Number of Std T-Slots:
T-Slot Width: "
Max Weight on Table: lbs
Spindle:
Taper Size: CAT-40
Speed Range: 10000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 50
Max Tool Weight: lbs
Max Tool Dia: "
Max Tool Length: "
Tool Changing Time: Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 236" x 11' 6" x 12' 3" High
Weight: 48000 lbs. approx.
