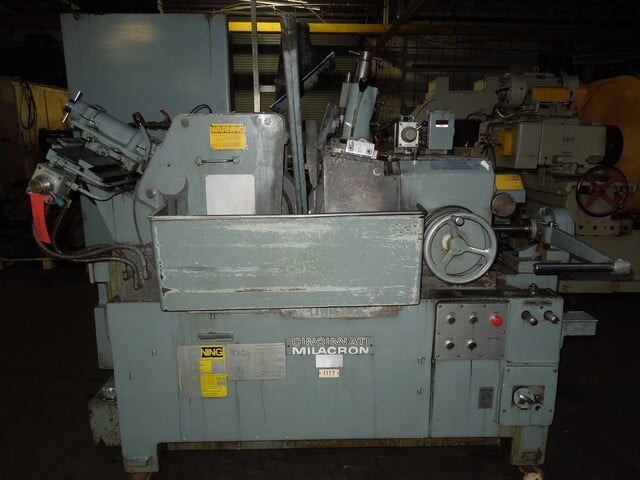

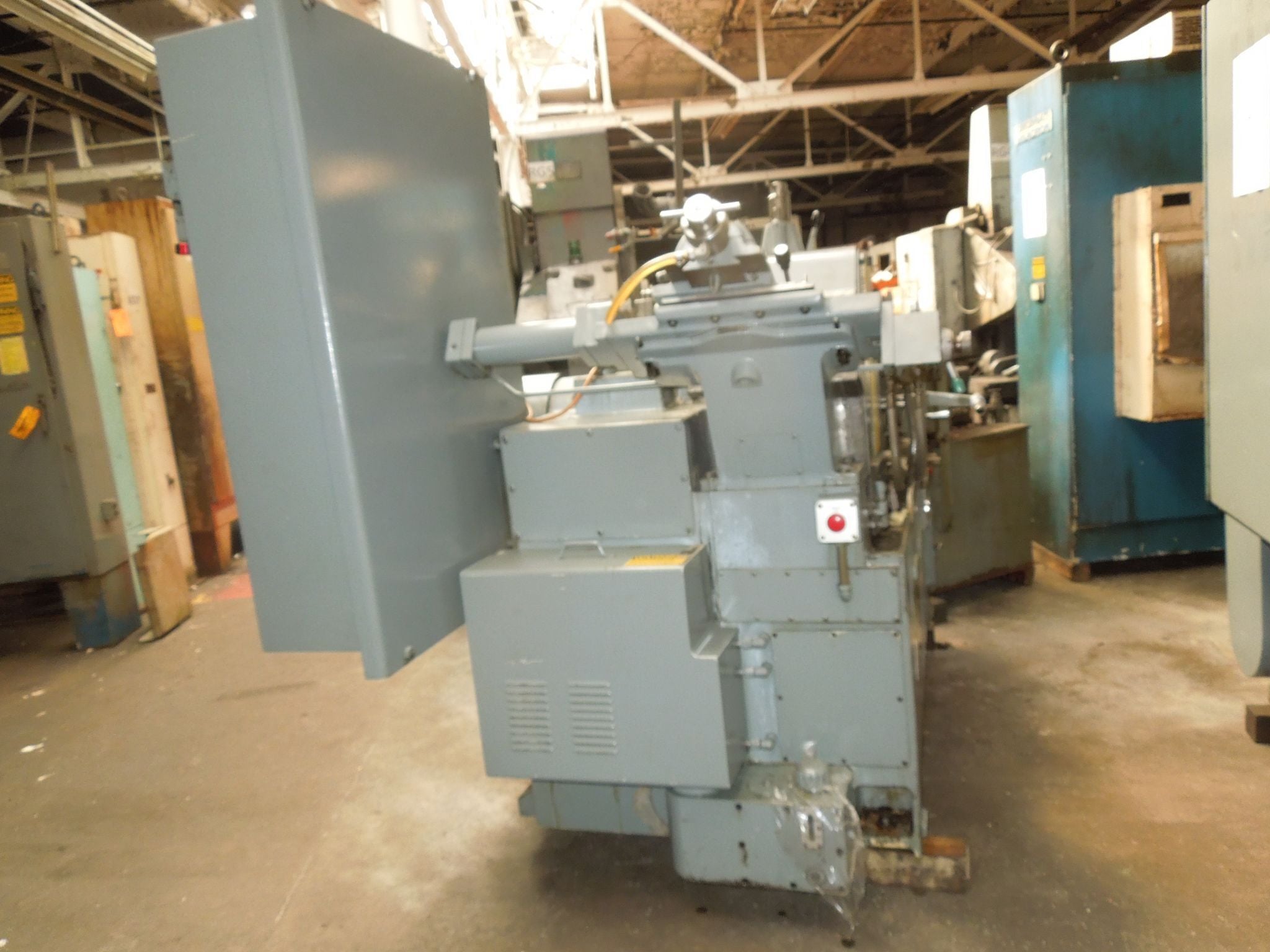

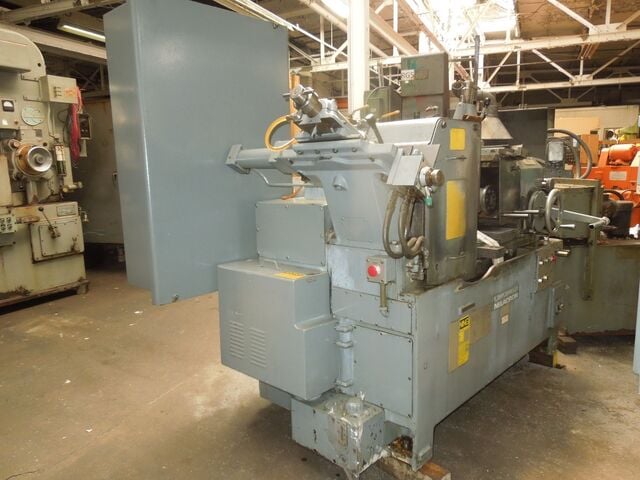

Cincinnati No. 15 Mdl. Cinco-DR, centerless grinder, 4.75" diameter work capacity, 3" diameter work rest capacity, 24" diameter & 12" diameter wheels capacity, 15 HP, 1983

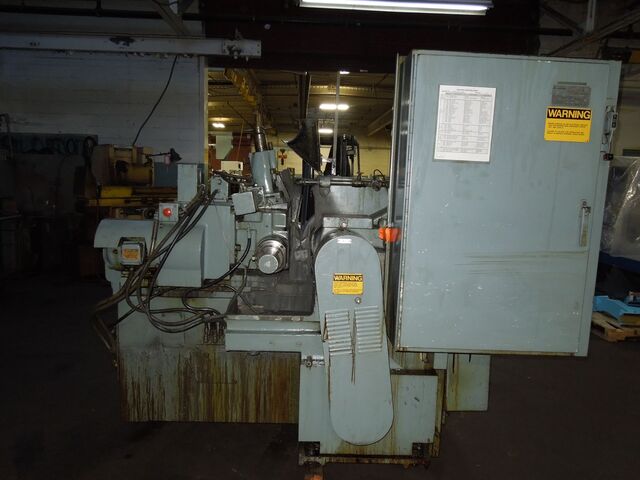

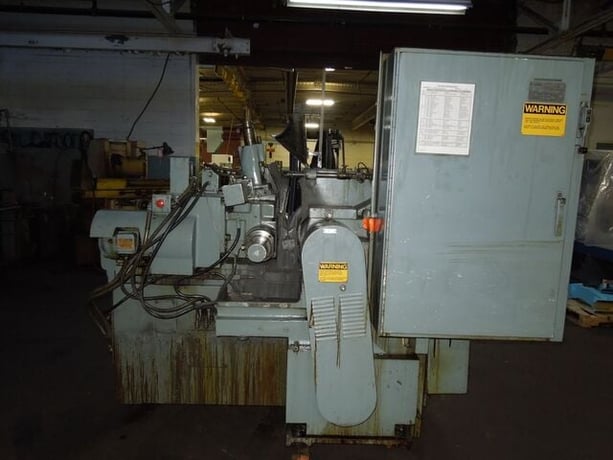

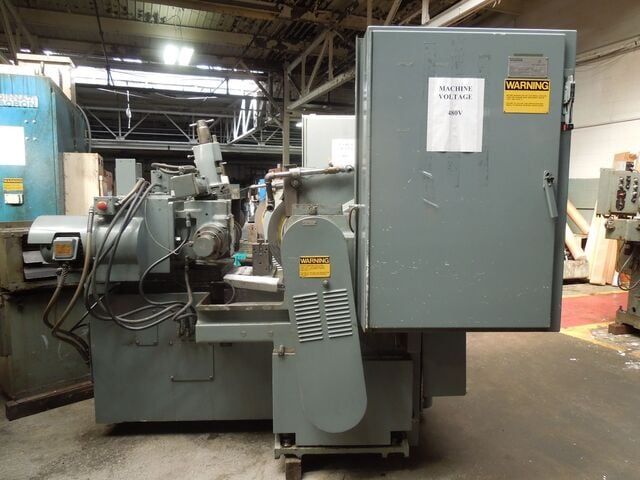

Cincinnati Cinco 15 Centerless Grinder, 24" Grinding Wheel, Workrest, Attached Electrical
CINCINNATI CINCO 15 CENTERLESS GRINDER

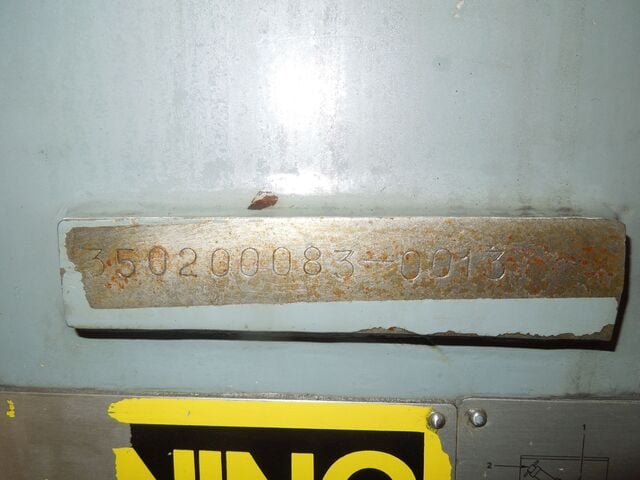

S/N 350200083-0013 YEAR: 1983
STANDARD CATALOG SPECIFICATIONS
Standard thru feed & infeed work rests............. 3" dia.
Max. work diameter (Depending on which work rest is
ordered)........................................... 4 3/4"
WHEELS
Grinding Wheel Widths: Up to 8", 12" Hole
Maximum diameter:......... 20/24" Minimum diameter:.. 15"
Regulating Wheel Widths: Up to 8", 5" Hole
With 1 1/2" C.B. Back
Maximum diameter:......... 12" Minimum diameter:.. 9 3/4"
POWER REQUIREMENTS
Grinding wheel drive motor (1500 or 1800 RPM)...... 15 HP
Regulating wheel drive motor (1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or 1800 RPM)............ 1 HP
Cutting fluid pump motor........................... 1/4 HP
REGULATING WHEEL SPEEDS
Number............................................. Infinite
Range.............................................. 15 to 300 RPM
CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................ 30 Gal. min.
Cutting fluid tank capacity........................ 65 Gal. min.
SIZING ADJUSTMENT
Accurate infeed adjustment by hand wheel.
(Pivot type) graduated in.......................... .001"
WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
Hydraulic profile screw type diamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)
Specifications are deemed accurate, however, subject to verification or prior sale.
