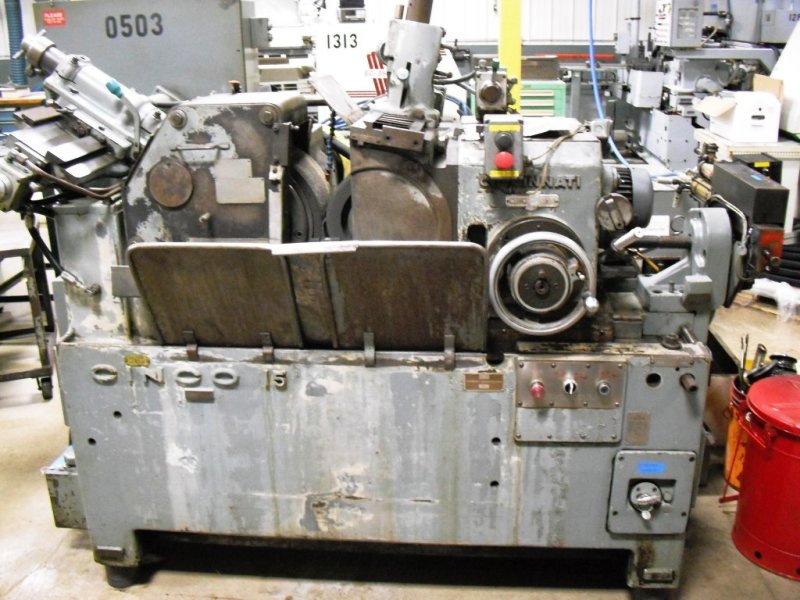

Cincinnati No. 15 Mdl. Cinco-DE, centerless grinder, 4.75" diameter work capacity, 8" Infeed work rest, 20" diameter x 8" width grinding wheel, 15 HP, 1967

Cincinnati Cinco-15 Centerless Grinder, 20" OD Grinding Wheel, 8" Infeed Workrest, Fellows Infeed Unit, As Is.
CINCINNATICINCO-15 CENTERLESS GRINDER
S/N 35028H5T-0068Year:1967
STANDARD CATALOG SPECIFICATIONS
Standard thru-feed in feed work rests............. 3 dia.
Max. work diameter (Depending on which work rest is
ordered)...........................................43/4
WHEELS
Grinding Wheel Widths: Up to 8, 12 Hole
Maximum diameter:.........20Minimum diameter:.. 15
Regulating Wheel Widths: Up to 8, 5 Hole
With 1 1/2 C.B. Back
Maximum diameter:.........14Minimum diameter:.. 9 3/4
POWER REQUIREMENTS
Grinding wheel drive motor (1500 or 1800RPM) 15 HP
Regulating wheel drive motor (1000 or 1200RPM) 1 HP
Hydraulic pump motor (1500 or 1800RPM)1 HP
Cutting fluid pump motor...........................1/4 HP
REGULATING WHEEL SPEEDS
Number.............................................Infinite
Range..............................................15 to 300RPM
CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................30 Gal. min.
Cutting fluid tank capacity........................65 Gal. min.
SIZING ADJUSTMENT
Accurate in feed adjustment by hand wheel.
(Pivot type) graduated in...........................001
WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
Hydraulic profile screw type diamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)
EQUIPPED WITH
Fellow in feed unit.
Attached electrical panel.
20 diameter grinding wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
