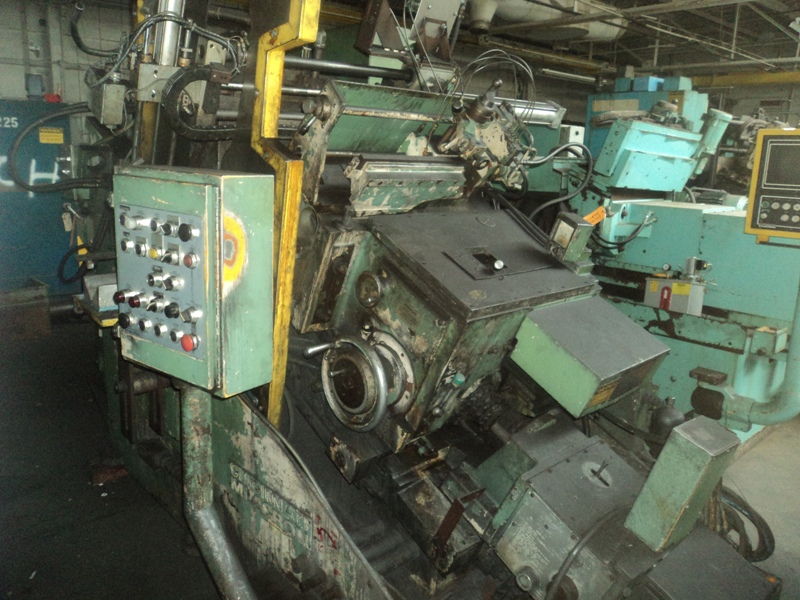

Cincinnati No. 430-12 Mdl. LR, Non TG centerless grinder, 10" diameter work capacity, 4" diameter work rest capacity, 24" diameter x 12" width grinding wheel, 30 HP, 1981

#430-12 Cincinnati Centerless Grinder, 24" x 12" x 12" Wheel, 12" Infeed, GWD Ball Screw, HYD, Profile/ADV, As Is.
430‑12 CINCINNATI CENTERLESS GRINDER
S/N 350612H81-0001 Year: 1981
STANDARD CATALOG SPECIFICATIONS
CAPACITY
Standard thru feed and in feed work rests
accommodate work from.............................. 1 ‑ 4 Dia.
Maximum diameter machine will grind................ 10
Minimum diameter machine will grind................ 1
WHEELS (Not included as standard equipment.)
Grinding Wheel Regulating Wheel
12 Hole 6 Hole
12 Width only 12 Width only
24 Maximum Diameter 14 Maximum Diameter
17 Minimum Diameter 10 1/4 Minimum Diameter
GRINDING WHEEL SPEEDS
Number: Infinite
Range:60 cycle: 12‑300 RPM, 50 cycle: 15 to 315 RPM
Low Range:60 cycle: 12‑56 RPM, 50 cycle: 15 to 59 RPM
High Range: 60 cycle: 56‑300 RPM, 50 cycle: 59 to 315 RPM
GRINDING WHEEL DRIVE
Enclosed motor on end of machine................... 30 HP
Constant speed:N.E.M.A. dim., 50 or 60 cycle, 3 phase,
....................... 220 to 550 volts A.C.
Power transmission................................. 12 V‑belts
REGULATING WHEEL DRIVE
Constant speed:N.E.M.A. dim., 50 or 60 cycle, 3 phase,
.........................220 to 550 volts A.C. .......
.........................60 HZ ........................ @ 1200 RPM
.........................50 HZ ........................ @ 1500 RPM
Power transmission..............................V‑belts chain
Speed changes ............ variable pitch sheaves and gear shifts
GRINDING WHEEL SPINDLE
High grade steel forging, ground, bearing surfaces are
metallized.Five shoe, cartridge type.Filmatic spindle
bearings.Automatic circulating pressure lubrication.
REGULATING WHEEL SPINDLE
High grade steel forging, ground, bearing surfaces
metallized.Three piece plain bronze bearing each side
of wheel, plus a rear support bearing, and an anti‑friction
thrust bearing on rear end of the spindle. Automatic
pressure lubrication.
CUTTING FLUIDS
Hydrant and sewer connections.
WHEEL TRUING
Independent hydraulic profile truing on both the grinding
and regulating wheels. Both units include one hardened
straight flat cam. Diamond not included as standard
equipment.
SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in fifty millionths of an inch.
APPROXIMATE WEIGHTS AND SHIPPING DATA
Net weight........................................ 17,000 lbs.
Domestic shipping weight........................... 23,400 lbs.
Export shipping weight.............................25,000 lbs.
Approx crate size(in)............................. 144 x 86 x 102
Cubic content to crate............................ 731 Cu. Ft.
EQUIPMENT FEATURES
Grinding wheel truing with automatic diamond advance.
Accudrive motors.
Profile dressing on regulating wheel.
Electro hydraulic in feed with compensation.
Coarse and fine compensation.
Gib/Gib Ways
Attached electrical
Specifications are deemed accurate, however, subject to verification or prior sale.
